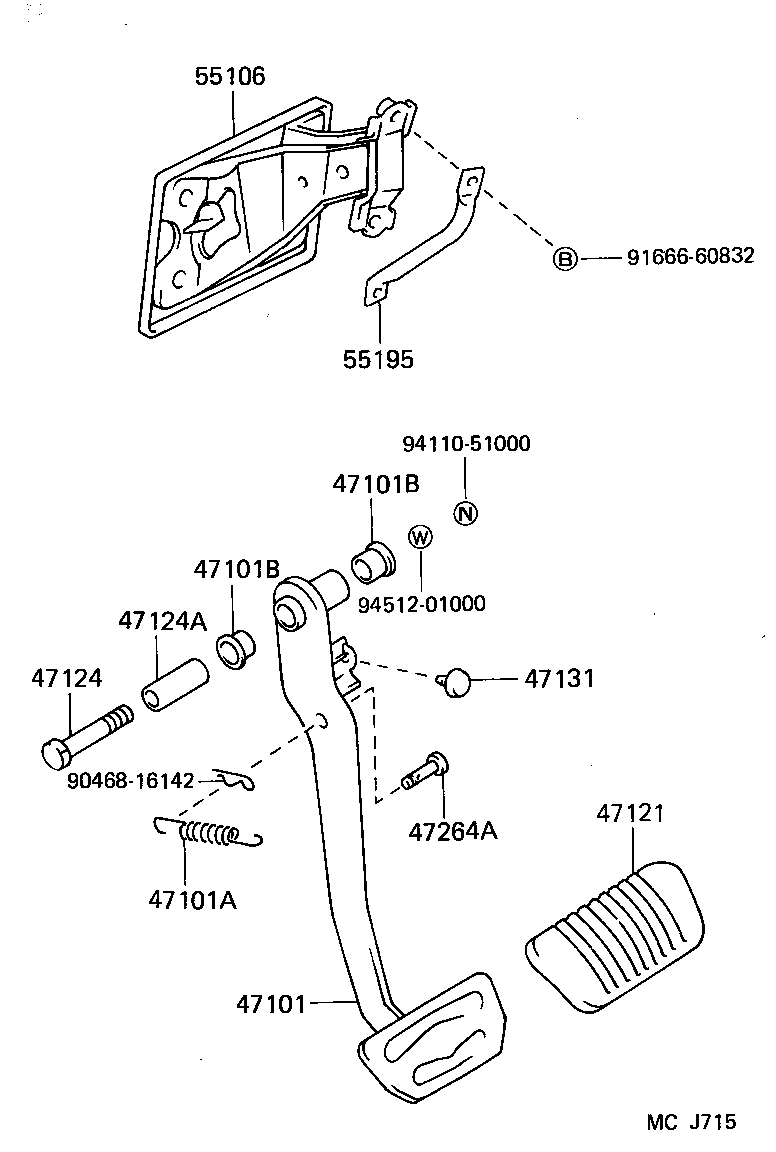

Toyota Lexus ls400 UCF10 BRAKE PEDAL & BRACKET

Part #	Description	Period	Qty
47101 - PEDAL SUB-ASSY, BRAKE
47101-50021	UCF10..RHD	05/1990 - 10/1994	1
47101-50020	UCF10..RHD	12/1989 - 05/1990	1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12033	UCF10	12/1989 - 10/1994	1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192	UCF10	12/1989 - 10/1994	2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192	UCF10	12/1989 - 10/1994	2
47121 - PAD, BRAKE PEDAL
47121-14010	UCF10	12/1989 - 10/1994	1
47124 - SHAFT, BRAKE PEDAL
90101-10039	UCF10	12/1989 - 10/1994	1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003	UCF10	12/1989 - 10/1994	1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036	UCF10	08/1992 - 10/1994	1
90541-06032	UCF10	12/1989 - 08/1992	1
47264A - PIN(FOR PUSH ROD)
90249-10064	UCF10	12/1989 - 10/1994	1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-50020	UCF10..RHD	12/1989 - 05/1990	1
55106-50022	UCF10..RHD	10/1992 - 10/1994	1
55106-50021	UCF10..RHD	05/1990 - 10/1992	1
55195 - STAY, PEDAL BRACKET, NO.1
55195-50021	UCF10..RHD	10/1992 - 10/1994	1
55195-50020	UCF10..RHD	12/1989 - 10/1992	1
Common parts
90468-16142
91666-60832
94110-51000
94512-01000

UCF10R-AEPGKQ (1989)
