UCF10R-AEPGKQ (1989)
Toyota Lexus Ls400

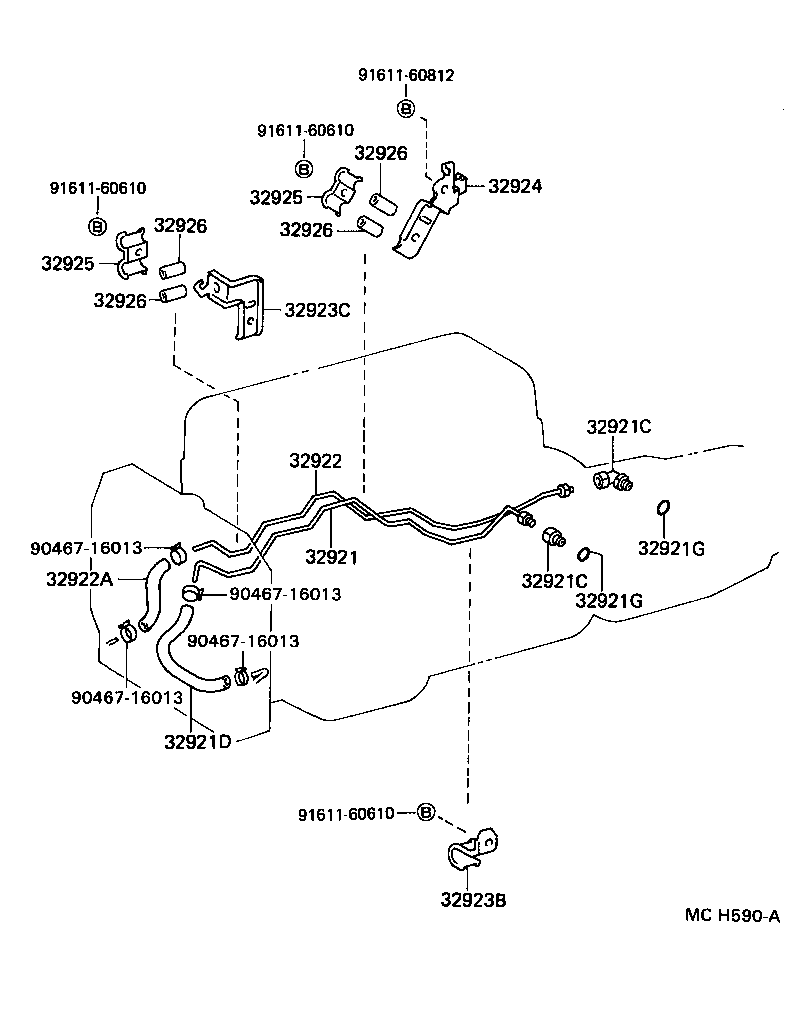

ILLUST NO. 1 OF 2(8912- )
A341E,A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-50012 |
UCF10 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
UCF10 INLET |
1 | ||
| 90404-16029 |
UCF10..ARL,GEN INTET |
1 | ||
| 90404-16020 |
UCF10 INLET |
1 | ||
| 90407-16009 |
UCF10 OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
UCF10 INLET |
1 | ||
| 90404-16029 |
UCF10..ARL,GEN INTET |
1 | ||
| 90404-16020 |
UCF10 INLET |
1 | ||
| 90407-16009 |
UCF10 OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-50011 |
UCF10 |
1 | ||
| 32941-50011 |
UCF10..ARL,EUR,GEN |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
UCF10 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
UCF10 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-50012 |
UCF10 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17100 |
UCF10 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-50010 |
UCF10 |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32924-50011 |
UCF10 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-50022 |
UCF10 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12074 |
UCF10 |
2 | ||
| 32928-50010 |
UCF10 |
2 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12074 |
UCF10 |
2 | ||
| 32928-50010 |
UCF10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| 32926-30020 |
UCF10..ARL,EUR,GEN L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| 32926-30020 |
UCF10..ARL,EUR,GEN L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| 32926-30020 |
UCF10..ARL,EUR,GEN L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| 32926-30020 |
UCF10..ARL,EUR,GEN L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
3 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-30020 |
UCF10 L=35,ID=10 |
2 | ||
| 32926-50010 |
UCF10 L=35,ID=12 |
2 | ||
| Common parts | ||||
| 90467-16013 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
