UCF10R-AEPGKQ (1989)
Toyota Lexus Ls400

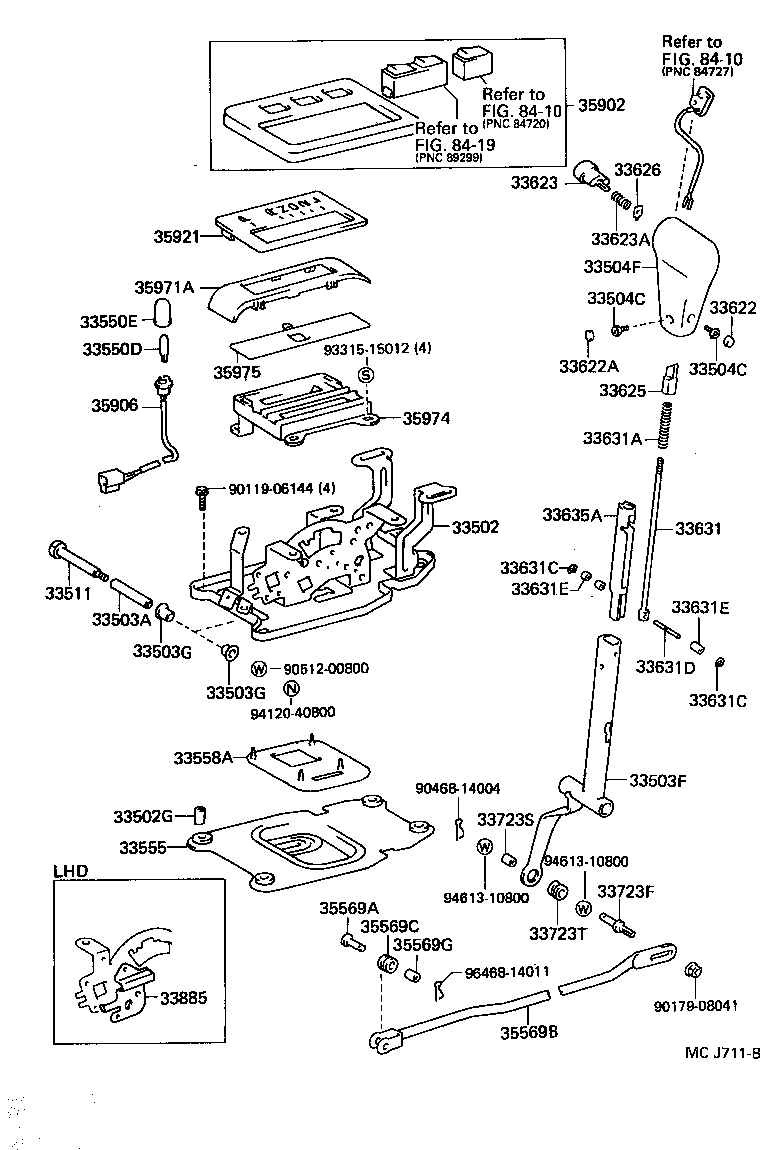

(8912-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-50080 |
UCF10..RHD |
1 | ||
| 33502-50040 |
UCF10..RHD |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-06056 |
UCF10 |
4 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08098 |
UCF10 |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-50020 |
UCF10..RHD |
1 | ||
| 33055-50040 |
UCF10..RHD |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
UCF10 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
UCF10 |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
UCF10 |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
UCF10 |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2216004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33542-2216013 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33542-2216016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33542-2216005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 33542-2218003 |
UCF10..RHD W(LEATHER PACKAGE),SHADOW GRAY,TRIM1# |
1 | ||
| 33542-2218004 |
UCF10..RHD W(LEATHER PACKAGE),DARK BLUE,TRIM8# |
1 | ||
| 33542-2218016 |
UCF10..RHD W(LEATHER PACKAGE),DARK ROSE,TRIM4# |
1 | ||
| 33542-2218005 |
UCF10..RHD W(LEATHER PACKAGE),GREIGE,TRIM0# |
1 | ||
| 33542-50030B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33542-50030E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 33542-50030J0 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33542-50030K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-50010 |
UCF10 |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
UCF10..RHD 12V 3.4W |
1 | ||
| 90981-11040 |
UCF10 12V 2W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-50010 |
UCF10 |
1 | ||
| 33555-50011 |
UCF10 |
1 | ||
| 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 | ||||
| 33558-50010 |
UCF10 |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-2207005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 33622-50020B0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 33622-2207016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33622-2207003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33622-50020K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 33622-50020J2 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 33622-2207004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33622-50020E2 |
UCF10 OAK,TRIM0# |
1 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-2205004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33622-2205003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33622-2205005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 33622-2205016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33622-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33622-50040E1 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 33622-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 33622-50040J1 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2205016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33623-2205004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33623-2205005 |
UCF10..RHD GEIGE,TRIM0# |
1 | ||
| 33623-50020J0 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33623-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 33623-2205013 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33623-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 33623-50020B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
UCF10 |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
UCF10 |
1 | ||
| 33625-22040 |
UCF10 |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-22010 |
UCF10 |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-28030 |
UCF10 |
1 | ||
| 33631-14070 |
UCF10 |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
UCF10 |
1 | ||
| 33631C - RING, E (FOR DETENT ROD) | ||||
| 96160-00300 |
UCF10 |
2 | ||
| 33631C - RING, E (FOR DETENT ROD) | ||||
| 96160-00300 |
UCF10 |
2 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04005 |
UCF10 |
1 | ||
| 33631E - ROLLER (FOR DETENT ROD) | ||||
| 90361-06006 |
UCF10 L=9.5 |
1 | ||
| 90361-06008 |
UCF10 L=2.8 |
2 | ||
| 33631E - ROLLER (FOR DETENT ROD) | ||||
| 90361-06006 |
UCF10 L=9.5 |
1 | ||
| 90361-06008 |
UCF10 L=2.8 |
2 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-50010 |
UCF10 |
1 | ||
| 33635-50020 |
UCF10 |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
UCF10 |
1 | ||
| 33723S - BUSH (FOR CONNECTING ROD SWIVEL) | ||||
| 90389-08005 |
UCF10 |
1 | ||
| 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) | ||||
| 90480-17001 |
UCF10 |
1 | ||
| 35569A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
UCF10 |
1 | ||
| 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 35569-50010 |
UCF10 |
1 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17023 |
UCF10 |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
UCF10 |
1 | ||
| 35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 35902-50060 |
UCF10..RHD |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-50020 |
UCF10 |
1 | ||
| 35906-50010 |
UCF10 |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-50020 |
UCF10..RHD |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-50010 |
UCF10 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-50010 |
UCF10 |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08041 | ||||
| 90468-14004 | ||||
| 90512-00800 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94613-10800 | ||||
| 96468-14011 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8419 | ||||

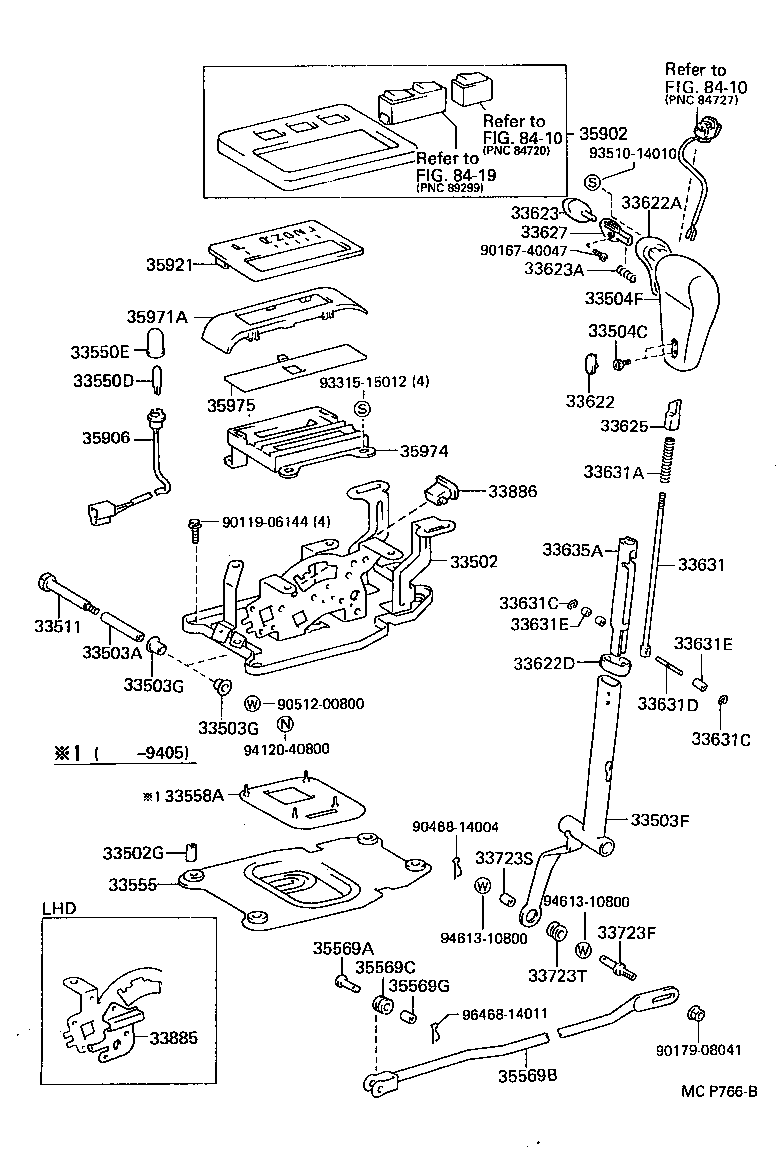

(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-50080 |
UCF10..RHD |
1 | ||
| 33502-50040 |
UCF10..RHD |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-06056 |
UCF10 |
4 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08098 |
UCF10 |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-50020 |
UCF10..RHD |
1 | ||
| 33055-50040 |
UCF10..RHD |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
UCF10 |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
UCF10 |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
UCF10 |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2216004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33542-2216013 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33542-2216016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33542-2216005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 33542-2218003 |
UCF10..RHD W(LEATHER PACKAGE),SHADOW GRAY,TRIM1# |
1 | ||
| 33542-2218004 |
UCF10..RHD W(LEATHER PACKAGE),DARK BLUE,TRIM8# |
1 | ||
| 33542-2218016 |
UCF10..RHD W(LEATHER PACKAGE),DARK ROSE,TRIM4# |
1 | ||
| 33542-2218005 |
UCF10..RHD W(LEATHER PACKAGE),GREIGE,TRIM0# |
1 | ||
| 33542-50030B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33542-50030E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 33542-50030J0 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33542-50030K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-50010 |
UCF10 |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
UCF10..RHD 12V 3.4W |
1 | ||
| 90981-11040 |
UCF10 12V 2W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-50010 |
UCF10 |
1 | ||
| 33555-50011 |
UCF10 |
1 | ||
| 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 | ||||
| 33558-50010 |
UCF10 |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-2207005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 33622-50020B0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 33622-2207016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33622-2207003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33622-50020K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 33622-50020J2 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 33622-2207004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33622-50020E2 |
UCF10 OAK,TRIM0# |
1 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-2205004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33622-2205003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33622-2205005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 33622-2205016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33622-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33622-50040E1 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 33622-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 33622-50040J1 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33622D - COVER, SHIFT LEVER KNOB, NO.3 | ||||
| 33622-50050 |
UCF10 |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2205016 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 33623-2205004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33623-2205005 |
UCF10..RHD GEIGE,TRIM0# |
1 | ||
| 33623-50020J0 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 33623-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 33623-2205013 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33623-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 33623-50020B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
UCF10 |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
UCF10 |
1 | ||
| 33625-22040 |
UCF10 |
1 | ||
| 33627 - INSERT, SHIFT LEVER BUTTON | ||||
| 33627-50020 |
UCF10..RHD |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-28030 |
UCF10 |
1 | ||
| 33631-14070 |
UCF10 |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
UCF10 |
1 | ||
| 33631C - RING, E (FOR DETENT ROD) | ||||
| 96160-00300 |
UCF10 |
2 | ||
| 33631C - RING, E (FOR DETENT ROD) | ||||
| 96160-00300 |
UCF10 |
2 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04005 |
UCF10 |
1 | ||
| 33631E - ROLLER (FOR DETENT ROD) | ||||
| 90361-06006 |
UCF10 L=9.5 |
1 | ||
| 90361-06008 |
UCF10 L=2.8 |
2 | ||
| 33631E - ROLLER (FOR DETENT ROD) | ||||
| 90361-06006 |
UCF10 L=9.5 |
1 | ||
| 90361-06008 |
UCF10 L=2.8 |
2 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-50010 |
UCF10 |
1 | ||
| 33635-50020 |
UCF10 |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
UCF10 |
1 | ||
| 33723S - BUSH (FOR CONNECTING ROD SWIVEL) | ||||
| 90389-08005 |
UCF10 |
1 | ||
| 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) | ||||
| 90480-17001 |
UCF10 |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-12010 |
UCF10 |
1 | ||
| 35569A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
UCF10 |
1 | ||
| 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 35569-50010 |
UCF10 |
1 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17023 |
UCF10 |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
UCF10 |
1 | ||
| 35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 35902-50060 |
UCF10..RHD |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-50020 |
UCF10 |
1 | ||
| 35906-50010 |
UCF10 |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-50020 |
UCF10..RHD |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-50010 |
UCF10 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-50010 |
UCF10 |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90167-40047 | ||||
| 90179-08041 | ||||
| 90468-14004 | ||||
| 90512-00800 | ||||
| 93315-15012 | ||||
| 93510-14010 | ||||
| 94120-40800 | ||||
| 94613-10800 | ||||
| 96468-14011 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
