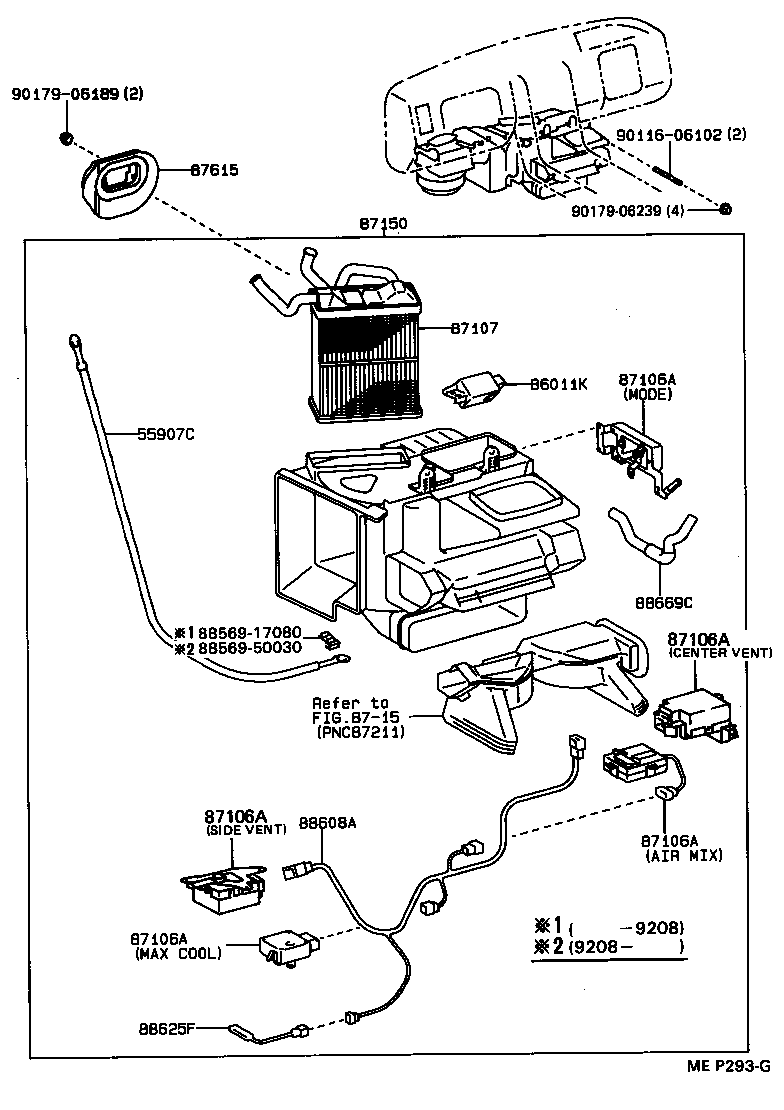

UCF10R-AEPGK (1989)
Toyota Lexus Ls400
(8912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-50020 |
UCF10..RHD |
1 | ||
| 86011K - FILTER, NOISE | ||||
| 90980-05166 |
UCF10..RHD |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50070 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50060 |
UCF10..RHD AIR MIX |
1 | ||
| 87106-50100 |
UCF10..RHD CENTER VENT |
1 | ||
| 87106-50110 |
UCF10..RHD SIDE VENT |
1 | ||
| 87106-50150 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50050 |
UCF10..RHD MODE |
1 | ||
| 87106-50140 |
UCF10..RHD AIR MIX |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50070 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50060 |
UCF10..RHD AIR MIX |
1 | ||
| 87106-50100 |
UCF10..RHD CENTER VENT |
1 | ||
| 87106-50110 |
UCF10..RHD SIDE VENT |
1 | ||
| 87106-50150 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50050 |
UCF10..RHD MODE |
1 | ||
| 87106-50140 |
UCF10..RHD AIR MIX |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50070 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50060 |
UCF10..RHD AIR MIX |
1 | ||
| 87106-50100 |
UCF10..RHD CENTER VENT |
1 | ||
| 87106-50110 |
UCF10..RHD SIDE VENT |
1 | ||
| 87106-50150 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50050 |
UCF10..RHD MODE |
1 | ||
| 87106-50140 |
UCF10..RHD AIR MIX |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50070 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50060 |
UCF10..RHD AIR MIX |
1 | ||
| 87106-50100 |
UCF10..RHD CENTER VENT |
1 | ||
| 87106-50110 |
UCF10..RHD SIDE VENT |
1 | ||
| 87106-50150 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50050 |
UCF10..RHD MODE |
1 | ||
| 87106-50140 |
UCF10..RHD AIR MIX |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50070 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50060 |
UCF10..RHD AIR MIX |
1 | ||
| 87106-50100 |
UCF10..RHD CENTER VENT |
1 | ||
| 87106-50110 |
UCF10..RHD SIDE VENT |
1 | ||
| 87106-50150 |
UCF10..RHD MAX COOL |
1 | ||
| 87106-50050 |
UCF10..RHD MODE |
1 | ||
| 87106-50140 |
UCF10..RHD AIR MIX |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-50020 |
UCF10..RHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-50020 |
UCF10..RHD |
1 | ||
| 87150-50040 |
UCF10..RHD |
1 | ||
| 87615 - RETAINER, INSULATOR | ||||
| 87615-50020 |
UCF10..RHD |
1 | ||
| 88608A - HARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2 | ||||
| 88608-50040 |
UCF10..RHD |
1 | ||
| 88608-50120 |
UCF10..RHD |
1 | ||
| 88625F - SENSOR, TEMPERATURE | ||||
| 88790-24040 |
UCF10 |
1 | ||
| 88790-50020 |
UCF10 |
1 | ||
| 88669C - HOSE, AIR | ||||
| 88669-50020 |
UCF10..RHD |
1 | ||
| Common parts | ||||
| 88569-17080 | ||||
| 88569-50030 | ||||
| 90116-06102 | ||||
| 90179-06189 | ||||
| 90179-06239 | ||||
| Linked diagrams | ||||
| 8715 | ||||
