UCF10R-AEPGK (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

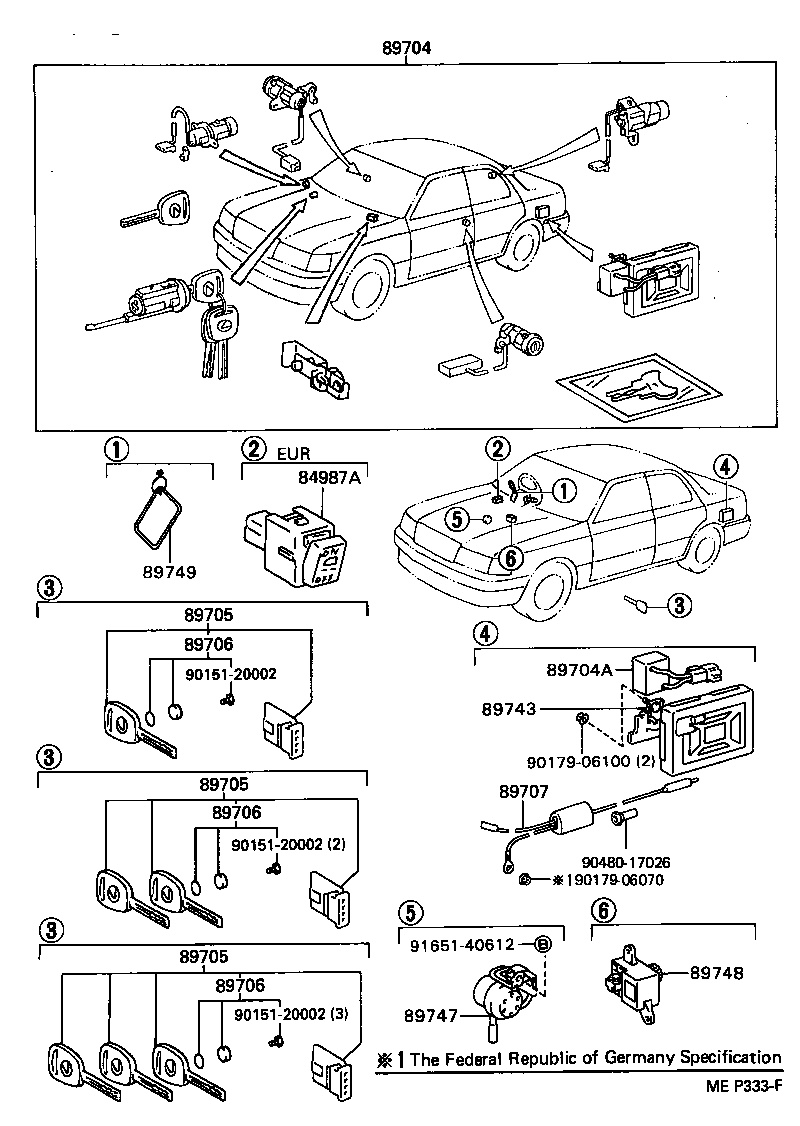

Click highlighted areas on diagram

diagram 84987A 89704 89704A 89705 89705 89705 89706 89706 89706 89707 89743 89747 89748 89749 9015120002 9015120002 9015120002 9017906070 9017906100 9048017026 9165140612
Part # Description Qty Price
89704 - CONTROL SET, WIRELESS DOOR LOCK
89704-50060

UCF10..ARL,GEN

 1
89704-50062

UCF10..ARL,GEN

 1
89704-50160

UCF10..ARL,GEN

 1
89704A - FILTER, NOISE(FOR WIRELESS DOOR LOCK)
90980-05159

UCF10

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-50070

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50010

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50011

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50071

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50061

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50051

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50400

UCF10..ARL,GEN

CUT KEY,TRANSMITTER QTY.=1

 1
89705-50210

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50280

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50340

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50430

UCF10..ARL,GEN

CUT KEY,TRANSMITTER QTY.=1

 1
89705-50948

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50947

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50946

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-50070

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50010

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50011

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50071

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50061

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50051

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50400

UCF10..ARL,GEN

CUT KEY,TRANSMITTER QTY.=1

 1
89705-50210

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50280

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50340

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50430

UCF10..ARL,GEN

CUT KEY,TRANSMITTER QTY.=1

 1
89705-50948

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50947

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50946

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-50070

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50010

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50011

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50071

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50061

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50051

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50400

UCF10..ARL,GEN

CUT KEY,TRANSMITTER QTY.=1

 1
89705-50210

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89705-50280

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50340

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50430

UCF10..ARL,GEN

CUT KEY,TRANSMITTER QTY.=1

 1
89705-50948

UCF10..ARL,GEN

TRANSMITTER QTY.=3

 1
89705-50947

UCF10..ARL,GEN

TRANSMITTER QTY.=2

 1
89705-50946

UCF10..ARL,GEN

TRANSMITTER QTY.=1

 1
89706 - BATTERY SET, TRANSMITTER
89706-50010

UCF10

 1
89706 - BATTERY SET, TRANSMITTER
89706-50010

UCF10

 1
89706 - BATTERY SET, TRANSMITTER
89706-50010

UCF10

 1
89707 - CORD SUB-ASSY, WIRELESS DOOR LOCK
89707-50010

UCF10..ARL,GEN,V

 1
89707-50030

UCF10..ARL,GEN,V

 1
89743 - RECEIVER, DOOR CONTROL
89743-50010

UCF10..ARL,GEN

 1
89743-50050

UCF10..ARL,GEN

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-50020

UCF10..RHD

 1
89748 - CONTROLLER, WIRELESS DOOR LOCK BUZZER
89748-50010

UCF10

 1
89749 - LABEL, WIRELESS BUZZER INFORMATION
89749-50020

UCF10..RHD

 1
Common parts
90151-20002
90179-06070
90179-06100
90480-17026
91651-40612
