UCF10R-AEPGK (1989)
Toyota Lexus Ls400
(8912-9208)RHD

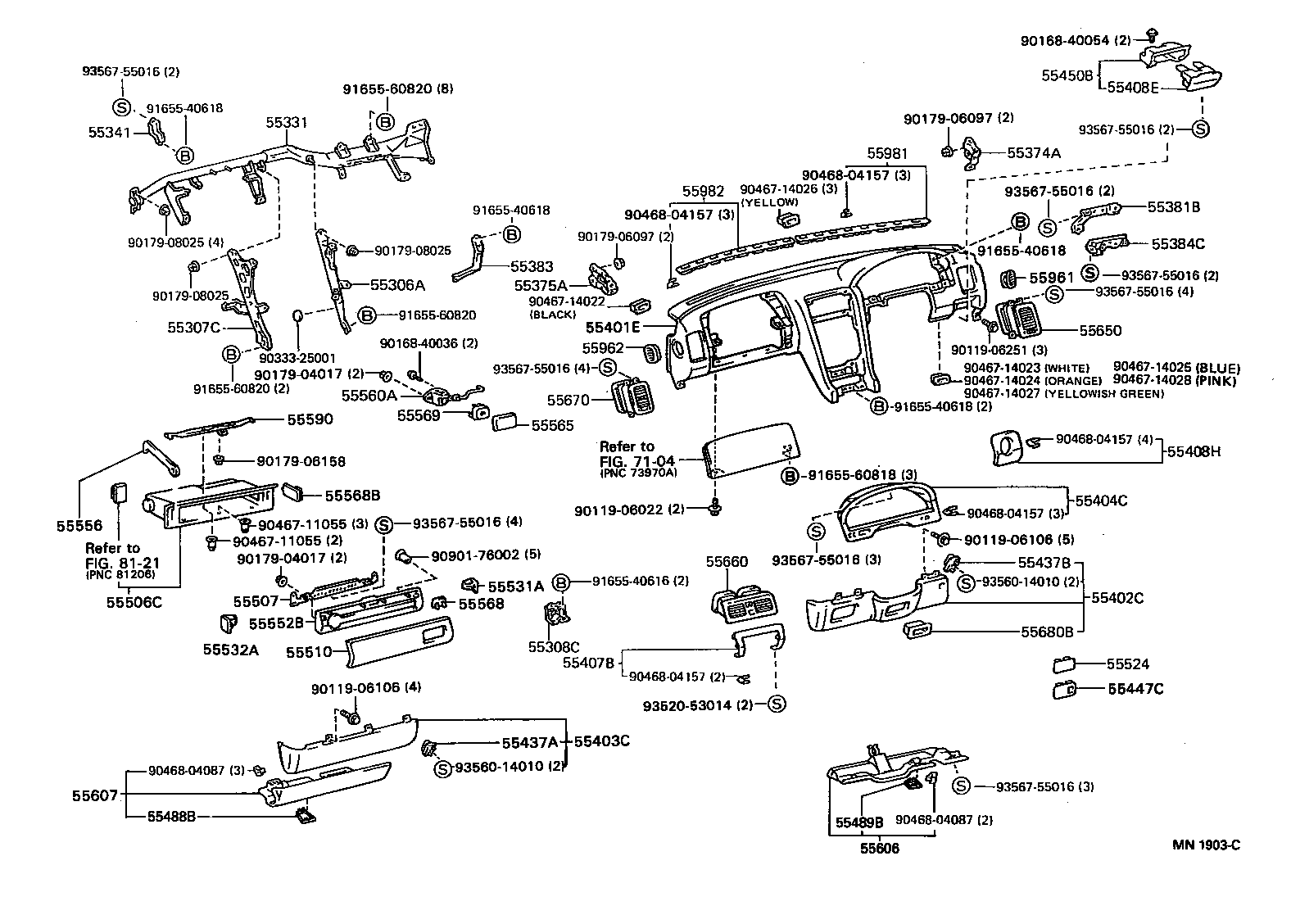

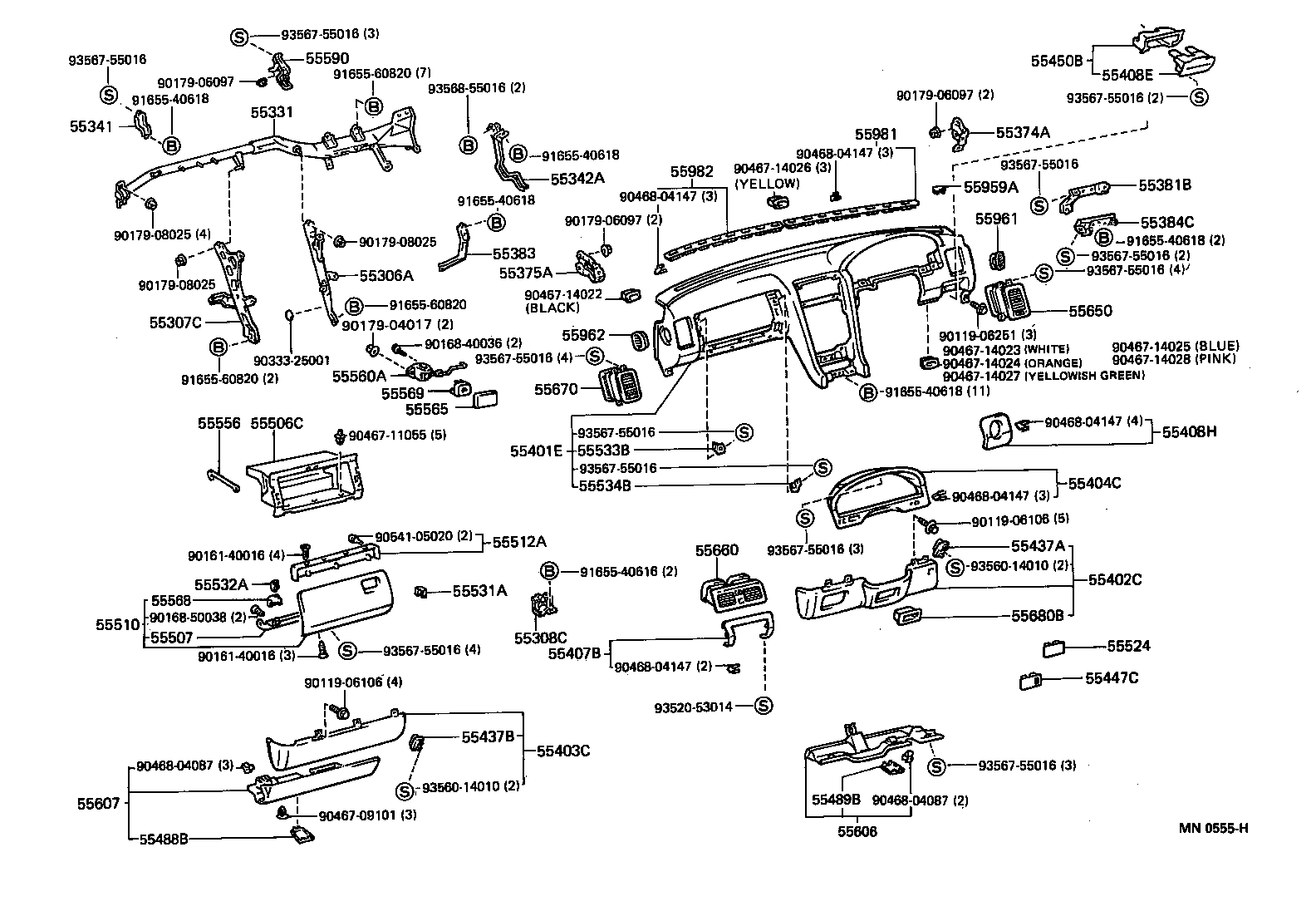

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50020 |
UCF10..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-50050 |
UCF10..RHD |
1 | ||
| 55307-50020 |
UCF10..RHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-50010 |
UCF10 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-50040 |
UCF10..RHD |
1 | ||
| 55330-50020 |
UCF10..RHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-50020 |
UCF10..RHD |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-50020 |
UCF10..RHD |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-50020 |
UCF10..RHD |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-50020 |
UCF10..RHD |
1 | ||
| 55375-50030 |
UCF10..RHD |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-50010 |
UCF10..RHD |
1 | ||
| 55383 - BRACKET, FINISH PANEL MOUNTING, NO.3 | ||||
| 55383-50021 |
UCF10..RHD |
1 | ||
| 55383-50020 |
UCF10..RHD |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-50020 |
UCF10..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55401-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55401-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55401-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55401-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55401-50040J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-50020J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55402-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55402-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55402-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55402-50020A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55402-50020S7 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55402-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55402-50020K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55403-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55403-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55403-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55403-50030J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55403-50030A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55403-50030K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55403-50030B0 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50030 |
UCF10..RHD |
1 | ||
| 55404-50080 |
UCF10..RHD |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-50010 |
UCF10..LHD..EUR;UCF10..ARL,GEN,V |
1 | ||
| 55407-50010 |
UCF10 |
1 | ||
| 55407-50020 |
UCF10..GEN W(TRACTION CONTROL SYSTEM) |
1 | ||
| 55407-50010 |
UCF10..ARL,GEN,V |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-5005006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55408-50060J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55408-50060E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55408-5005003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50060K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55408-50060B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55408-5005005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55408H - PAD SUB-ASSY, INSTRUMENT PANEL CYLINDER | ||||
| 55408-5004005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55408-5004003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55408-5004004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55408-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55408-5004006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55408-50040W3 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55408-50040P0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-50010 |
UCF10..RHD |
2 | ||
| 55437B - RETAINER, INSTR PANEL FINISH PANEL, NO.2 | ||||
| 55437-50010 |
UCF10 |
2 | ||
| 55437-50010 |
UCF10..RHD |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55450-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55450-50030K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55450-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55450-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55450-50030B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55450-50030E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55450-50030J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55488-50010 |
UCF10 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UCF10 |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-50020 |
UCF10..RHD |
1 | ||
| 55506-50040 |
UCF10..RHD |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-50020 |
UCF10..RHD |
1 | ||
| 55505-50040 |
UCF10..RHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55550-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55503-50020J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55550-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55503-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55503-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55503-50020B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55550-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-50020 |
UCF10..RHD |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-5001004 |
UCF10..ARL,GEN DARK BLUE,TRIM8# |
1 | ||
| 55524-50010K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55524-5001006 |
UCF10..ARL,GEN DARK ROSE,TRIM4# |
1 | ||
| 55524-50010P0 |
UCF10..ARL,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 55524-5001003 |
UCF10..ARL,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 55524-5001005 |
UCF10..ARL,GEN GREIGE,TRIM0# |
1 | ||
| 55524-50010E0 |
UCF10..ARL,GEN OAK,TRIM0# |
1 | ||
| 55524-50010W3 |
UCF10..ARL,GEN DK. BLUE,TRIM8# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-50020 |
UCF10..RHD |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-50020 |
UCF10..RHD |
1 | ||
| 55533B - PANEL, GLOVE COMPARTMENT SIDE, RH | ||||
| 55533-50010 |
UCF10 |
1 | ||
| 55534B - PANEL, GLOVE COMPARTMENT SIDE, LH | ||||
| 55534-50010 |
UCF10 |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-50040 |
UCF10 |
1 | ||
| 55556-50010 |
UCF10..RHD |
1 | ||
| 55556-50050 |
UCF10 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50030 |
UCF10..RHD |
1 | ||
| 55560-50040 |
UCF10..RHD |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55565-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55565-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55565-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55565-50010W3 |
UCF10 DK.BLUE,TRIM8# |
1 | ||
| 55565-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55565-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55565-50010K0 |
UCF10..ARL,GEN,V TUAPE,TRIM9# |
1 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-50010 |
UCF10 |
2 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55569-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55569-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55569-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55569-50010W3 |
UCF10 DK.BLUE,TRIM8# |
1 | ||
| 55569-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55569-50010K0 |
UCF10..ARL,GEN,V TUAPE,TRIM9# |
1 | ||
| 55569-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-50020 |
UCF10..RHD |
1 | ||
| 55590-50030 |
UCF10 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55606-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55606-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55606-5002103 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55606-5002108 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55606-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55606-5002104 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55606-5002106 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55606-50040A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55606-50040J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55606-50040K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55606-50040B0 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55607-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55607-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55607-50050B0 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55607-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55607-50050K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55607-50050J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55607-50050A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55650-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55650-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55650-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55650-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55650-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55650-50020P0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55650-50020W3 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50010 |
UCF10 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55670-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55670-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55670-50020W3 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55670-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55670-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020P0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55680B - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-50010A0 |
UCF10 IVORY,TRIM0# |
1 | ||
| 55680-50010S7 |
UCF10 SLATE GRAY,TRIM1# |
1 | ||
| 55680-50010W4 |
UCF10 EISEN BLUE,TRIM8# |
1 | ||
| 55680-50010K0 |
UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
1 | ||
| 55680-5001003 |
UCF10 GRAY,TRIM1# |
1 | ||
| 55680-5001006 |
UCF10 ROSE,TRIM4# |
1 | ||
| 55680-5001008 |
UCF10 IVORY,TRIM0# |
1 | ||
| 55680-5001004 |
UCF10 BLUE,TRIM8# |
1 | ||
| 55959A - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-5002004 |
UCF10..ARL,GEN DARK BLUE,TRIM8# |
1 | ||
| 55959-5002003 |
UCF10..ARL,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 55959-5002006 |
UCF10..ARL,GEN DARK ROSE,TRIM4# |
1 | ||
| 55959-5002005 |
UCF10..ARL,GEN GREIGE,TRIM0# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55961-50010W3 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 55961-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 55961-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55961-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55961-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55961-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55961-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55962-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55962-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55962-50010W3 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 55962-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 55962-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55962-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55962-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55981-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55981-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55981-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55981-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55981-50040J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55981-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55981-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55982-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55982-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55982-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55982-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55982-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55982-50040J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55982-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90119-06251 | ||||
| 90161-40016 | ||||
| 90168-40036 | ||||
| 90168-50038 | ||||
| 90179-04017 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90333-25001 | ||||
| 90467-09101 | ||||
| 90467-11055 | ||||
| 90467-14022 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14026 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90468-04087 | ||||
| 90468-04147 | ||||
| 90541-05020 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-60820 | ||||
| 93520-53014 | ||||
| 93560-14010 | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
(9208- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50020 |
UCF10..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-50050 |
UCF10..RHD |
1 | ||
| 55307-50020 |
UCF10..RHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-50010 |
UCF10 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-50040 |
UCF10..RHD |
1 | ||
| 55330-50020 |
UCF10..RHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-50020 |
UCF10..RHD |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-50020 |
UCF10..RHD |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-50020 |
UCF10..RHD |
1 | ||
| 55375-50030 |
UCF10..RHD |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-50010 |
UCF10..RHD |
1 | ||
| 55383 - BRACKET, FINISH PANEL MOUNTING, NO.3 | ||||
| 55383-50021 |
UCF10..RHD |
1 | ||
| 55383-50020 |
UCF10..RHD |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-50020 |
UCF10..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55401-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55401-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55401-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55401-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55401-50040J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-50020J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55402-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55402-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55402-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55402-50020A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55402-50020S7 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55402-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55402-50020K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55403-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55403-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55403-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55403-50030J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55403-50030A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55403-50030K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55403-50030B0 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50030 |
UCF10..RHD |
1 | ||
| 55404-50080 |
UCF10..RHD |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-50010 |
UCF10..LHD..EUR;UCF10..ARL,GEN,V |
1 | ||
| 55407-50010 |
UCF10 |
1 | ||
| 55407-50020 |
UCF10..GEN W(TRACTION CONTROL SYSTEM) |
1 | ||
| 55407-50010 |
UCF10..ARL,GEN,V |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-5005006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55408-50060J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55408-50060E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55408-5005003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50060K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55408-50060B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55408-5005005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55408H - PAD SUB-ASSY, INSTRUMENT PANEL CYLINDER | ||||
| 55408-5004005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55408-5004003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55408-5004004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55408-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55408-5004006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55408-50040W3 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55408-50040P0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-50010 |
UCF10..RHD |
2 | ||
| 55437B - RETAINER, INSTR PANEL FINISH PANEL, NO.2 | ||||
| 55437-50010 |
UCF10 |
2 | ||
| 55437-50010 |
UCF10..RHD |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55450-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55450-50030K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55450-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55450-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55450-50030B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55450-50030E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55450-50030J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55488-50010 |
UCF10 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UCF10 |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-50020 |
UCF10..RHD |
1 | ||
| 55506-50040 |
UCF10..RHD |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-50020 |
UCF10..RHD |
1 | ||
| 55505-50040 |
UCF10..RHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55550-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55503-50020J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55550-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55503-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55503-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55503-50020B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55550-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-5001004 |
UCF10..ARL,GEN DARK BLUE,TRIM8# |
1 | ||
| 55524-50010K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55524-5001006 |
UCF10..ARL,GEN DARK ROSE,TRIM4# |
1 | ||
| 55524-50010P0 |
UCF10..ARL,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 55524-5001003 |
UCF10..ARL,GEN SHADOW GRAY,TRIM1# |
1 | ||
| 55524-5001005 |
UCF10..ARL,GEN GREIGE,TRIM0# |
1 | ||
| 55524-50010E0 |
UCF10..ARL,GEN OAK,TRIM0# |
1 | ||
| 55524-50010W3 |
UCF10..ARL,GEN DK. BLUE,TRIM8# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-50020 |
UCF10..RHD |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-50020 |
UCF10..RHD |
1 | ||
| 55552B - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55552-50040 |
UCF10..RHD |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-50040 |
UCF10 |
1 | ||
| 55556-50010 |
UCF10..RHD |
1 | ||
| 55556-50050 |
UCF10 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50030 |
UCF10..RHD |
1 | ||
| 55560-50040 |
UCF10..RHD |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55565-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55565-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55565-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55565-50010W3 |
UCF10 DK.BLUE,TRIM8# |
1 | ||
| 55565-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55565-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55565-50010K0 |
UCF10..ARL,GEN,V TUAPE,TRIM9# |
1 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-50010 |
UCF10 |
2 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-50030 |
UCF10 |
1 | ||
| 55568-50020 |
UCF10 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55569-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55569-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55569-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55569-50010W3 |
UCF10 DK.BLUE,TRIM8# |
1 | ||
| 55569-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55569-50010K0 |
UCF10..ARL,GEN,V TUAPE,TRIM9# |
1 | ||
| 55569-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-50020 |
UCF10..RHD |
1 | ||
| 55590-50030 |
UCF10 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55606-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55606-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55606-5002103 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55606-5002108 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55606-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55606-5002104 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55606-5002106 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55606-50040A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55606-50040J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55606-50040K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55606-50040B0 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-5002004 |
UCF10..RHD BLUE,TRIM8# |
1 | ||
| 55607-5002006 |
UCF10..RHD ROSE,TRIM4# |
1 | ||
| 55607-5002003 |
UCF10..RHD GRAY,TRIM1# |
1 | ||
| 55607-50050B0 |
UCF10..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55607-5002008 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55607-50050K0 |
UCF10..ARL,GEN ME. TAUPE,TRIM9# |
1 | ||
| 55607-50050J0 |
UCF10..RHD EISEN BLUE,TRIM8# |
1 | ||
| 55607-50050A0 |
UCF10..RHD IVORY,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55650-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55650-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55650-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55650-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55650-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55650-50020P0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55650-50020W3 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50010 |
UCF10 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55670-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55670-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55670-50020W3 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55670-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55670-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020P0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55680B - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-50010A0 |
UCF10 IVORY,TRIM0# |
1 | ||
| 55680-50010S7 |
UCF10 SLATE GRAY,TRIM1# |
1 | ||
| 55680-50010W4 |
UCF10 EISEN BLUE,TRIM8# |
1 | ||
| 55680-50010K0 |
UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
1 | ||
| 55680-5001003 |
UCF10 GRAY,TRIM1# |
1 | ||
| 55680-5001006 |
UCF10 ROSE,TRIM4# |
1 | ||
| 55680-5001008 |
UCF10 IVORY,TRIM0# |
1 | ||
| 55680-5001004 |
UCF10 BLUE,TRIM8# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55961-50010W3 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 55961-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 55961-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55961-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55961-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55961-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55961-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-5001003 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55962-5001006 |
UCF10 DARK ROSE,TRIM4# |
1 | ||
| 55962-5001005 |
UCF10 GREIGE,TRIM0# |
1 | ||
| 55962-50010W3 |
UCF10 DK. BLUE,TRIM8# |
1 | ||
| 55962-50010K0 |
UCF10..ARL,GEN,V TAUPE,TRIM9# |
1 | ||
| 55962-50010E0 |
UCF10 OAK,TRIM0# |
1 | ||
| 55962-50010P0 |
UCF10 SHADOW GRAY,TRIM1# |
1 | ||
| 55962-5001004 |
UCF10 DARK BLUE,TRIM8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55981-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55981-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55981-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55981-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55981-50040J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55981-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55981-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 55982-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 55982-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55982-50040E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 55982-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 55982-50040K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 55982-50040J0 |
UCF10..RHD DK. BLUE,TRIM8# |
1 | ||
| 55982-50040B0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90119-06106 | ||||
| 90119-06251 | ||||
| 90168-40036 | ||||
| 90168-40054 | ||||
| 90179-04017 | ||||
| 90179-06097 | ||||
| 90179-06158 | ||||
| 90179-08025 | ||||
| 90333-25001 | ||||
| 90467-11055 | ||||
| 90467-14022 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14026 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90468-04087 | ||||
| 90468-04157 | ||||
| 90901-76002 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-60818 | ||||
| 91655-60820 | ||||
| 93520-53014 | ||||
| 93560-14010 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
