UCF10R-AEPGK (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

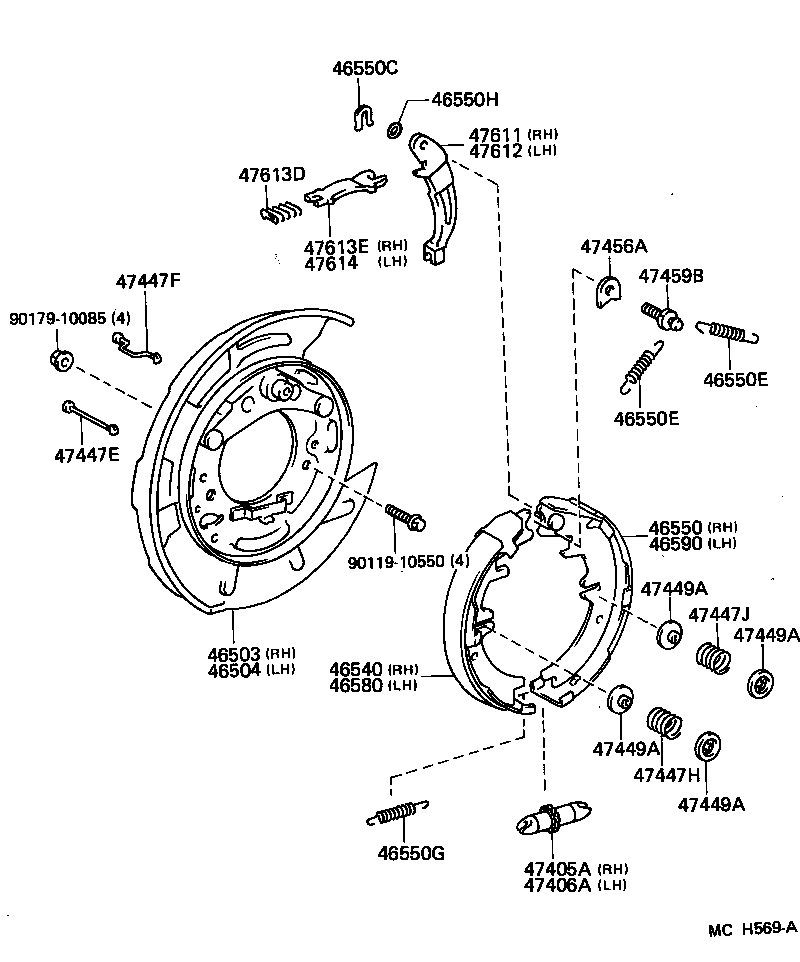

ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-50010 |
UCF10 |
1 | ||
| 46503-50020 |
UCF10 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-50010 |
UCF10 |
1 | ||
| 46504-50020 |
UCF10 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-50010 |
UCF10 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-50010 |
UCF10 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
UCF10 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20023 |
UCF10 |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20023 |
UCF10 |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-12034 |
UCF10 |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09185 |
UCF10 T=0.6 |
1 | ||
| 90564-09186 |
UCF10 T=0.9 |
1 | ||
| 90564-09184 |
UCF10 T=0.3 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-50010 |
UCF10 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-50010 |
UCF10 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
UCF10 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
UCF10 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
UCF10 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
UCF10 |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
UCF10 |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
UCF10 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
UCF10 OUTER |
4 | ||
| 47449-22010 |
UCF10 INNER |
4 | ||
| 47449-40010 |
UCF10 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
UCF10 OUTER |
4 | ||
| 47449-22010 |
UCF10 INNER |
4 | ||
| 47449-40010 |
UCF10 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
UCF10 OUTER |
4 | ||
| 47449-22010 |
UCF10 INNER |
4 | ||
| 47449-40010 |
UCF10 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
UCF10 INNER |
4 | ||
| 47449-40010 |
UCF10 INNER |
4 | ||
| 47449-30030 |
UCF10 OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
UCF10 |
2 | ||
| 47456-20030 |
UCF10 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
UCF10 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-50010 |
UCF10 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-50010 |
UCF10 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
UCF10 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
UCF10 |
1 | ||
| 47613-50010 |
UCF10 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-50010 |
UCF10 |
1 | ||
| 47614-28010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90119-10550 | ||||
| 90179-10085 | ||||

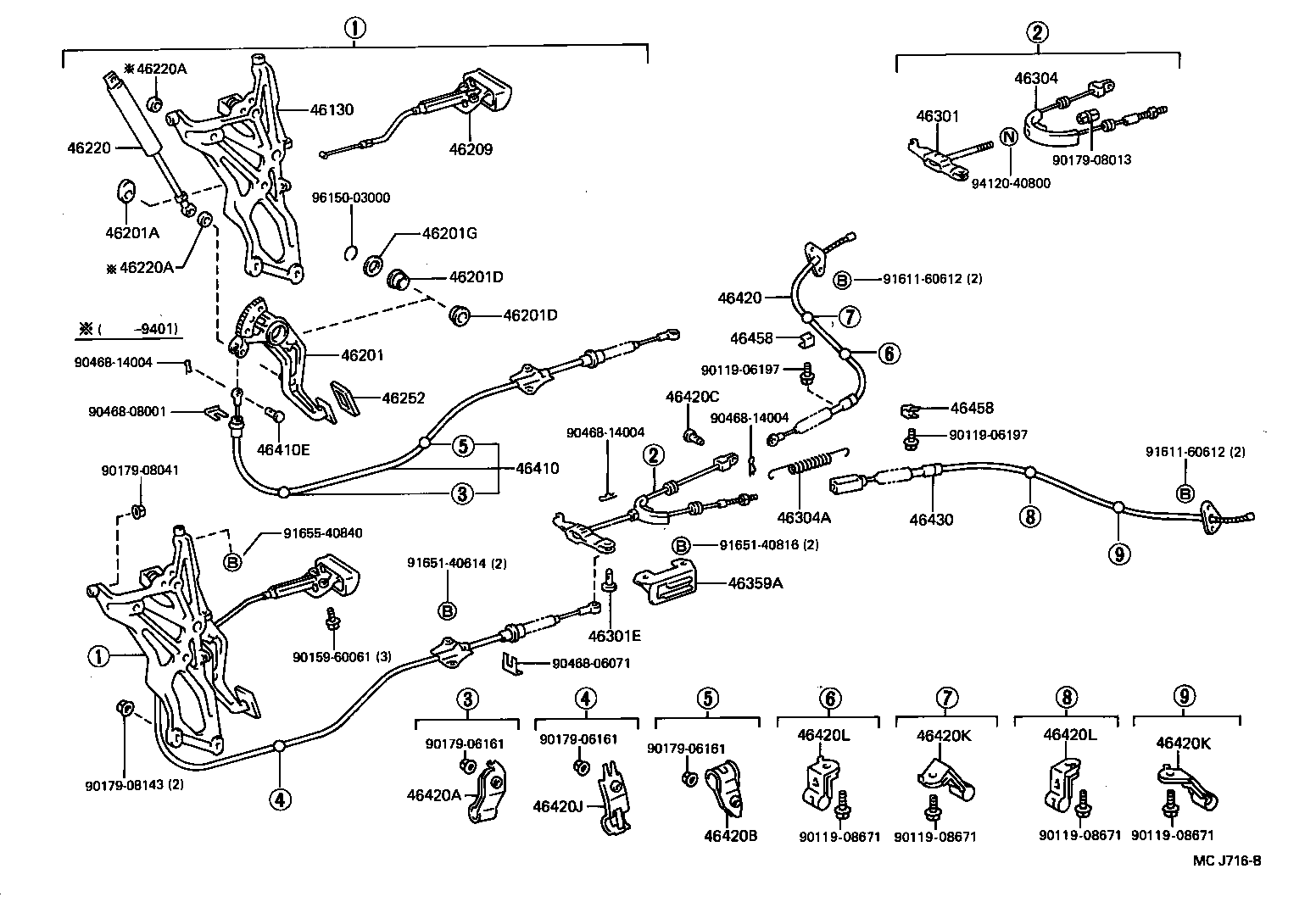

ILLUST NO. 1 OF 2(8912- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-50021 |
UCF10..RHD |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-50020 |
UCF10..RHD |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-15013 |
UCF10..RHD |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-30003 |
UCF10..RHD LH |
1 | ||
| 90386-30002 |
UCF10..RHD RH |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-30003 |
UCF10..RHD LH |
1 | ||
| 90386-30002 |
UCF10..RHD RH |
1 | ||
| 46201G - SPACER(FOR PARKING BRAKE PEDAL) | ||||
| 90560-30010 |
UCF10..RHD |
1 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-5002005 |
UCF10..RHD GREIGE,TRIM0# |
1 | ||
| 46209-5002003 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 46209-5002004 |
UCF10..RHD DARK BLUE,TRIM8# |
1 | ||
| 46209-5002006 |
UCF10..RHD DARK ROSE,TRIM4# |
1 | ||
| 46209-50020E0 |
UCF10..RHD OAK,TRIM0# |
1 | ||
| 46209-50020W3 |
UCF10..RHD DK.BLUE,TRIM8# |
1 | ||
| 46209-50020K0 |
UCF10..ARL,GEN TAUPE,TRIM9# |
1 | ||
| 46209-50020P0 |
UCF10..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
UCF10 |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
UCF10 |
2 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
UCF10 |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
UCF10..RHD |
1 | ||
| 46252-50010 |
UCF10 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-50020 |
UCF10 |
1 | ||
| 46301-50010 |
UCF10 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
UCF10 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-50020 |
UCF10 |
1 | ||
| 46304-50010 |
UCF10 |
1 | ||
| 46304A - SPRING, TENSION(FOR PARKING BRAKE EQUALIZER) | ||||
| 90507-20022 |
UCF10 |
1 | ||
| 90905-07003 |
UCF10 |
1 | ||
| 46359A - BRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT | ||||
| 46359-50010 |
UCF10 |
1 | ||
| 46359-50020 |
UCF10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-50020 |
UCF10..RHD |
1 | ||
| 46410-50040 |
UCF10..RHD |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-08062 |
UCF10..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-50010 |
UCF10 |
1 | ||
| 46420-50020 |
UCF10 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01578 |
UCF10..RHD |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01512 |
UCF10 |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08059 |
UCF10 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01515 |
UCF10..RHD |
1 | ||
| 90949-01515 |
UCF10 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01533 |
UCF10 LH |
1 | ||
| 90949-01517 |
UCF10 RH |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01533 |
UCF10 LH |
1 | ||
| 90949-01517 |
UCF10 RH |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 90949-01518 |
UCF10 RH |
1 | ||
| 90949-01519 |
UCF10 LH |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 90949-01518 |
UCF10 RH |
1 | ||
| 90949-01519 |
UCF10 LH |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-50010 |
UCF10 |
1 | ||
| 46430-50020 |
UCF10 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
UCF10 |
2 | ||
| 46458-30060 |
UCF10 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
UCF10 |
2 | ||
| 46458-30060 |
UCF10 |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-08671 | ||||
| 90159-60061 | ||||
| 90179-06161 | ||||
| 90179-08013 | ||||
| 90179-08041 | ||||
| 90179-08143 | ||||
| 90468-06071 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91655-40840 | ||||
| 94120-40800 | ||||
| 96150-03000 | ||||
