Toyota Lexus ls400 UCF10 VACUUM PIPING

UCF10R-AEPGK (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994

Engine 1UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

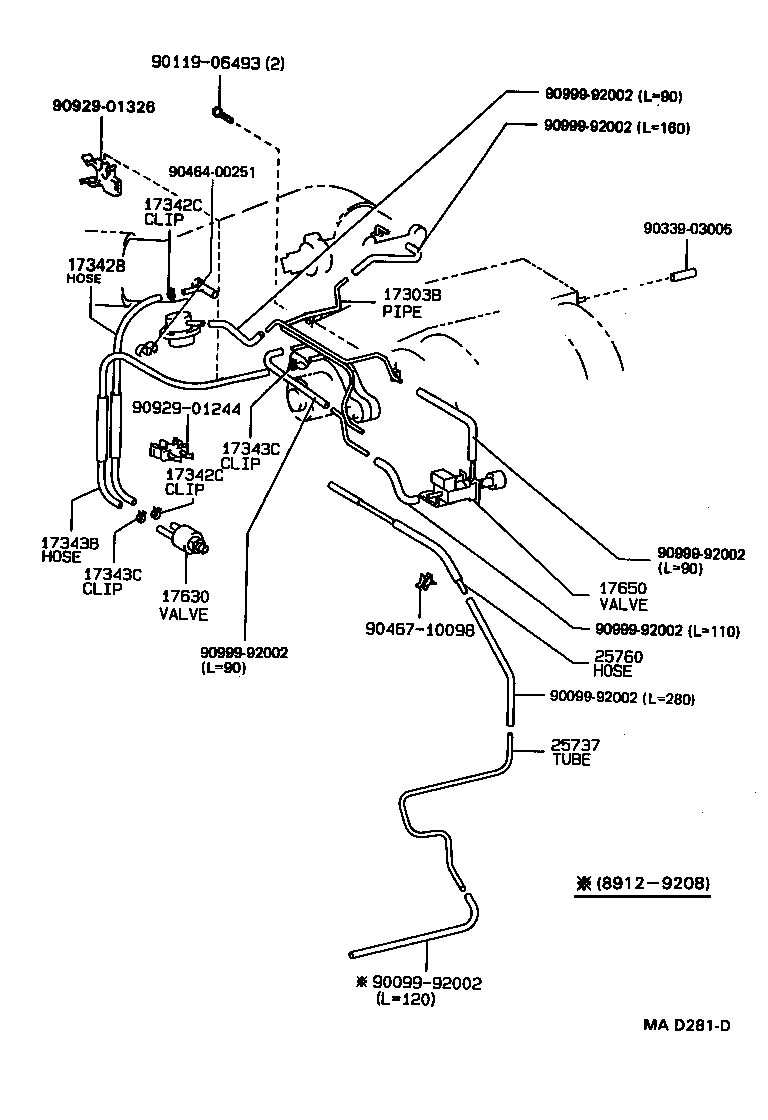

(8912- )1UZFE..GEN,V ; (9208- )1UZFE..EUR

Click highlighted areas on diagram

EUR=SOUTH AFRICA SPEC

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-50011	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
17303-50030	1UZFE..UCF10..GEN,V	12/1989 - 10/1994	1
17303-50100	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50010	1UZFE..UCF10	12/1989 - 10/1994	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50010	1UZFE..UCF10	12/1989 - 10/1994	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1UZFE..UCF10	12/1989 - 10/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-50010	1UZFE..UCF10..GEN,V	12/1989 - 08/1990	1
89470-50011	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
89470-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1991 - 08/1992	1
25860-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1992 - 10/1994	1
89470-50011	1UZFE..UCF10..GEN HONG KONG SPEC,NO.1	08/1991 - 10/1994	1
25860-50050	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
25737 - TUBE, NO.1
25737-50010	1UZFE..UCF10	12/1989 - 10/1994	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-50030	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
25760-50010	1UZFE..UCF10	12/1989 - 08/1990	1
25760-50010	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
25760-50020	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
Common parts
90099-92002
90119-06493
90339-03005
90464-00251
90467-10098
90929-01244
90929-01326
90999-92002

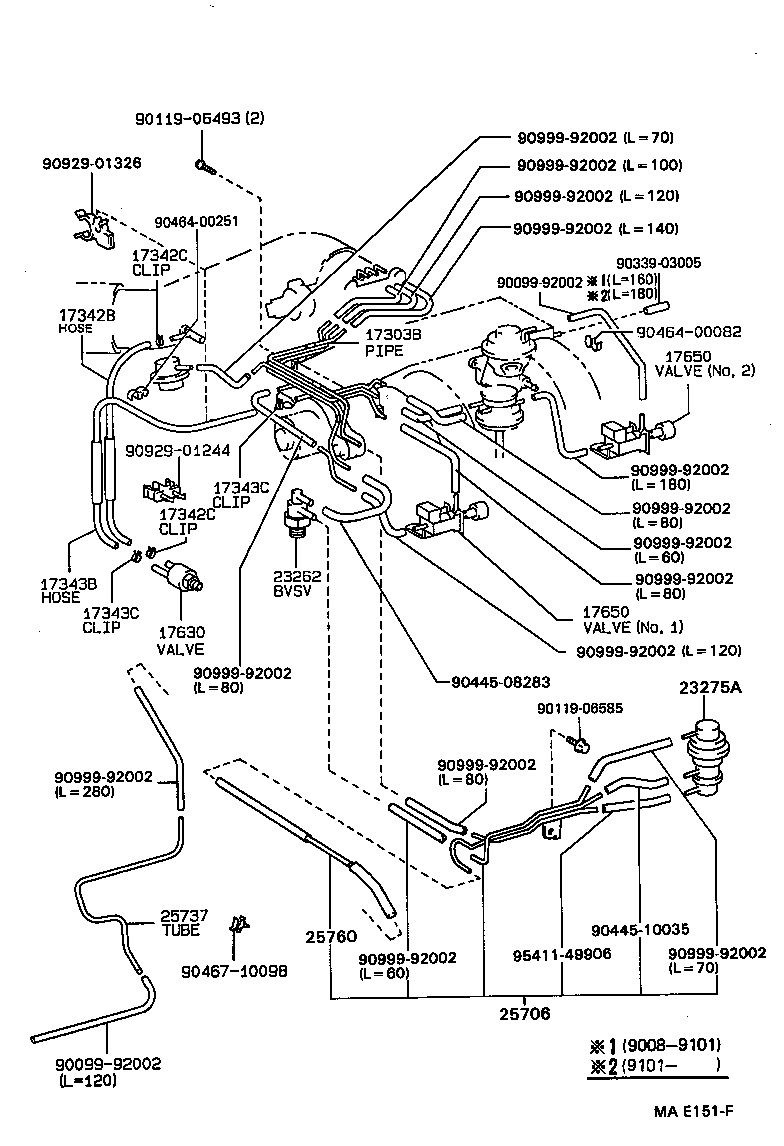

(9008- )1UZFE..ARL,EUR ; (9108-9208)1UZFE..GEN

Click highlighted areas on diagram

GEN=HONGKONG SPEC

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-50011	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
17303-50030	1UZFE..UCF10..GEN,V	12/1989 - 10/1994	1
17303-50100	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50010	1UZFE..UCF10	12/1989 - 10/1994	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50010	1UZFE..UCF10	12/1989 - 10/1994	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1UZFE..UCF10	12/1989 - 10/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-50010	1UZFE..UCF10..GEN,V	12/1989 - 08/1990	1
89470-50011	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
89470-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1991 - 08/1992	1
25860-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1992 - 10/1994	1
89470-50011	1UZFE..UCF10..GEN HONG KONG SPEC,NO.1	08/1991 - 10/1994	1
25860-50050	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-50010	1UZFE..UCF10..GEN,V	12/1989 - 08/1990	1
89470-50011	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
89470-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1991 - 08/1992	1
25860-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1992 - 10/1994	1
89470-50011	1UZFE..UCF10..GEN HONG KONG SPEC,NO.1	08/1991 - 10/1994	1
25860-50050	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05075	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
23275A - VALVE, VACUUM CONTROL
90925-03190	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-50010	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
25737 - TUBE, NO.1
25737-50010	1UZFE..UCF10	12/1989 - 10/1994	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-50030	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
25760-50010	1UZFE..UCF10	12/1989 - 08/1990	1
25760-50010	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
25760-50020	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
Common parts
90099-92002
90119-06493
90119-06585
90339-03005
90445-08283
90445-10035
90464-00082
90464-00251
90467-10098
90929-01244
90929-01326
90999-92002
95411-49906

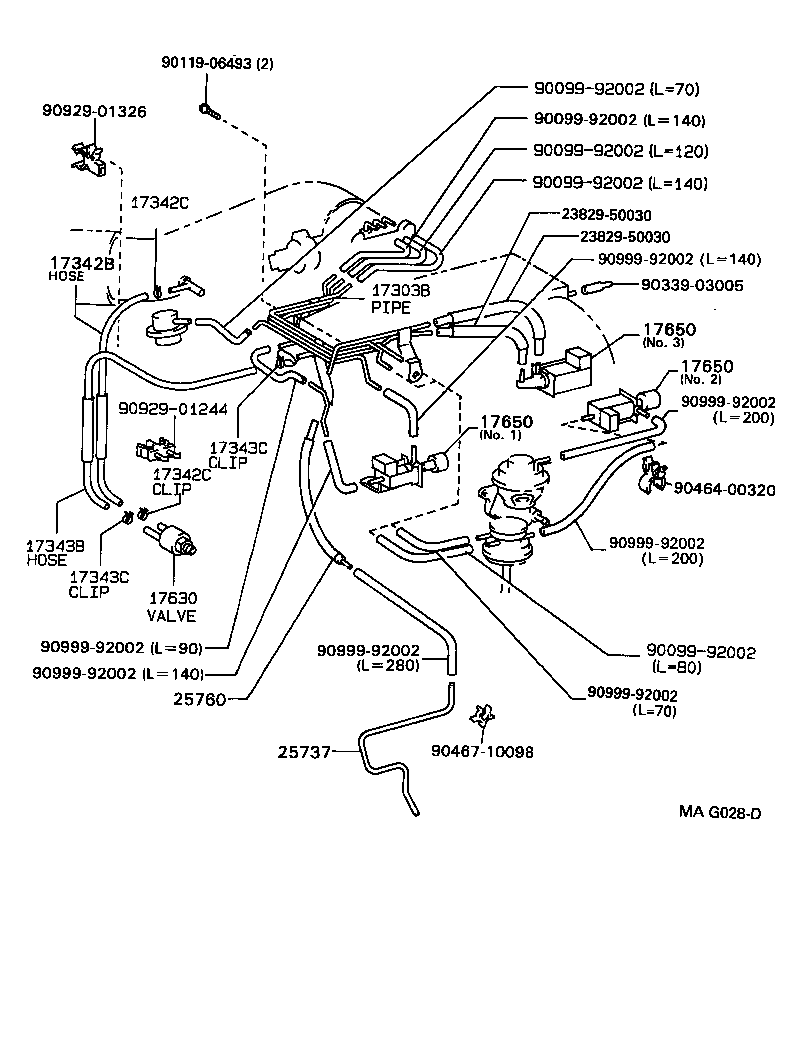

(9208- )1UZFE..ARL,EUR,GEN

Click highlighted areas on diagram

GEN=HONGKONG SPEC

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-50011	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
17303-50030	1UZFE..UCF10..GEN,V	12/1989 - 10/1994	1
17303-50100	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50010	1UZFE..UCF10	12/1989 - 10/1994	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50010	1UZFE..UCF10	12/1989 - 10/1994	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UCF10	12/1989 - 10/1994	2
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1UZFE..UCF10	12/1989 - 10/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-50010	1UZFE..UCF10..GEN,V	12/1989 - 08/1990	1
89470-50011	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
89470-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1991 - 08/1992	1
25860-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1992 - 10/1994	1
89470-50011	1UZFE..UCF10..GEN HONG KONG SPEC,NO.1	08/1991 - 10/1994	1
25860-50050	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-50010	1UZFE..UCF10..GEN,V	12/1989 - 08/1990	1
89470-50011	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
89470-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1991 - 08/1992	1
25860-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1992 - 10/1994	1
89470-50011	1UZFE..UCF10..GEN HONG KONG SPEC,NO.1	08/1991 - 10/1994	1
25860-50050	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-50010	1UZFE..UCF10..GEN,V	12/1989 - 08/1990	1
89470-50011	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
89470-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1991 - 08/1992	1
25860-50020	1UZFE..UCF10..GEN HONG KONG SPEC,NO.2	08/1992 - 10/1994	1
89470-50011	1UZFE..UCF10..GEN HONG KONG SPEC,NO.1	08/1991 - 10/1994	1
25860-50050	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
25737 - TUBE, NO.1
25737-50010	1UZFE..UCF10	12/1989 - 10/1994	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-50030	1UZFE..UCF10..GEN HONG KONG SPEC	08/1991 - 08/1992	1
25760-50010	1UZFE..UCF10	12/1989 - 08/1990	1
25760-50010	1UZFE..UCF10..GEN,V	08/1990 - 10/1994	1
25760-50020	1UZFE..UCF10..GEN HONG KONG SPEC	08/1992 - 10/1994	1
Common parts
23829-50030
90099-92002
90119-06493
90339-03005
90464-00320
90467-10098
90929-01244
90929-01326
90999-92002
