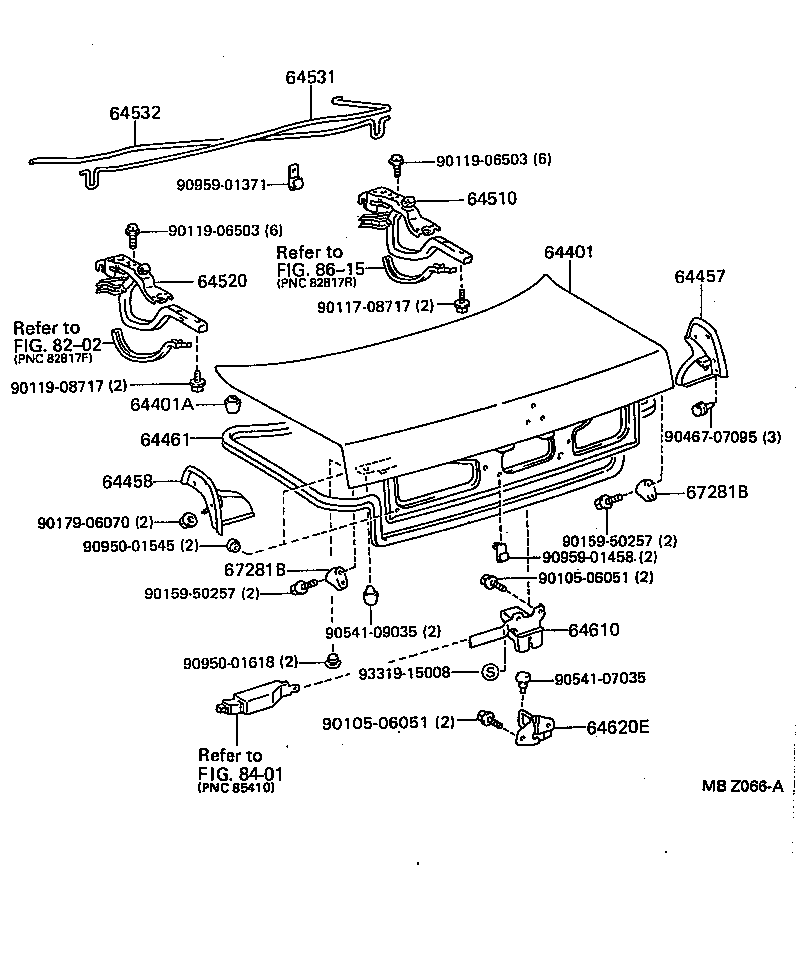

Toyota Lexus ls400 UCF10 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-50901	UCF10..ARL,EUR	12/1989 - 10/1994	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-10007	UCF10	12/1989 - 10/1994	2
64457 - COVER, LUGGAGE DOOR STOPPER CUSHION, RH
64457-50010	UCF10	12/1989 - 10/1994	1
64458 - COVER, LUGGAGE DOOR STOPPER CUSHION, LH
64458-50010	UCF10	12/1989 - 10/1994	1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-50010	UCF10	12/1989 - 10/1994	1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-50011	UCF10	12/1989 - 10/1994	1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-50010	UCF10	12/1989 - 10/1994	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-50050	UCF10..ARL,EUR	12/1989 - 01/1993	1
64531-50051	UCF10..ARL,EUR	01/1993 - 10/1994	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-50051	UCF10..ARL,EUR	01/1993 - 10/1994	1
64532-50050	UCF10..ARL,EUR	12/1989 - 01/1993	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-50020	UCF10..ARL,EUR	12/1989 - 08/1992	1
64600-50040	UCF10..ARL,EUR	08/1992 - 10/1994	1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64602-50010	UCF10	12/1989 - 10/1994	1
67281B - STOPPER, BACK DOOR, LOWER
67282-50010	UCF10 LH	12/1989 - 10/1994	1
67281-50010	UCF10 RH	12/1989 - 10/1994	1
67281B - STOPPER, BACK DOOR, LOWER
67282-50010	UCF10 LH	12/1989 - 10/1994	1
67281-50010	UCF10 RH	12/1989 - 10/1994	1
Common parts
90105-06051
90117-08717
90119-06503
90119-08717
90159-50257
90179-06070
90467-07095
90541-07035
90541-09035
90950-01545
90950-01618
90959-01371
90959-01458
93319-15008
Linked diagrams
8202
8401
8615

UCF10L-AEPGKW (1989)
