UCF10L-AEPGKW (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

Click highlighted areas on diagram

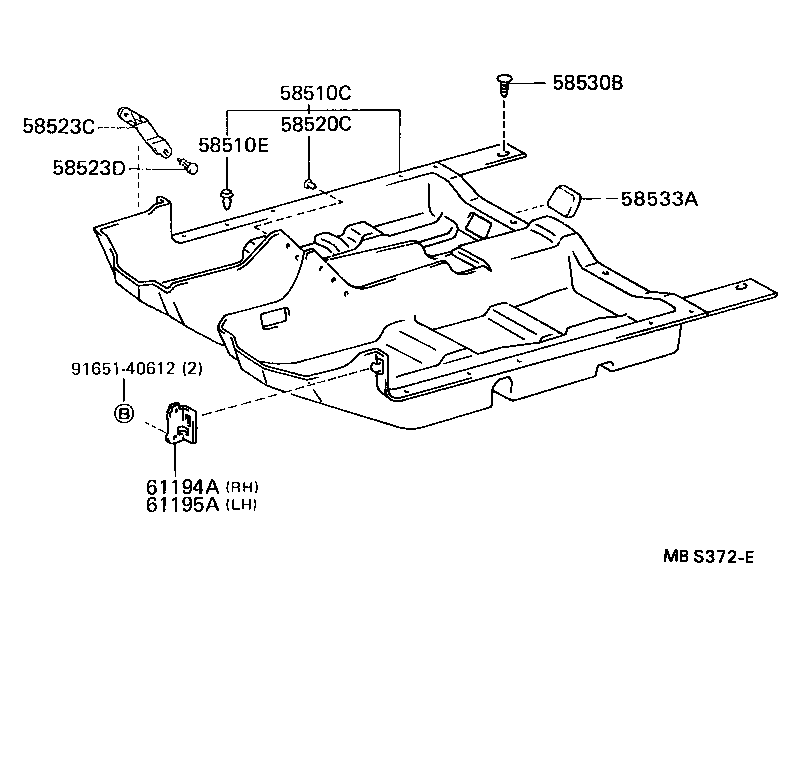

diagram 58510C 58510E 58520C 58523C 58523D 58530B 58533A 61194A 61195A 9165140612
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-5008008

UCF10..LHD..EUR

IVORY,TRIM0#

 1
58510-5008006

UCF10..LHD..EUR

ROSE,TRIM4#

 1
58510-5008003

UCF10..LHD..EUR

GRAY,TRIM1#

 1
58510-5008004

UCF10..LHD..EUR

BLUE,TRIM8#

 1
58510-50170B0

UCF10..LHD..EUR

GRAY,TRIM1#

 1
58510-50170A0

UCF10..LHD..EUR

IVORY,TRIM0#

 1
58510-50170C0

UCF10..LHD..EUR

BLACK,TRIM2#

 1
58510-50150B0

UCF10..LHD

GRAY,TRIM1#

 1
58510-50150C0

UCF10..LHD..EUR

BLACK,TRIM2#

 1
58510-50150J0

UCF10..LHD

BLUE,TRIM8#

 1
58510-50150A0

UCF10..LHD

IVORY,TRIM0#

 1
58510-50170J0

UCF10..LHD..EUR

BLUE,TRIM8#

 1
58510-50151A0

UCF10..LHD

IVORY,TRIM0#

 1
58510-50151J0

UCF10..LHD

BLUE,TRIM8#

 1
58510-50151C0

UCF10..LHD..EUR

BLACK,TRIM2#

 1
58510-50151B0

UCF10..LHD

GRAY,TRIM1#

 1
58510E - RETAINER, FLOOR CARPET
67921-50010

UCF10

 10
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0606101

UCF10

BLACK,TRIM0#,1#,4#,8#

 6
90467-0606101

UCF10..ARL,EUR,GEN

BLACK,TRIM0#,1#,4#,8#

 6
90467-06061C0

UCF10..EUR

BLACK,TRIM0#,1#,2#,8#

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

UCF10..EUR

BLACK,TRIM0#,1#,2#,8#

 4
90467-0601611

UCF10..ARL,EUR,GEN

BLACK,TRIM0#,1#,4#,8#

 4
90467-0601611

UCF10

BLACK,TRIM0#,1#,4#,8#

 4
58533A - COVER, FLOOR CARPET, CENTER RH
58533-50010A0

UCF10

IVORY,TRIM0#

 1
58533-50010C0

UCF10..EUR

BLACK,TRIM2#

 1
58533-50010B0

UCF10

GRAY,TRIM1#

 1
58533-50010J0

UCF10

DK. BLUE,TRIM8#

 1
61194A - BRACKET, COWL SIDE TRIM, RH
61194-50010

UCF10

 1
61195A - BRACKET, COWL SIDE TRIM, LH
61195-50010

UCF10

 1
Common parts
91651-40612
