UCF10L-AEPGKW (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

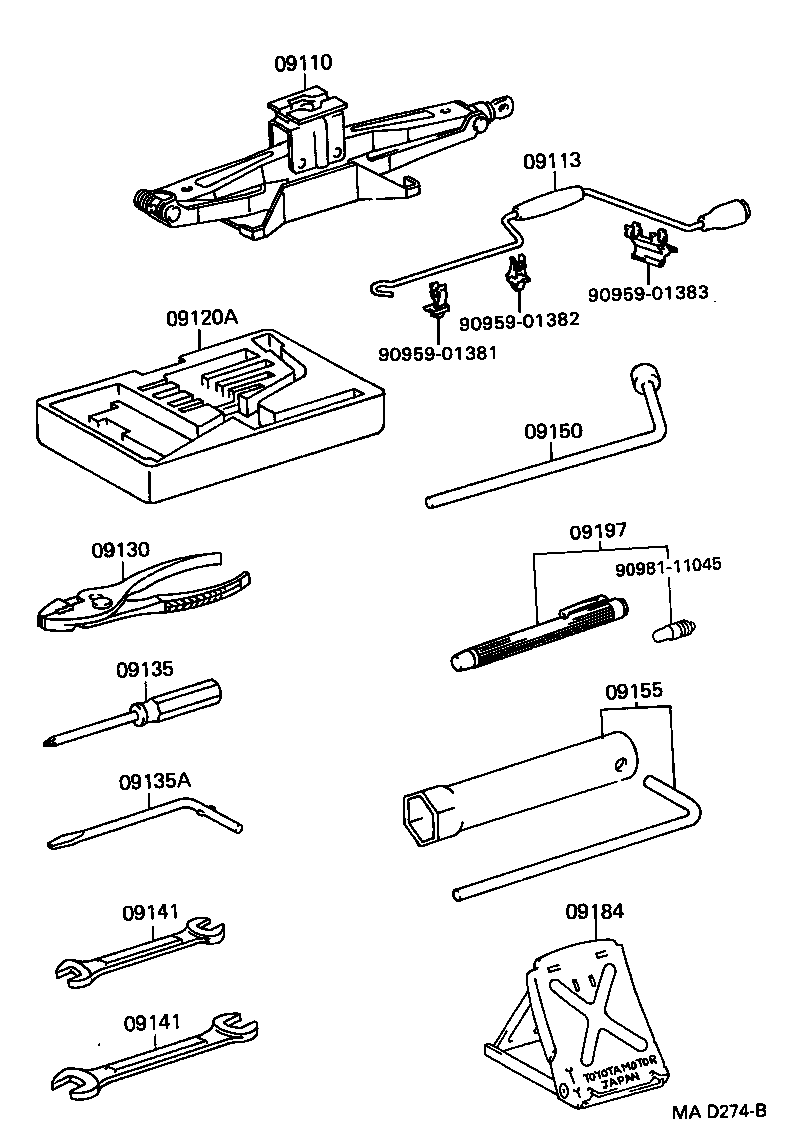

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-50011 |
UCF10..EUR,GEN,V |
1 | ||
| 09111-50010 |
UCF10..EUR,GEN,V |
1 | ||
| 09111-50030 |
UCF10..EUR,GEN,V |
1 | ||
| 09111-50031 |
UCF10..EUR,GEN,V |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-50010 |
UCF10 |
1 | ||
| 09120A - CASE, TOOL | ||||
| 09120-50010 |
UCF10..ARL,EUR |
1 | ||
| 09130 - PLIERS | ||||
| 09130-50030 |
UCF10 |
1 | ||
| 09130-50010 |
UCF10 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 09135-50040 |
UCF10 |
1 | ||
| 09135-50020 |
UCF10 |
1 | ||
| 09135A - BIT, SCREW DRIVER | ||||
| 09135-50010 |
UCF10 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-50020 |
UCF10..ARL,EUR 12 X 14 |
1 | ||
| 09141-50010 |
UCF10..ARL,EUR 8 X 10 |
1 | ||
| 09141-50050 |
UCF10 8 X 10 |
1 | ||
| 09141-50020 |
UCF10 12 X 14 |
1 | ||
| 09141-50060 |
UCF10 12 X 14 |
1 | ||
| 09141-50010 |
UCF10 8 X 10 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-50020 |
UCF10..ARL,EUR 12 X 14 |
1 | ||
| 09141-50010 |
UCF10..ARL,EUR 8 X 10 |
1 | ||
| 09141-50050 |
UCF10 8 X 10 |
1 | ||
| 09141-50020 |
UCF10 12 X 14 |
1 | ||
| 09141-50060 |
UCF10 12 X 14 |
1 | ||
| 09141-50010 |
UCF10 8 X 10 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-50010 |
UCF10 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-50010 |
UCF10 |
1 | ||
| 09197 - LIGHT, PEN | ||||
| 09197-50010 |
UCF10..ARL,EUR |
1 | ||
| 09197-50030 |
UCF10..ARL,EUR |
1 | ||
| Common parts | ||||
| 90959-01381 | ||||
| 90959-01382 | ||||
| 90959-01383 | ||||
| 90981-11045 | ||||
