UCF10L-AEPGKV (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

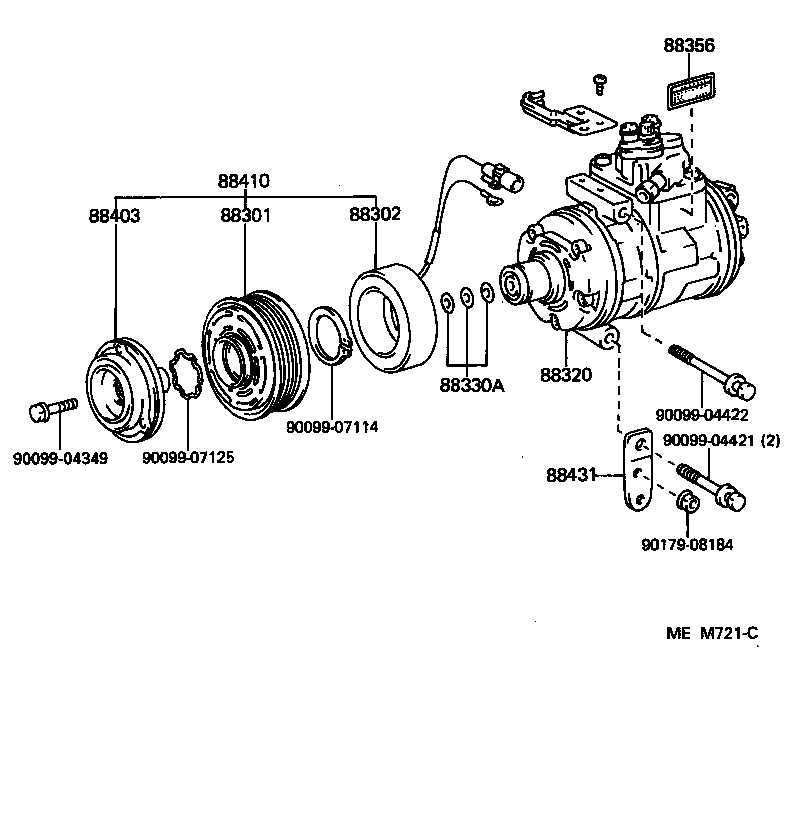

ILLUST NO. 1 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-50020 |
UCF10 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-50020 |
UCF10..V |
1 | ||
| 88411-50040 |
UCF10..V |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-50050 |
UCF10..V |
1 | ||
| 88320-50020 |
UCF10..V |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
UCF10 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
UCF10 |
1 | ||
| 88403-30290 |
UCF10 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-50030 |
UCF10..V |
1 | ||
| 88410-50060 |
UCF10..V |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-50010 |
UCF10 |
1 | ||
| 88433-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04421 | ||||
| 90099-04422 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90179-08184 | ||||

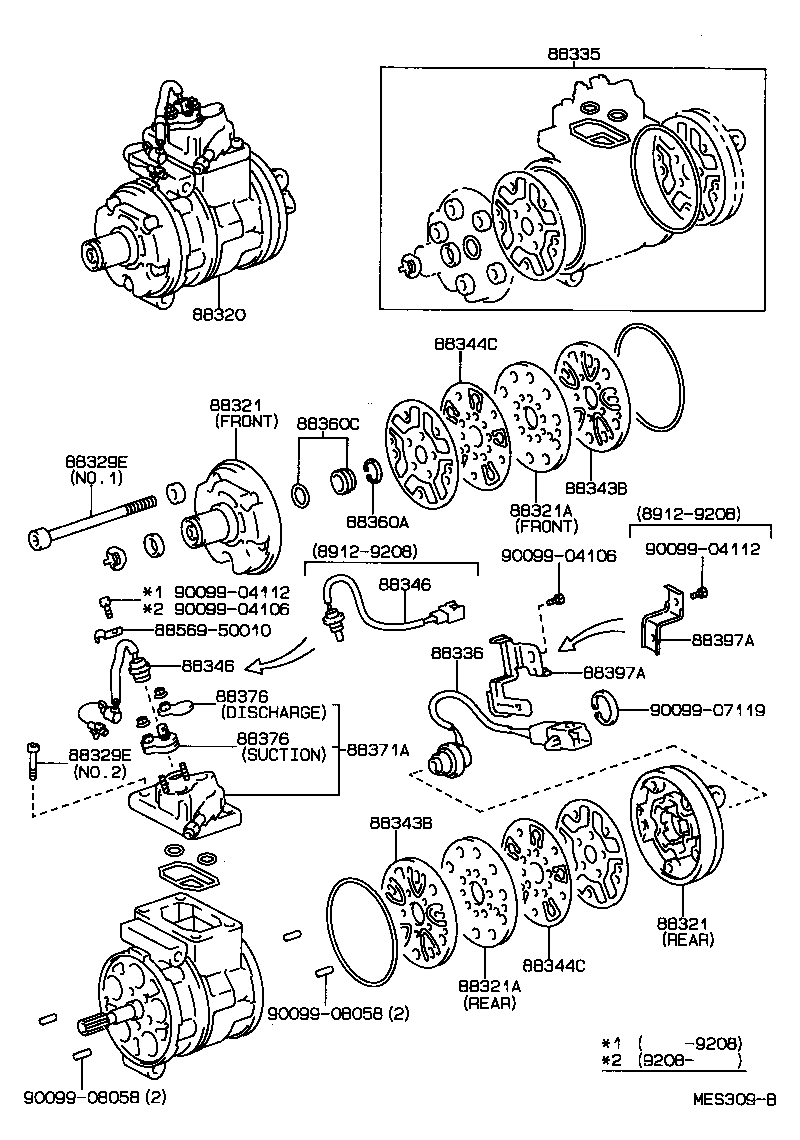

ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-50050 |
UCF10..V |
1 | ||
| 88320-50020 |
UCF10..V |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-60020 |
UCF10 FRONT |
1 | ||
| 88321-30310 |
UCF10 FRONT |
1 | ||
| 88322-50010 |
UCF10 REAR |
1 | ||
| 88322-50020 |
UCF10 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-60020 |
UCF10 FRONT |
1 | ||
| 88321-30310 |
UCF10 FRONT |
1 | ||
| 88322-50010 |
UCF10 REAR |
1 | ||
| 88322-50020 |
UCF10 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-30010 |
UCF10 FRONT |
1 | ||
| 88341-30040 |
UCF10 FRONT |
1 | ||
| 88342-30010 |
UCF10 REAR |
1 | ||
| 88342-30270 |
UCF10 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-30010 |
UCF10 FRONT |
1 | ||
| 88341-30040 |
UCF10 FRONT |
1 | ||
| 88342-30010 |
UCF10 REAR |
1 | ||
| 88342-30270 |
UCF10 REAR |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04107 |
UCF10 NO.2 |
4 | ||
| 88329-30010 |
UCF10 NO.1 |
5 | ||
| 88329-50010 |
UCF10 NO.2 |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04107 |
UCF10 NO.2 |
4 | ||
| 88329-30010 |
UCF10 NO.1 |
5 | ||
| 88329-50010 |
UCF10 NO.2 |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-50010 |
UCF10 |
1 | ||
| 88335-50020 |
UCF10 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-50010 |
UCF10 |
1 | ||
| 88336-50020 |
UCF10 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-30280 |
UCF10 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-30280 |
UCF10 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-30010 |
UCF10 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-30010 |
UCF10 |
2 | ||
| 88346 - SENSOR,COMPRESSOR | ||||
| 88346-50020 |
UCF10..V |
1 | ||
| 88346-50020 |
UCF10..V |
1 | ||
| 88336-50030 |
UCF10..V |
1 | ||
| 88346 - SENSOR,COMPRESSOR | ||||
| 88346-50020 |
UCF10..V |
1 | ||
| 88346-50020 |
UCF10..V |
1 | ||
| 88336-50030 |
UCF10..V |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
UCF10 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B010 |
UCF10 |
1 | ||
| 88360-14030 |
UCF10 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-50030 |
UCF10..V |
1 | ||
| 88371-50020 |
UCF10..V |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
UCF10..V DISCHARGE |
2 | ||
| 88376-17020 |
UCF10..V SUCTION |
2 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
UCF10..V DISCHARGE |
2 | ||
| 88376-17020 |
UCF10..V SUCTION |
2 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-50010 |
UCF10 |
1 | ||
| 88688-50110 |
UCF10 |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-50010 |
UCF10 |
1 | ||
| 88688-50110 |
UCF10 |
1 | ||
| Common parts | ||||
| 88569-50010 | ||||
| 90099-04106 | ||||
| 90099-04112 | ||||
| 90099-07119 | ||||
| 90099-08058 | ||||
