UCF10L-AEPGKV (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

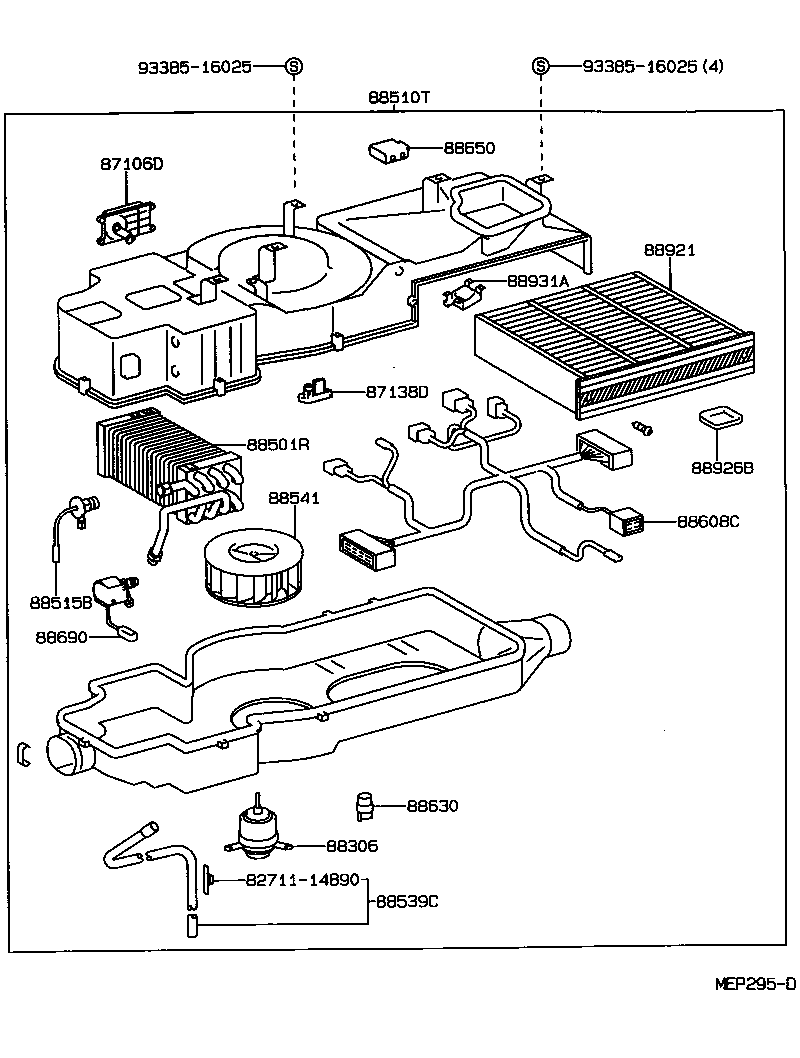

ILLUST NO. 2 OF 2(8912- )V

Click highlighted areas on diagram

REAR COOLER

diagram 8271114890 87106D 87138D 88306 88501R 88510T 88515B 88539C 88541 88608C 88630 88650 88690 88921 88926B 88931A 9338516025 9338516025
Part # Description Qty Price
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-50090

UCF10..V

 1
87138D - RESISTOR, BLOWER (REAR)
87138-50020

UCF10..V

 1
88635-30390

UCF10..V

 1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-50020

UCF10..V

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-50060

UCF10..V

 1
88501-50030

UCF10..V

 1
88510T - UNIT ASSY, COOLING (REAR)
88510-50050

UCF10..V

 1
88510-50120

UCF10..V

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-50050

UCF10..V

 1
88515-30310

UCF10..V

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-50030

UCF10..V

 1
88541 - FAN, BLOWER
88541-30280

UCF10..V

 1
88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-50050

UCF10..V

 1
88608-50130

UCF10..V

 1
88630 - RELAY ASSY, COOLER
90987-02004

UCF10..V

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-50010

UCF10..V

 1
88690 - VALVE ASSY, COOLER MAGNET
88691-50010

UCF10..V

 1
88691-50020

UCF10..V

 1
88921 - FILTER, AIR PURIFIER, NO.1
88926-30101

UCF10..V

 1
88926B - FILTER, AIR PURIFIER
88926-30110

UCF10..V

 1
88926-30120

UCF10..V

 1
88931A - SENSOR, SMOKE
88931-50010

UCF10..V

 1
Common parts
82711-14890
93385-16025

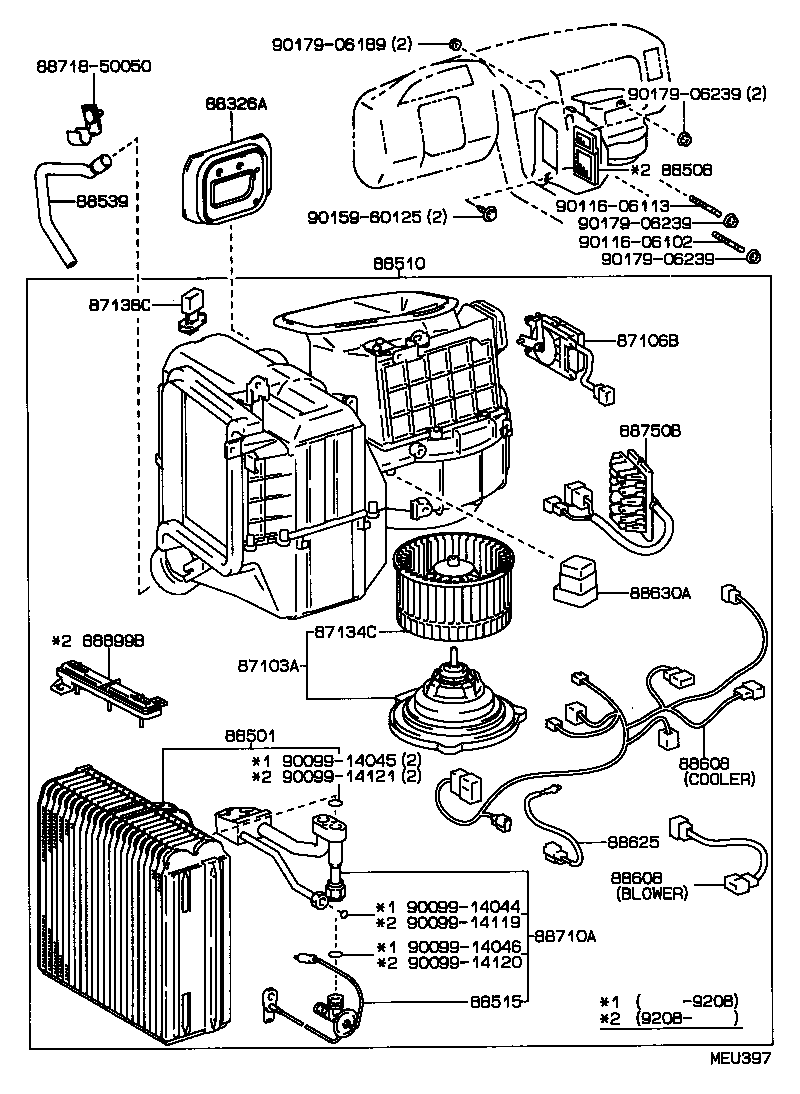

ILLUST NO. 1 OF 2(8912- )LHD

Click highlighted areas on diagram

FRONT COOLER

diagram 87103A 87106B 87134C 87138C 88326A 88501 88508 88510 88515 88539 88608 88608 88625 88630A 88710A 8871850050 88750B 88899B 9009914044 9009914045 9009914046 9009914119 9009914120 9009914121 9011606102 9011606113 9015960125 9017906189 9017906239 9017906239 9017906239
Part # Description Qty Price
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-50010

UCF10

 1
87103-50010

UCF10..LHD

 1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-50040

UCF10..LHD

 1
87134C - FAN, BLOWER(FOR COOLING UNIT)
87134-30050

UCF10..LHD

 1
87134-30050

UCF10

 1
87138C - RESISTOR, BLOWER
87138-50010

UCF10

 1
88326A - PLATE, COVER
88326-50010

UCF10..LHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-50010

UCF10..LHD

 1
88501-50070

UCF10..LHD

 1
88501-50090

UCF10..LHD

 1
88501-50012

UCF10..LHD

 1
88501-50011

UCF10..LHD

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88880-50010

UCF10..LHD

 1
88510 - UNIT ASSY, COOLER
88510-50080

UCF10..LHD

 1
88510-50021

UCF10..LHD

 1
88510-50020

UCF10..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-50021

UCF10..EUR,V

 1
88515-50020

UCF10..EUR,V

 1
88515-50040

UCF10..EUR,V

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-50010

UCF10..LHD

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-50020

UCF10..LHD

BLOWER

 1
88608-50010

UCF10..LHD

COOLER

 1
88608-50020

UCF10

BLOWER

 1
88608-50070

UCF10..LHD

COOLER

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-50020

UCF10..LHD

BLOWER

 1
88608-50010

UCF10..LHD

COOLER

 1
88608-50020

UCF10

BLOWER

 1
88608-50070

UCF10..LHD

COOLER

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32040

UCF10..EUR,V

 1
88625-32040

UCF10

 1
88630A - RELAY ASSY, COOLER
88630-50010

UCF10

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-50030

UCF10..LHD

 1
88710-50240

UCF10..LHD

 1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-50030

UCF10..LHD

 1
88750-50010

UCF10..LHD

 1
88899B - COVER, COOLER CONTROL
88891-50010

UCF10..LHD

 1
Common parts
88718-50050
90099-14044
90099-14045
90099-14046
90099-14119
90099-14120
90099-14121
90116-06102
90116-06113
90159-60125
90179-06189
90179-06239
