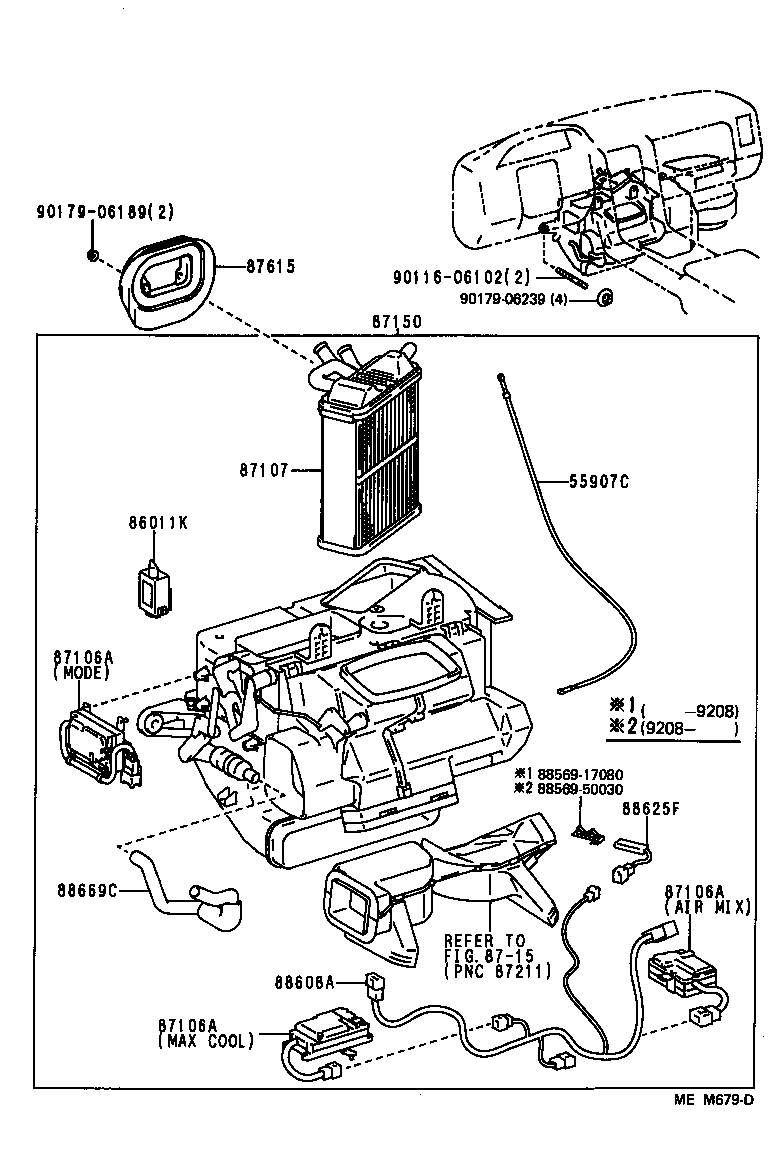

Toyota Lexus ls400 UCF10 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-50010	UCF10..LHD	12/1989 - 08/1992	1
87286-50030	UCF10..LHD	08/1992 - 10/1994	1
86011K - FILTER, NOISE
90980-05165	UCF10..LHD	12/1989 - 10/1994	1
87106A - SERVO SUB-ASSY, DAMPER
87106-50010	UCF10..LHD MODE	12/1989 - 10/1994	1
87106-50020	UCF10..LHD AIR MIX	12/1989 - 08/1992	1
87106-50130	UCF10..LHD MAX COOL	08/1992 - 10/1994	1
87106-50030	UCF10..LHD MAX COOL	12/1989 - 08/1992	1
87106-50120	UCF10..LHD AIR MIX	08/1992 - 10/1994	1
87106A - SERVO SUB-ASSY, DAMPER
87106-50010	UCF10..LHD MODE	12/1989 - 10/1994	1
87106-50020	UCF10..LHD AIR MIX	12/1989 - 08/1992	1
87106-50130	UCF10..LHD MAX COOL	08/1992 - 10/1994	1
87106-50030	UCF10..LHD MAX COOL	12/1989 - 08/1992	1
87106-50120	UCF10..LHD AIR MIX	08/1992 - 10/1994	1
87106A - SERVO SUB-ASSY, DAMPER
87106-50010	UCF10..LHD MODE	12/1989 - 10/1994	1
87106-50020	UCF10..LHD AIR MIX	12/1989 - 08/1992	1
87106-50130	UCF10..LHD MAX COOL	08/1992 - 10/1994	1
87106-50030	UCF10..LHD MAX COOL	12/1989 - 08/1992	1
87106-50120	UCF10..LHD AIR MIX	08/1992 - 10/1994	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-50010	UCF10..LHD	12/1989 - 10/1994	1
87150 - RADIATOR ASSY, HEATER
87150-50030	UCF10..LHD	08/1992 - 10/1994	1
87150-50011	UCF10..LHD	12/1989 - 08/1992	1
87615 - RETAINER, INSULATOR
87615-50010	UCF10..LHD	12/1989 - 10/1994	1
88608A - HARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2
88608-50030	UCF10..LHD	12/1989 - 08/1992	1
88608-50110	UCF10..LHD	08/1992 - 10/1994	1
88625F - SENSOR, TEMPERATURE
88790-24040	UCF10	12/1989 - 08/1992	1
88790-50020	UCF10	08/1992 - 10/1994	1
88669C - HOSE, AIR
88669-50010	UCF10..LHD	12/1989 - 10/1994	1
Common parts
88569-17080
88569-50030
90116-06102
90179-06189
90179-06239
Linked diagrams
8715

UCF10L-AEPGKV (1989)

(8912- )LHD
