UCF10L-AEPGKV (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

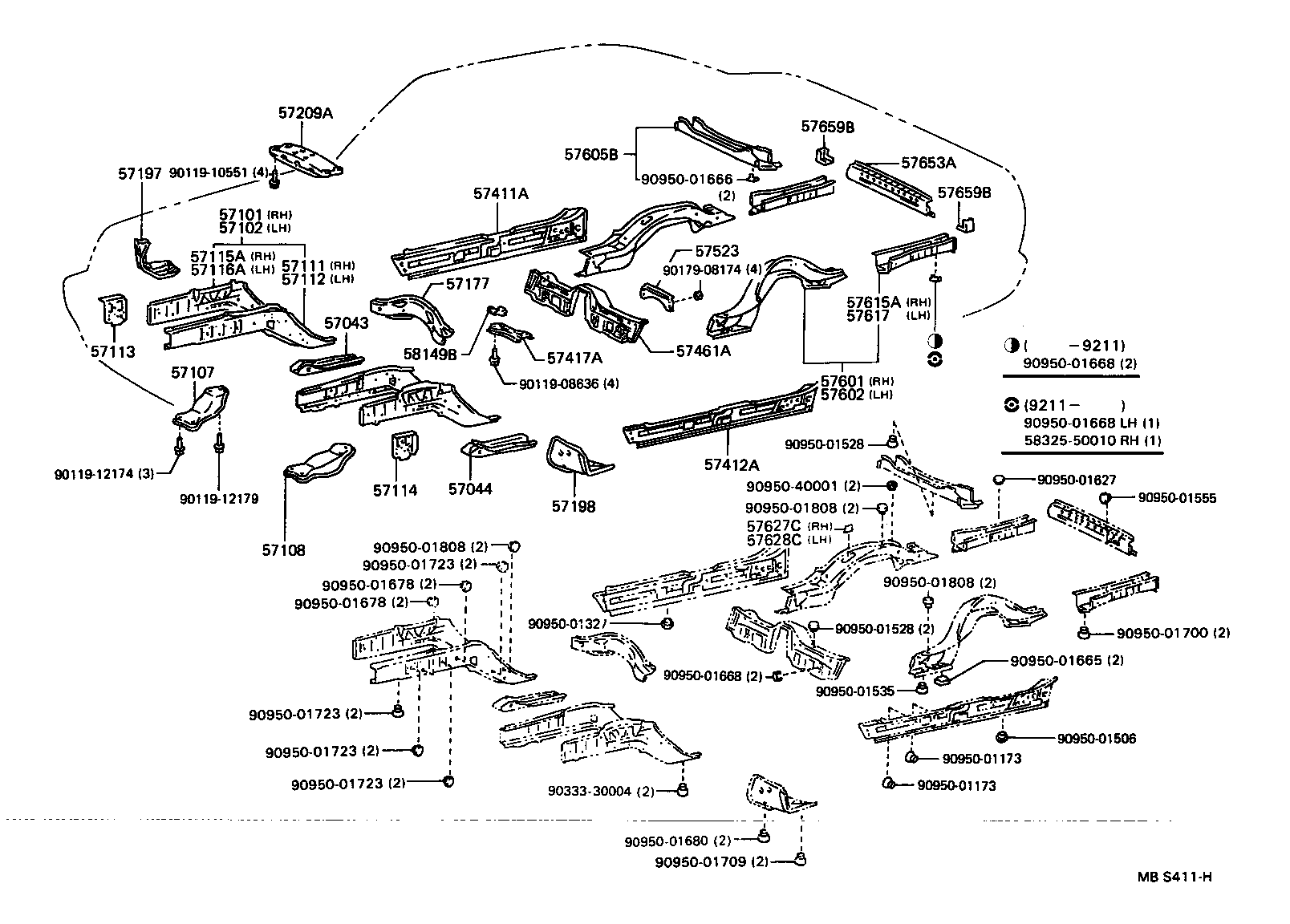

Click highlighted areas on diagram

diagram 57043 57044 57101 57102 57107 57108 57111 57112 57113 57114 57115A 57116A 57177 57197 57198 57209A 57411A 57412A 57417A 57461A 57523 57601 57602 57605B 57615A 57617 57627C 57628C 57653A 57659B 57659B 58149B 5832550010 9011908636 9011910551 9011912174 9011912179 9015001506 9017908174 9033330004 9095001173 9095001173 9095001327 9095001528 9095001528 9095001535 9095001555 9095001627 9095001665 9095001666 9095001668 9095001668 9095001668 9095001678 9095001678 9095001680 9095001700 9095001709 9095001723 9095001723 9095001723 9095001723 9095001808 9095001808 9095001808 9095040001
Part # Description Qty Price
57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-50010

UCF10

 1
57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-50010

UCF10

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-50902

UCF10..V

 1
57101-50907

UCF10..V

 1
57101-50904

UCF10..V;UCF10..RHD

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-50904

UCF10..LHD

 1
57102-50902

UCF10..LHD

 1
57102-50900

UCF10..LHD

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-50010

UCF10

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-50010

UCF10

 1
57111 - MEMBER, FRONT SIDE, RH
57111-50051

UCF10..V

 1
57111-50050

UCF10..V

 1
57112 - MEMBER, FRONT SIDE, LH
57112-50010

UCF10..LHD

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57016-50010

UCF10

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57017-50010

UCF10

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-50010

UCF10

 1
57115-50011

UCF10..LHD

 1
57115-50011

UCF10

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-50010

UCF10

 1
57116-50011

UCF10

 1
57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
57177-50011

UCF10..LHD

 1
57177-50010

UCF10..LHD

 1
57197 - BOX, TORQUE, FRONT RH
57197-50010

UCF10

 1
57197-50011

UCF10

 1
57198 - BOX, TORQUE, FRONT LH
57198-50011

UCF10

 1
57198-50010

UCF10

 1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57255-50011

UCF10

 1
57255-50010

UCF10

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-50020

UCF10..ARL,EUR,V

 1
57401-50021

UCF10..ARL,EUR,V

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-50021

UCF10..ARL,EUR,V

 1
57402-50020

UCF10..ARL,EUR,V

 1
57417A - REINFORCEMENT, FRONT FLOOR UNDER
57417-50010

UCF10

 1
57461A - MEMBER, CENTER FLOOR CROSS
57461-50903

UCF10..ARL,EUR,V

 1
57461-50901

UCF10

 1
57523 - BRACE, CENTER FLOOR CROSSMEMBER
57523-50010

UCF10

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-50021

UCF10..ARL,EUR,V

 1
57601-50020

UCF10..ARL,EUR,V

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-50020

UCF10..ARL,EUR,V

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-50010

UCF10

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-50900

UCF10

 1
57615-50902

UCF10

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-50900

UCF10..ARL,EUR,V

 1
57616-50900

UCF10

 1
57616-50901

UCF10

 1
57627C - COVER, REAR FLOOR SIDE MEMBER, RH
57627-50010

UCF10

 1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57627-50010

UCF10

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-50012

UCF10

 1
57653-50011

UCF10

 1
57653-50013

UCF10

 1
57653-50010

UCF10

 1
57659B - MEMBER, REAR FLOOR CROSS, REAR INNER
57659-50010

UCF10

 2
57659B - MEMBER, REAR FLOOR CROSS, REAR INNER
57659-50010

UCF10

 2
58149B - PLATE, FRONT FLOOR REINFORCE NUT
58149-50010

UCF10

 2
Common parts
58325-50010
90119-08636
90119-10551
90119-12174
90119-12179
90150-01506
90179-08174
90333-30004
90950-01173
90950-01327
90950-01528
90950-01535
90950-01555
90950-01627
90950-01665
90950-01666
90950-01668
90950-01678
90950-01680
90950-01700
90950-01709
90950-01723
90950-01808
90950-40001
