UCF10L-AEPGKV (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

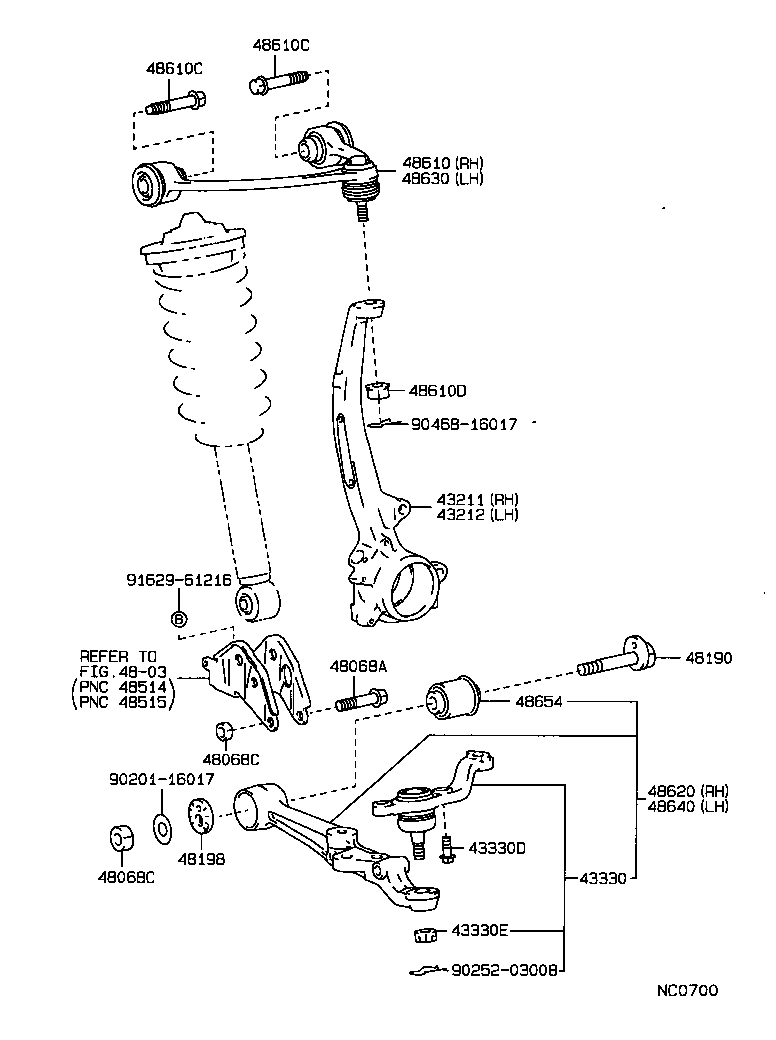

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-50010 |
UCF10 |
1 | ||
| 43211-50030 |
UCF10 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-50010 |
UCF10 |
1 | ||
| 43212-50030 |
UCF10 |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43340-59015 |
UCF10 LH |
1 | ||
| 43340-59025 |
UCF10 LH |
1 | ||
| 43330-59025 |
UCF10 RH |
1 | ||
| 43330-59015 |
UCF10 RH |
1 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90105-12141 |
UCF10 |
4 | ||
| 43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90171-16050 |
UCF10 |
2 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90105-12101 |
UCF10 |
2 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90179-12091 |
UCF10 SHOCK ABSORBER SIDE |
2 | ||
| 94115-71600 |
UCF10 BODY SIDE |
2 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90179-12091 |
UCF10 SHOCK ABSORBER SIDE |
2 | ||
| 94115-71600 |
UCF10 BODY SIDE |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-50020 |
UCF10 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-50020 |
UCF10 |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-50020 |
UCF10 |
1 | ||
| 48610-50010 |
UCF10 |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90105-12258 |
UCF10 |
4 | ||
| 90105-12173 |
UCF10 |
4 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90105-12258 |
UCF10 |
4 | ||
| 90105-12173 |
UCF10 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90171-12002 |
UCF10 |
2 | ||
| 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH | ||||
| 48620-50010 |
UCF10 |
1 | ||
| 48620-50020 |
UCF10 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-50010 |
UCF10 |
1 | ||
| 48630-50020 |
UCF10 |
1 | ||
| 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH | ||||
| 48640-50010 |
UCF10 |
1 | ||
| 48640-50020 |
UCF10 |
1 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-50010 |
UCF10 |
2 | ||
| Common parts | ||||
| 90201-16017 | ||||
| 90252-03008 | ||||
| 90468-16017 | ||||
| 91629-61216 | ||||
| Linked diagrams | ||||
| 4803 | ||||
