UCF10L-AEPGKV (1989)
Toyota Lexus Ls400
Production
Dec 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

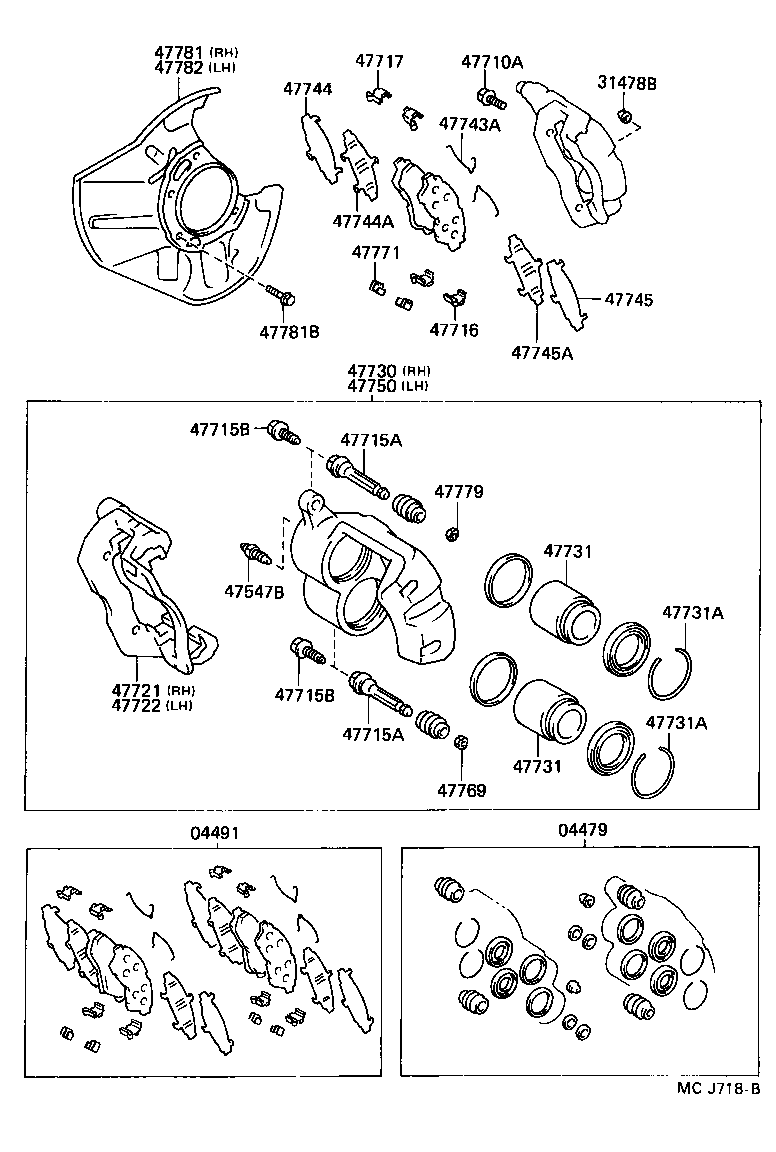

ILLUST NO. 1 OF 2(8912-9208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-50050 |
UCF10 |
1 | ||
| 04479-50030 |
UCF10 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-50021 |
UCF10..EUR,V |
1 | ||
| 04491-50050 |
UCF10..V |
1 | ||
| 04491-50071 |
UCF10..ARL,GEN,V |
1 | ||
| 04491-50070 |
UCF10..ARL,GEN,V |
1 | ||
| 04491-50110 |
UCF10..ARL,GEN,V |
1 | ||
| 04491-50020 |
UCF10..EUR,V |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-50020 |
UCF10 |
2 | ||
| 31478-30010 |
UCF10 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
UCF10 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12175 |
UCF10 *12-1.25PX35-27 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50020 |
UCF10 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50020 |
UCF10 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
UCF10 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
UCF10 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-50030 |
UCF10 OUTER |
2 | ||
| 47716-30080 |
UCF10 |
2 | ||
| 47716-50050 |
UCF10 |
2 | ||
| 47716-50050 |
UCF10..ARL,GEN,V |
2 | ||
| 47716-50010 |
UCF10 INNER |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-50030 |
UCF10 OUTER |
2 | ||
| 47717-50031 |
UCF10 OUTER |
2 | ||
| 47716-50060 |
UCF10..ARL,GEN,V |
2 | ||
| 47716-50060 |
UCF10 |
2 | ||
| 47717-50010 |
UCF10 INNER |
2 | ||
| 47716-30090 |
UCF10 |
2 | ||
| 47717-50011 |
UCF10 INNER |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-50050 |
UCF10 |
1 | ||
| 47721-50030 |
UCF10 |
1 | ||
| 47721-50052 |
UCF10 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-50030 |
UCF10 |
1 | ||
| 47722-50052 |
UCF10 |
1 | ||
| 47722-50050 |
UCF10 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-50063 |
UCF10 |
1 | ||
| 47730-50062 |
UCF10 |
1 | ||
| 47730-50060 |
UCF10 |
1 | ||
| 47730-50061 |
UCF10 |
1 | ||
| 47730-50030 |
UCF10 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50030 |
UCF10 |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50030 |
UCF10 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-50002 |
UCF10 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-50002 |
UCF10 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
UCF10 |
4 | ||
| 47743-30020 |
UCF10 |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-50010 |
UCF10 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47744-50010 |
UCF10 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-50010 |
UCF10 |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47744-50010 |
UCF10 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-50061 |
UCF10 |
1 | ||
| 47750-50060 |
UCF10 |
1 | ||
| 47750-50030 |
UCF10 |
1 | ||
| 47750-50063 |
UCF10 |
1 | ||
| 47750-50062 |
UCF10 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
UCF10 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
UCF10 |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47769-50020 |
UCF10 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-50020 |
UCF10 |
1 | ||
| 47781-50010 |
UCF10 |
1 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90119-06227 |
UCF10 *6-1.0PX14-7.5 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-50020 |
UCF10 |
1 | ||
| 47782-50010 |
UCF10 |
1 | ||

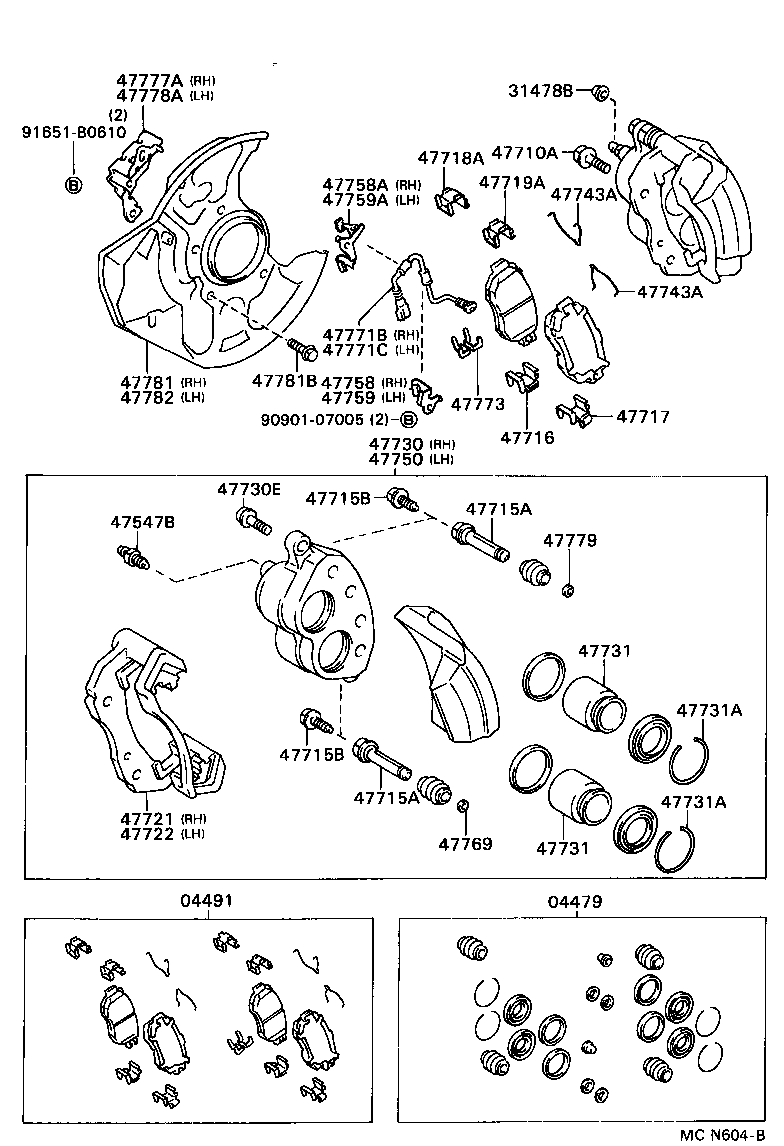

ILLUST NO. 1 OF 2(9208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-50050 |
UCF10 |
1 | ||
| 04479-50030 |
UCF10 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-50021 |
UCF10..EUR,V |
1 | ||
| 04491-50050 |
UCF10..V |
1 | ||
| 04491-50071 |
UCF10..ARL,GEN,V |
1 | ||
| 04491-50070 |
UCF10..ARL,GEN,V |
1 | ||
| 04491-50110 |
UCF10..ARL,GEN,V |
1 | ||
| 04491-50020 |
UCF10..EUR,V |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-50020 |
UCF10 |
2 | ||
| 31478-30010 |
UCF10 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
UCF10 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12175 |
UCF10 *12-1.25PX35-27 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50020 |
UCF10 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50020 |
UCF10 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
UCF10 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
UCF10 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-50030 |
UCF10 OUTER |
2 | ||
| 47716-30080 |
UCF10 |
2 | ||
| 47716-50050 |
UCF10 |
2 | ||
| 47716-50050 |
UCF10..ARL,GEN,V |
2 | ||
| 47716-50010 |
UCF10 INNER |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-50030 |
UCF10 OUTER |
2 | ||
| 47717-50031 |
UCF10 OUTER |
2 | ||
| 47716-50060 |
UCF10..ARL,GEN,V |
2 | ||
| 47716-50060 |
UCF10 |
2 | ||
| 47717-50010 |
UCF10 INNER |
2 | ||
| 47716-30090 |
UCF10 |
2 | ||
| 47717-50011 |
UCF10 INNER |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47717-30010 |
UCF10 |
2 | ||
| 47717-30010 |
UCF10..ARL,GEN,V |
2 | ||
| 47717-50051 |
UCF10 |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47717-30020 |
UCF10 |
2 | ||
| 47717-30020 |
UCF10..ARL,GEN,V |
2 | ||
| 47717-50061 |
UCF10 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-50050 |
UCF10 |
1 | ||
| 47721-50030 |
UCF10 |
1 | ||
| 47721-50052 |
UCF10 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-50030 |
UCF10 |
1 | ||
| 47722-50052 |
UCF10 |
1 | ||
| 47722-50050 |
UCF10 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-50063 |
UCF10 |
1 | ||
| 47730-50062 |
UCF10 |
1 | ||
| 47730-50060 |
UCF10 |
1 | ||
| 47730-50061 |
UCF10 |
1 | ||
| 47730-50030 |
UCF10 |
1 | ||
| 47730E - BOLT(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90901-07004 |
UCF10 *12-1.25PX40-30 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50030 |
UCF10 |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50030 |
UCF10 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-50002 |
UCF10 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-50002 |
UCF10 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
UCF10 |
4 | ||
| 47743-30020 |
UCF10 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
UCF10 |
4 | ||
| 47743-30020 |
UCF10 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-50061 |
UCF10 |
1 | ||
| 47750-50060 |
UCF10 |
1 | ||
| 47750-50030 |
UCF10 |
1 | ||
| 47750-50063 |
UCF10 |
1 | ||
| 47750-50062 |
UCF10 |
1 | ||
| 47758 - BRACKET, WIRE CLAMP, RH NO.1 | ||||
| 47758-50010 |
UCF10 |
1 | ||
| 47758A - BRACKET, WIRE CLAMP, RH NO.2 | ||||
| 47758-50020 |
UCF10 |
1 | ||
| 47759 - BRACKET, WIRE CLAMP, LH NO.1 | ||||
| 47759-50010 |
UCF10 |
1 | ||
| 47759A - BRACKET, WIRE CLAMP, LH NO.2 | ||||
| 47759-50020 |
UCF10 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
UCF10 |
2 | ||
| 47771B - WIRE, PAD WEAR INDICATOR RH | ||||
| 47771-50030 |
UCF10 |
1 | ||
| 47771C - WIRE, PAD WEAR INDICATOR LH | ||||
| 47771-50030 |
UCF10 |
1 | ||
| 47773 - RETAINER, PAD WEAR INDICATOR | ||||
| 47773-50020 |
UCF10 |
2 | ||
| 47777A - PROTECTOR, PAD WEAR INDICATOR WIRE, RH | ||||
| 47777-50010 |
UCF10 |
1 | ||
| 47778A - PROTECTOR, PAD WEAR INDICATOR WIRE, LH | ||||
| 47778-50010 |
UCF10 |
1 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47769-50020 |
UCF10 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-50020 |
UCF10 |
1 | ||
| 47781-50010 |
UCF10 |
1 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90119-06227 |
UCF10 *6-1.0PX14-7.5 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-50020 |
UCF10 |
1 | ||
| 47782-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 90901-07005 | ||||
| 91651-B0610 | ||||
ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-50080 |
UCF10..EUR,V |
1 | ||
| 04465-50020 |
UCF10..V |
1 | ||
| 04465-50030 |
UCF10..ARL,GEN,V |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-14030 |
UCF10..ARL,GEN,V |
1 | ||
| 04945-14010 |
UCF10..ARL,GEN,V |
1 | ||
| 04945-50020 |
UCF10 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-50030 |
UCF10 |
1 | ||
| 04947-50060 |
UCF10..ARL,GEN,V |
1 | ||
