UCF10L-AEPGKV (1989)

Toyota Lexus Ls400

Production Dec 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

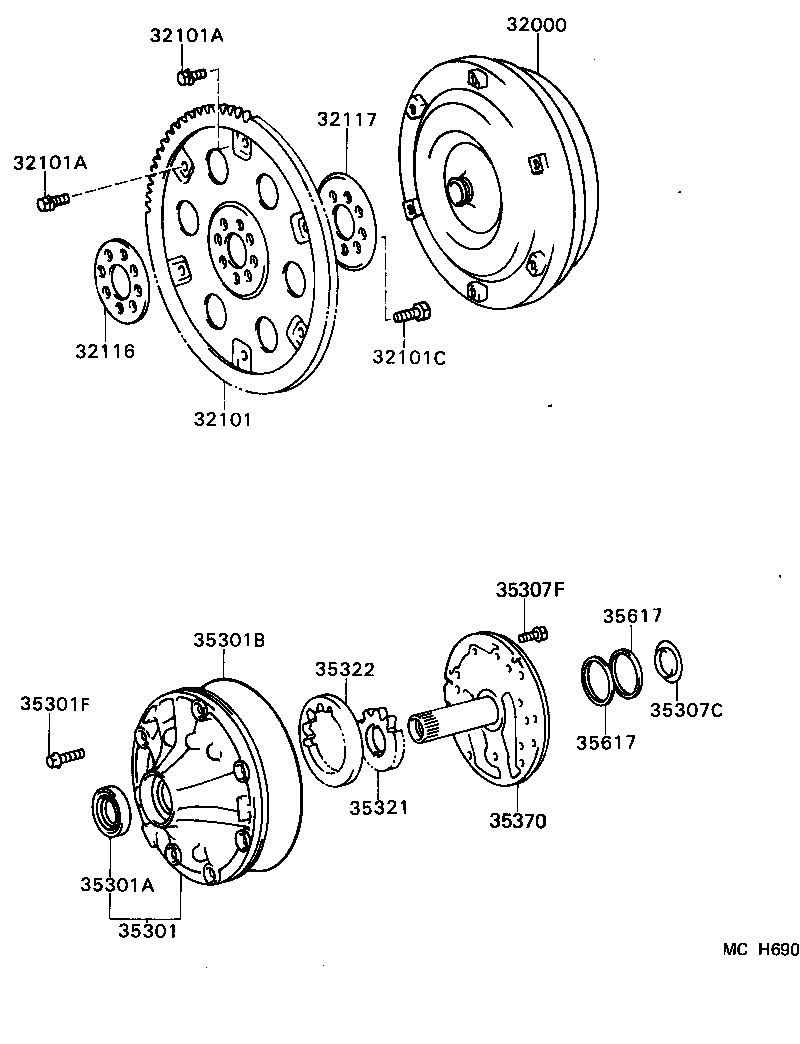

Click highlighted areas on diagram

A341E,A342E

diagram 32000 32101 32101A 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307C 35307F 35321 35322 35370 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-50010

UCF10

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-50010

UCF10

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009

UCF10

*9-1.25PX12.8-8.8,YELLOW

 5
90119-09017

UCF10

*9-1.25PX12.8-7.7

 1
90119-09010

UCF10

*9-1.25PX12.8-9,OLIVE GREEN

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009

UCF10

*9-1.25PX12.8-8.8,YELLOW

 5
90119-09017

UCF10

*9-1.25PX12.8-7.7

 1
90119-09010

UCF10

*9-1.25PX12.8-9,OLIVE GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10226

UCF10

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-50010

UCF10

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-50010

UCF10

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-35010

UCF10

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029

UCF10

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

UCF10

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

UCF10

*8-1.25PX35-35

 7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30020

UCF10

T=3.7

 1
35307F - BOLT (FOR STATOR SHAFT)
90105-06126

UCF10

 13
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12020

UCF10

T=10.690-10.699

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12010

UCF10

T=10.690-10.699

 1
35370 - SHAFT ASSY, STATOR
35370-50010

UCF10

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

UCF10

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

UCF10

 2
