LFA10L-FCRAFV (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

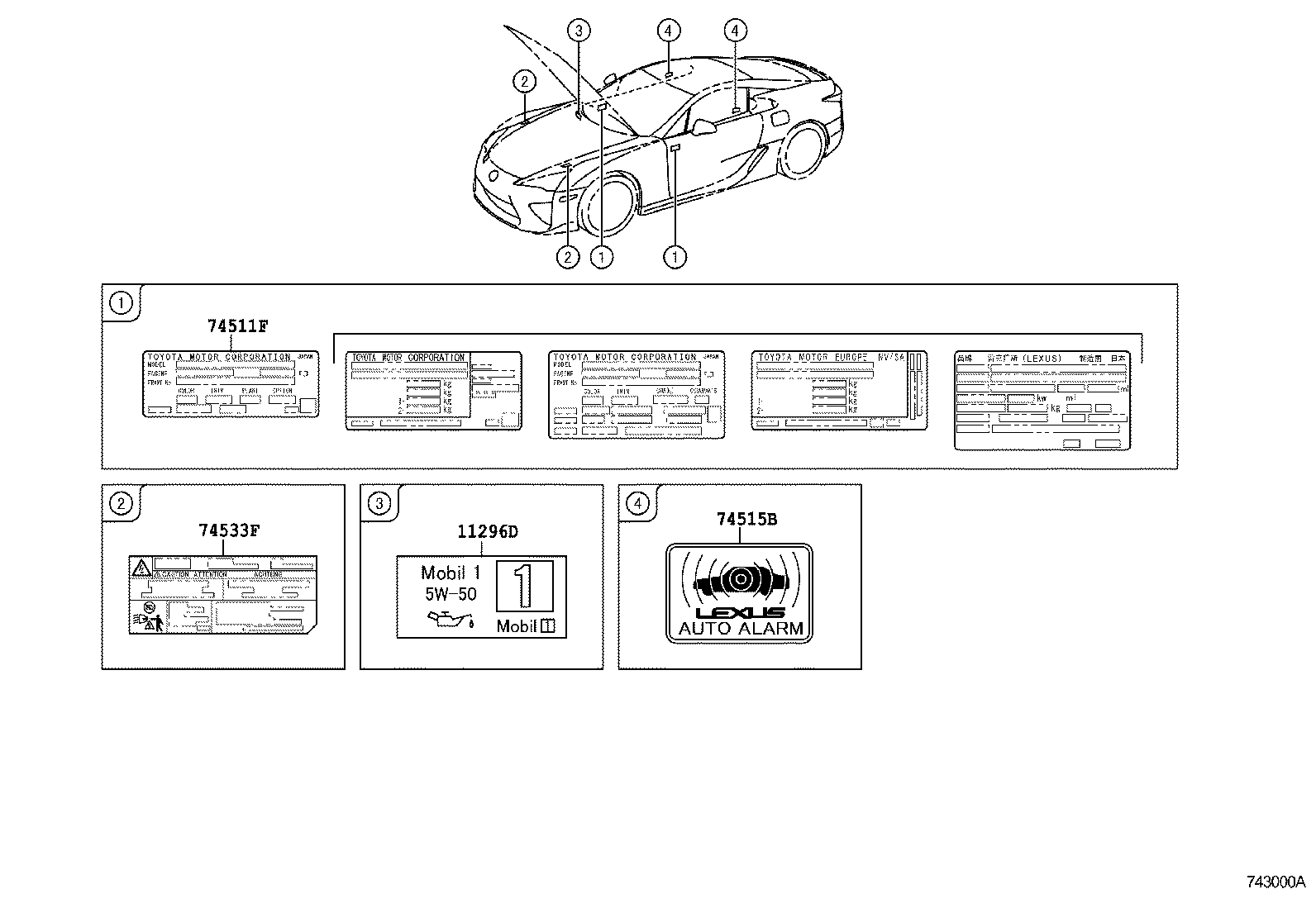

ILLUST NO. 1 OF 2(1012- )

Click highlighted areas on diagram

diagram 11296D 74511F 74515B 74533F
Part # Description Qty Price
11296D - LABEL, ENGINE SERVICE INFORMATION
11296-45020

1LRGUE..LFA10

 1
74515B - PLATE, THEFT WARNING
74515-30040

LFA10

 2
74533F - LABEL, HEADLAMP VOLTAGE CAUTION
74533-47010

LFA10

 2

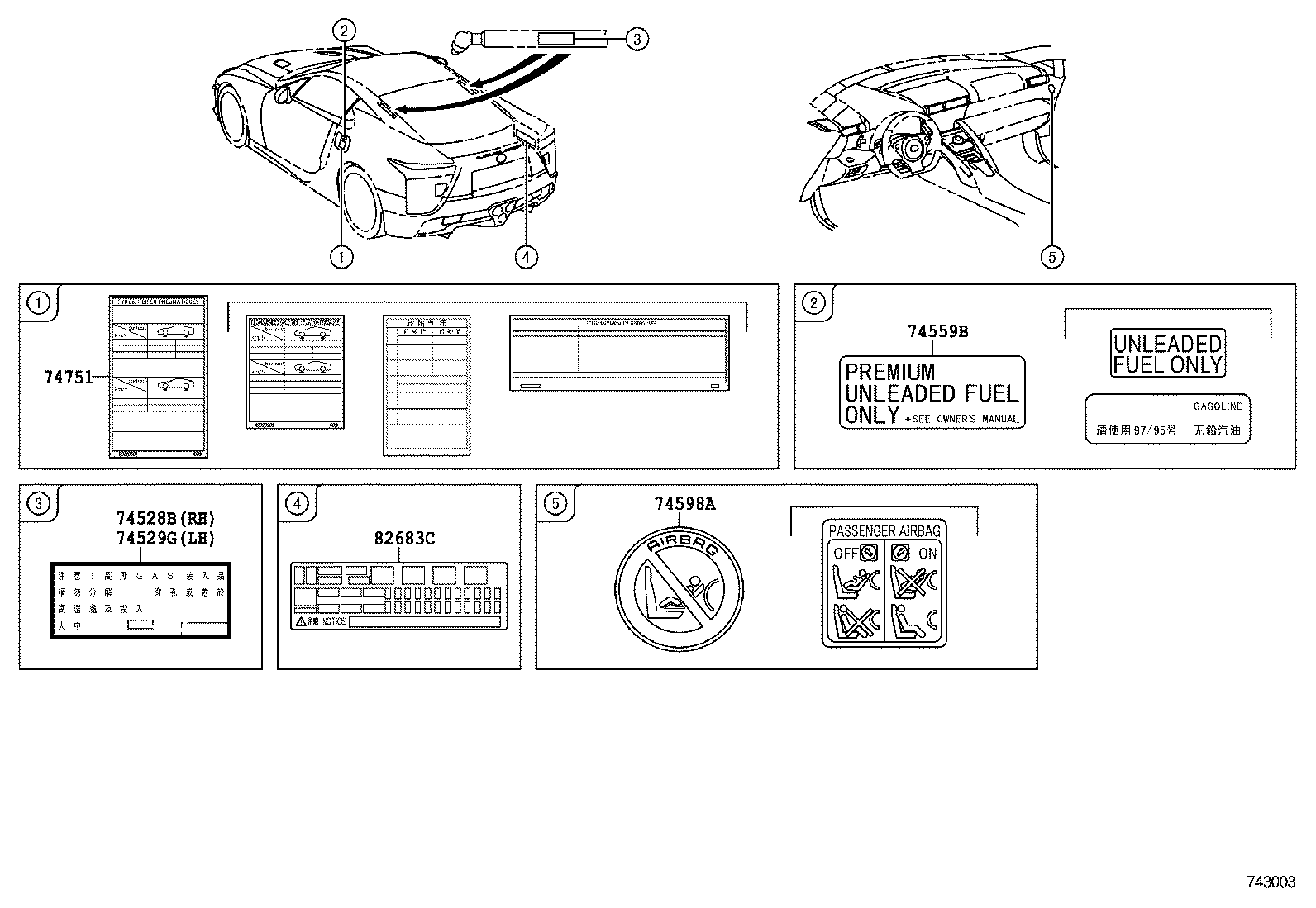

ILLUST NO. 2 OF 2(1012- )

Click highlighted areas on diagram

diagram 74528B 74529G 74559B 74598A 74751 82683C
Part # Description Qty Price
74559B - LABEL, FUEL INFORMATION
74559-50010

LFA10..GCC

GCC SPEC

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-77040

LFA10..GCC

 1
82683C - LABEL, FUSE BLOCK NOTICE
82683-77010

LFA10

 1
