URZ100R-AKUBHW (2020)
Toyota Lexus Lc500 (Cv)
Production
Jul 2020
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

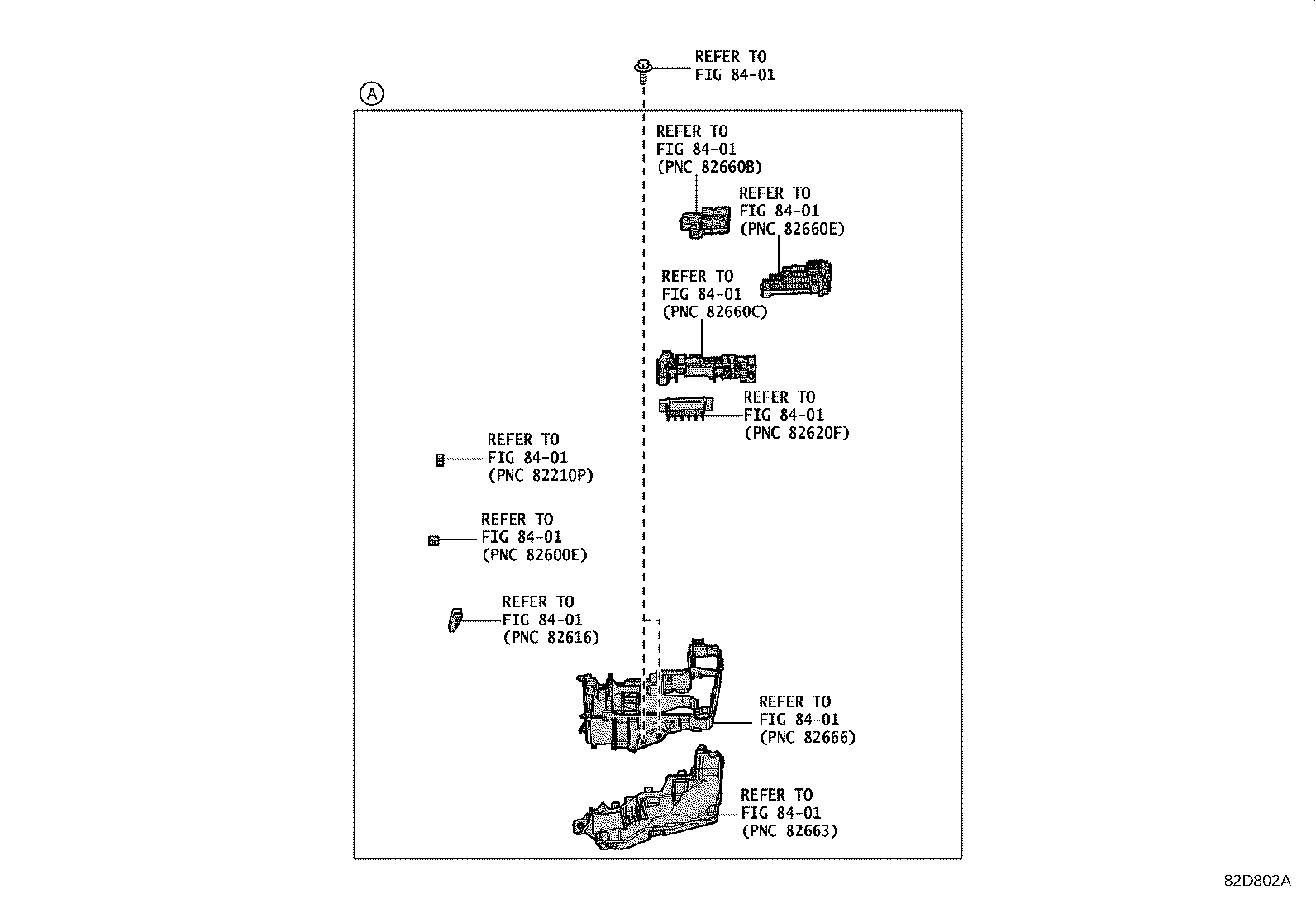

ILLUST NO. 2 OF12(2007- )RHD
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF12(2007- )
Click highlighted areas on diagram

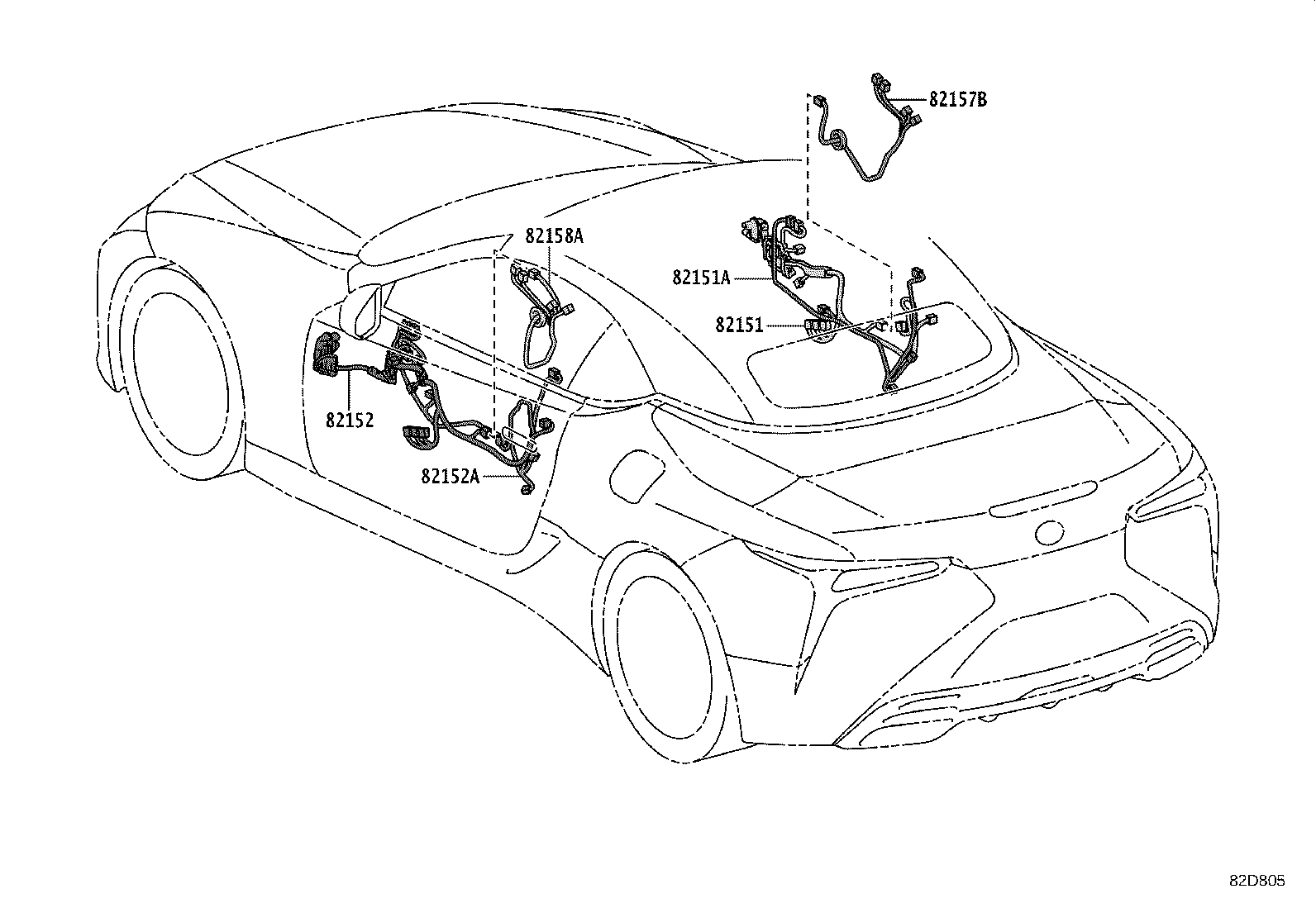

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-11050 |
URZ100..RHD |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-11020 |
URZ100..RHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-11050 |
URZ100..RHD |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-11020 |
URZ100..RHD |
1 | ||
| 82157B - WIRE, STEP REAR FLOOR, RH | ||||
| 82157-11010 |
URZ100 |
1 | ||
| 82158A - WIRE, STEP PANEL, LH | ||||
| 82158-11010 |
URZ100 |
1 | ||
ILLUST NO. 6 OF12(2007- )
Click highlighted areas on diagram

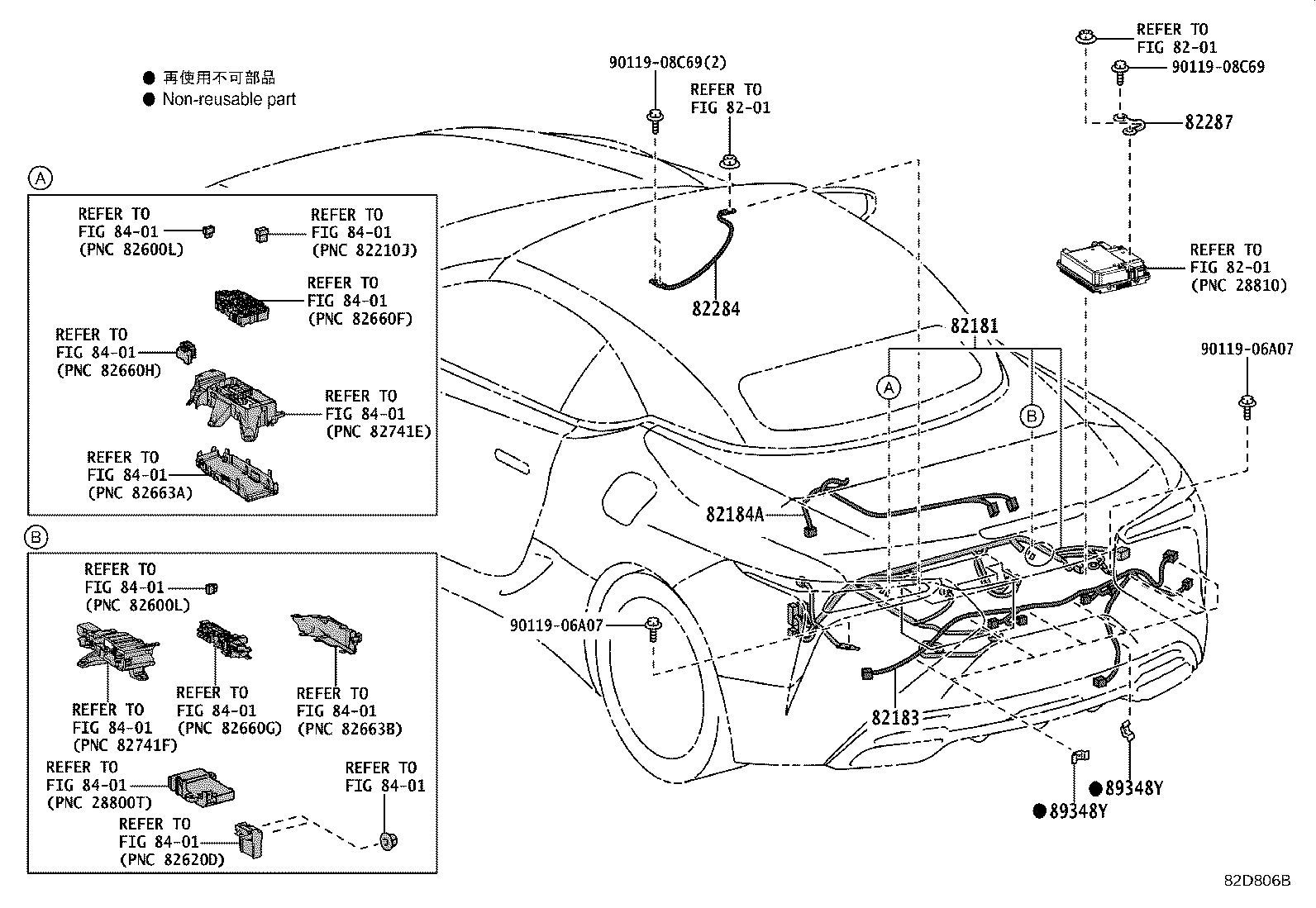

LUGGAGE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-11100 |
URZ100 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-11010 |
URZ100 |
1 | ||
| 82184A - WIRE, LUGGAGE ROOM, NO.4 | ||||
| 82184-11030 |
URZ100 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-11010 |
URZ100 |
1 | ||
| 82287 - WIRE, EARTH, NO.3 | ||||
| 82287-11010 |
URZ100 |
1 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
URZ100 |
8 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
URZ100 |
8 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90119-08C69 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 8 OF12(2007- )RHD
Click highlighted areas on diagram

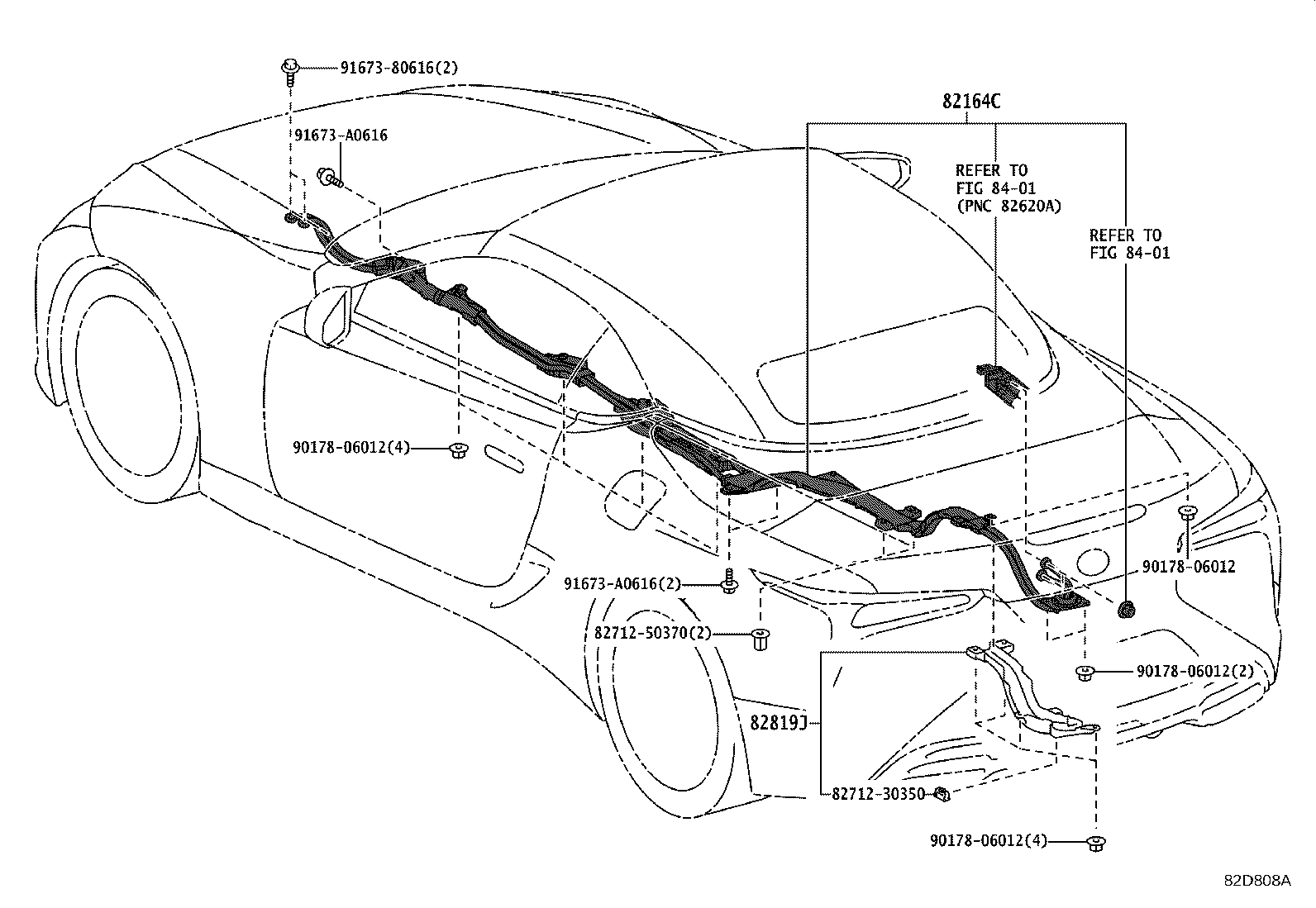

FLOOR UNDER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-11020 |
URZ100..RHD |
1 | ||
| 82819J - PROTECTOR, WIRING HARNESS, NO.25 | ||||
| 82817-11180 |
URZ100 |
1 | ||
| Common parts | ||||
| 82712-30350 | ||||
| 82712-50370 | ||||
| 90178-06012 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF12(2007- )RHD
Click highlighted areas on diagram

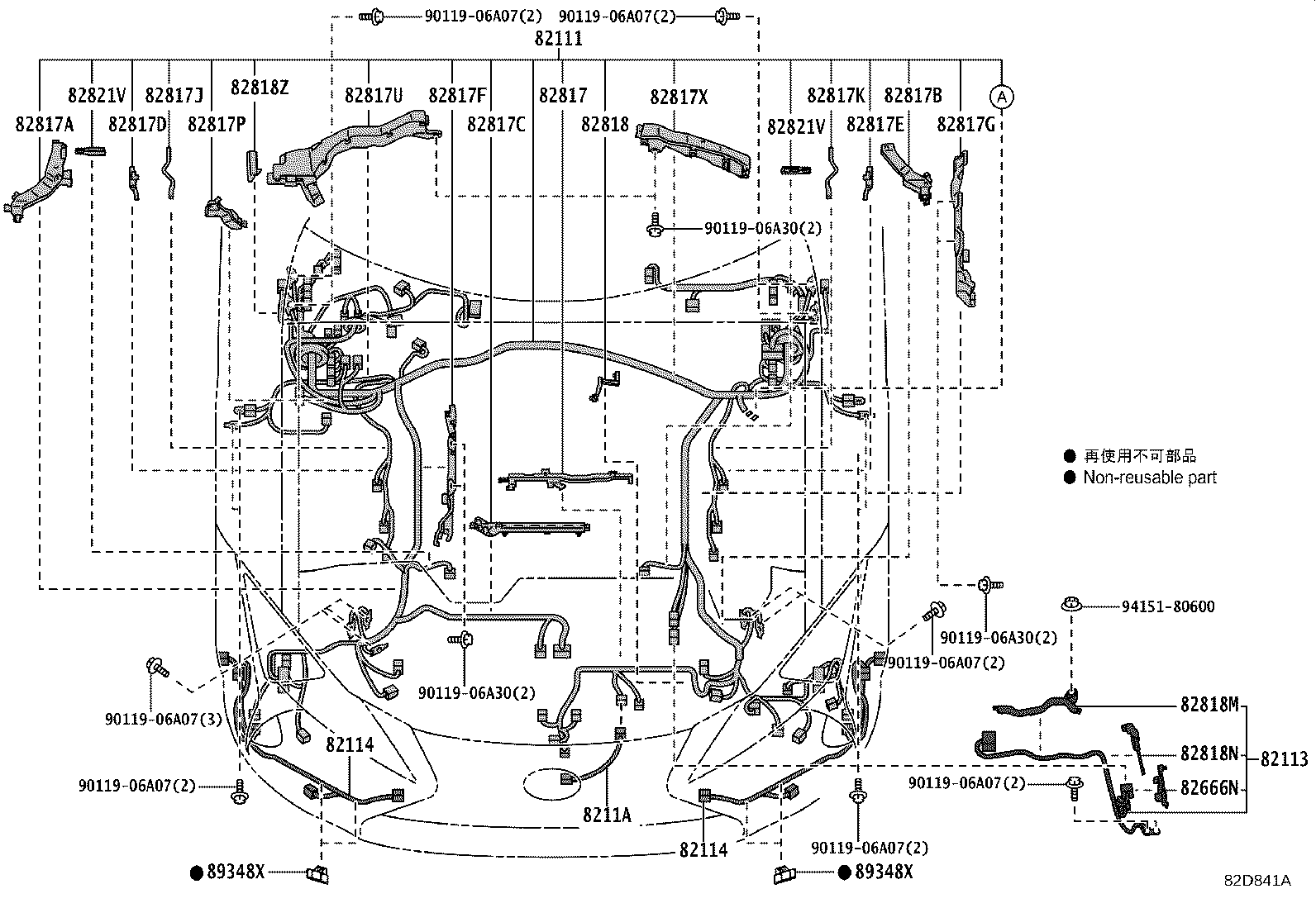

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-11520 |
URZ100..RHD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-50130 |
URZ100..RHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-11020 |
URZ100 |
2 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-11020 |
URZ100 |
2 | ||
| 8211A - WIRE, ENGINE ROOM, NO.6 | ||||
| 8211A-11010 |
URZ100 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-50A20 |
URZ100..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-11670 |
URZ100 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-11740 |
URZ100 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-11780 |
URZ100 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-11790 |
URZ100 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-50P80 |
URZ100 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-50P90 |
URZ100 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-50Q10 |
URZ100 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-50Q60 |
URZ100 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-50Z70 |
URZ100 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-50Z80 |
URZ100 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-5AD70 |
URZ100..RHD |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-50N20 |
URZ100..RHD |
1 | ||
| 82817-50N21 |
URZ100..RHD |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-5AD80 |
URZ100..RHD |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-11700 |
URZ100..RHD |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-50P50 |
URZ100..RHD |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-5AE30 |
URZ100 |
1 | ||
| 82818Z - PROTECTOR, WIRING HARNESS, NO.22 | ||||
| 82817-12860 |
URZ100 |
1 | ||
| 82821V - COVER, CONNECTOR | ||||
| 82821-11070 |
URZ100 |
2 | ||
| 82821V - COVER, CONNECTOR | ||||
| 82821-11070 |
URZ100 |
2 | ||
| 89348X - CLIP, ULTRASONIC SENSOR, FRONT | ||||
| 89348-50050 |
URZ100 |
4 | ||
| 89348X - CLIP, ULTRASONIC SENSOR, FRONT | ||||
| 89348-50050 |
URZ100 |
4 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90119-06A30 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF12(2007- )RHD
Click highlighted areas on diagram

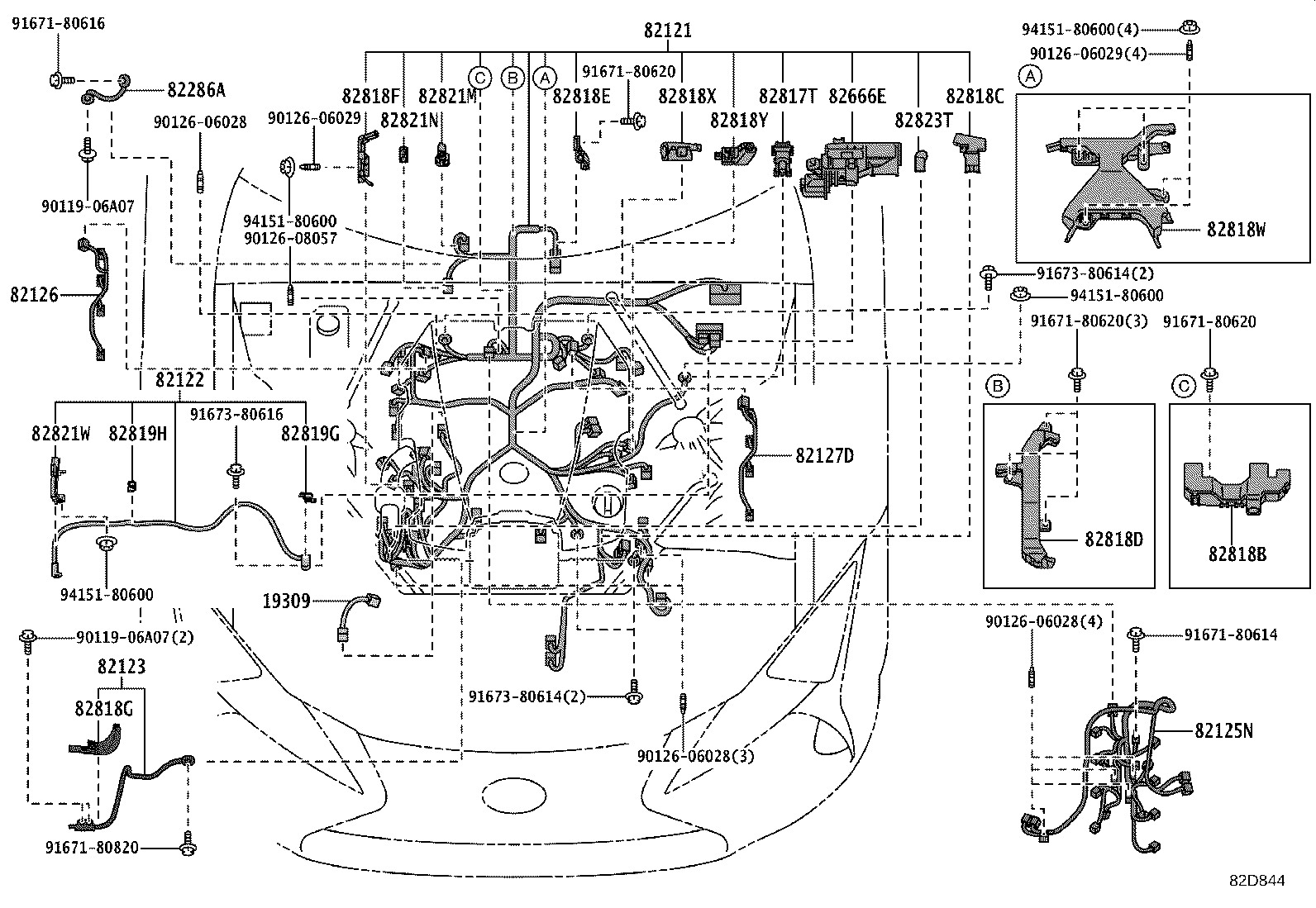

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19309 - HARNESS SUB-ASSY, CAM POSITION SENSOR | ||||
| 19309-38011 |
2URGSE..URZ100 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-11110 |
URZ100..RHD..EUR |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-11020 |
URZ100..RHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-11010 |
URZ100 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-11010 |
URZ100 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-24010 |
URZ100 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-24010 |
URZ100 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-11010 |
URZ100 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-50860 |
URZ100..RHD |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-50M50 |
URZ100 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-11550 |
URZ100 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-11640 |
URZ100 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-11720 |
URZ100 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-11730 |
URZ100 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-50E50 |
URZ100 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-50P30 |
URZ100 |
1 | ||
| 82818W - PROTECTOR, WIRING HARNESS, NO.19 | ||||
| 82817-11560 |
URZ100 |
1 | ||
| 82818X - PROTECTOR, WIRING HARNESS, NO.20 | ||||
| 82817-11710 |
URZ100..RHD |
1 | ||
| 82818Y - PROTECTOR, WIRING HARNESS, NO.21 | ||||
| 82817-11840 |
URZ100..RHD |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-50M60 |
URZ100..RHD |
1 | ||
| 82819H - PROTECTOR, WIRING HARNESS, NO.24 | ||||
| 82817-53350 |
URZ100 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-50680 |
URZ100 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-50750 |
URZ100 |
1 | ||
| 82821W - COVER, CONNECTOR | ||||
| 82821-30730 |
URZ100 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-0C010 |
URZ100 |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90126-08057 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF12(2007- )RHD
Click highlighted areas on diagram

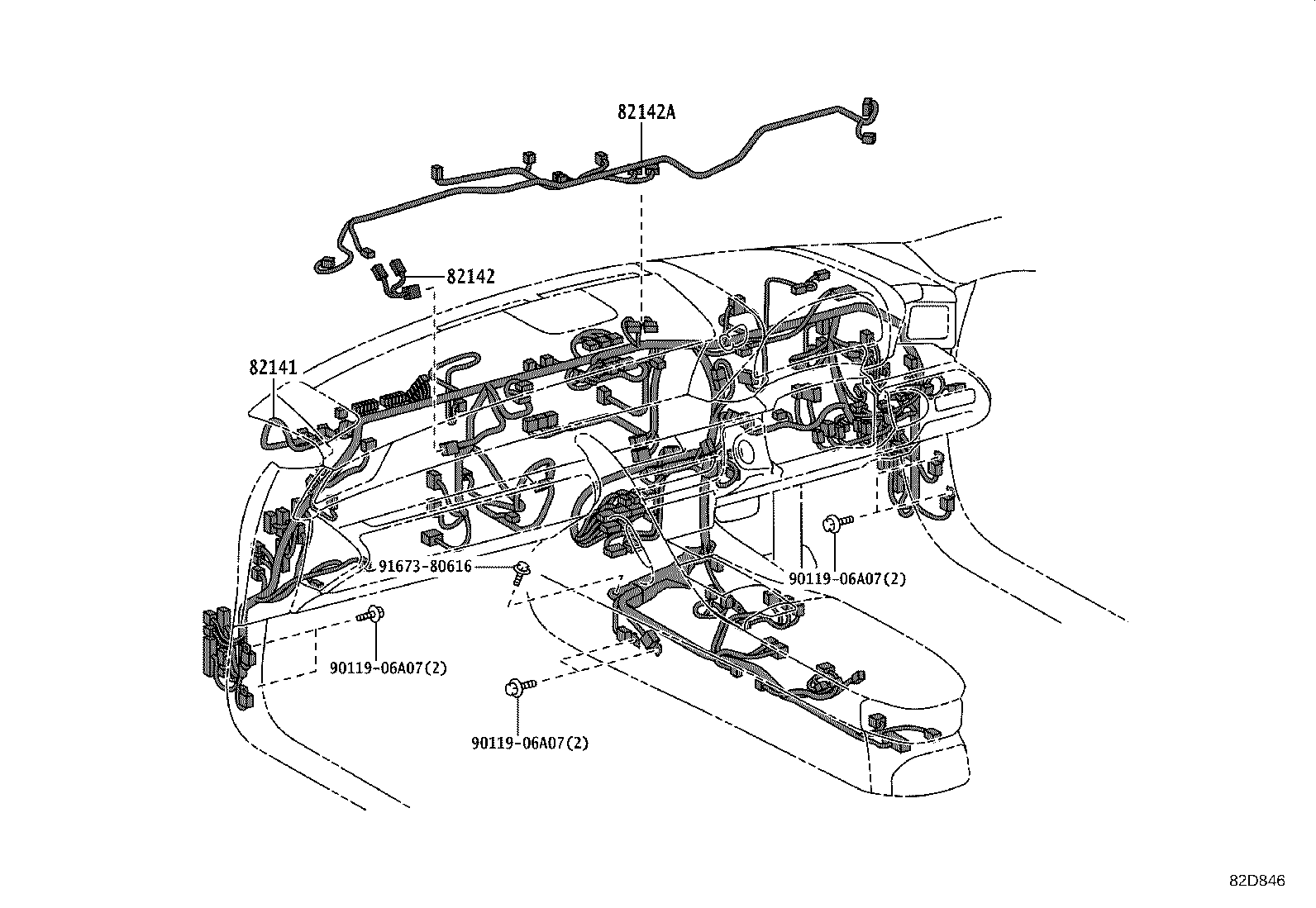

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-11A30 |
URZ100..RHD |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-11010 |
URZ100 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-11020 |
URZ100..RHD |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 91673-80616 | ||||
ILLUST NO. 7 OF12(2007- )
Click highlighted areas on diagram

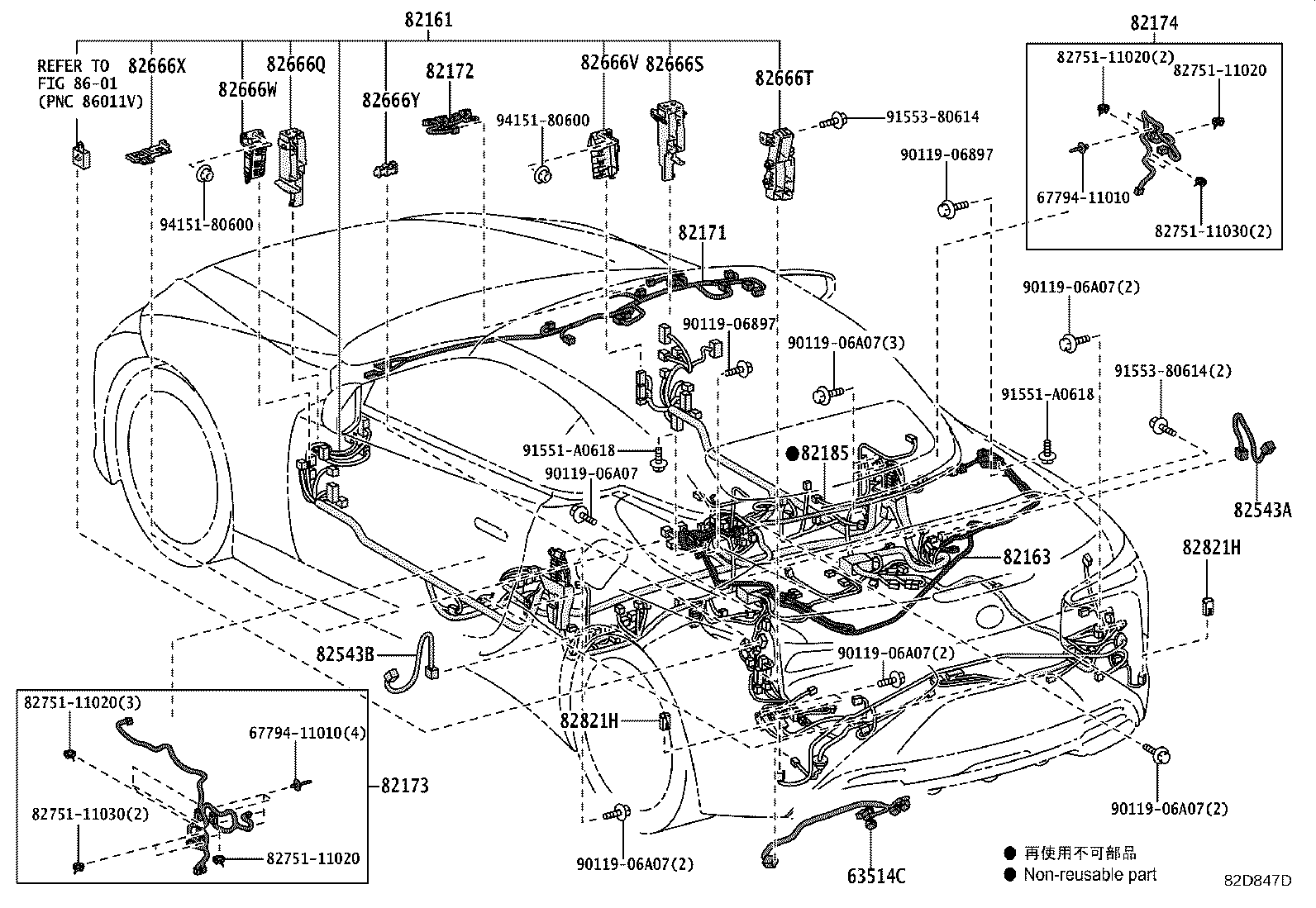

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63514C - WIRE, CONNECTOR | ||||
| 63514-11030 |
URZ100 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-11A20 |
URZ100..RHD..EUR |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-11010 |
URZ100 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-11080 |
URZ100..RHD |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-11090 |
URZ100..RHD |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82171-11050 |
URZ100 |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82172-11070 |
URZ100 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-11010 |
URZ100 |
1 | ||
| 82543A - WIRE, POWER WINDOW, RH | ||||
| 82542-11010 |
URZ100 |
1 | ||
| 82543B - WIRE, POWER WINDOW, LH | ||||
| 82543-11010 |
URZ100 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-11230 |
URZ100 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-11220 |
URZ100 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-11150 |
URZ100 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-50B00 |
URZ100 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-50B10 |
URZ100 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-11240 |
URZ100 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26180 |
URZ100 |
1 | ||
| Common parts | ||||
| 67794-11010 | ||||
| 82751-11020 | ||||
| 82751-11030 | ||||
| 90119-06897 | ||||
| 90119-06A07 | ||||
| 91551-A0618 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 9 OF12(2007- )
Click highlighted areas on diagram

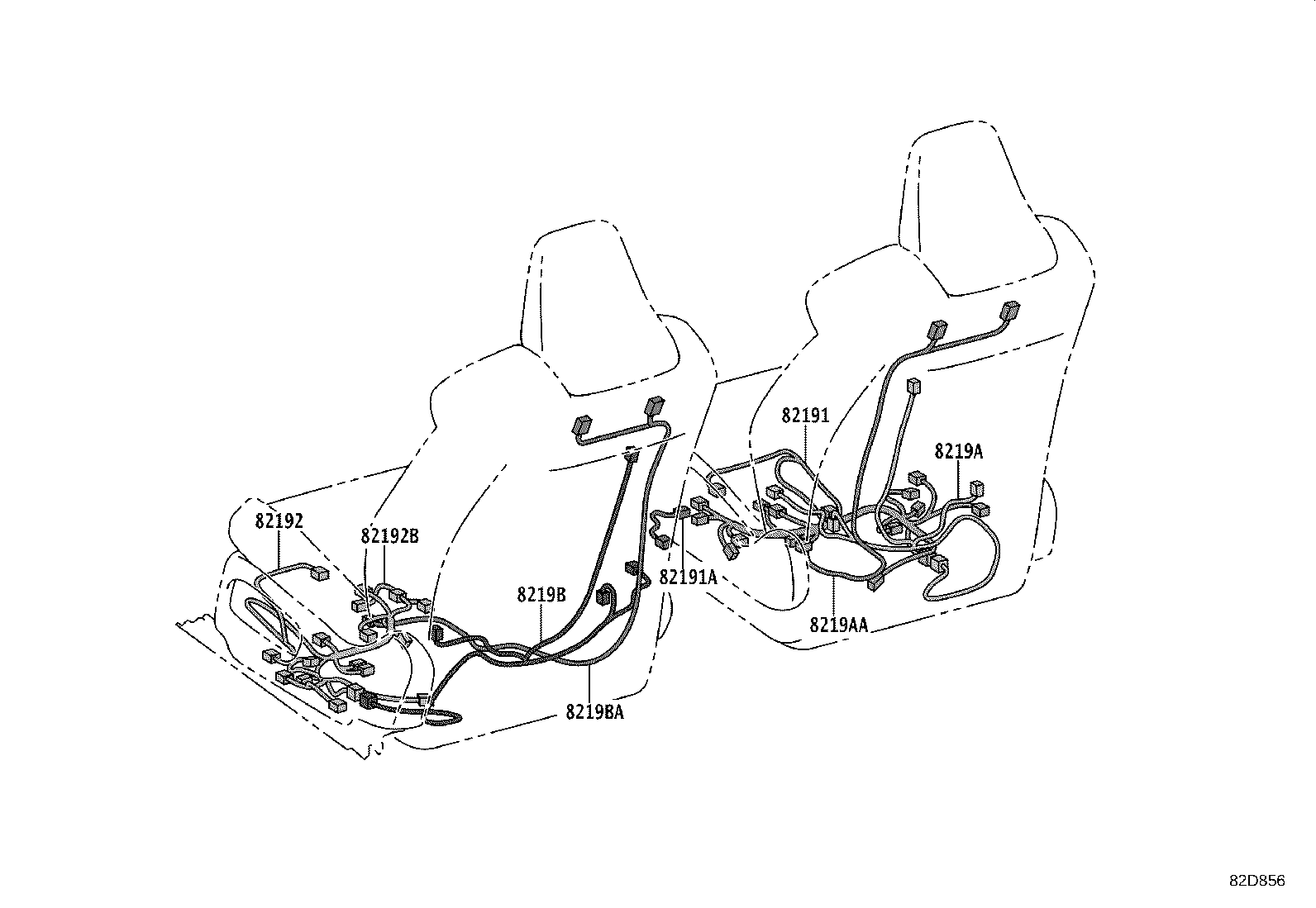

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-11070 |
URZ100..RHD |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-11090 |
URZ100..RHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-11060 |
URZ100..RHD |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-11050 |
URZ100 |
1 | ||
| 8219AA - WIRE, FRONT SEAT, RH NO.3 | ||||
| 82191-11120 |
URZ100..ARL,EUR,GEN SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER) |
1 | ||
| 82191-11100 |
URZ100 |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-11050 |
URZ100 |
1 | ||
| 8219BA - WIRE, FRONT SEAT, LH NO.3 | ||||
| 82192-11100 |
URZ100 |
1 | ||
| 82192-11120 |
URZ100..ARL,EUR,GEN SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER) |
1 | ||
ILLUST NO.10 OF12(2007- )
Click highlighted areas on diagram

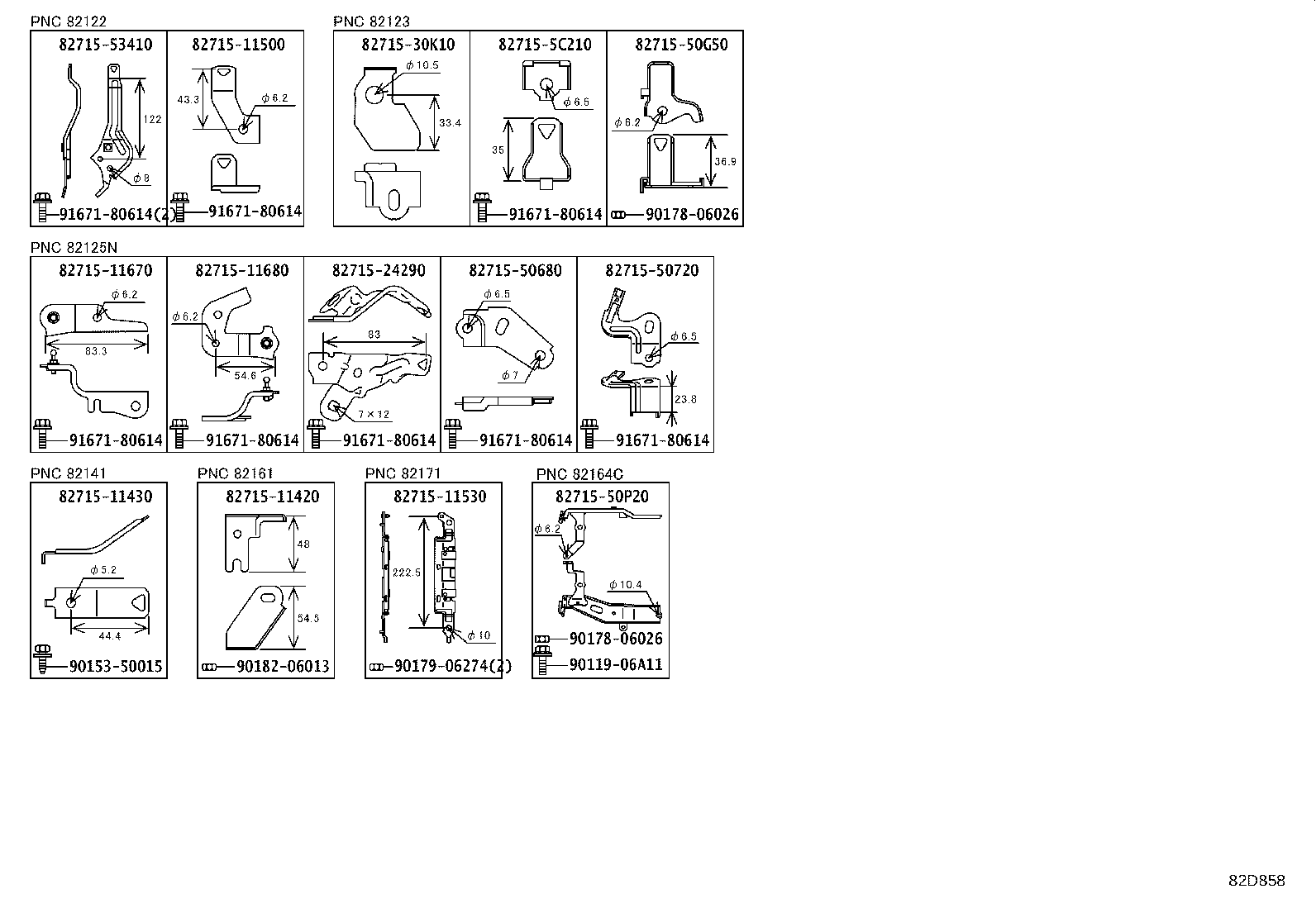

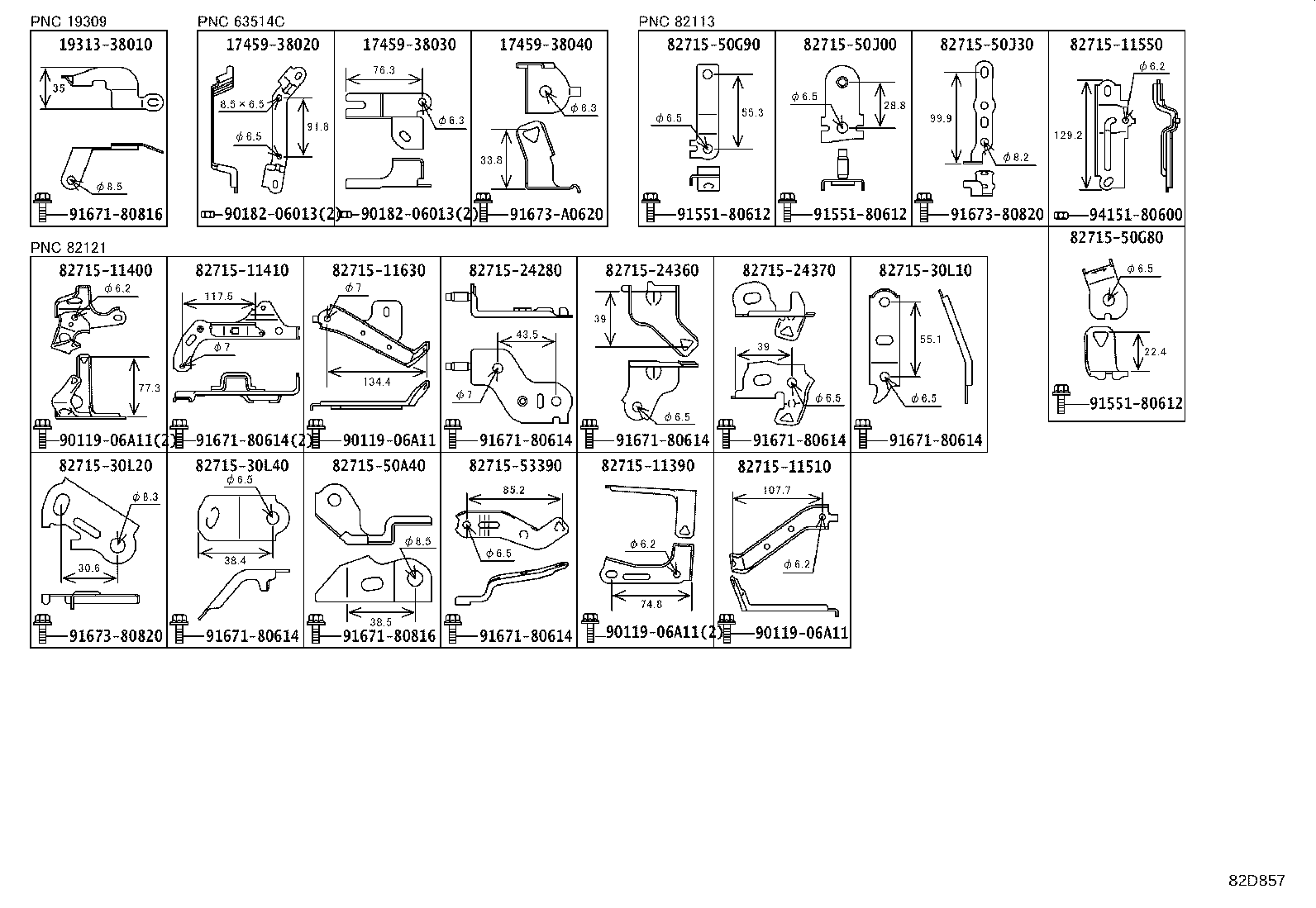

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17459-38020 | ||||
| 17459-38030 | ||||
| 17459-38040 | ||||
| 19313-38010 | ||||
| 82715-11390 | ||||
| 82715-11400 | ||||
| 82715-11410 | ||||
| 82715-11510 | ||||
| 82715-11550 | ||||
| 82715-11630 | ||||
| 82715-24280 | ||||
| 82715-24360 | ||||
| 82715-24370 | ||||
| 82715-30L10 | ||||
| 82715-30L20 | ||||
| 82715-30L40 | ||||
| 82715-50A40 | ||||
| 82715-50G80 | ||||
| 82715-50G90 | ||||
| 82715-50J00 | ||||
| 82715-50J30 | ||||
| 82715-53390 | ||||
| 90119-06A11 | ||||
| 90182-06013 | ||||
| 91551-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| 91673-A0620 | ||||
| 94151-80600 | ||||
ILLUST NO.11 OF12(2007- )
Click highlighted areas on diagram
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-11420 | ||||
| 82715-11430 | ||||
| 82715-11500 | ||||
| 82715-11530 | ||||
| 82715-11670 | ||||
| 82715-11680 | ||||
| 82715-24290 | ||||
| 82715-30K10 | ||||
| 82715-50680 | ||||
| 82715-50720 | ||||
| 82715-50G50 | ||||
| 82715-50P20 | ||||
| 82715-53410 | ||||
| 82715-5C210 | ||||
| 90153-50015 | ||||
| 90178-06026 | ||||
| 90179-06274 | ||||
| 90182-06013 | ||||
| 91671-80614 | ||||

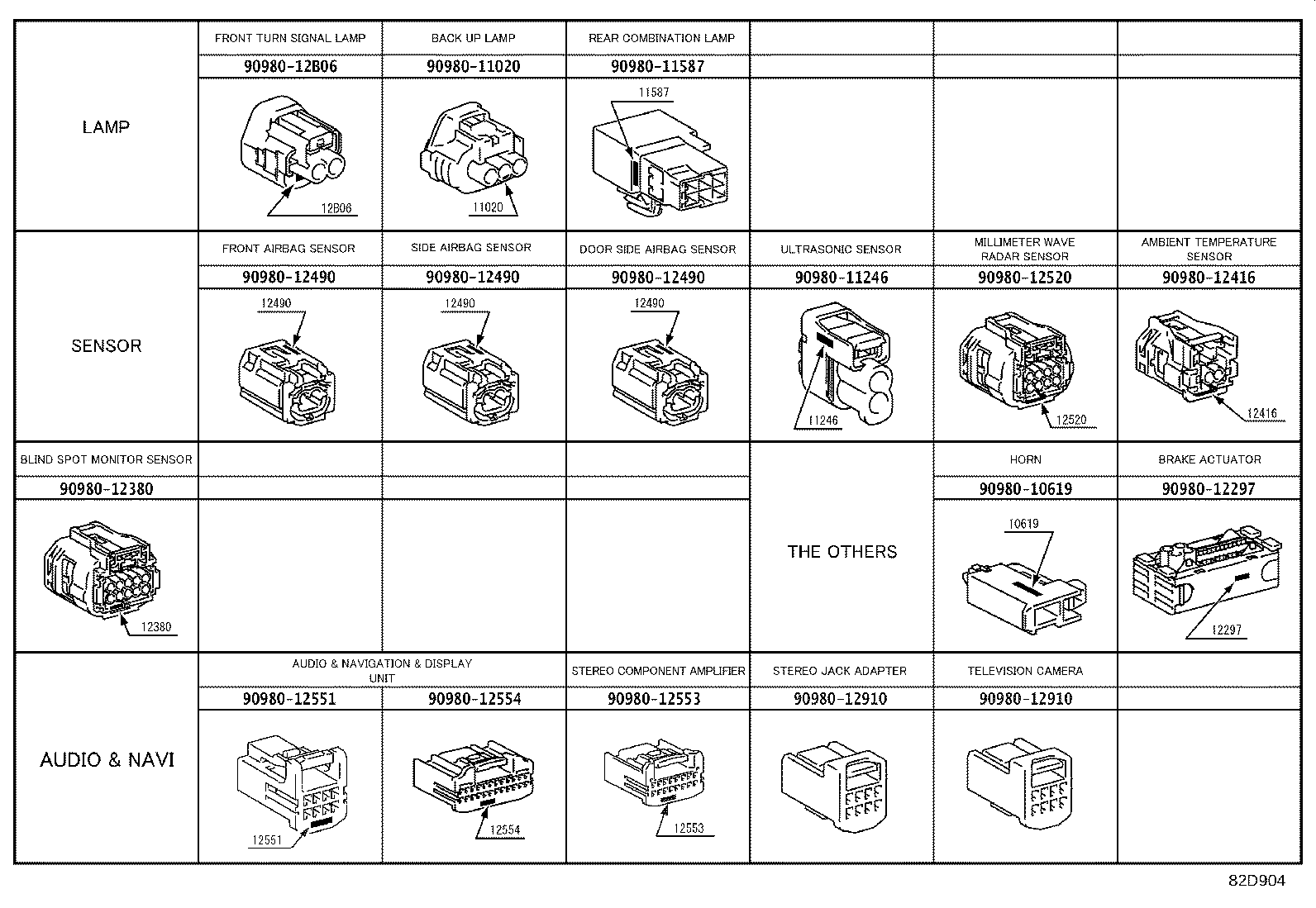

ILLUST NO.12 OF12(2007- )
Click highlighted areas on diagram
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11020 | ||||
| 90980-11246 | ||||
| 90980-11587 | ||||
| 90980-12297 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12551 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12910 | ||||
| 90980-12B06 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
