URZ100R-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

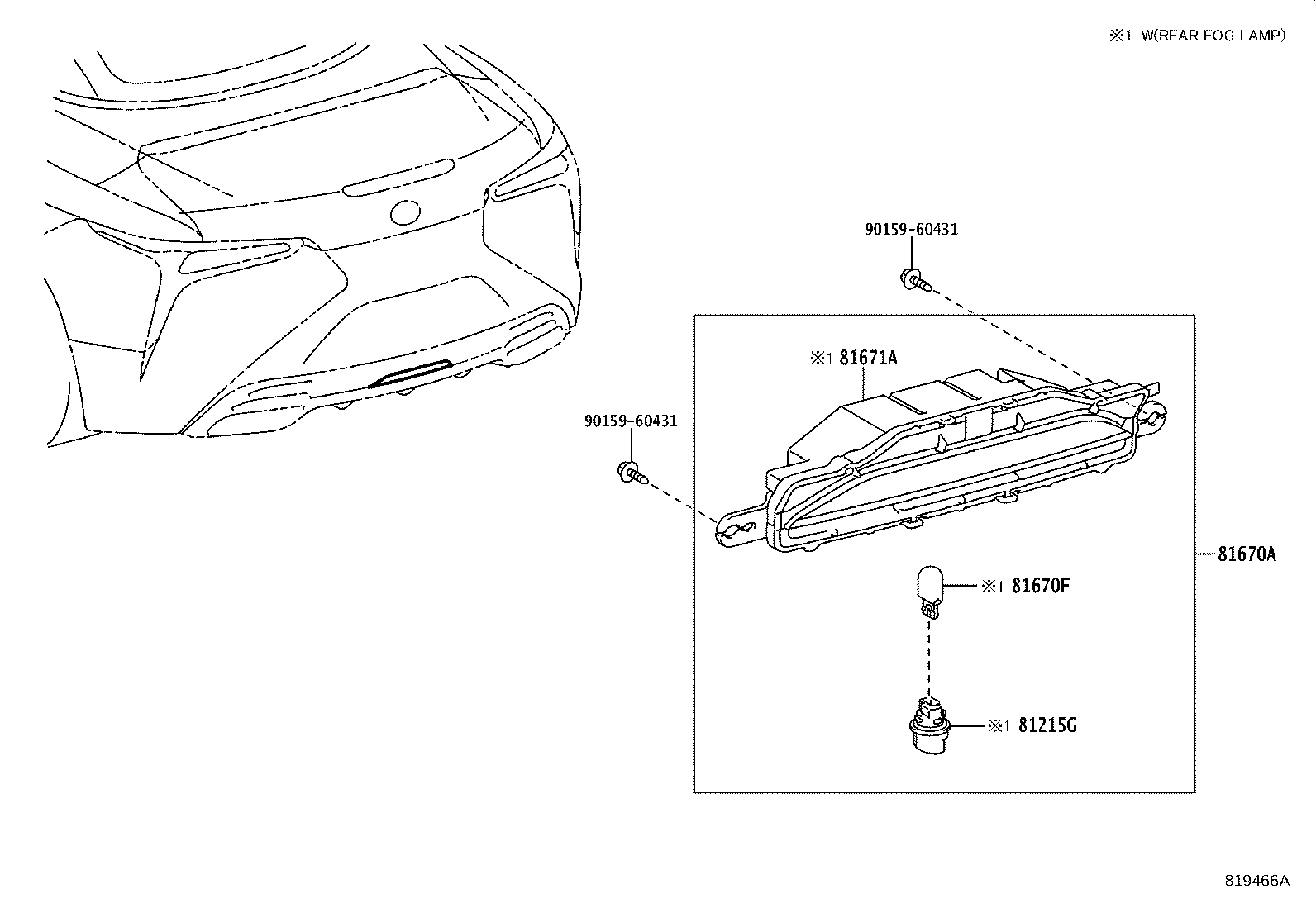

Click highlighted areas on diagram

diagram 81215G 81670A 81670F 81671A 9015960431 9015960431
Part # Description Qty Price
81215G - SOCKET,REAR FOG LAMP
90075-99080

URZ100..EUR,GCC,GEN

 1
81670A - LAMP ASSY, BACK-UP
81670-11020

URZ100..EUR,GCC,GEN

 1
81670F - BULB(FOR REAR FOG LAMP)
90981-13043

URZ100..EUR,GCC,GEN

12V 21W

 1
81671A - LENS & BODY, BACK-UP LAMP
81671-11020

URZ100..EUR,GCC,GEN

 1
Common parts
90159-60431
