URZ100R-AKUBHW (2020)
Toyota Lexus Lc500 (Cv)
Production
Jul 2020
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

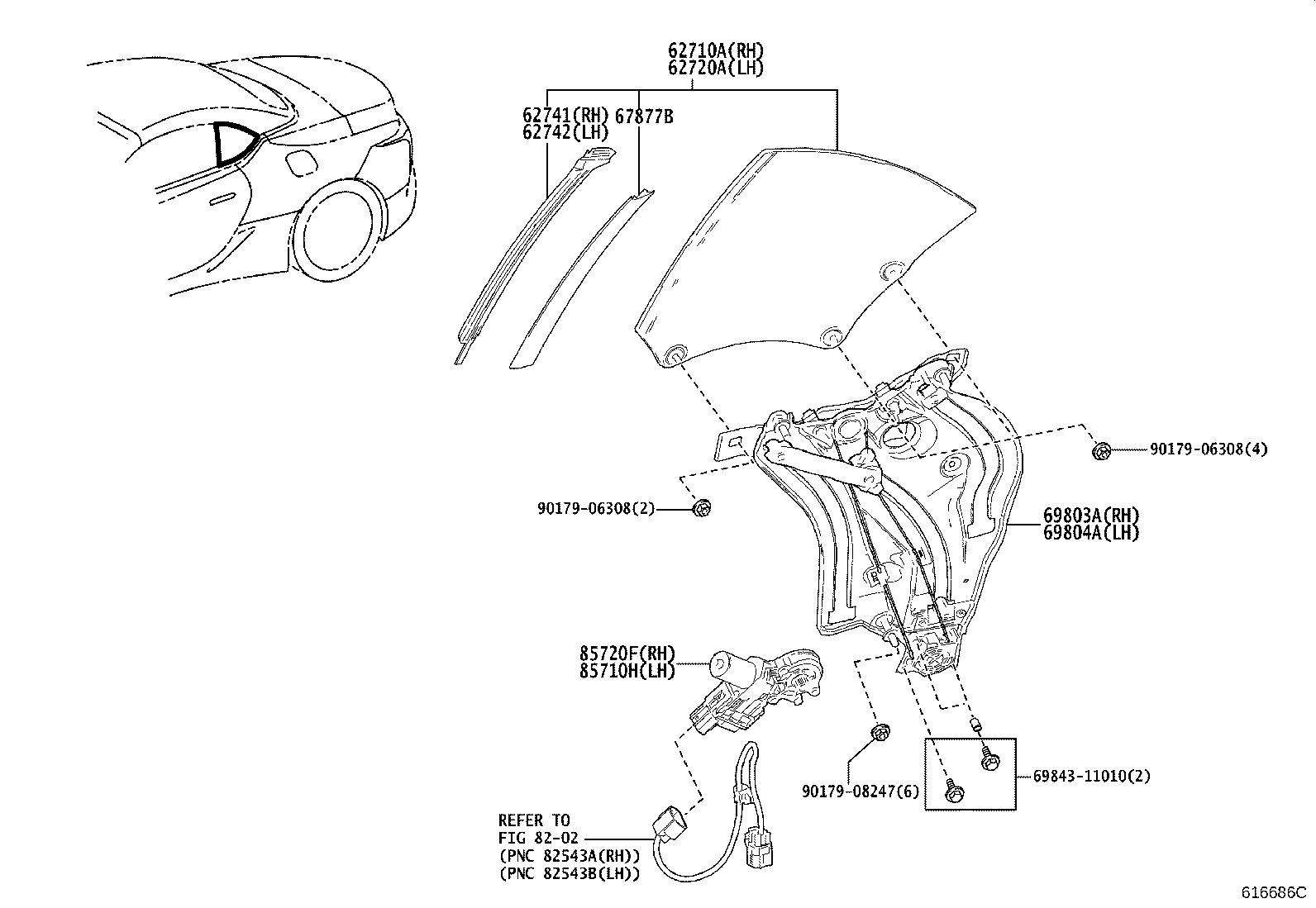

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62710A - WINDOW ASSY, QUARTER, RH | ||||
| 62710-11170 |
URZ100 |
1 | ||
| 62720A - WINDOW ASSY, QUARTER, LH | ||||
| 62720-11170 |
URZ100 |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-11030 |
URZ100 |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-11030 |
URZ100 |
1 | ||
| 67877B - RETAINER, QUARTER WINDOW FRONT WETHERSTRIP | ||||
| 67877-11010 |
URZ100 RH |
1 | ||
| 67878-11010 |
URZ100 LH |
1 | ||
| 69803A - REGULATOR SUB-ASSY, QUARTER WINDOW, RH | ||||
| 69803-11010 |
URZ100 |
1 | ||
| 69804A - REGULATOR SUB-ASSY, QUARTER WINDOW, LH | ||||
| 69804-11010 |
URZ100 |
1 | ||
| 85710H - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-11030 |
URZ100 |
1 | ||
| 85720F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-11030 |
URZ100 |
1 | ||
| Common parts | ||||
| 69843-11010 | ||||
| 90179-06308 | ||||
| 90179-08247 | ||||
| Linked diagrams | ||||
| 8202 | ||||
