URZ100R-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

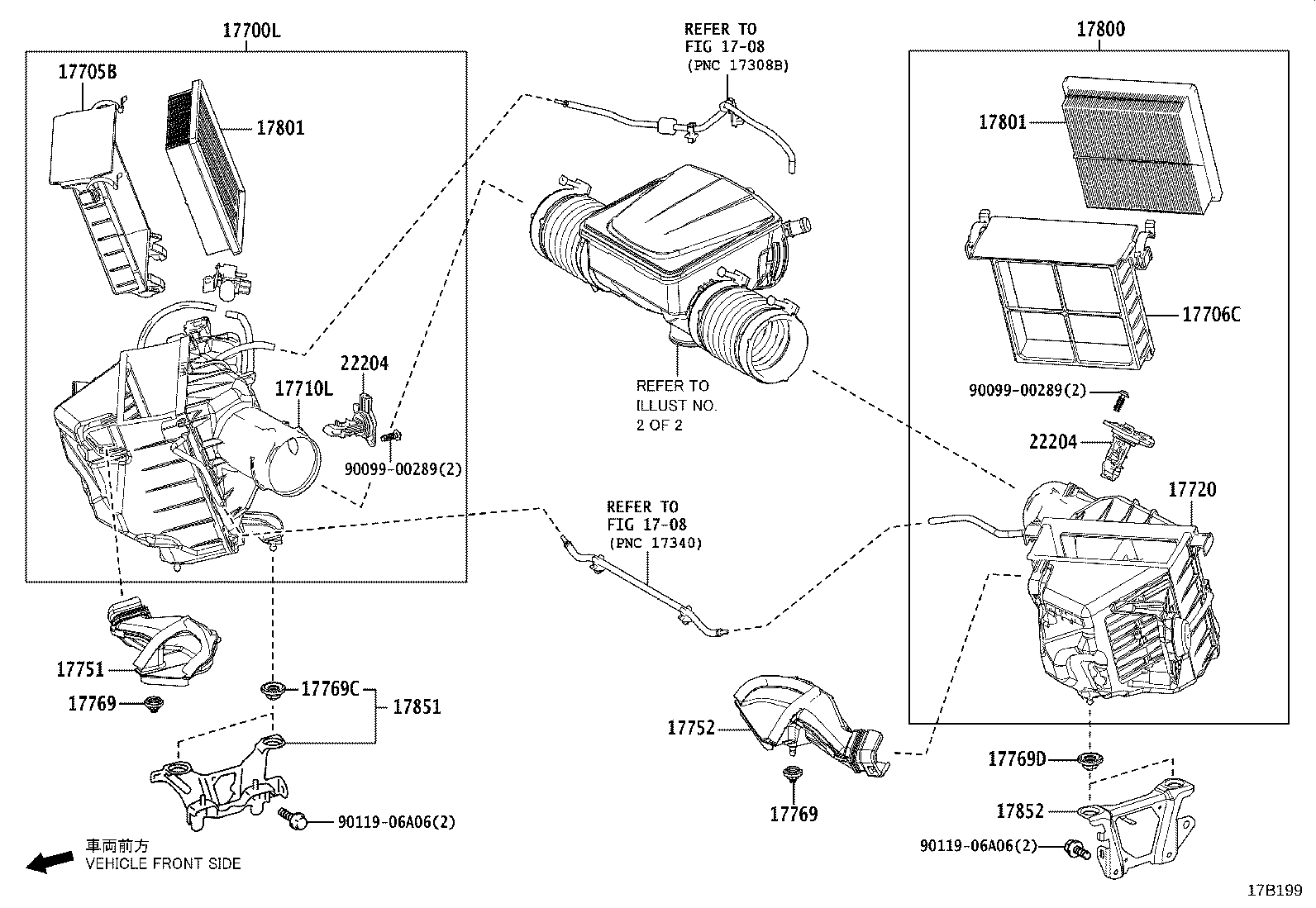

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

AIR CLEANER CASE

diagram 1708 1708 17700L 17705B 17706C 17710L 17720 17751 17752 17769 17769 17769C 17769D 17800 17801 17801 17851 17852 22204 22204 9009900289 9009900289 9011906A06 9011906A06
Part # Description Qty Price
17700L - CLEANER ASSY, AIR W/ELEMENT, RH
17700-38260

2URGSE..URZ100

 1
17705B - CAP SUB-ASSY, AIR CLEANER RH
17705-38190

2URGSE..URZ100

 1
17706C - CAP SUB-ASSY, AIR CLEANER, LH
17705-38190

2URGSE..URZ100

 1
17710L - CLEANER ASSY, AIR W/O ELEMENT, RH
17710-38110

2URGSE..URZ100

 1
17720 - CLEANER ASSY, AIR W/O ELEMENT, LH
17720-38020

2URGSE..URZ100

 1
17751 - INLET, AIR CLEANER, NO.1
17751-38130

2URGSE..URZ100

 1
17752 - INLET, AIR CLEANER, NO.2
17752-38020

2URGSE..URZ100

 1
17769 - SUPPORT, AIR CLEANER
17769-25040

2URGSE..URZ100

 2
17769 - SUPPORT, AIR CLEANER
17769-25040

2URGSE..URZ100

 2
17769C - SUPPORT, AIR CLEANER, NO.1
17769-25010

2URGSE..URZ100

 2
17769D - SUPPORT, AIR CLEANER, NO.2
17769-25010

2URGSE..URZ100

 2
17800 - CLEANER ASSY, AIR W/ELEMENT, LH
17800-38040

2URGSE..URZ100

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-38060

2URGSE..URZ100

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-38060

2URGSE..URZ100

 2
17851 - BRACKET, AIR CLEANER SUPPORT
17850-38010

2URGSE..URZ100

 1
17852 - BRACKET, AIR CREANER SUPPORT, NO.2
17851-38030

2URGSE..URZ100

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

2URGSE..URZ100

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

2URGSE..URZ100

 2
Common parts
90099-00289
90119-06A06
Linked diagrams
1708

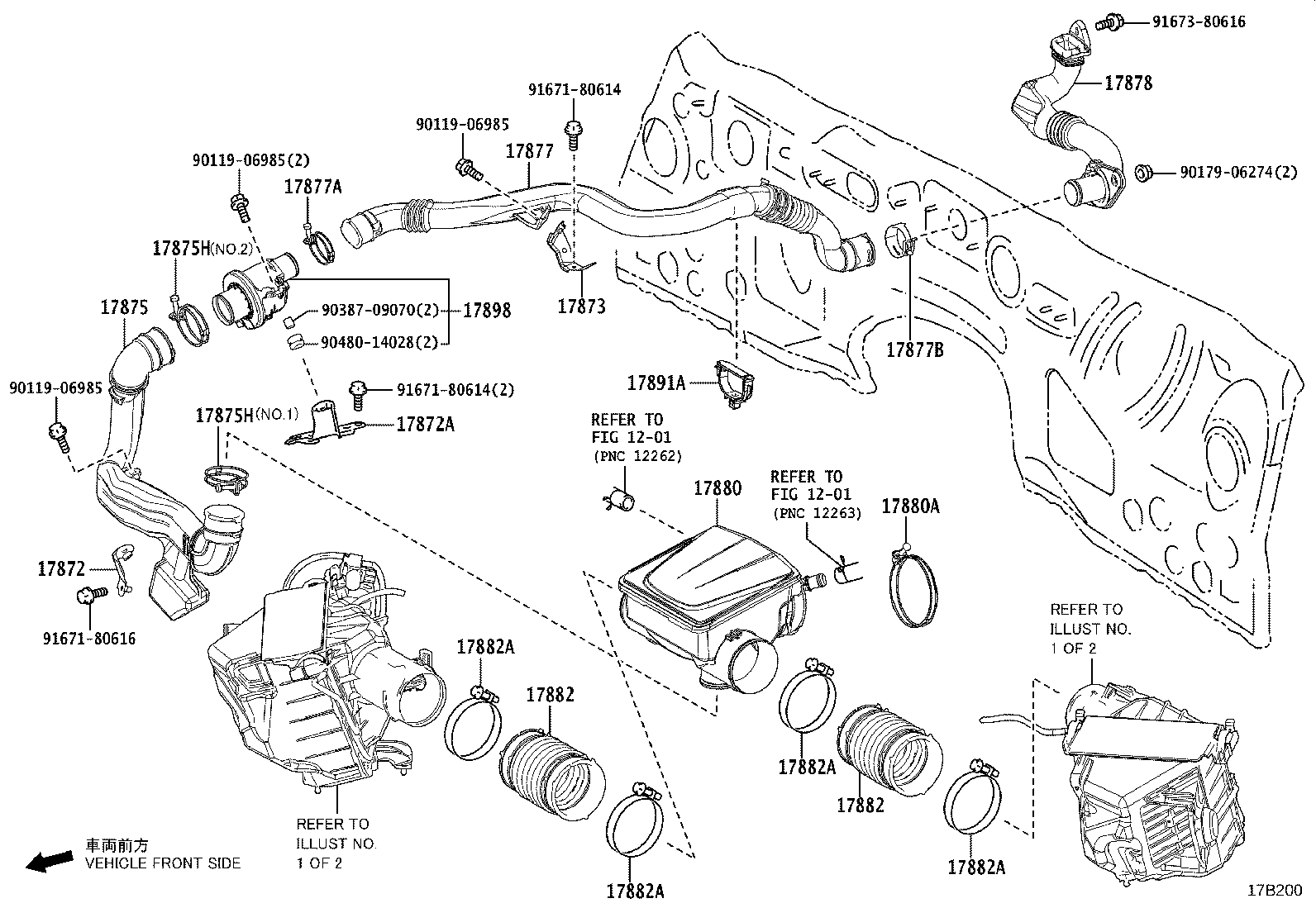

ILLUST NO. 2 OF 2(2007- )2URGSE..RHD

Click highlighted areas on diagram

AIR CLEANER CASE & SOUND GENERATOR

diagram 1201 1201 17872 17872A 17873 17875 17875H 17875H 17877 17877A 17877B 17878 17880 17880A 17882 17882 17882A 17882A 17882A 17882A 17891A 17898 9011906985 9011906985 9011906985 9017906274 9038709070 9048014028 9167180614 9167180614 9167180616 9167380616
Part # Description Qty Price
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-38030

2URGSE..URZ100

 1
17872A - BRACKET, INTAKE AIR CONNECTOR, NO.1
17872-38021

2URGSE..URZ100

 1
17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17873-38020

2URGSE..URZ100

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-38050

2URGSE..URZ100

 1
17875H - CLAMP, HOSE(FOR INTAKE AIR CONNECTOR PIPE)
90460-55017

2URGSE..URZ100

NO.2:REFER ILLUST.

 1
96111-10550

2URGSE..URZ100

NO.1:REFER ILLUST.

 1
17875H - CLAMP, HOSE(FOR INTAKE AIR CONNECTOR PIPE)
90460-55017

2URGSE..URZ100

NO.2:REFER ILLUST.

 1
96111-10550

2URGSE..URZ100

NO.1:REFER ILLUST.

 1
17877 - PIPE, INTAKE AIR CONNECTOR, NO.2
17877-38030

2URGSE..URZ100

 1
17877A - CLAMP, HOSE(FOR INTAKE AIR CONNECTOR PIPE, NO.2)
90460-43002

2URGSE..URZ100

 1
17877B - CLIP, HOSE(FOR INTAKE AIR CONNECTOR PIPE, NO.2)
96136-44301

2URGSE..URZ100

 1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-38020

2URGSE..URZ100..RHD

 1
17880 - HOSE ASSY, AIR CLEANER
17880-38090

2URGSE..URZ100

 1
17880A - CLAMP, HOSE
17891-38070

2URGSE..URZ100

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-36030

2URGSE..URZ100

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-36030

2URGSE..URZ100

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-88009

2URGSE..URZ100

 4
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-88009

2URGSE..URZ100

 4
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-88009

2URGSE..URZ100

 4
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-88009

2URGSE..URZ100

 4
17891A - CLAMP, AIR CLEANER HOSE
17891-38080

2URGSE..URZ100

 1
17898 - CREATOR, INTAKE AIR SOUND
17898-38030

2URGSE..URZ100

 1
Common parts
90119-06985
90179-06274
90387-09070
90480-14028
91671-80614
91671-80616
91673-80616
Linked diagrams
1201
