URZ100R-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

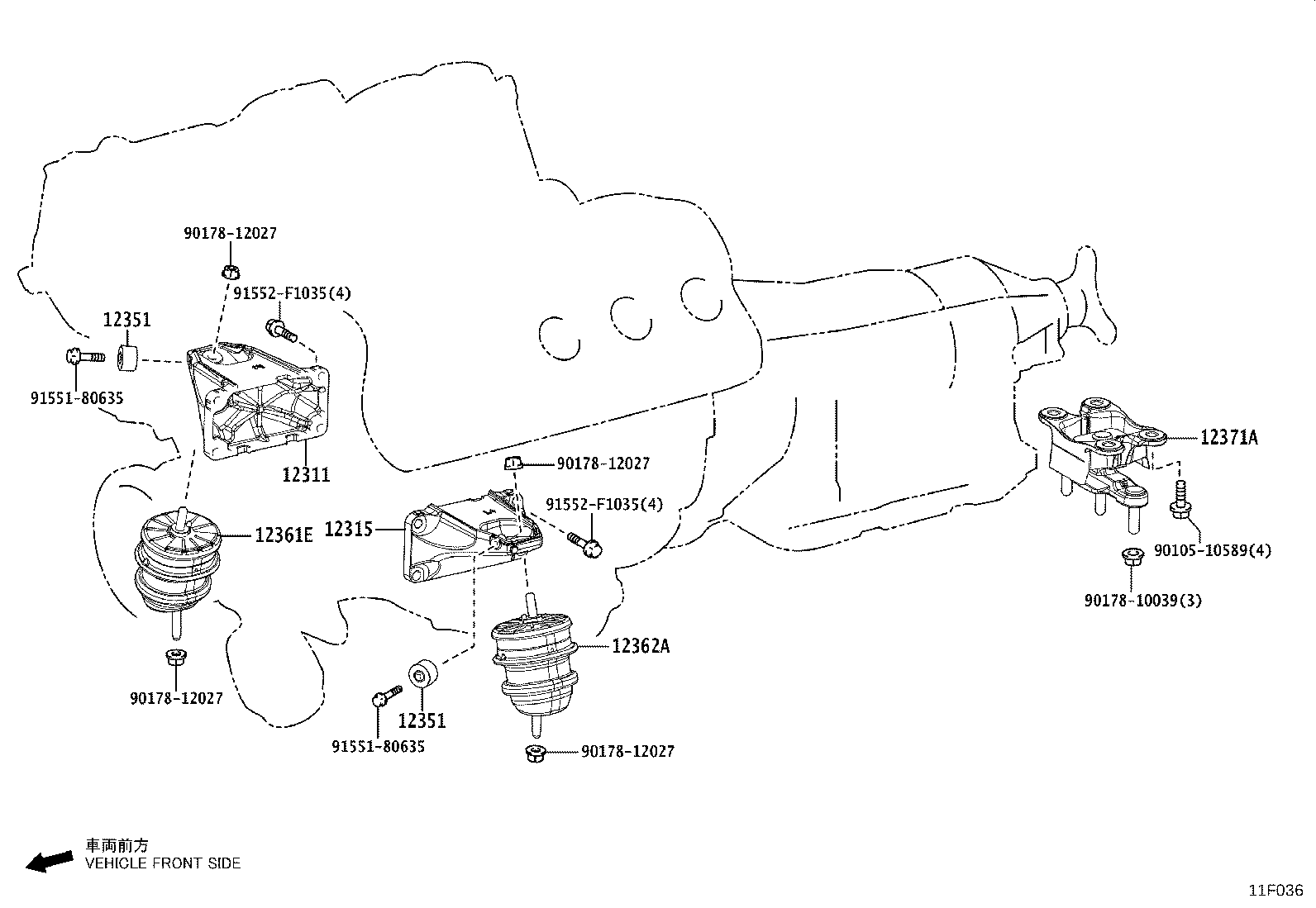

Click highlighted areas on diagram

diagram 12311 12315 12351 12351 12361E 12362A 12371A 9010510589 9017810039 9017812027 9017812027 9017812027 9017812027 9155180635 9155180635 91552F1035 91552F1035
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-38050

2URGSE..URZ100

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-38040

2URGSE..URZ100

 1
12351 - DAMPER, ENGINE MOUNTING
12351-38020

2URGSE..URZ100

 2
12351 - DAMPER, ENGINE MOUNTING
12351-38020

2URGSE..URZ100

 2
12361E - INSULATOR, ENGINE MOUNTING, FRONT RH
12361-38290

2URGSE..URZ100

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12361-38290

2URGSE..URZ100

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-38170

2URGSE..URZ100

 1
Common parts
90105-10589
90178-10039
90178-12027
91551-80635
91552-F1035
