URZ100R-AKUBHQ (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

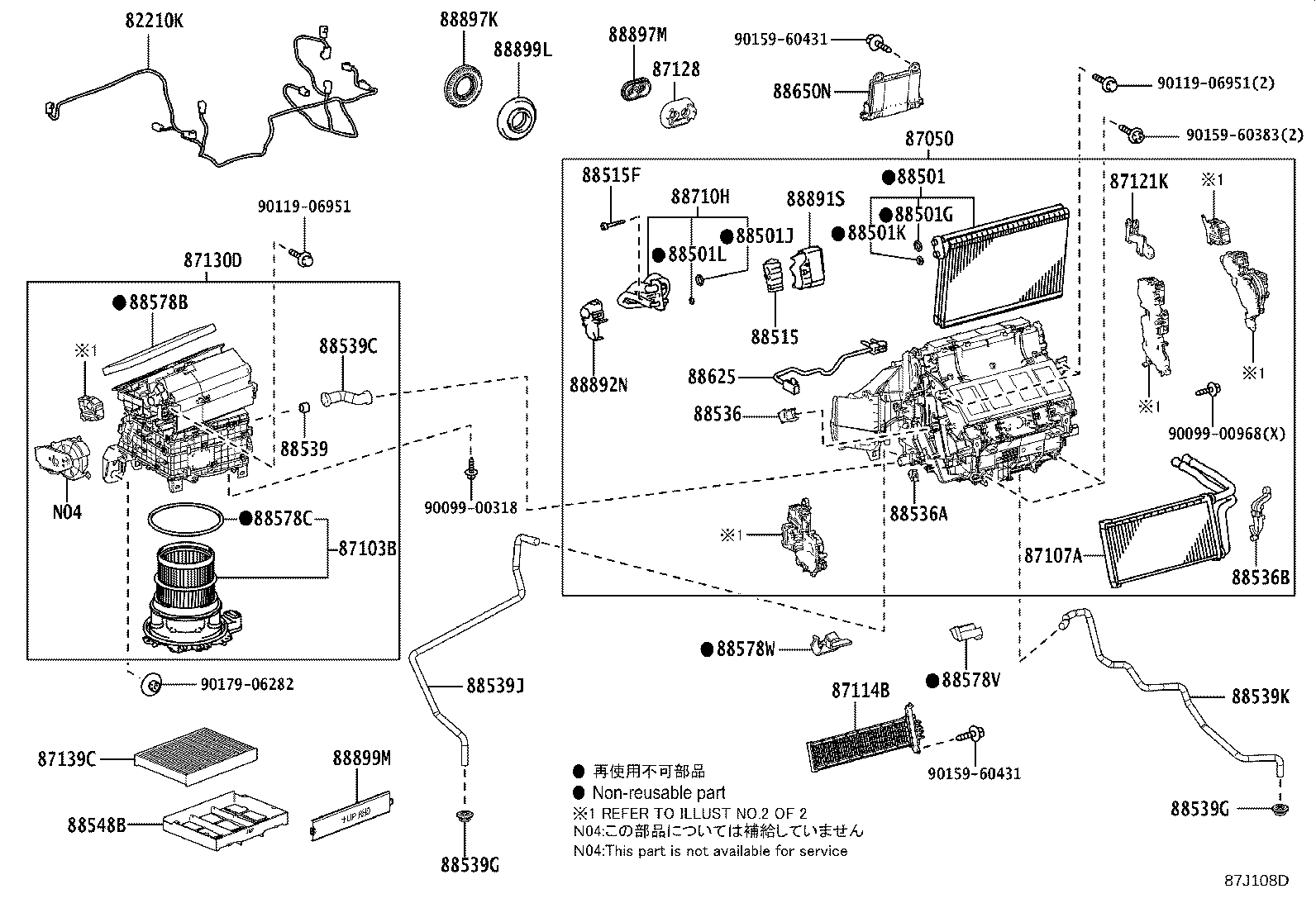

ILLUST NO. 1 OF 2(2007- )RHD

Click highlighted areas on diagram

diagram 82210K 87050 87103B 87107A 87114B 87121K 87128 87130D 87139C 88501 88501G 88501J 88501K 88501L 88515 88515F 88536 88536A 88536B 88539 88539C 88539G 88539G 88539J 88539K 88548B 88578B 88578C 88578V 88578W 88625 88650N 88710H 88891S 88892N 88897K 88897M 88899L 88899M 9009900318 9009900968 9011906951 9011906951 9015960383 9015960431 9015960431 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-11020

URZ100..RHD

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-11030

URZ100..ARL

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-11020

URZ100..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-11020

URZ100..RHD

 1
87114B - COVER, HEATER
87114-30010

URZ100

 1
87121K - BRACKET, HEATER
87121-11040

URZ100..RHD

 1
87128 - GROMMET, HEATER
87128-28020

URZ100

 1
87130D - BLOWER ASSY
87130-11020

URZ100..RHD

 1
87139C - FILTER, CLEAN AIR
87139-11010

URZ100

DEODORANT FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-11010

URZ100..ARL,GCC,GEN

 1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121

URZ100

ID=13.4,OD=18.2

 1
88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION)
90099-14121

URZ100

ID=13.4,OD=18.2

 1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90099-14120

URZ100

ID=10.8,OD=15.6

 1
88501L - O-RING, COOLER EVAPORATOR NO.2(LIQUID)
90099-14119

URZ100

ID=6.7,OD=10.3

 1
88515 - VALVE, COOLER EXPANSION
88515-48110

URZ100..ARL,GCC,GEN

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
88899-44050

URZ100

 2
88536 - BRACKET, COOLING UNIT, NO.1
87241-11020

URZ100..RHD

 1
88536A - BRACKET, COOLING UNIT, NO.2
87241-11040

URZ100..RHD

 1
88536B - BRACKET, COOLING UNIT, NO.3
87241-11060

URZ100..RHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30A00

URZ100

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-11050

URZ100

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26029

URZ100

 2
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26029

URZ100

 2
88539J - HOSE, DRAIN COOLER
88539-11030

URZ100..RHD

 1
88539K - HOSE, DRAIN COOLER
88539-11040

URZ100..RHD

 1
88548B - CASE, AIR FILTER
88899-11010

URZ100

 1
88578B - PACKING, COOLING UNIT, NO.1
87429-53010

URZ100

 1
88578C - PACKING, COOLING UNIT, NO.2
87127-11010

URZ100

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-11010

URZ100

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-11030

URZ100..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88620-74010

URZ100..RHD

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-11080

URZ100

 1
88650-11101

URZ100..ARL,EUR,GEN

SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER)

 1
88650-11100

URZ100..ARL,EUR,GEN

SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER)

 1
88650-11081

URZ100

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-11020

URZ100..RHD

 1
88891S - COVER, COOLER, NO.1
88891-11010

URZ100

 1
88892N - COVER, COOLER, NO.2
88892-11010

URZ100

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-11020

URZ100

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-30060

URZ100

 1
88899L - PARTS, COOLING UNIT
88899-11020

URZ100

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-11040

URZ100..RHD

 1
Common parts
90099-00318
90099-00968
90119-06951
90159-60383
90159-60431
90179-06282

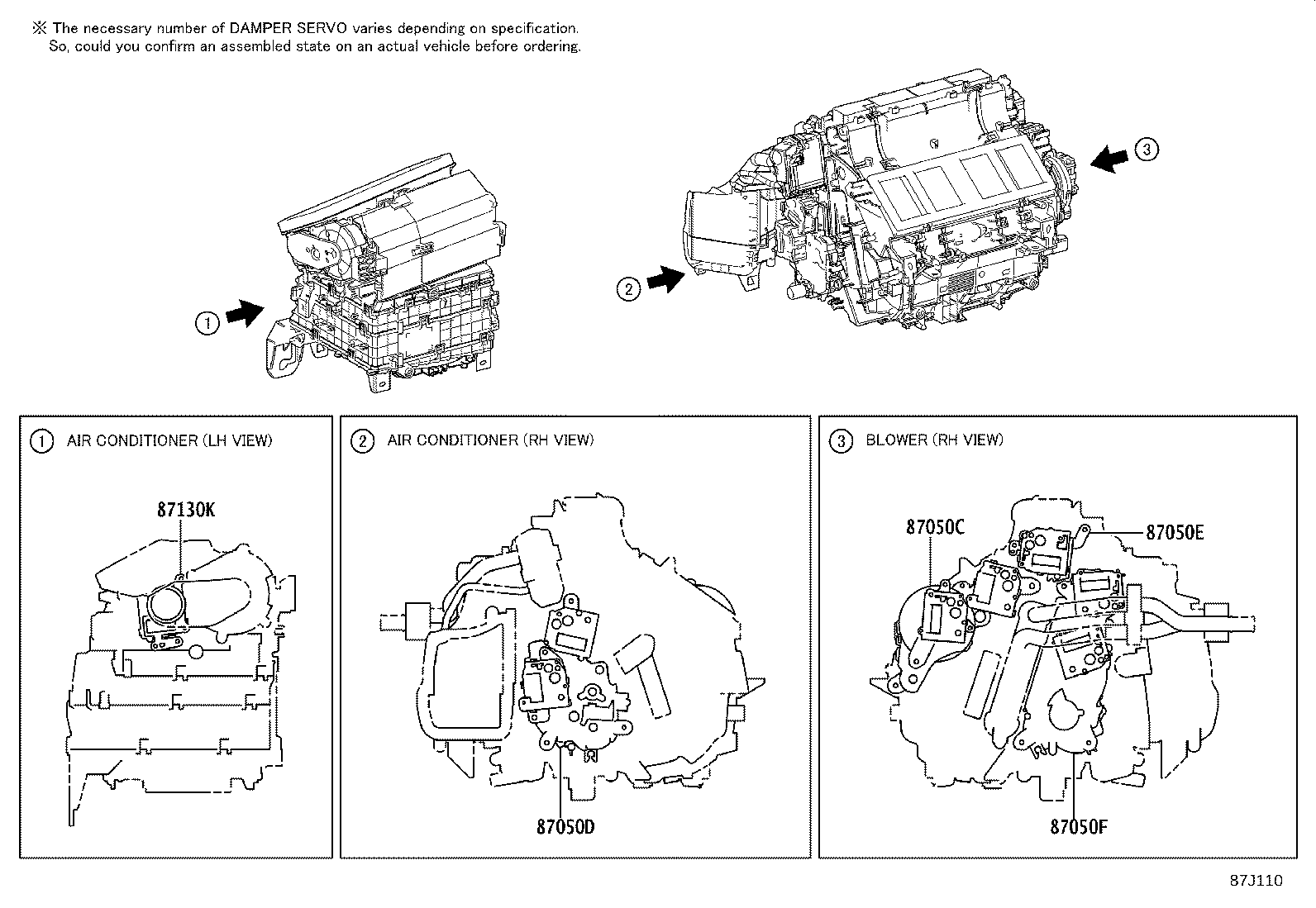

ILLUST NO. 2 OF 2(2007- )RHD

Click highlighted areas on diagram

DAMPER SERVO

diagram 87050C 87050D 87050E 87050F 87130K
Part # Description Qty Price
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-11050

URZ100..RHD

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-11010

URZ100

 1
87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87106-11090

URZ100

 1
87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4
87106-11020

URZ100

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-11110

URZ100..RHD

 1
