URZ100R-AKUBHQ (2020)
Toyota Lexus Lc500 (Cv)
Production
Jul 2020
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

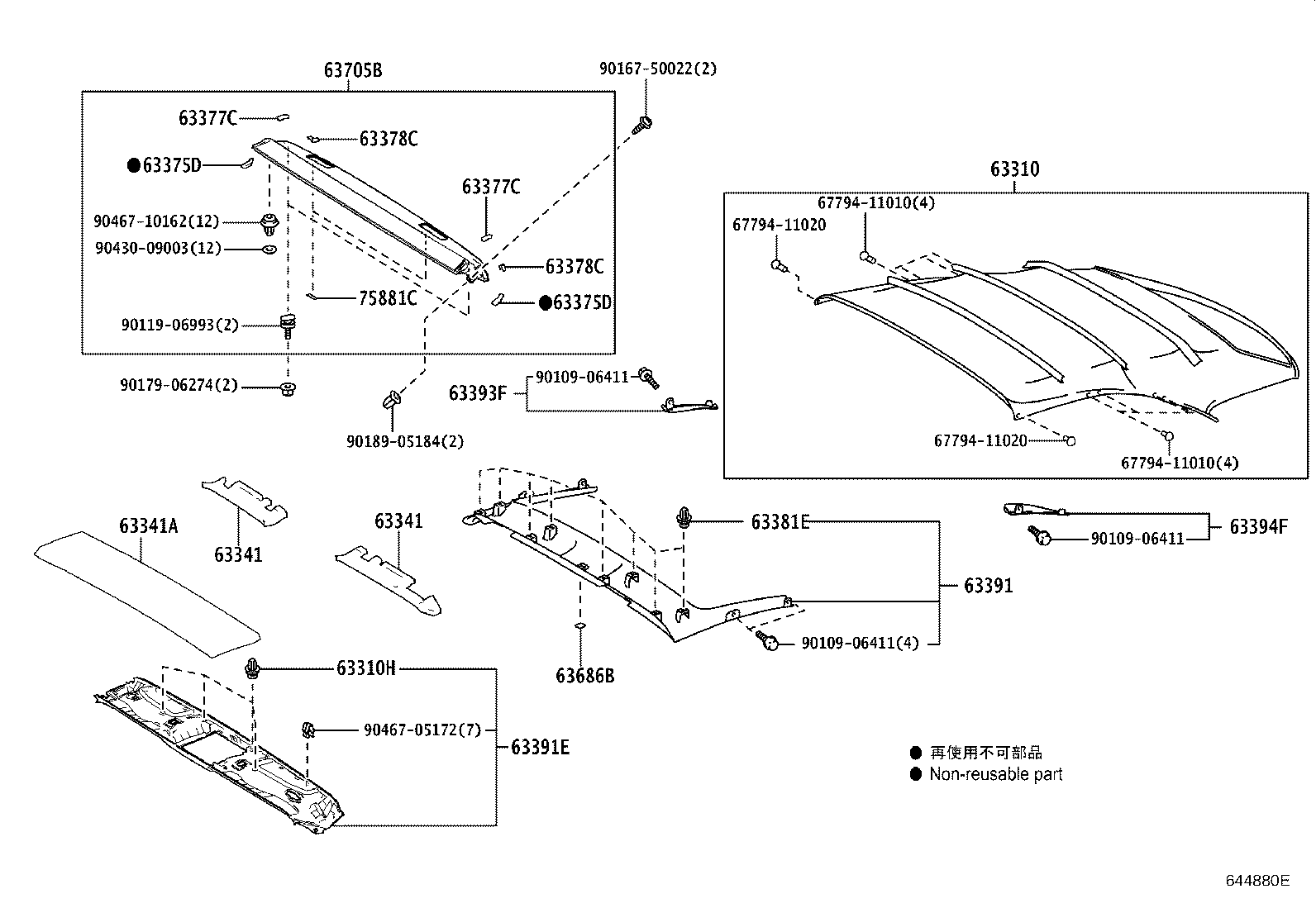

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63311-11060A0 |
URZ100 CREAM,TRIM0# |
1 | ||
| 63311-11060E0 |
URZ100 CARAMEL,TRIM4# |
1 | ||
| 63311-11060C0 |
URZ100 BLACK,TRIM2#,3# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 62217-13010 |
URZ100 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-11030 |
URZ100 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-11030 |
URZ100 |
2 | ||
| 63341A - SILENCER, ROOF, NO.1 | ||||
| 63341-11040 |
URZ100 |
1 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-11010 |
URZ100 |
2 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-11010 |
URZ100 |
2 | ||
| 63377C - MOULDING, ROOF HEADLINING, NO.2 | ||||
| 63377-11010 |
URZ100 |
2 | ||
| 63377C - MOULDING, ROOF HEADLINING, NO.2 | ||||
| 63377-11010 |
URZ100 |
2 | ||
| 63378C - MOULDING, ROOF HEADLINING, NO.3 | ||||
| 63378-11010 |
URZ100 |
2 | ||
| 63378C - MOULDING, ROOF HEADLINING, NO.3 | ||||
| 63378-11010 |
URZ100 |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 61365-11020 |
URZ100 |
8 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-11060A1 |
URZ100 WHITE,TRIM0# |
1 | ||
| 63391-11060E1 |
URZ100 OCHER,TRIM4# |
1 | ||
| 63391-11060C0 |
URZ100 BLACK,TRIM2#,3# |
1 | ||
| 63391E - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-11050A2 |
URZ100 WHITE,TRIM0# |
1 | ||
| 63391-11050C1 |
URZ100 BLACK,TRIM2#,3# |
1 | ||
| 63391-11050E2 |
URZ100 OCHER,TRIM4# |
1 | ||
| 63393F - TRIM, ROOF HEADLINING, RH | ||||
| 63393-11010E1 |
URZ100 OCHER,TRIM4# |
1 | ||
| 63393-11010C0 |
URZ100 BLACK,TRIM2#,3# |
1 | ||
| 63393-11010A1 |
URZ100 WHITE,TRIM0# |
1 | ||
| 63394F - TRIM, ROOF HEADLINING, LH | ||||
| 63394-11010E1 |
URZ100 OCHER,TRIM4# |
1 | ||
| 63394-11010A1 |
URZ100 WHITE,TRIM0# |
1 | ||
| 63394-11010C0 |
URZ100 BLACK,TRIM2#,3# |
1 | ||
| 63686B - COVER, REMOVABLE ROOF HOLDER | ||||
| 63686-11010C0 |
URZ100 BLACK,TRIM2#,3# |
1 | ||
| 63686-11010A0 |
URZ100 WHITE,TRIM0# |
1 | ||
| 63686-11010E0 |
URZ100 OCHER,TRIM4# |
1 | ||
| 63705B - GARNISH SUB-ASSY, ROOF HEADER | ||||
| 63705-11010 |
URZ100 |
1 | ||
| 75881C - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
URZ100 |
2 | ||
| Common parts | ||||
| 67794-11010 | ||||
| 67794-11020 | ||||
| 90109-06411 | ||||
| 90119-06993 | ||||
| 90167-50022 | ||||
| 90179-06274 | ||||
| 90189-05184 | ||||
| 90430-09003 | ||||
| 90467-05172 | ||||
| 90467-10162 | ||||
