URZ100L-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2007- )

Click highlighted areas on diagram

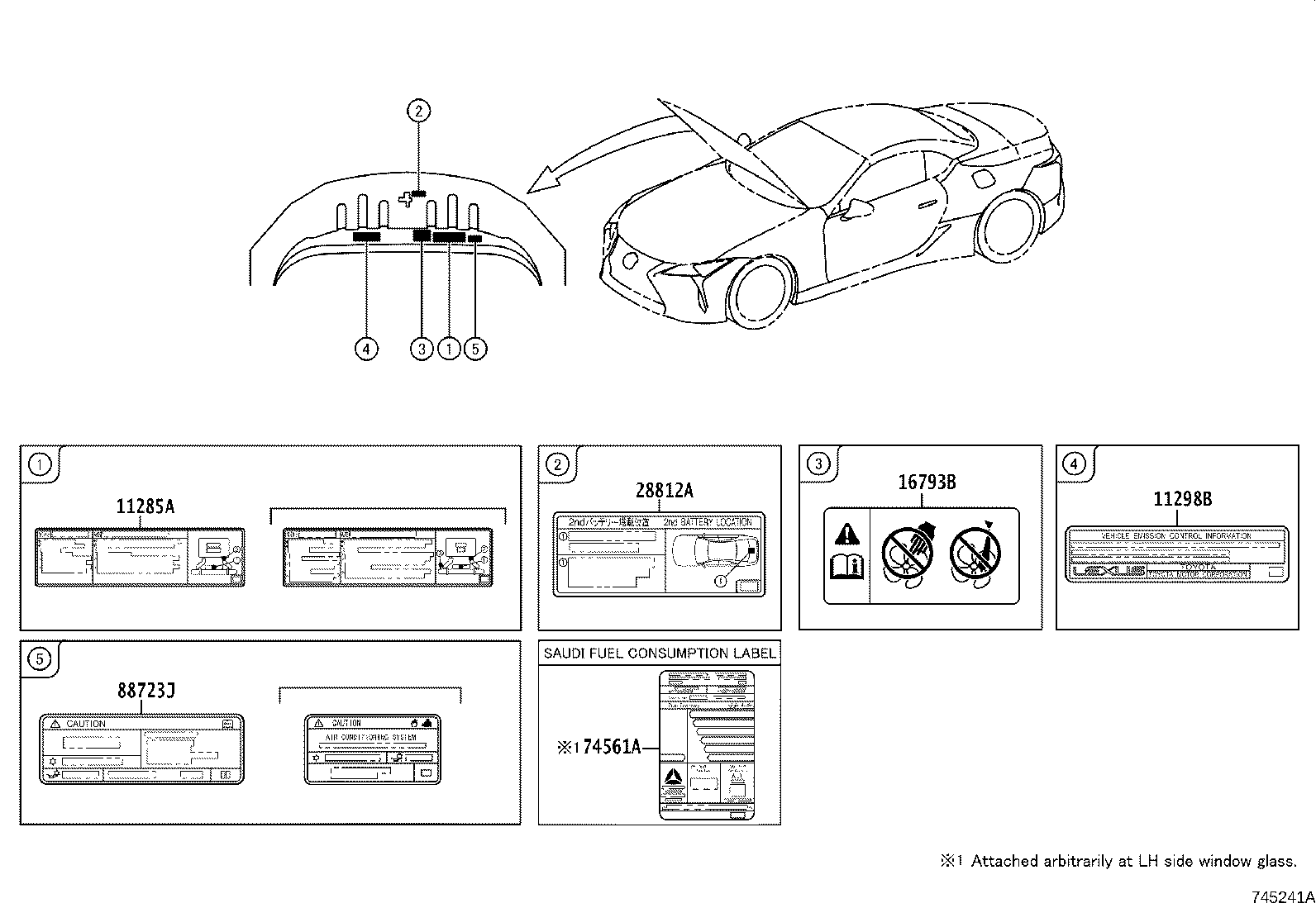

ENGINE ROOM & EXTERIOR

diagram 11285A 11298B 16793B 28812A 74561A 88723J
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-70020

2URGSE..URZ100..ARL,EUR,GCC

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-36030

2URGSE..URZ100

 1
28812A - LABEL, SUB-BATTERY INFORMATION
28812-38010

2URGSE..URZ100

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-48180

URZ100..EUR

 1
88723-11050

URZ100..LHD..EUR

AZERBAIJAN SPEC

 1
88723-11050

URZ100..LHD..EUR

UKRAINE SPEC

 1

ILLUST NO. 2 OF 3(2007- )

Click highlighted areas on diagram

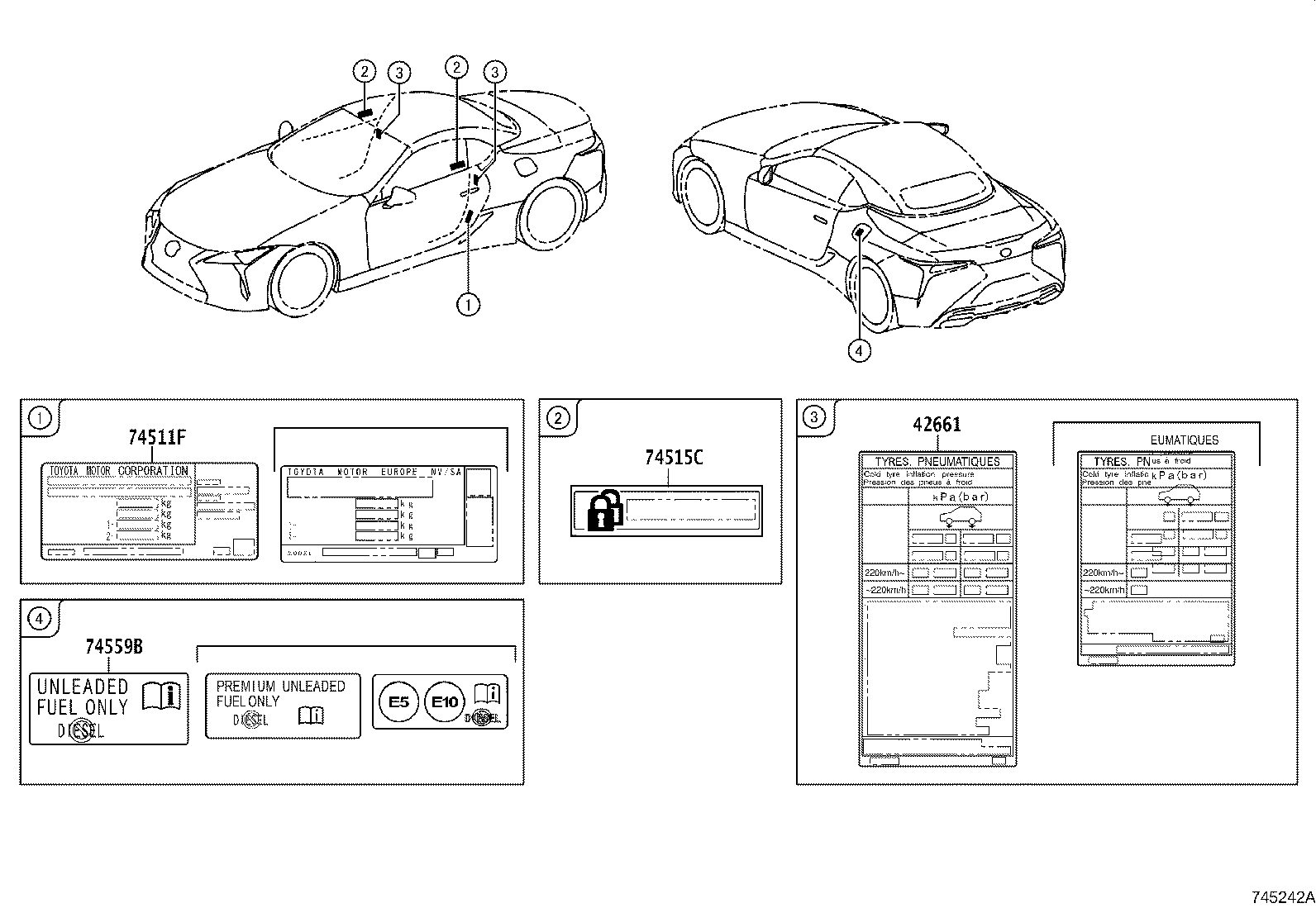

EXTERIOR

diagram 42661 74511F 74515C 74559B
Part # Description Qty Price
42661 - LABEL, TIRE PRESSURE INFORMATION
42661-11070

URZ100..EUR

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-48020

URZ100..LHD..EUR

*111,UKRAINE SPEC

 1
74511-48020

URZ100..LHD..EUR

*111,AZERBAIJAN SPEC

 1
74511-60490

URZ100..EUR

*111

 1
74511-33070

URZ100..EUR

*111

 1
74515C - LABEL, THEFT WARNING INFORMATION
74515-50060

URZ100..ARL,EUR,GEN

 2
74559B - LABEL, FUEL INFORMATION
74559-11030

URZ100..EUR

 1
74559-20140

URZ100..LHD..EUR

AZERBAIJAN SPEC

 1
74559-20140

URZ100..LHD..EUR

ISRAEL SPEC

 1
74559-20140

URZ100..LHD..EUR

UKRAINE SPEC

 1

ILLUST NO. 3 OF 3(2007- )

Click highlighted areas on diagram

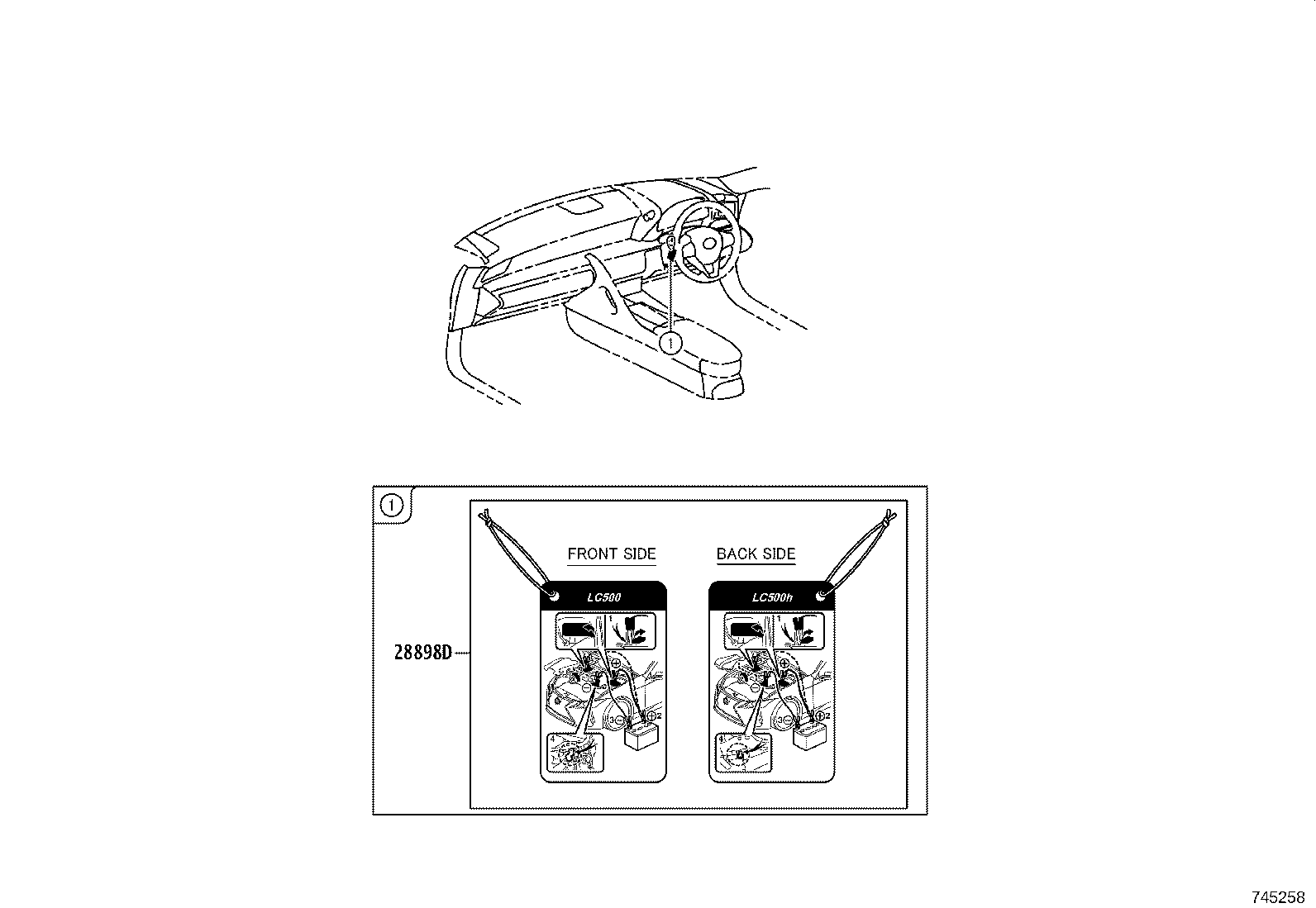

INTERIOR

diagram 28898D
Part # Description Qty Price
28898D - LABEL, BATTERY INFORMATION
28898-38020

2URGSE..URZ100

 1
