URZ100L-AKUBHV (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

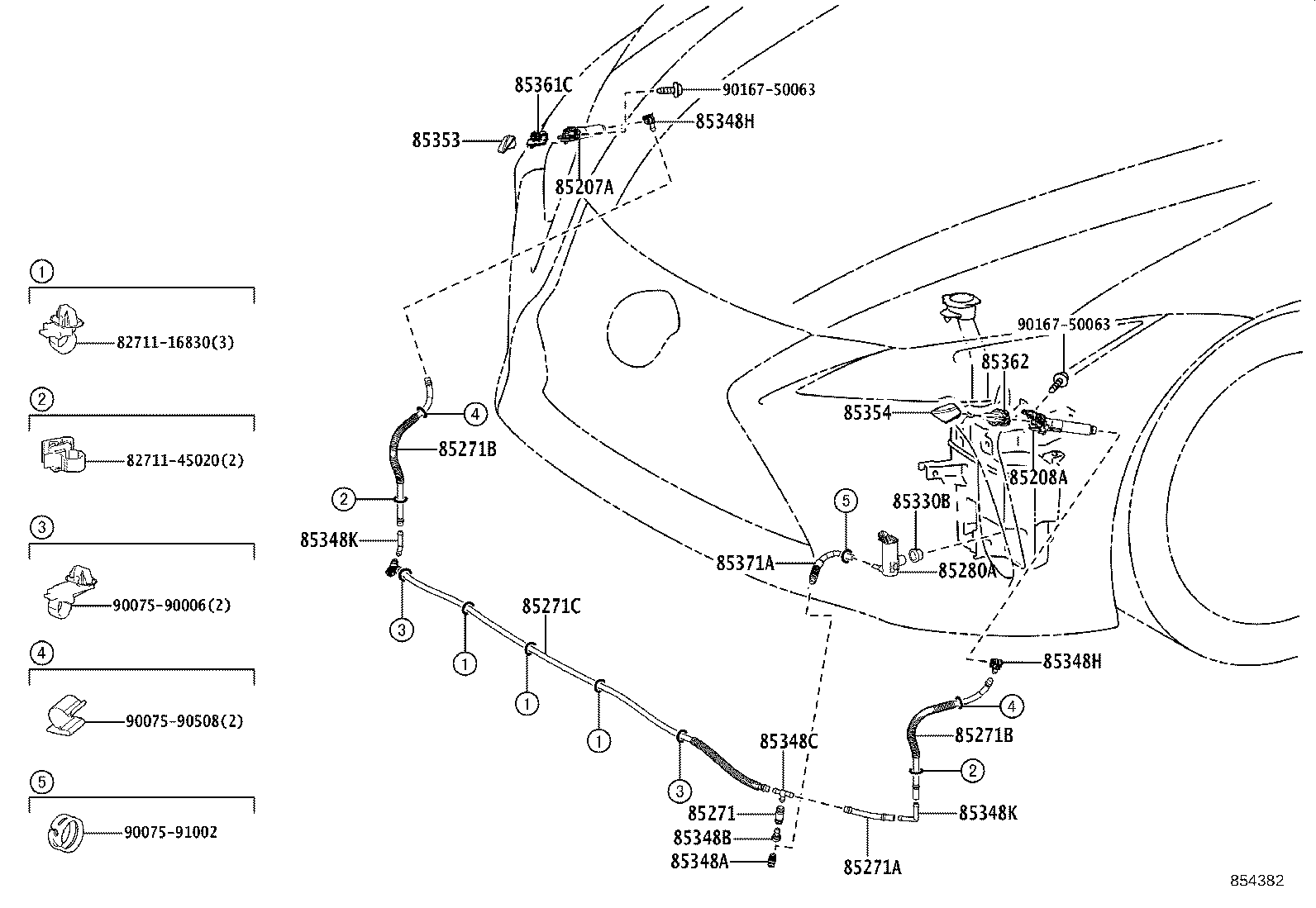

Click highlighted areas on diagram

diagram 8271116830 8271145020 85207A 85208A 85271 85271A 85271B 85271B 85271C 85280A 85330B 85348A 85348B 85348C 85348H 85348H 85348K 85348K 85353 85354 85361C 85362 85371A 9007590006 9007590508 9007591002 9016750063 9016750063
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-11010

URZ100

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-11010

URZ100

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90075-15053

URZ100

L=35

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90075-15063

URZ100

L=50

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90075-15101

URZ100

L=360

 2
85271B - HOSE, HEADLAMP CLEANER, NO.3
90075-15101

URZ100

L=360

 2
85271C - HOSE, HEADLAMP CLEANER, NO.4
90075-15072

URZ100

L=1550

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-33030

URZ100

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90099-32089

URZ100

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
90075-17009

URZ100

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
90075-17012

URZ100

 1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
90075-17010

URZ100

 1
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
90075-17009

URZ100

 2
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
90075-17009

URZ100

 2
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90075-17013

URZ100

 2
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90075-17013

URZ100

 2
85353 - COVER, HEADLAMP WASHER, RH
85353-11060

URZ100

 1
85354 - COVER, HEADLAMP WASHER, LH
85354-11060

URZ100

 1
85361C - BRACKET, WASHER
85361-11020

URZ100

 1
85362 - BRACKET, WASHER, NO.2
85362-11020

URZ100

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85359-11010

URZ100

 1
Common parts
82711-16830
82711-45020
90075-90006
90075-90508
90075-91002
90167-50063
