URZ100L-AKUBHV (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

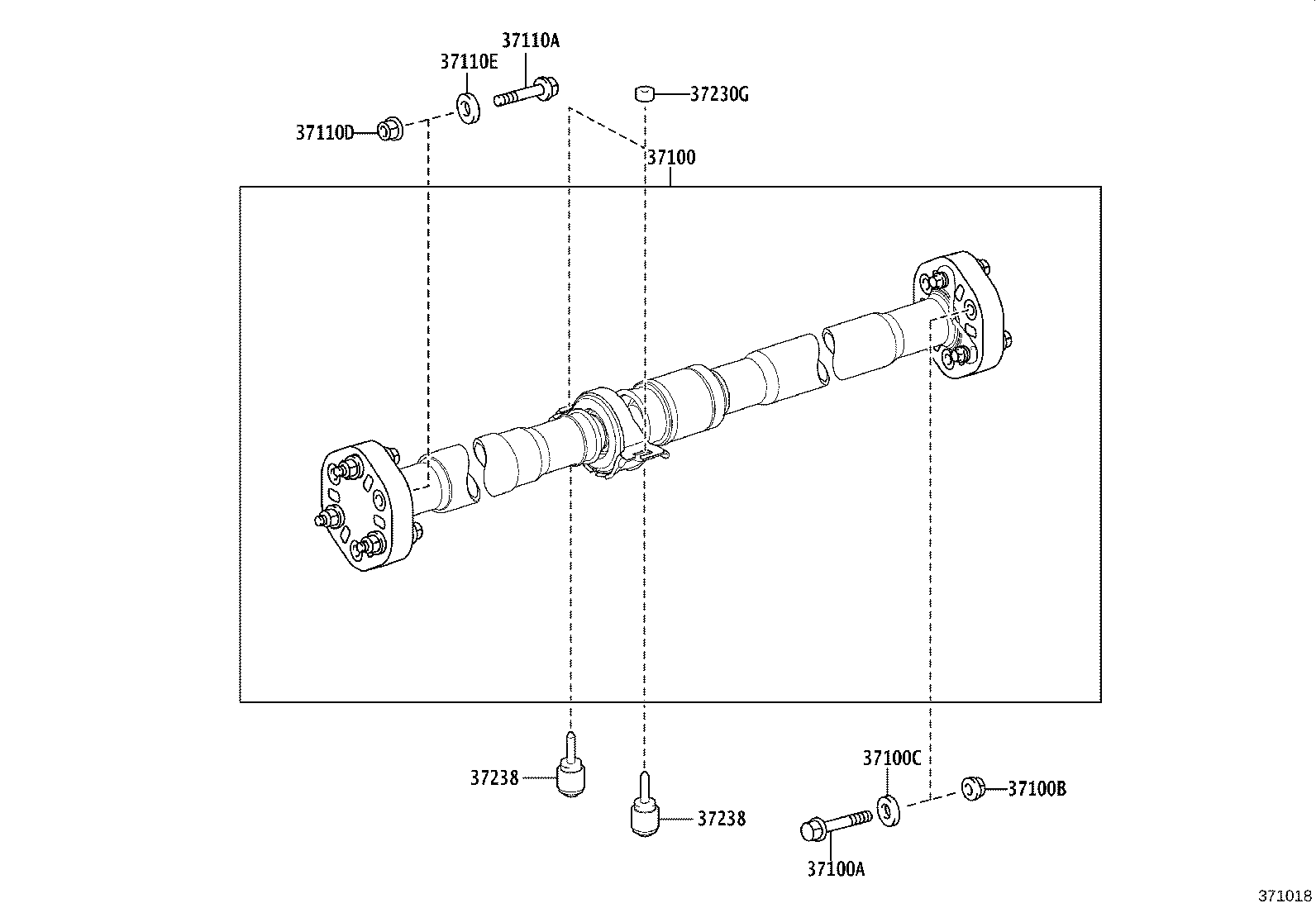

Click highlighted areas on diagram

diagram 37100 37100A 37100B 37100C 37110A 37110D 37110E 37230G 37238 37238
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-11020

URZ100

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-12265

URZ100

 3
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-12128

URZ100

 3
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-12059

URZ100

 3
37110A - BOLT (FOR PROPELLER SHAFT)
90105-12265

URZ100

*12X1.25PX59.5-20

 3
37110D - NUT (FOR PROPELLER SHAFT)
90179-12128

URZ100

 3
37110E - WASHER (FOR PROPELLER SHAFT)
90560-12059

URZ100

 3
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10017

URZ100

T=9.0

 2
90201-10034

URZ100

T=11.0

 2
37238 - DAMPER, CENTER SUPPORT BEARING
37209-30020

URZ100

 2
37238 - DAMPER, CENTER SUPPORT BEARING
37209-30020

URZ100

 2
