URZ100L-AKUBH (2020)
Toyota Lexus Lc500 (Cv)
Production
Jul 2020
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )LHD

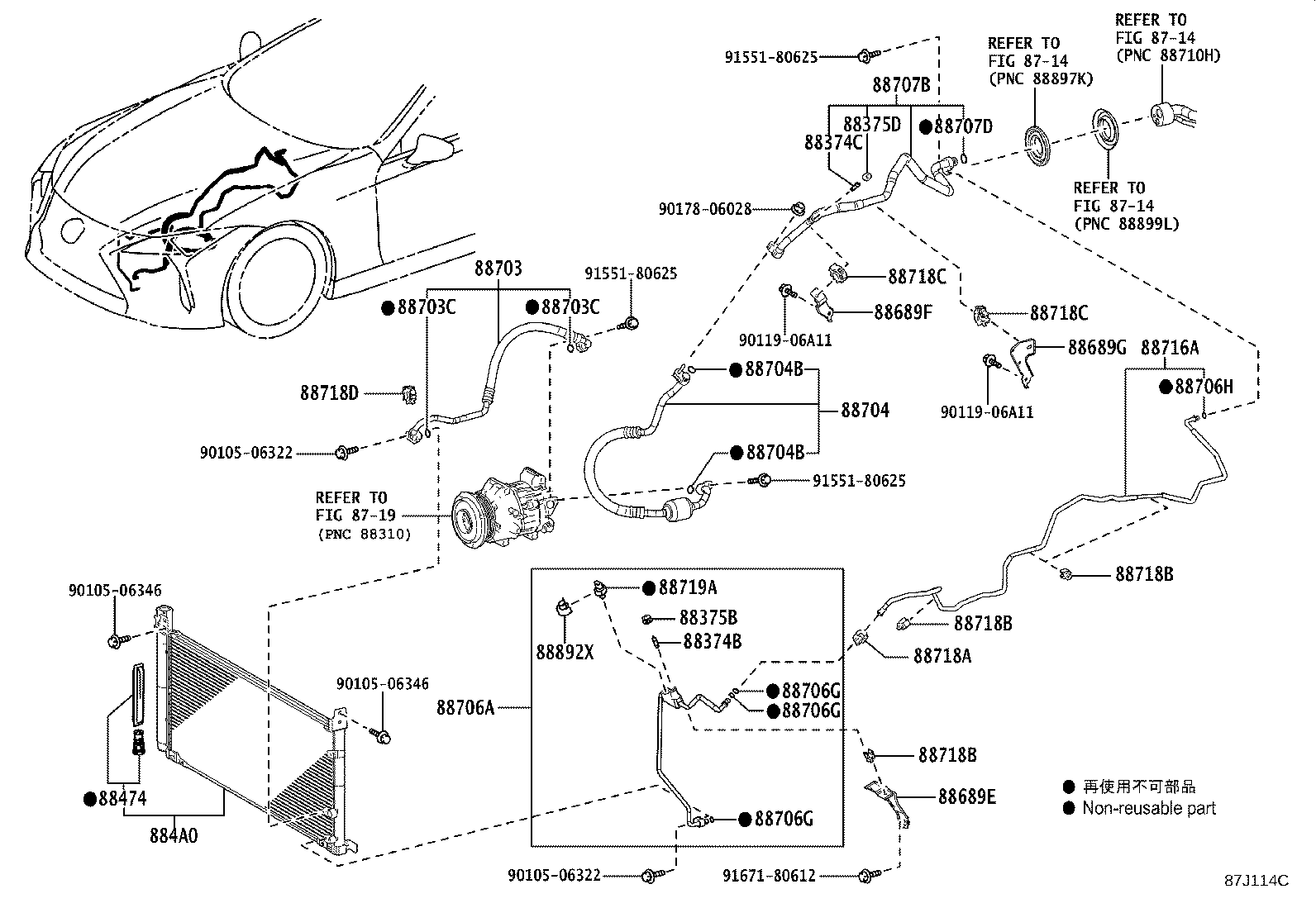

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
URZ100 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
URZ100 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
URZ100..ARL,GCC,GEN |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
URZ100..ARL,GCC,GEN |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47030 |
URZ100 |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-11010 |
URZ100..ARL,GCC,GEN |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-11010 |
URZ100 |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-11030 |
URZ100 |
1 | ||
| 88689G - BRACKET, COOLER, NO.3 | ||||
| 88688-11060 |
URZ100..LHD |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-11030 |
URZ100 |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
URZ100 ID=10.8,OD=15.6 |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
URZ100 ID=10.8,OD=15.6 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-11030 |
URZ100 |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
URZ100 ID=13.4,OD=18.2 |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
URZ100 ID=13.4,OD=18.2 |
2 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-11010 |
URZ100..ARL,GCC,GEN |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
URZ100 ID=6.7,OD=10.3 |
3 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
URZ100 ID=6.7,OD=10.3 |
3 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
URZ100 ID=6.7,OD=10.3 |
3 | ||
| 88706H - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14119 |
URZ100 ID=6.7,OD=10.3 |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-11090 |
URZ100..ARL,GCC,GEN |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90099-14121 |
URZ100 ID=13.4,OD=18.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-11010 |
URZ100..LHD |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2D150 |
URZ100 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-50390 |
URZ100 |
4 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-50390 |
URZ100 |
4 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-50390 |
URZ100 |
4 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-42110 |
URZ100 |
2 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-42110 |
URZ100 |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47090 |
URZ100 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
URZ100 |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
URZ100 |
1 | ||
| Common parts | ||||
| 90105-06322 | ||||
| 90105-06346 | ||||
| 90119-06A11 | ||||
| 90178-06028 | ||||
| 91551-80625 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
