URZ100L-AKUBH (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )LHD

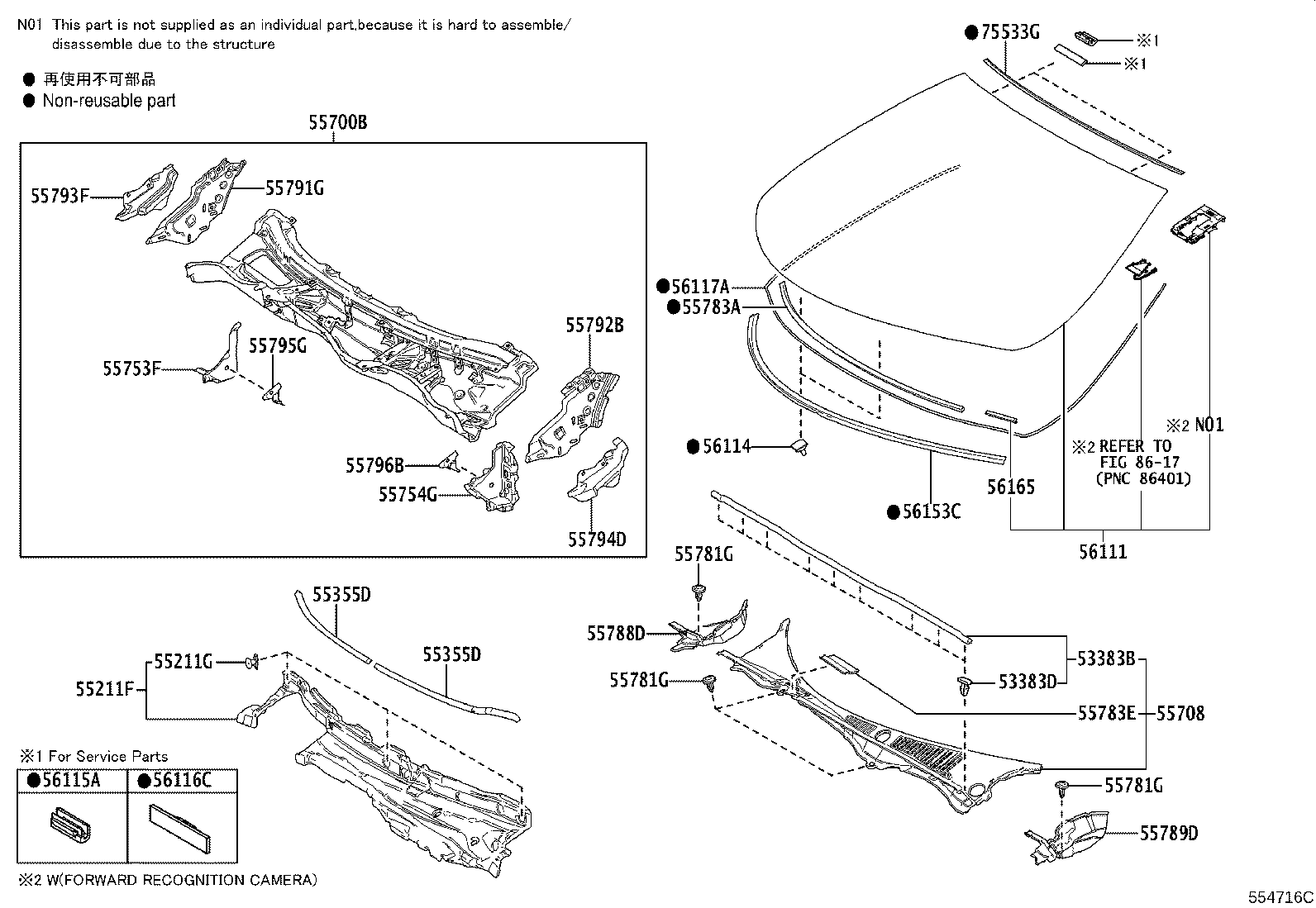

Click highlighted areas on diagram

diagram 53383B 53383D 55211F 55211G 55355D 55355D 55700B 55708 55753F 55754G 55781G 55781G 55781G 55783A 55783E 55788D 55789D 55791G 55792B 55793F 55794D 55795G 55796B 56111 56114 56115A 56116C 56117A 56153C 56165 75533G 8617
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-11010

URZ100

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08108

URZ100

 9
55211F - COVER, DASH PANEL INSULATOR
55211-11030

URZ100..LHD

 1
55211G - CLIP, DASH PANEL INSULATOR COVER
90467-11122

URZ100

 3
55355D - CUSHION, INSTRUMENT PANEL, NO.1
55355-11040

URZ100

 2
55355D - CUSHION, INSTRUMENT PANEL, NO.1
55355-11040

URZ100

 2
55700B - COWL ASSY
55700-11011

URZ100..LHD

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-11031

URZ100..LHD

 1
55753F - BRACKET, INSTRUMENT PANEL TO COWL, NO.1
55753-11010

URZ100

 1
55754G - BRACKET, INSTRUMENT PANEL TO COWL, NO.2
55754-11010

URZ100

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

URZ100

 4
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

URZ100

 4
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

URZ100

 4
55783A - PAD, COWL TOP SILENCER
55783-11010

URZ100

 1
55783E - LOUVER, COWL TOP VENTILATOR, CENTER
55783-11030

URZ100..LHD

 1
55788D - INSULATOR, COWL TOP PANEL, NO.2
55788-11020

URZ100..LHD

 1
55789D - INSULATOR, COWL TOP PANEL, NO.3
55789-11020

URZ100..LHD

 1
55791G - COVER, COWL REINFORCEMENT, UPPER RH
55791-11010

URZ100

 1
55792B - COVER, COWL REINFORCEMENT, UPPER LH
55792-11010

URZ100

 1
55793F - COVER, COWL REINFORCEMENT, UPPER NO.2 RH
55793-11010

URZ100

 1
55794D - COVER, COWL REINFORCEMENT, UPPER NO.2 LH
55794-11010

URZ100

 1
55795G - COVER, COWL REINFORCEMENT, UPPER NO.3 RH
55795-11010

URZ100

 1
55796B - COVER, COWL REINFORCEMENT, UPPER NO.3 LH
55796-11010

URZ100

 1
56111 - GLASS, WINDSHIELD
56101-11938

URZ100..GEN

MIDDLE & SOUTH AMERICA SPEC

 1
56101-11938

URZ100..GEN

GUATEMALA SPEC

 1
56101-11938

URZ100..GEN

PANAMA SPEC

 1
56101-11938

URZ100..GEN

PHILIPPINE SPEC

 1
56101-11939

URZ100..GEN

MIDDLE & SOUTH AMERICA SPEC&HEAD UP DISPLAY-WITH

 1
56101-11938

URZ100..GEN

CURACAO SPEC

 1
56101-11939

URZ100..GEN

PANAMA SPEC&HEAD UP DISPLAY-WITH

 1
56101-11939

URZ100..GEN

GUATEMALA SPEC&HEAD UP DISPLAY-WITH

 1
56101-11938

URZ100..GEN

COSTA RICA SPEC

 1
56101-11939

URZ100..GEN

COSTA RICA SPEC&HEAD UP DISPLAY-WITH

 1
56101-11939

URZ100..GEN

PHILIPPINE SPEC&HEAD UP DISPLAY-WITH

 1
56101-11940

URZ100..GCC,GEN

 1
56101-11948

URZ100..GEN

ARGENTINA SPEC

 1
56101-11949

URZ100..GEN

ARGENTINA SPEC&HEAD UP DISPLAY-WITH

 1
56101-11939

URZ100..GEN

CURACAO SPEC&HEAD UP DISPLAY-WITH

 1
56101-11941

URZ100..GCC,GEN

HEAD UP DISPLAY-WITH

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-48010

URZ100

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

URZ100

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

URZ100

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-64010

URZ100..GEN

*D,L=2819,ARGENTINA SPEC

 1
56117-64010

URZ100..GEN

*D,L=2819,MIDDLE & SOUTH AMERICA SPEC

 1
56117-64010

URZ100..GEN

*D,L=2819,PANAMA SPEC&HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100

*D,L=2819

 1
56117-64010

URZ100..GEN

*D,L=2819,PHILIPPINE SPEC&HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100..GEN

*D,L=2819,GUATEMALA SPEC

 1
56117-64010

URZ100..GEN

*D,L=2819,PHILIPPINE SPEC

 1
56117-64010

URZ100..GEN

*D,L=2819,CURACAO SPEC

 1
56117-64010

URZ100..GEN

*D,L=2819,ARGENTINA SPEC&HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100..GEN

*D,L=2819,MIDDLE & SOUTH AMERICA SPEC&HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100..GEN

*D,L=2819,GUATEMALA SPEC&HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100..GEN

*D,L=2819,COSTA RICA SPEC

 1
56117-64010

URZ100..LHD

*D,L=2819,HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100..GEN

*D,L=2819,CURACAO SPEC&HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100..GEN

*D,L=2819,COSTA RICA SPEC&HEAD UP DISPLAY-WITH

 1
56117-64010

URZ100..GEN

*D,L=2819,PANAMA SPEC

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-11020

URZ100..LHD

 1
56165 - COVER, FRONT WINDOW INNER MOULDING, LH
56165-30010

URZ100

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-11020

URZ100

 1
Linked diagrams
8617
