GSE20R-AKFLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Aug 2010
Engine 4GRFSE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0904- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0904- )RHD

Click highlighted areas on diagram

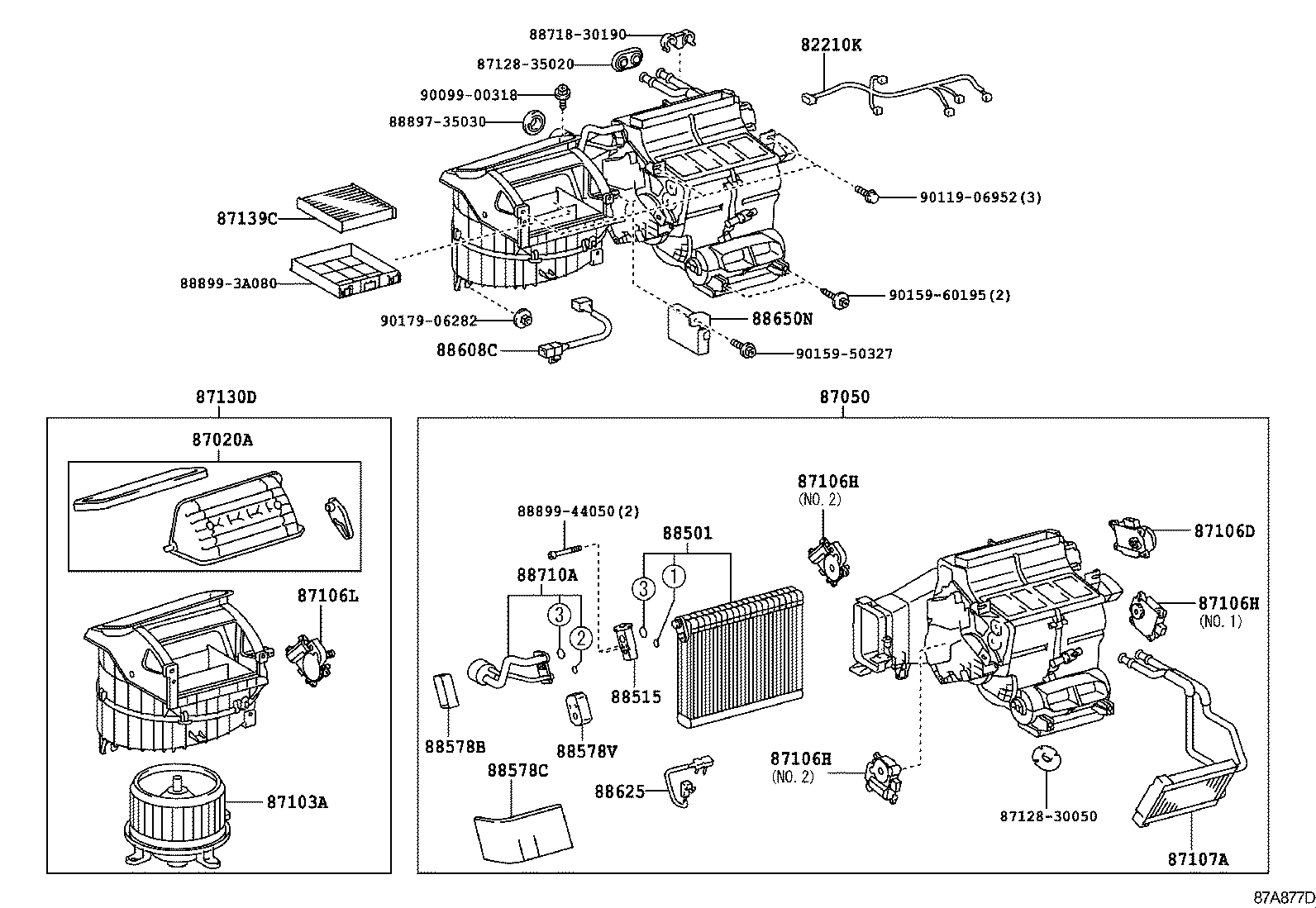

diagram 82210K 87020A 87050 87103A 87106D 87106H 87106H 87106H 87106L 87107A 8712830050 8712835020 87130D 87139C 88501 88515 88578B 88578C 88578V 88608C 88625 88650N 88710A 8871830190 8889735030 888993A080 8889944050 9009900318 9011906952 9015950327 9015960195 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-30013

GSE20..RHD

 1
87020A - DAMPER ASSY, HEATER AIR
87020-30010

GSE20..RHD

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-30210

GSE20..RHD

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-30400

GSE20..RHD

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-30440

GSE20

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430

GSE20

NO.1

 1
87106-30450

GSE20

NO.2

 2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430

GSE20

NO.1

 1
87106-30450

GSE20

NO.2

 2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430

GSE20

NO.1

 1
87106-30450

GSE20

NO.2

 2
87106L - SERVO SUB-ASSY, DAMPER
87106-30470

GSE20..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-30560

GSE20

 1
87130D - BLOWER ASSY
87130-30791

GSE20..RHD

 1
87139C - FILTER, CLEAN AIR
87139-30040

GSE20

MICRO DUST FILTER,OE PART

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A160

GSE20

 1
88515 - VALVE, COOLER EXPANSION
88515-28180

GSE20

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-30830

GSE20

 1
88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-3A170

GSE20..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88620-30020

GSE20

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-53260

GSE20..RHD

FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR

 1
88650-53250

GSE20..RHD

 1
88650-53260

GSE20..RHD

FRONT SEAT-SEMIANILINE LEATHER

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A260

GSE20

 1
Common parts
87128-30050
87128-35020
88718-30190
88897-35030
88899-3A080
88899-44050
90099-00318
90119-06952
90159-50327
90159-60195
90179-06282
