GSE20R-AKFLHW (2009)
Toyota Lexus Is250c
ILLUST NO. 7 OF 9(0904- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30290 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 84140-30311 |
GSE20 |
1 | ||
| 84140-30290 |
GSE20..RHD SOUTH AFRICA SPEC |
1 | ||
| 84140-30290 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30290 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 84140-30311 |
GSE20 |
1 | ||
| 84140-30290 |
GSE20..RHD SOUTH AFRICA SPEC |
1 | ||
| 84140-30290 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-53010C0 |
GSE20..RHD..6F AUSTRALIA SPEC,BLACK,TRIM0#,2# |
1 | ||
| 84250-53010C0 |
GSE20..RHD..6F NEW ZEALAND SPEC,BLACK,TRIM0#,2# |
1 | ||
| 84250-53070C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 84250-53070C0 |
GSE20..RHD..6F AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION,BLACK,TRIM0#,2# |
1 | ||
| 84250-53070C0 |
GSE20..RHD..6F NEW ZEALAND SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION,BLACK,TRIM0#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
GSE20 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30531 |
GSE20..RHD SOUTH AFRICA SPEC&LUXURY PACKAGE |
1 | ||
| 84652-30531 |
GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 84652-30580 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 84652-30531 |
GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 84652-30552 |
GSE20 LUXURY PACKAGE |
1 | ||
| 84652-30580 |
GSE20..RHD SOUTH AFRICA SPEC |
1 | ||
| 84652-30580 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 84652-30542 |
GSE20 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30531 |
GSE20..RHD SOUTH AFRICA SPEC&LUXURY PACKAGE |
1 | ||
| 84652-30531 |
GSE20..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 84652-30580 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 84652-30531 |
GSE20..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 84652-30552 |
GSE20 LUXURY PACKAGE |
1 | ||
| 84652-30580 |
GSE20..RHD SOUTH AFRICA SPEC |
1 | ||
| 84652-30580 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 84652-30542 |
GSE20 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
GSE20 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
GSE20 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-52030 |
GSE20 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||

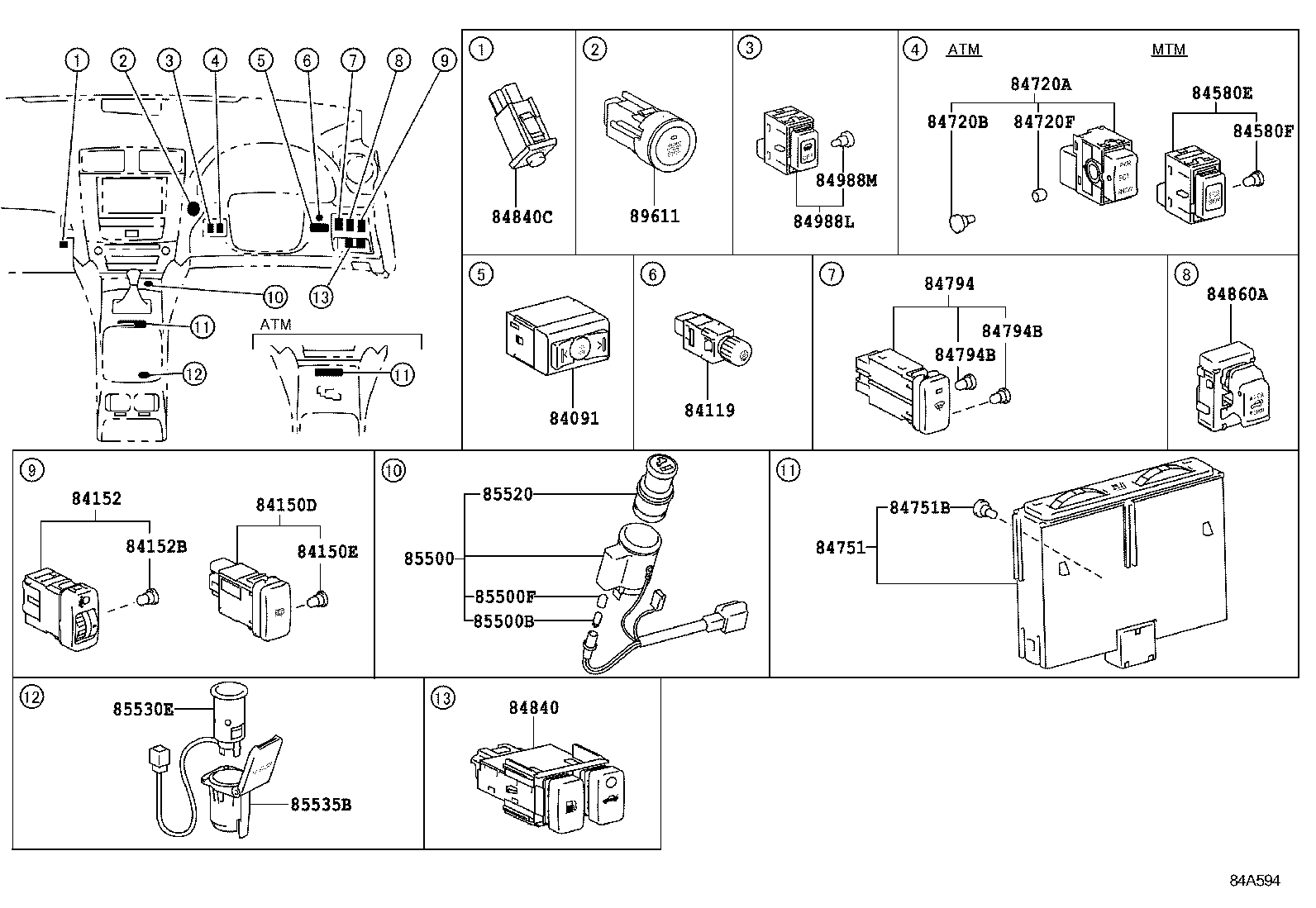

ILLUST NO. 5 OF 9(0904-1008)RHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-53010 |
GSE20 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-48010 |
GSE20 |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-60030 |
GSE20..6F |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90010-01039 |
GSE20..6F 14V0.91W,W(GREEN CAP |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84580-53070 |
GSE20..6F |
1 | ||
| 84580F - BULB, THROTTLE POSITION SWITCH | ||||
| 90010-01039 |
GSE20..6F 14V0.91W,W(GREEN CAP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30180 |
GSE20 FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 84751-30190 |
GSE20 |
1 | ||
| 84751-30180 |
GSE20 FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01070 |
GSE20 14V1.8W,W(GREEN CAP) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-33020 |
GSE20 |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
GSE20 14V 0.91W |
1 | ||
| 90010-01061 |
GSE20 14V0.84W,W/GREEN CAP |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
GSE20 14V 0.91W |
1 | ||
| 90010-01061 |
GSE20 14V0.84W,W/GREEN CAP |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33080 |
GSE20 |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
GSE20 |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-53010 |
GSE20 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-30140 |
GSE20 |
1 | ||
| 84988M - BULB, VSC OFF SWITCH | ||||
| 90010-01137 |
GSE20 14V 0.63W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30520 |
GSE20 |
1 | ||
| 85500-30520 |
GSE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01111 |
GSE20 13.5V 2W,ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 90010-01111 |
GSE20 13.5V 2W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GSE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 84998-10510 |
GSE20 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GSE20 |
1 | ||
| 85520-89101 |
GSE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-53050 |
GSE20 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-50020 |
GSE20 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30021 |
GSE20 |
1 | ||

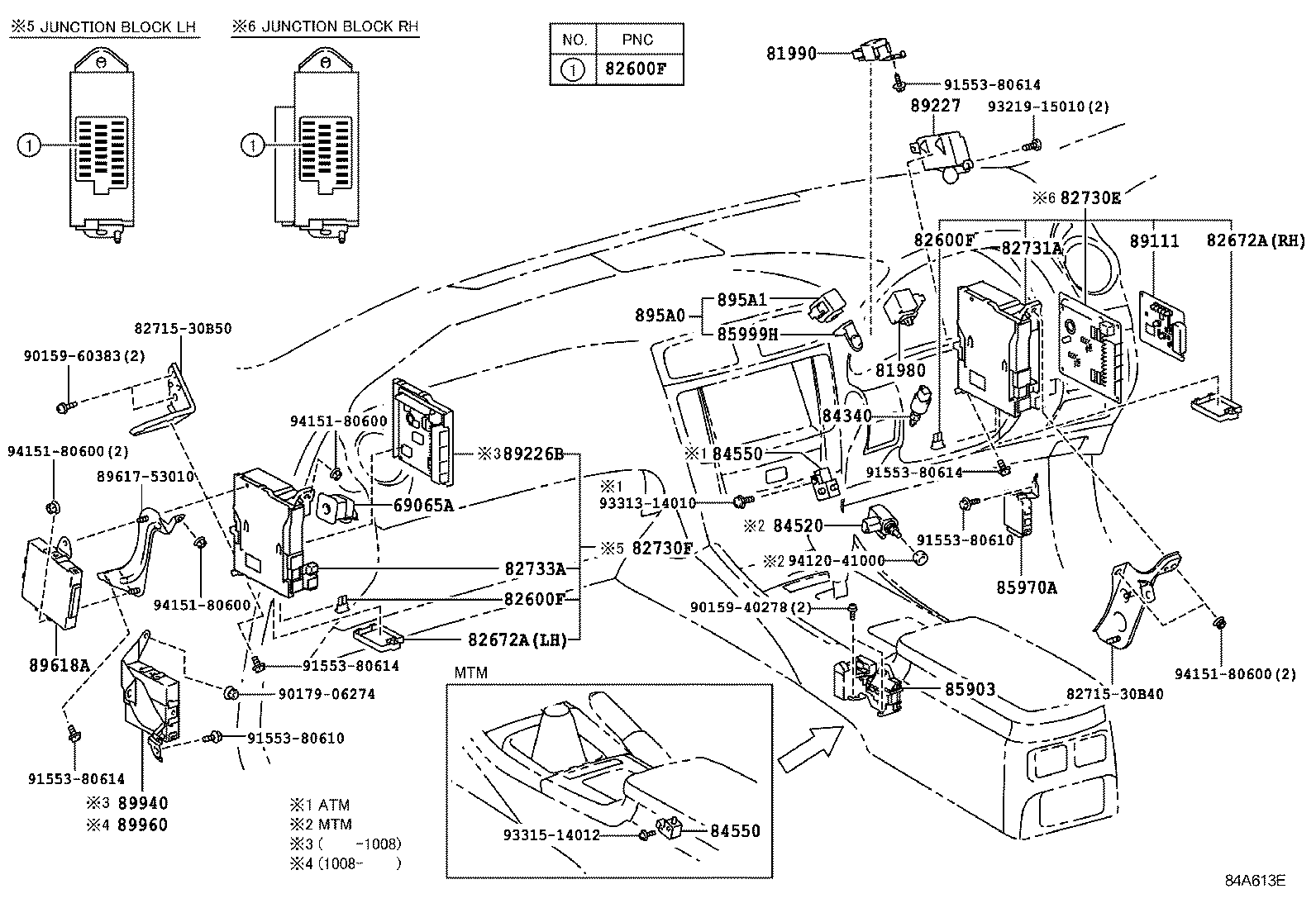

ILLUST NO. 6 OF 9(0904- )
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901C - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD |
1 | ||
| 55901-53340 |
GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55901-53340 |
GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55901-53400 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 55901-53400 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-53140 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD |
1 | ||
| 55905-53140 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55905-53140 |
GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55936E - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 55936-53340 |
GSE20..RHD |
1 | ||
| 55936-53340 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 55936-53360 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 55936-53360 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 81950G - LENS ASSY, SWITCH INDICATOR | ||||
| 81950-53010 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 81950-53010 |
GSE20 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-53450 |
GSE20..RHD |
1 | ||
| 84010-53500 |
GSE20..RHD SOUTH AFRICA SPEC |
1 | ||
| 84010-53450 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84010-53450 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84010-53470 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 84010-53470 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-53040 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20 |
1 | ||
| 84331-53030 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-53040 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53040 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDDNAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVDNAVIGATION |
1 | ||
| 84331-53040 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20..RHD SOUTH AFRICA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20 |
1 | ||
| 84331-53030 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 84331-53030 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| Common parts | ||||
| 93560-15012 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8603 | ||||
ILLUST NO. 9 OF 9(0904- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08298 |
GSE20 30A,TERMINAL:FEMALE,LUGGAGE ROOM J/B |
1 | ||
| 90982-08283 |
GSE20 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSE20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GSE20 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSE20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GSE20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSE20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GSE20 7.5A,MINI FUSE,BROWN |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-53190 |
GSE20 |
1 | ||
| 82670H - BLOCK ASSY, LUGGAGE ROOM JUNCTION | ||||
| 82670-53010 |
GSE20 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-53010 |
GSE20 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-59515 |
GSE20 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GSE20 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GSE20 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GSE20 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-53070 |
GSE20 |
1 | ||
| 84030-53071 |
GSE20 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-53070 |
GSE20 |
1 | ||
| 84030-53071 |
GSE20 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-53140 |
GSE20..RHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-53140 |
GSE20..RHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-53020 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 84872-58010 |
GSE20 |
1 | ||
| 84872-53020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-53020 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 84872-58010 |
GSE20 |
1 | ||
| 84872-53020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-53030A1 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84927-53030C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53040C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53030C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2#,RH |
1 | ||
| 84927-53040A1 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84927-53040C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2#,LH |
1 | ||
| 84927-53040A1 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84927-53030A1 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-53030A1 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84927-53030C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#,RH |
1 | ||
| 84927-53040C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#,LH |
1 | ||
| 84927-53030C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2#,RH |
1 | ||
| 84927-53040A1 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84927-53040C0 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2#,LH |
1 | ||
| 84927-53040A1 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84927-53030A1 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-53010 |
GSE20 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
GSE20 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GSE20 |
1 | ||
| 85915E - RELAY | ||||
| 90987-02027 |
GSE20 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-53080 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
2 | ||
| 89430-53080 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
2 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-53080 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
2 | ||
| 89430-53080 |
GSE20..6F;GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
2 | ||
| 89720 - COMPUTER ASSY, SLIDING ROOF CONTROL | ||||
| 89720-53010 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 91551-80610 | ||||
| 91631-J0612 | ||||
| 93319-A4010 | ||||
| 94130-60600 | ||||

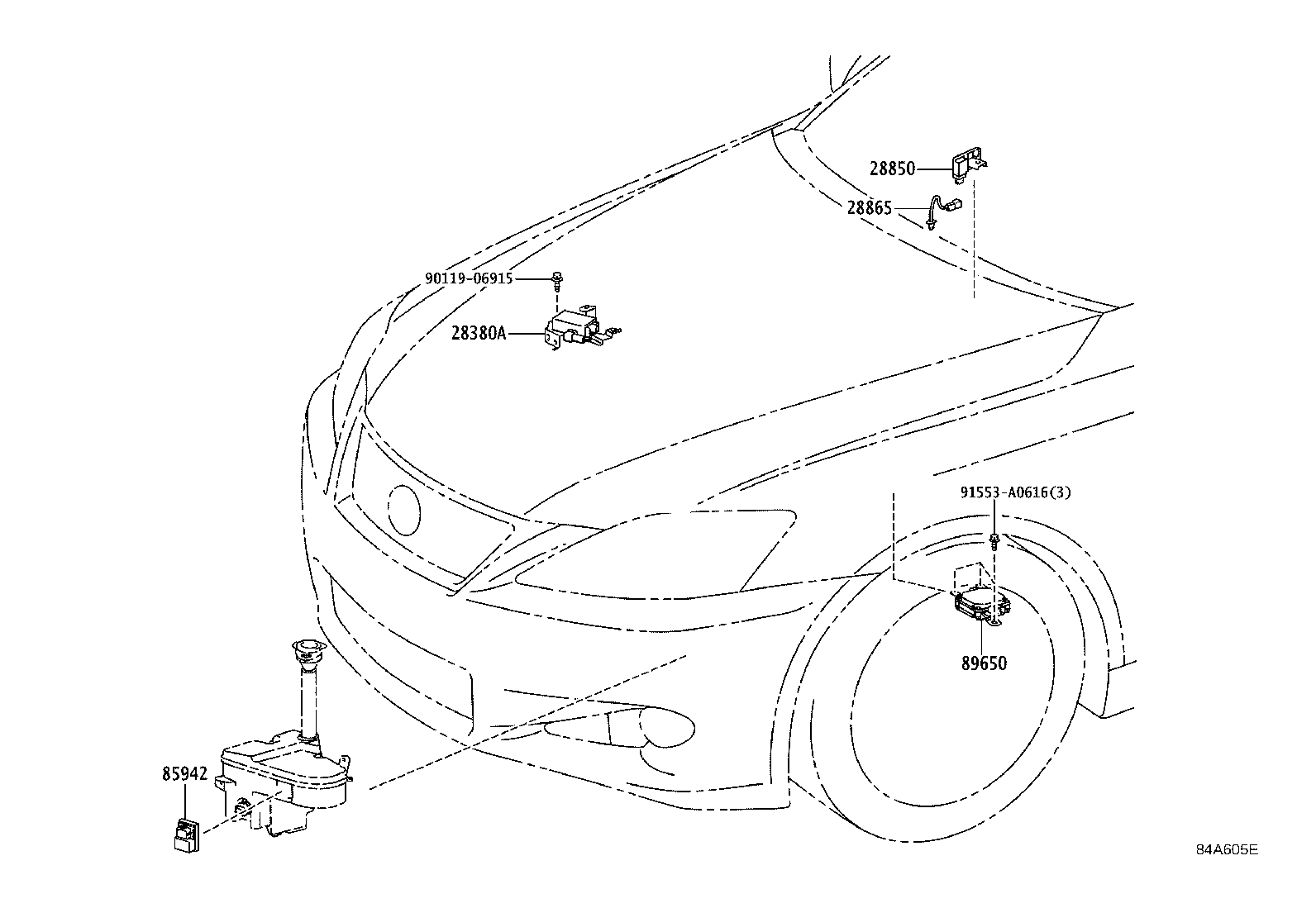

ILLUST NO. 2 OF 9(0904- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31040 |
4GRFSE..GSE20 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-50010 |
4GRFSE..GSE20..RHD |
1 | ||
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-31010 |
4GRFSE..GSE20 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30020 |
GSE20..6F |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-53090 |
GSE20..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-A0616 | ||||
ILLUST NO. 4 OF 9(0904- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-53010 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 69065-53010 |
GSE20 |
1 | ||
| 69065-53010 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 69065-53010 |
GSE20..RHD SOUTH AFRICA SPEC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-53040 |
GSE20 |
1 | ||
| 81990 - RELAY ASSY, TURN SIGNAL | ||||
| 81991-53010 |
GSE20 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSE20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GSE20 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSE20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GSE20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSE20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GSE20 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSE20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GSE20 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSE20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GSE20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSE20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GSE20 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSE20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GSE20 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSE20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GSE20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSE20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GSE20 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-53150 |
GSE20 RH |
1 | ||
| 82672-53120 |
GSE20 LH |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-53150 |
GSE20 RH |
1 | ||
| 82672-53120 |
GSE20 LH |
1 | ||
| 82730E - BLOCK ASSY, JUNCTION, RH | ||||
| 82730-53710 |
GSE20..RHD..6F NEW ZEALAND SPEC |
1 | ||
| 82730-53690 |
GSE20..RHD..6F |
1 | ||
| 82730-53780 |
GSE20..RHD..6F AUSTRALIA SPEC |
1 | ||
| 82730-53800 |
GSE20..RHD..6F SOUTH AFRICA SPEC |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-53580 |
GSE20 |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-53030 |
GSE20 |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-53040 |
GSE20 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
GSE20 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
GSE20..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
GSE20..RHD;GSE20..LHD..6FC |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
GSE20..RHD;GSE20..LHD..6FC |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-53040 |
GSE20..RHD NEW ZEALAND SPEC |
1 | ||
| 85970-53040 |
GSE20..RHD AUSTRALIA SPEC |
1 | ||
| 85970-53040 |
GSE20 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 895A9-53010 |
GSE20 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-53040 |
GSE20 |
1 | ||
| 89226B - COMPUTER, MULTIPLEX NETWORK BODY, NO.2 | ||||
| 89226-53010 |
GSE20 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30020 |
GSE20 |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-53010 |
GSE20 |
1 | ||
| 895A1 - RELAY, STOP LAMP CONTROL | ||||
| 895A1-53010 |
GSE20 |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89670-53120 |
GSE20..RHD..6F |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-53120 |
GSE20..RHD..6F |
1 | ||
| Common parts | ||||
| 82715-30B40 | ||||
| 82715-30B50 | ||||
| 89617-53010 | ||||
| 90159-40278 | ||||
| 90159-60383 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91553-80614 | ||||
| 93219-15010 | ||||
| 93313-14010 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF 9(0904- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-53040 |
GSE20 LH |
1 | ||
| 84920-53050 |
GSE20 RH |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-53040 |
GSE20 LH |
1 | ||
| 84920-53050 |
GSE20 RH |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84070-53110 |
GSE20..RHD |
1 | ||
| 84070-53090 |
GSE20..RHD LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 84070-53090 |
GSE20..RHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84070-53100 |
GSE20..RHD |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-53030C0 |
GSE20..6F BLACK,TRIM2#,RH |
1 | ||
| 84921-53040A6 |
GSE20 MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84921-53030A6 |
GSE20 MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84921-53040C0 |
GSE20..6F BLACK,TRIM2#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-53030C0 |
GSE20..6F BLACK,TRIM2#,RH |
1 | ||
| 84921-53040A6 |
GSE20 MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84921-53030A6 |
GSE20 MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84921-53040C0 |
GSE20..6F BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-53010A6 |
GSE20 MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84921-53020A6 |
GSE20 MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84921-53010C0 |
GSE20..6F BLACK,TRIM2#,RH |
1 | ||
| 84921-53020C0 |
GSE20..6F BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-53010A6 |
GSE20 MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84921-53020A6 |
GSE20 MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84921-53010C0 |
GSE20..6F BLACK,TRIM2#,RH |
1 | ||
| 84921-53020C0 |
GSE20..6F BLACK,TRIM2#,LH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050A3 |
GSE20 MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84920-60050C0 |
GSE20..6F BLACK,TRIM2#,LH |
1 | ||
| 84920-60040C0 |
GSE20..6F BLACK,TRIM2#,RH |
1 | ||
| 84920-60040A3 |
GSE20 MELLOW WHITE,TRIM0#,RH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050A3 |
GSE20 MELLOW WHITE,TRIM0#,LH |
1 | ||
| 84920-60050C0 |
GSE20..6F BLACK,TRIM2#,LH |
1 | ||
| 84920-60040C0 |
GSE20..6F BLACK,TRIM2#,RH |
1 | ||
| 84920-60040A3 |
GSE20 MELLOW WHITE,TRIM0#,RH |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
ILLUST NO. 1 OF 9(0904- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
GSE20 YAZAKI |
1 | ||
| 83530-28020 |
GSE20 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14040 |
GSE20..6F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30730 |
GSE20 |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30730 |
GSE20 |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-30040 |
GSE20 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-30030 |
GSE20 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30060 |
GSE20 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
GSE20 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSE20 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSE20 |
2 | ||
| Common parts | ||||
| 82715-22850 | ||||
| 82715-53310 | ||||
| 82715-60010 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| 91551-80830 | ||||
| 91552-A1016 | ||||
| 91621-B0616 | ||||
| 91673-80612 | ||||

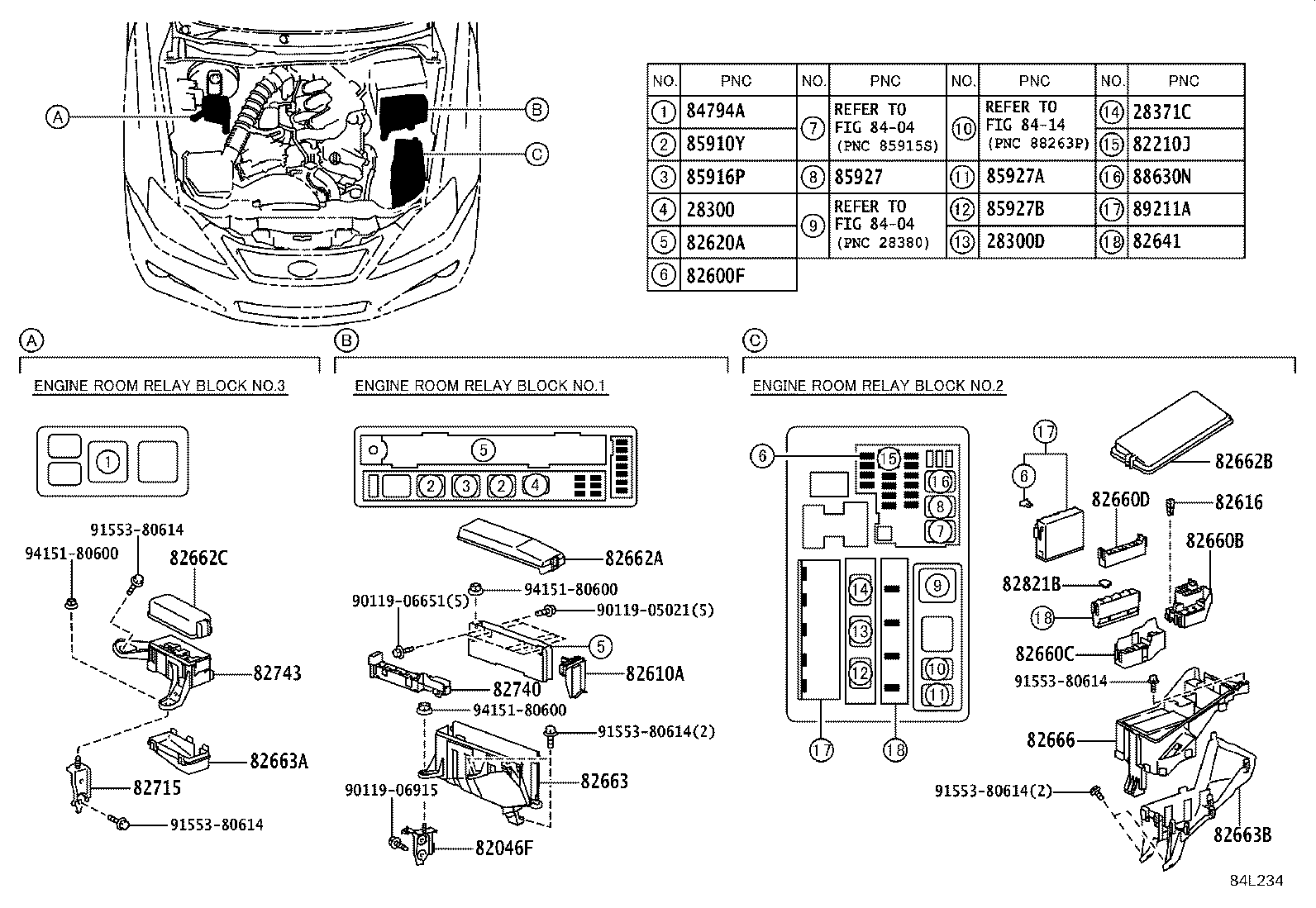

ILLUST NO. 3 OF 9(0904- )RHD
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
4GRFSE..GSE20 |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
4GRFSE..GSE20 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
4GRFSE..GSE20 |
1 | ||
| 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30100 |
GSE20 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08298 |
GSE20 30A,TERMINAL:FEMALE,LUGGAGE ROOM J/B |
1 | ||
| 90982-08283 |
GSE20 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSE20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GSE20 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSE20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GSE20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSE20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GSE20 7.5A,MINI FUSE,BROWN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-30130 |
GSE20..RHD |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GSE20 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30170 |
GSE20 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30250 |
GSE20 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30A00 |
GSE20 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30A10 |
GSE20 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-30A20 |
GSE20 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-53200 |
GSE20..RHD |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-53080 |
GSE20 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-53110 |
GSE20 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-53050 |
GSE20..RHD |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30220 |
GSE20..RHD |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30730 |
GSE20 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-30G10 |
GSE20 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30340 |
GSE20 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-30020 |
GSE20..RHD |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-47090 |
GSE20 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 88263-21010 |
GSE20 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02025 |
GSE20 |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GSE20 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
GSE20 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
GSE20 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
GSE20 |
1 | ||
| 88630N - RELAY ASSY, COOLER | ||||
| 90987-02027 |
GSE20 |
1 | ||
| 89211A - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89211-53020 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-05021 | ||||
| 90119-06651 | ||||
| 90119-06915 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
