GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )LHD

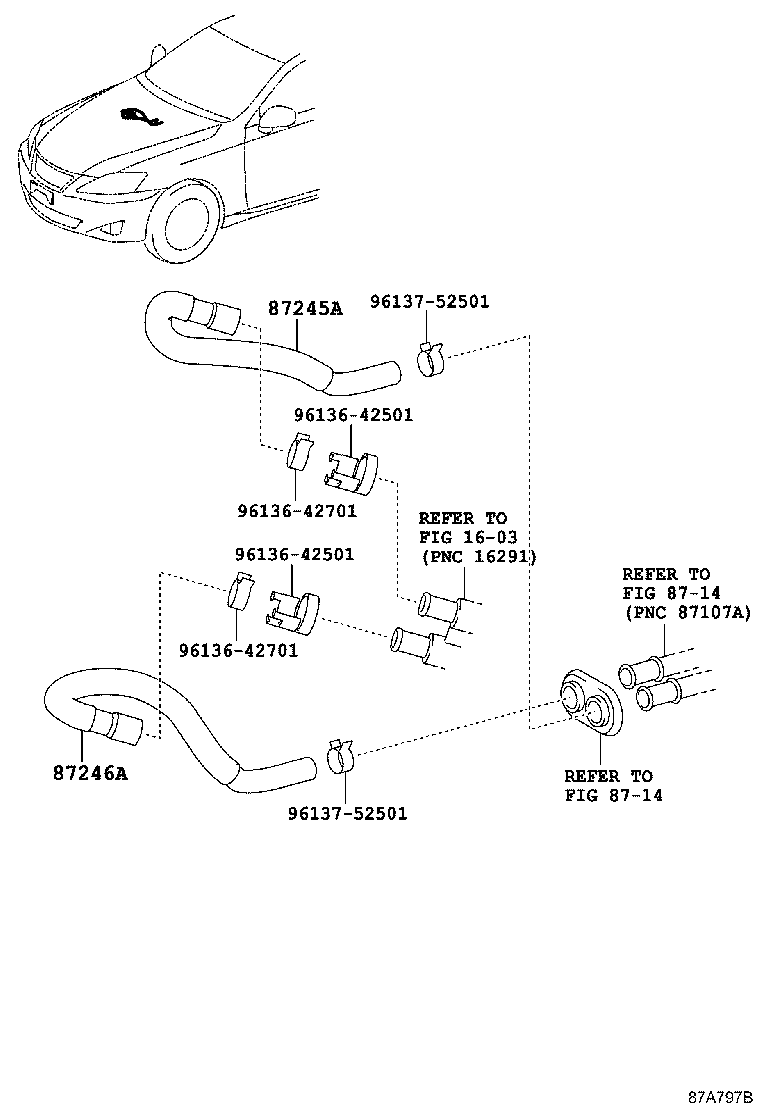

Click highlighted areas on diagram

diagram 1603 8714 8714 87245A 87246A 9613642501 9613642501 9613642701 9613642701 9613752501 9613752501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-53180

GSE20

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-53130

GSE20..LHD

 1
Common parts
96136-42501
96136-42701
96137-52501
Linked diagrams
1603
8714
