GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
ILLUST NO. 2 OF 2(0904- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

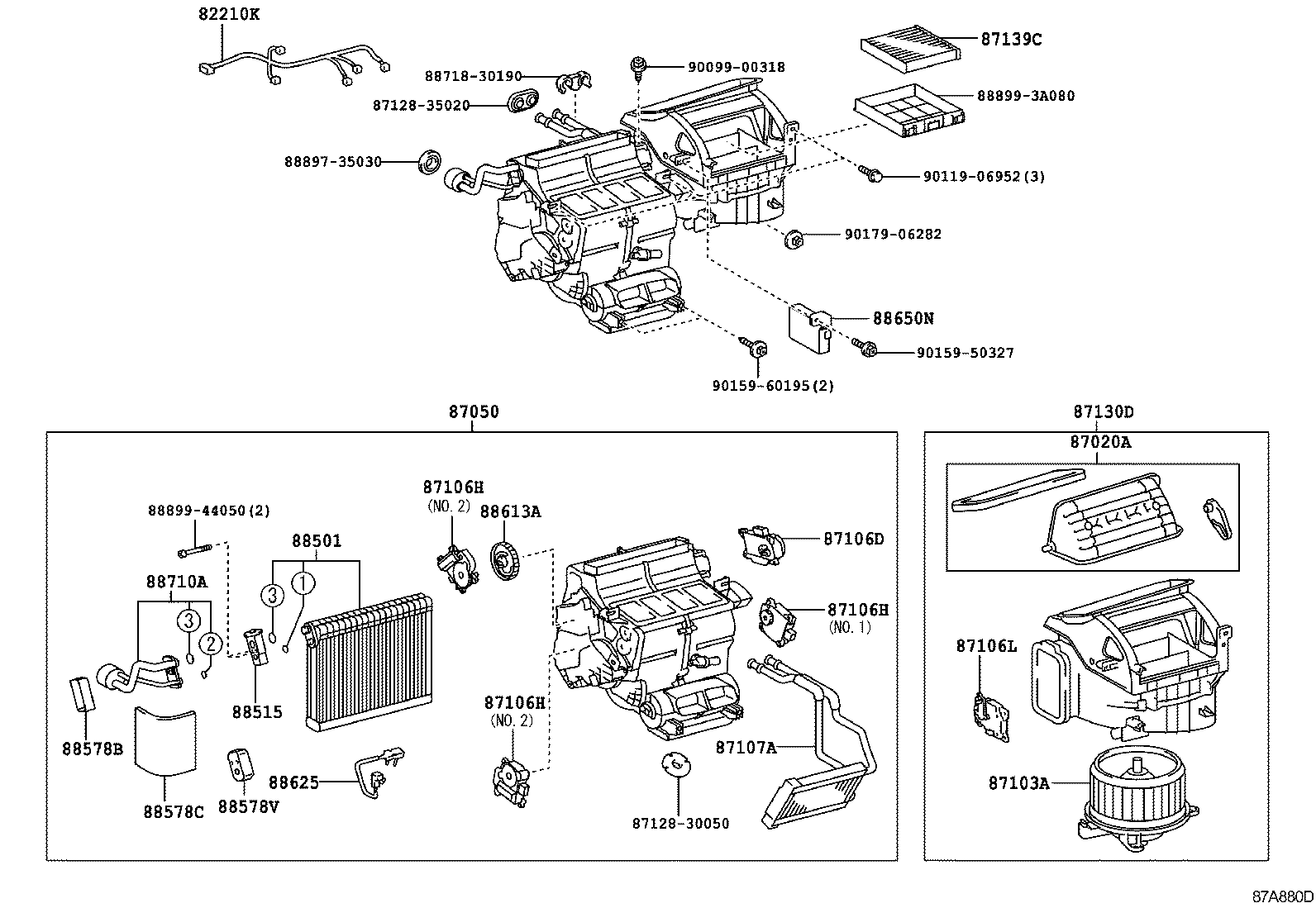

ILLUST NO. 1 OF 2(0904- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-30022 |
GSE20..LHD |
1 | ||
| 87020A - DAMPER ASSY, HEATER AIR | ||||
| 87020-30020 |
GSE20..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-30230 |
GSE20..LHD |
1 | ||
| 87050-30231 |
GSE20..LHD |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-30450 |
GSE20..LHD |
1 | ||
| 87103-30451 |
GSE20..LHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-30440 |
GSE20 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30430 |
GSE20 NO.1 |
1 | ||
| 87106-30450 |
GSE20 NO.2 |
2 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30430 |
GSE20 NO.1 |
1 | ||
| 87106-30450 |
GSE20 NO.2 |
2 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30430 |
GSE20 NO.1 |
1 | ||
| 87106-30450 |
GSE20 NO.2 |
2 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30480 |
GSE20..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30560 |
GSE20 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-30811 |
GSE20..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
GSE20 MICRO DUST FILTER,OE PART |
1 | ||
| 87139-50100 |
GSE20 POLLEN DEODORANT |
1 | ||
| 87139-52040 |
GSE20 POLLEN FILTER,OE PART |
1 | ||
| 87139-50060 |
GSE20..6FC DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-3A160 |
GSE20 |
1 | ||
| 88501-3A161 |
GSE20 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30780 |
GSE20 |
1 | ||
| 88515-28180 |
GSE20 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-30830 |
GSE20 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-30840 |
GSE20..LHD |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-30870 |
GSE20 |
1 | ||
| 88613A - LEVER, COOLER CONTROL, NO.1 | ||||
| 88613-30010 |
GSE20..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30020 |
GSE20 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-53370 |
GSE20..LHD FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 88650-53370 |
GSE20..LHD FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
1 | ||
| 88650-53360 |
GSE20..LHD |
1 | ||
| 88650-53230 |
GSE20..LHD |
1 | ||
| 88650-53240 |
GSE20..LHD FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 88650-53240 |
GSE20..LHD FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 88650-53361 |
GSE20..LHD |
1 | ||
| 88650-53371 |
GSE20..LHD FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
1 | ||
| 88650-53371 |
GSE20..LHD FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 88650-53510 |
GSE20..LHD |
1 | ||
| 88650-53520 |
GSE20..LHD FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 88650-53520 |
GSE20..LHD FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A260 |
GSE20 |
1 | ||
| 88710-3A420 |
GSE20 |
1 | ||
| Common parts | ||||
| 87128-30050 | ||||
| 87128-35020 | ||||
| 88718-30190 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60195 | ||||
| 90179-06282 | ||||
