GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904- )

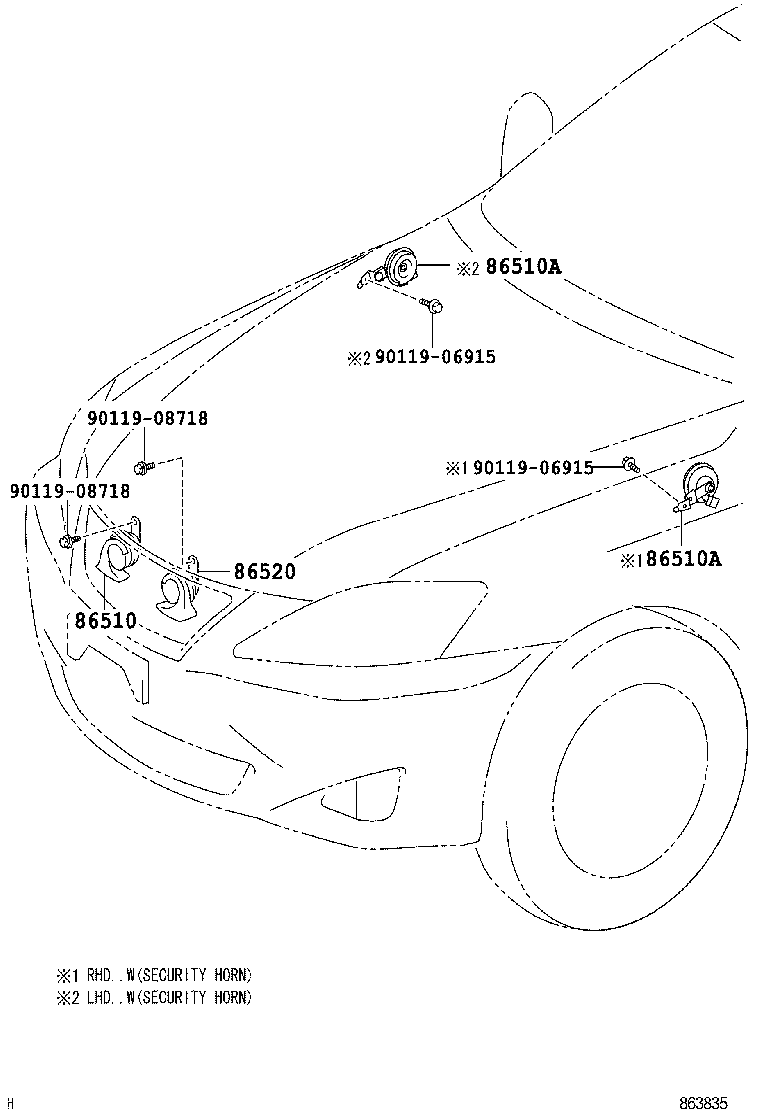

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-30700 |
GSE20 |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86510-30660 |
GSE20..LHD TURKEY SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD RUSSIA SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC ISRAEL SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD BULGARIA SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC CROATIA SPEC |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86510-30660 |
GSE20..LHD TURKEY SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD RUSSIA SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC ISRAEL SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD BULGARIA SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC |
1 | ||
| 86510-30660 |
GSE20..LHD..6FC CROATIA SPEC |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-30610 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08718 | ||||
