GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

Click highlighted areas on diagram

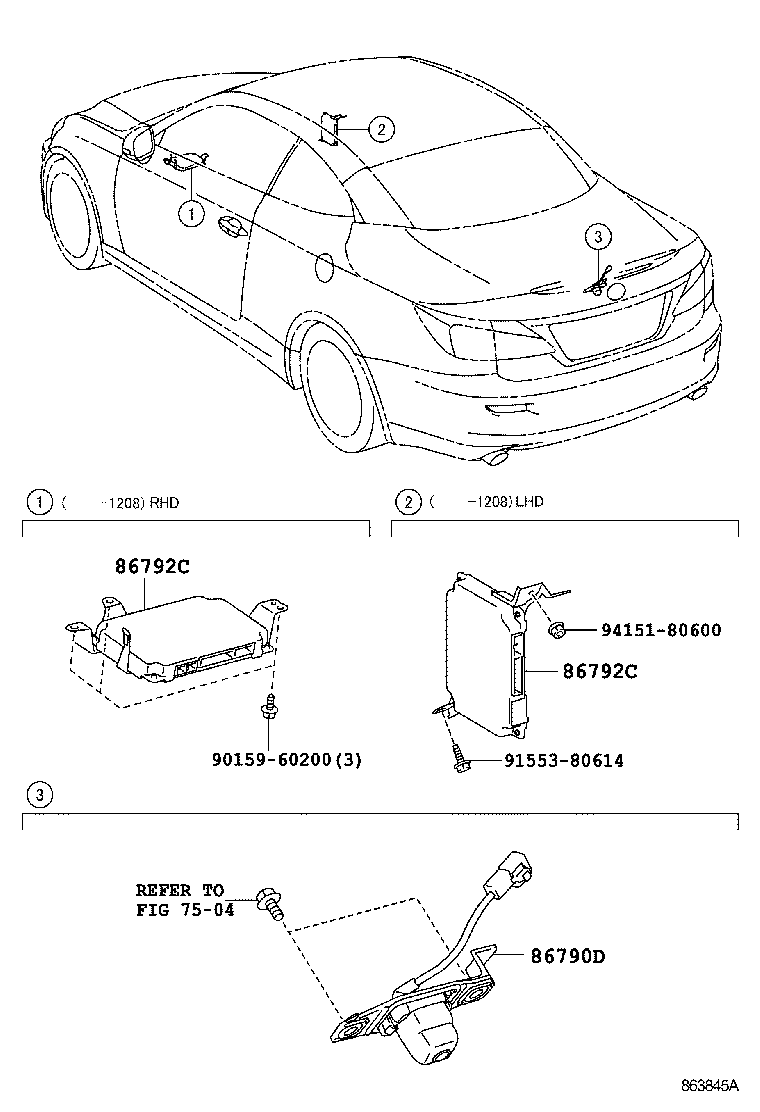

diagram 7504 86790D 86792C 86792C 9015960200 9155380614 9415180600
Part # Description Qty Price
86790D - CAMERA ASSY, TELEVISION, RR
86790-53020

GSE20

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 1
86790-53021

GSE20..LHD

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 1
86790-53020

GSE20..LHD..6FC

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 1
86790-53021

GSE20

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 1
86792C - COMPUTER, PARKING ASSIST
86792-53060

GSE20..LHD

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 1
86792-53060

GSE20..LHD..6FC

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 1
86792-53130

GSE20..LHD

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 1
86792-53130

GSE20..LHD

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 1
86792C - COMPUTER, PARKING ASSIST
86792-53060

GSE20..LHD

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 1
86792-53060

GSE20..LHD..6FC

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 1
86792-53130

GSE20..LHD

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 1
86792-53130

GSE20..LHD

EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 1
Common parts
90159-60200
91553-80614
94151-80600
Linked diagrams
7504
