GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
(0904-1208)LHD

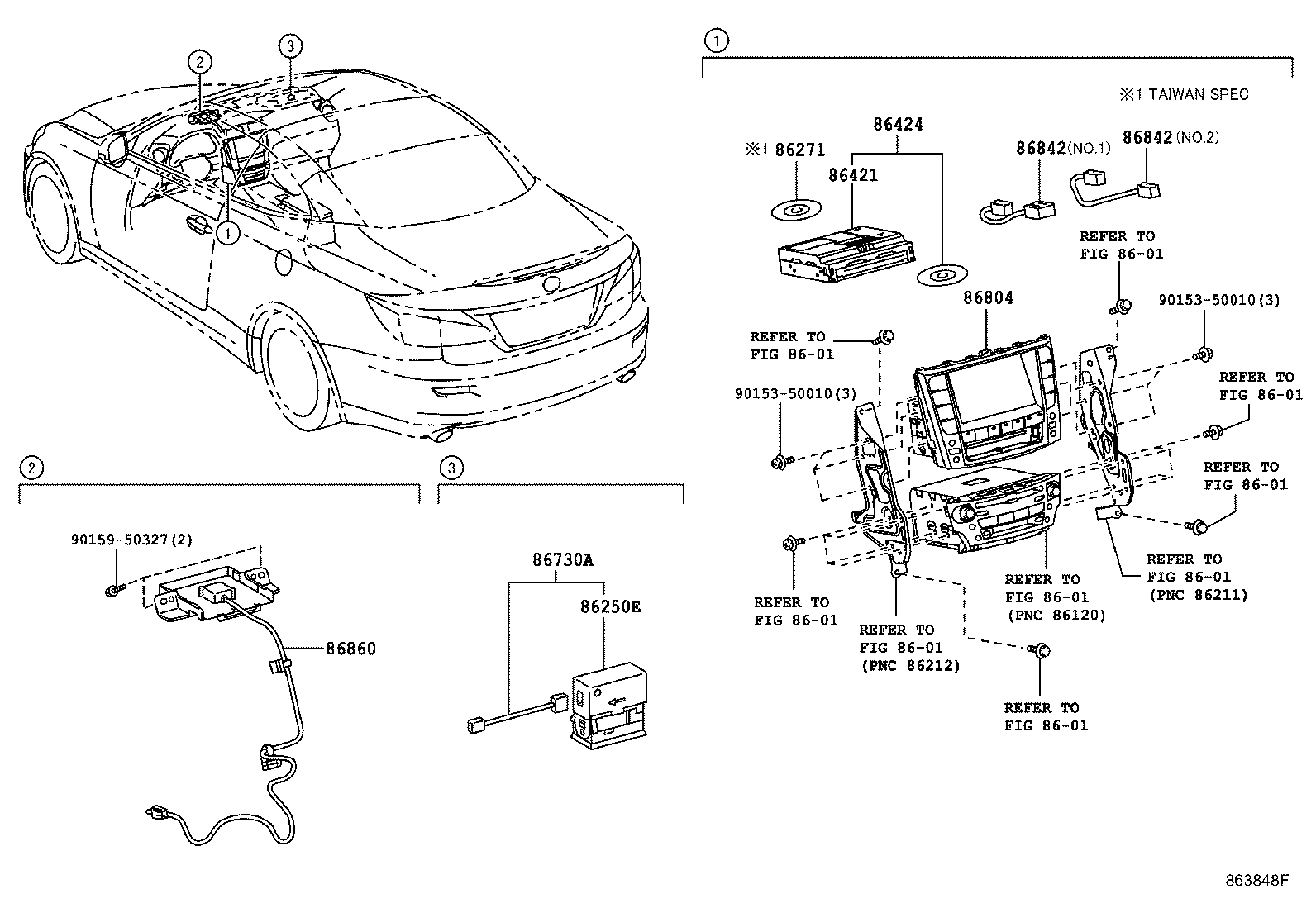

DVD NAVIGATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86250-52030 |
GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
1 | ||
| 86250-52030 |
GSE20..LHD |
1 | ||
| 86250-52030 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86807-0W130 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W071 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W071 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W130 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W035 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W036 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W035 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86807-0W036 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W221 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86807-0W221 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W222 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86424 - DECK, DVD | ||||
| 86424-53010 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86424-53010 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86730-48040 |
GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
1 | ||
| 86730-48040 |
GSE20..LHD |
1 | ||
| 86730-48040 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86804 - COVER SUB-ASSY, NAVIGATION COMPUTER | ||||
| 86804-53100 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53150 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86804-53150 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53100 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86804-53B00 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53B00 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86804-53B01 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53B01 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2 |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2 |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2 |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2 |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-53050 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86860-53050 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86860-53100 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86860-53100 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8601 | ||||
(0904-1208)LHD

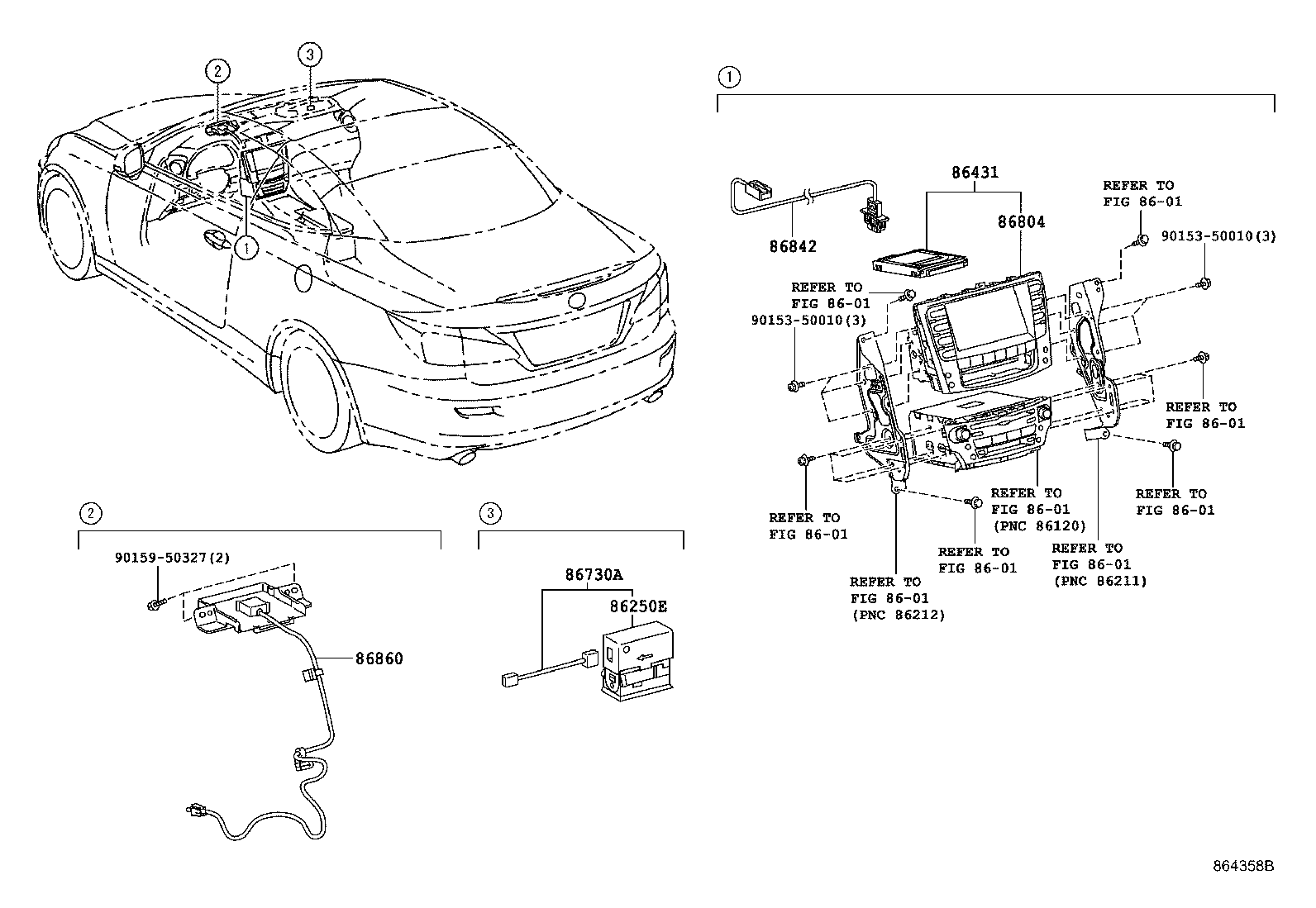

HDD NAVIGATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86250-52030 |
GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
1 | ||
| 86250-52030 |
GSE20..LHD |
1 | ||
| 86250-52030 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86431 - DISPLAY, DISPLAY & NAVIGATION MODULE | ||||
| 86431-53130 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86431-53130 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53460 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86431-53460 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53461 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53461 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86431-53462 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53462 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86431-53B40 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86431-53B41 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86431-53B40 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53B41 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53B43 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86431-53B42 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53B43 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86431-53B42 |
GSE20..LHD DENSO,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86730-48040 |
GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
1 | ||
| 86730-48040 |
GSE20..LHD |
1 | ||
| 86730-48040 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86804 - COVER SUB-ASSY, NAVIGATION COMPUTER | ||||
| 86804-53100 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53150 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86804-53150 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53100 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86804-53B00 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53B00 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86804-53B01 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86804-53B01 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2 |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2 |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-53050 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86860-53050 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86860-53100 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86860-53100 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8601 | ||||

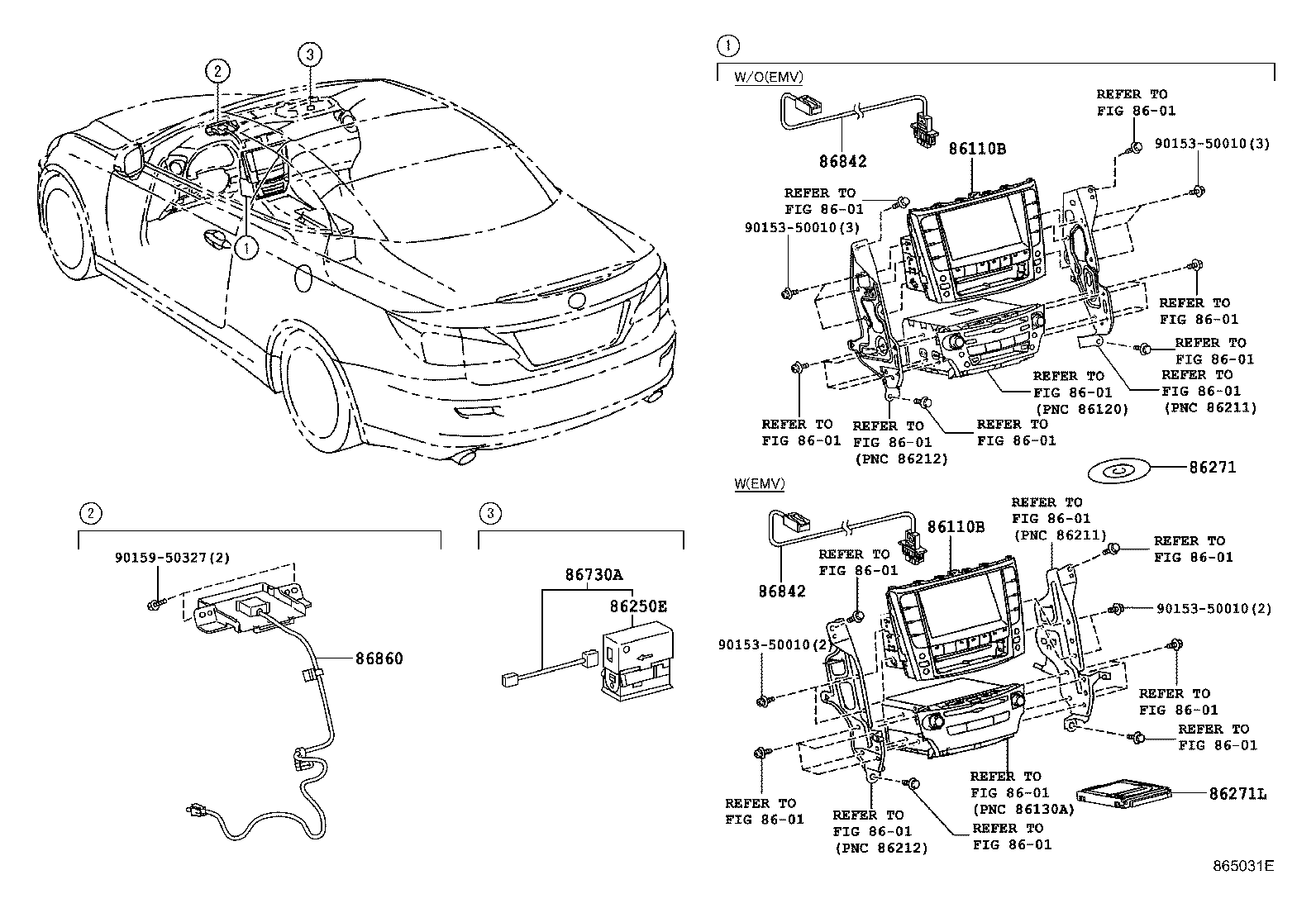

(1208- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-53330 |
GSE20..LHD DENSO,TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86110-53330 |
GSE20..LHD DENSO,TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86110-53340 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86110-53340 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-53330 |
GSE20..LHD DENSO,TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86110-53330 |
GSE20..LHD DENSO,TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86110-53340 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86110-53340 |
GSE20..LHD DENSO,AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86250-52030 |
GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
1 | ||
| 86250-52030 |
GSE20..LHD |
1 | ||
| 86250-52030 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86807-0W130 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W071 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W071 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W130 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W035 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W036 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W035 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86807-0W036 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W221 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86807-0W221 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86807-0W220 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER&MAP DISC(DOP)-WITH |
1 | ||
| 86807-0W222 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271L - HARD DISC | ||||
| 86271-30712 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30713 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30712 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30713 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30713 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30713 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30713 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30714 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30715 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30715 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30714 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30830 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30715 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30714 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30830 |
GSE20..LHD TAIWAN SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30714 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30715 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30715 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30714 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30715 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30714 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30716 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30717 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30717 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30716 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86271-30830 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30830 |
GSE20..LHD TAIWAN SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30712 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30712 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30712 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30713 |
GSE20..LHD RUSSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86271-30712 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86730-48040 |
GSE20..LHD..6FC MICROPHONE & MIKE-AMPLIFIER-WITHOUT |
1 | ||
| 86730-48040 |
GSE20..LHD |
1 | ||
| 86730-48040 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2 |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2 |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86842-53070 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI,NO.2 |
1 | ||
| 86842-53080 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.1 |
1 | ||
| 86842-53090 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,NO.2 |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86842-53200 |
GSE20..LHD TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86842-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-53050 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86860-53050 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86860-53100 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86860-53100 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
