GSE20L-AKTLHW (2009)
Toyota Lexus Is250c

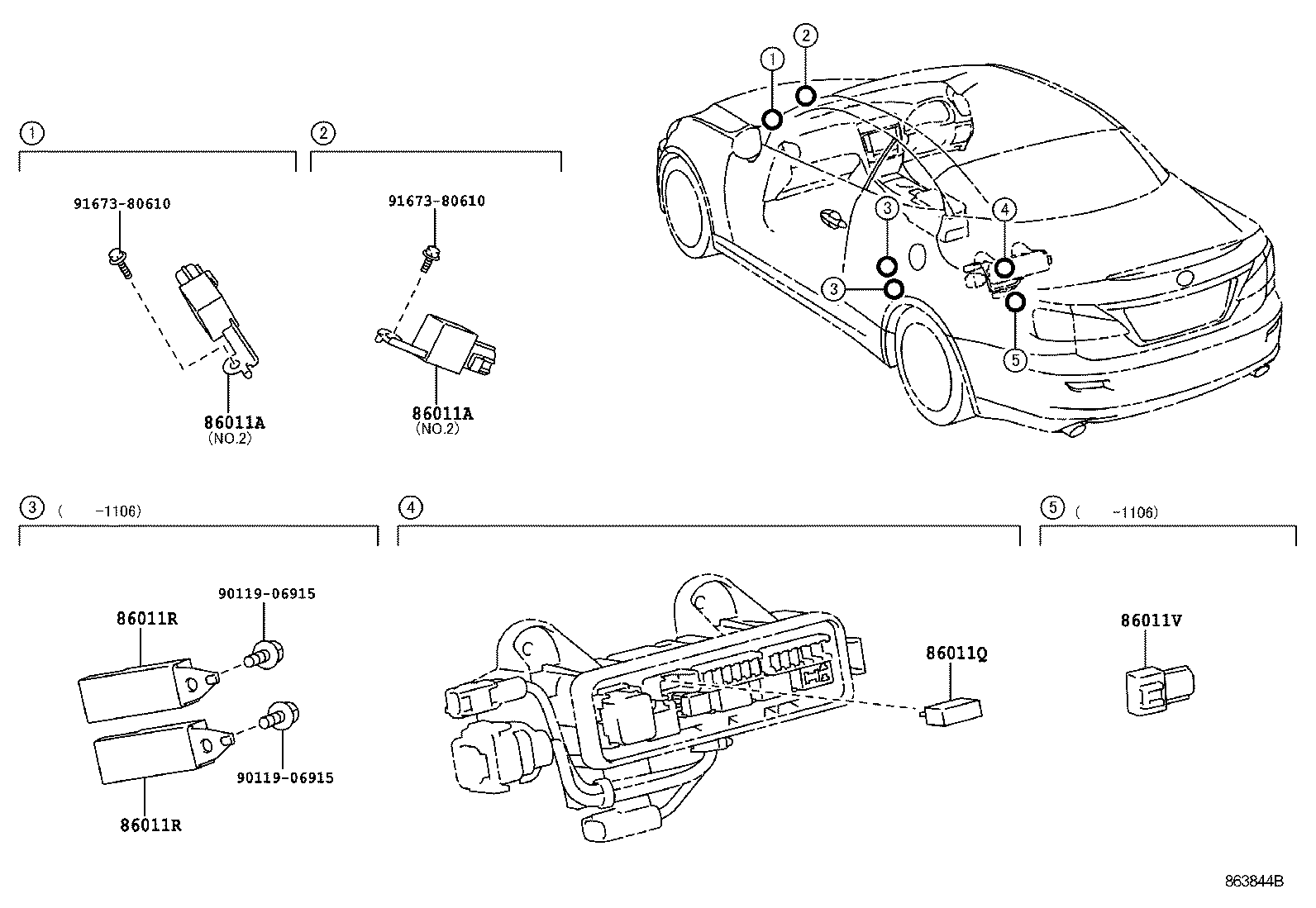

ILLUST NO. 2 OF 2(0904- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04181 |
GSE20 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04181 |
GSE20 |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GSE20 |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04184 |
GSE20 |
2 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04184 |
GSE20 |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80610 | ||||

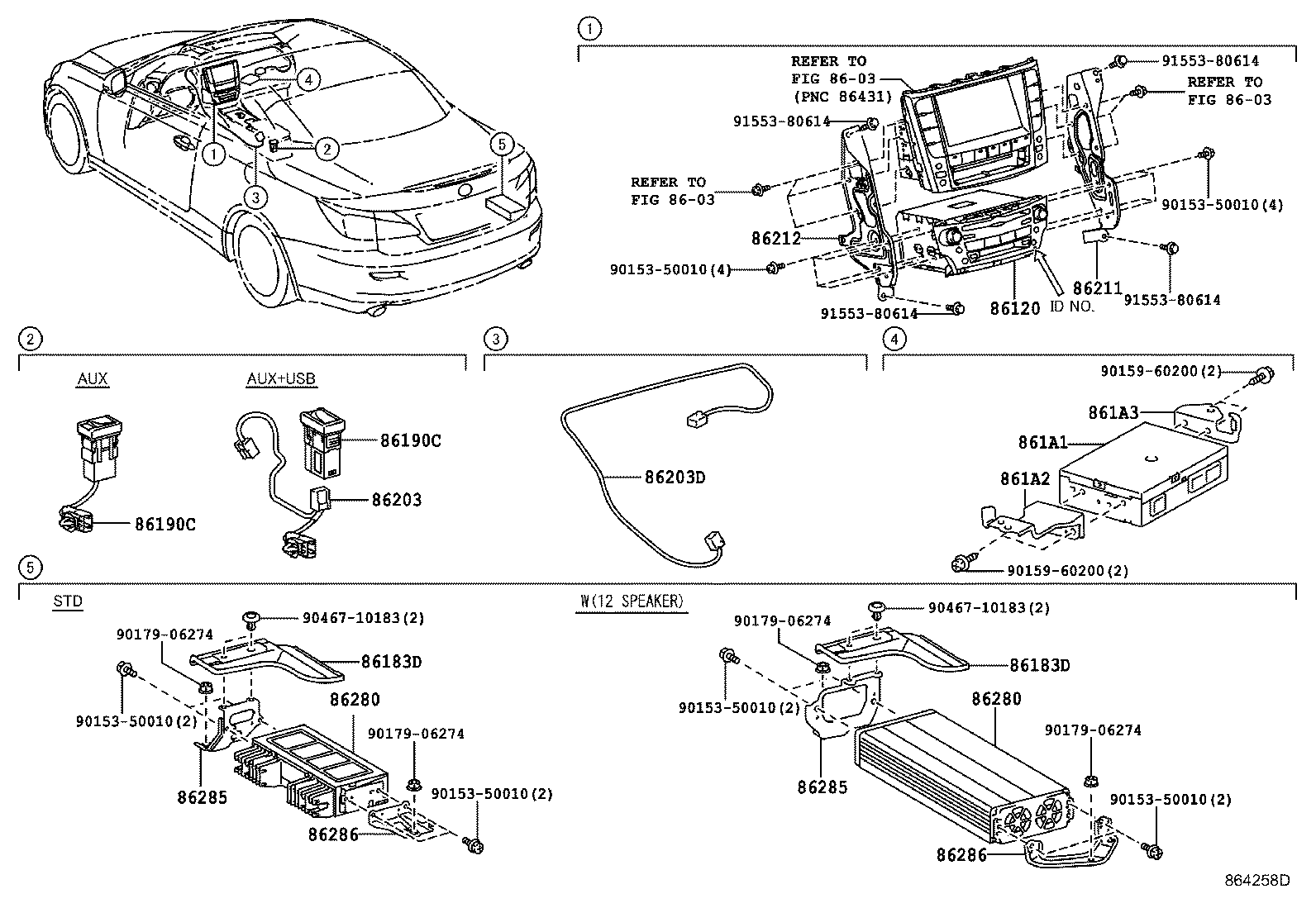

ILLUST NO. 1 OF 2(0904-1208)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-53A90 |
GSE20..LHD..6FC PIONEER, ID=P7543,TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53A30 |
GSE20..LHD..6FC PIONEER, ID=P2876,TAIWAN SPEC |
1 | ||
| 86120-53B00 |
GSE20..LHD..6FC PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86120-53B20 |
GSE20..LHD PIONEER, ID=P8624,RUSSIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53C60 |
GSE20..LHD..6FC PIONEER, ID=P2883,CHILE SPEC |
1 | ||
| 86120-53A60 |
GSE20..LHD..6FC PIONEER, ID=P2877,TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86120-53B00 |
GSE20..LHD PIONEER, ID=P3830 |
1 | ||
| 86120-53B20 |
GSE20..LHD PIONEER, ID=P8624,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53B10 |
GSE20..LHD PIONEER, ID=P8623,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53B00 |
GSE20..LHD..6FC PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86120-53C10 |
GSE20..LHD PIONEER, ID=P3832,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86120-53B01 |
GSE20..LHD PIONEER, ID=P3830 |
1 | ||
| 86120-53A91 |
GSE20..LHD PIONEER,TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53B01 |
GSE20..LHD PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86120-53520 |
GSE20..LHD PIONEER, ID=P10127,CHILE SPEC |
1 | ||
| 86120-53B01 |
GSE20..LHD PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86120-53670 |
GSE20..LHD PIONEER, ID=P10127,TAIWAN SPEC |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-53010 |
GSE20 |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-53010 |
GSE20 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC CHILE SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53040 |
GSE20 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC CHILE SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53040 |
GSE20 |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-48030 |
GSE20..6FC |
1 | ||
| 861A0-77010 |
GSE20..6FC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 861A0-77010 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 861A0-77010 |
GSE20..6F AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 861A0-77010 |
GSE20..6F AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 861A0-77010 |
GSE20..6FC AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 861A0-77010 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 861A0-48030 |
GSE20 |
1 | ||
| 861A0-48030 |
GSE20..6F |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-53010 |
GSE20..LHD |
1 | ||
| 861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2 | ||||
| 861A3-53010 |
GSE20..LHD |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-53010 |
GSE20 |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-53030 |
GSE20..LHD..6F |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC |
1 | ||
| 86203-53210 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC AUDIO JACK-MINI JACK |
1 | ||
| 86203-53210 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-53030 |
GSE20 |
1 | ||
| 86211-53070 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86211-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-53070 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86212-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86212-53030 |
GSE20 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53130 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86280-53120 |
GSE20 |
1 | ||
| 86280-0WB20 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86280-0W660 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86280-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53130 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86280-53120 |
GSE20 |
1 | ||
| 86280-0WB20 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86280-0W660 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86280-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86285-53060 |
GSE20 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86285-53060 |
GSE20 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86286-53060 |
GSE20 |
1 | ||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86286-53060 |
GSE20 |
1 | ||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-60200 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 1 OF 2(1208- )LHD
W/O(EMV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-53A90 |
GSE20..LHD..6FC PIONEER, ID=P7543,TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53A30 |
GSE20..LHD..6FC PIONEER, ID=P2876,TAIWAN SPEC |
1 | ||
| 86120-53B00 |
GSE20..LHD..6FC PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86120-53B20 |
GSE20..LHD PIONEER, ID=P8624,RUSSIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53C60 |
GSE20..LHD..6FC PIONEER, ID=P2883,CHILE SPEC |
1 | ||
| 86120-53A60 |
GSE20..LHD..6FC PIONEER, ID=P2877,TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86120-53B00 |
GSE20..LHD PIONEER, ID=P3830 |
1 | ||
| 86120-53B20 |
GSE20..LHD PIONEER, ID=P8624,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53B10 |
GSE20..LHD PIONEER, ID=P8623,AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53B00 |
GSE20..LHD..6FC PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86120-53C10 |
GSE20..LHD PIONEER, ID=P3832,AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86120-53B01 |
GSE20..LHD PIONEER, ID=P3830 |
1 | ||
| 86120-53A91 |
GSE20..LHD PIONEER,TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86120-53B01 |
GSE20..LHD PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86120-53520 |
GSE20..LHD PIONEER, ID=P10127,CHILE SPEC |
1 | ||
| 86120-53B01 |
GSE20..LHD PIONEER, ID=P3830,F SPORT&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86120-53670 |
GSE20..LHD PIONEER, ID=P10127,TAIWAN SPEC |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-53010 |
GSE20 |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-53010 |
GSE20 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC CHILE SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53040 |
GSE20 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC CHILE SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53040 |
GSE20 |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-48030 |
GSE20..6FC |
1 | ||
| 861A0-77010 |
GSE20..6FC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 861A0-77010 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 861A0-77010 |
GSE20..6F AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 861A0-77010 |
GSE20..6F AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 861A0-77010 |
GSE20..6FC AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 861A0-77010 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 861A0-48030 |
GSE20 |
1 | ||
| 861A0-48030 |
GSE20..6F |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-53010 |
GSE20..LHD |
1 | ||
| 861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2 | ||||
| 861A3-53010 |
GSE20..LHD |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-53010 |
GSE20 |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-53030 |
GSE20..LHD..6F |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC |
1 | ||
| 86203-53210 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC AUDIO JACK-MINI JACK |
1 | ||
| 86203-53210 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-53030 |
GSE20 |
1 | ||
| 86211-53070 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86211-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-53070 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86212-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86212-53030 |
GSE20 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53130 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86280-53120 |
GSE20 |
1 | ||
| 86280-0WB20 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86280-0W660 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86280-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53130 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86280-53120 |
GSE20 |
1 | ||
| 86280-0WB20 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86280-0W660 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86280-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86285-53060 |
GSE20 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86285-53060 |
GSE20 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86286-53060 |
GSE20 |
1 | ||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86286-53060 |
GSE20 |
1 | ||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-60200 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 1 OF 2(1208- )LHD
W(EMV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-53G00 |
GSE20..LHD PIONEER,ID=P10365,RUSSIA SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86804-53G10 |
GSE20..LHD PIONEER,ID=P10366,RUSSIA SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86804-53N60 |
GSE20..LHD PIONEER,ID=P10416,TAIWAN SPEC&F SPORT&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86804-53G10 |
GSE20..LHD PIONEER,ID=P10366,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86804-53L40 |
GSE20..LHD PIONEER,ID=P10372,TAIWAN SPEC&AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86804-53G80 |
GSE20..LHD PIONEER,ID=P10371,TAIWAN SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86804-53G20 |
GSE20..LHD PIONEER,ID=P10406,AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86804-53G00 |
GSE20..LHD PIONEER,ID=P10365,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86804-53G30 |
GSE20..LHD PIONEER,ID=P10407,AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86804-53N50 |
GSE20..LHD PIONEER,ID=P10415,TAIWAN SPEC&F SPORT&AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-53010 |
GSE20 |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-53010 |
GSE20 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC CHILE SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53040 |
GSE20 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC CHILE SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53030 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK |
1 | ||
| 86190-53040 |
GSE20 |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-53010 |
GSE20 |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-53030 |
GSE20..LHD..6F |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC |
1 | ||
| 86203-53210 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 86203-53020 |
GSE20..LHD..6FC AUDIO JACK-MINI JACK |
1 | ||
| 86203-53210 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-53030 |
GSE20 |
1 | ||
| 86211-53070 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86211-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-53070 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86212-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86212-53030 |
GSE20 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53130 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86280-53120 |
GSE20 |
1 | ||
| 86280-0WB20 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86280-0W660 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86280-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53130 |
GSE20 AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 86280-53120 |
GSE20 |
1 | ||
| 86280-0WB20 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86280-0W660 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86280-53200 |
GSE20 AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86285-53060 |
GSE20 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86285-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86285-53060 |
GSE20 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86286-53060 |
GSE20 |
1 | ||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 86286-53060 |
GSE20 |
1 | ||
| 86286-53070 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
