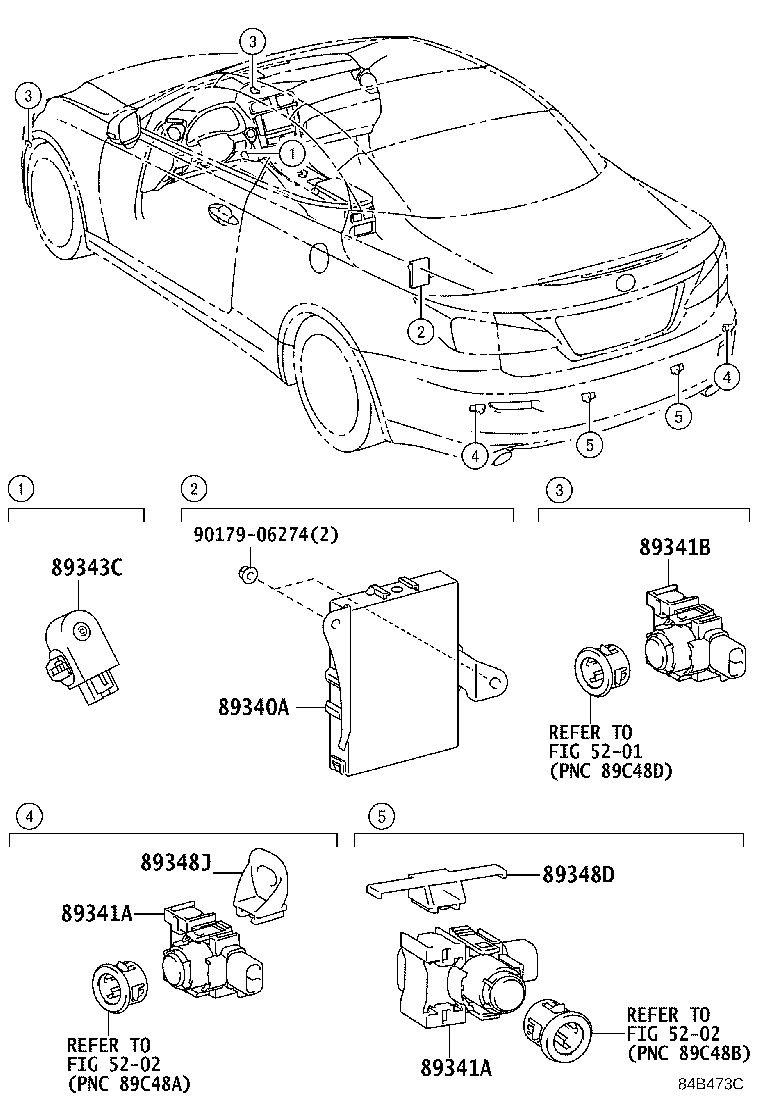

GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
(0904-1008)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-53010 |
GSE20 |
1 | ||
| 89340-53050 |
GSE20 |
1 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-30010D2 |
GSE20 RED MC.CS.,3R1 |
4 | ||
| 89341-64010B6 |
GSE20 DK.GRAY MC.,1G0 |
4 | ||
| 89341-30010C3 |
GSE20 BLACK,212 |
4 | ||
| 89341-30010B6 |
GSE20 SILVER M.M.,1G1 |
4 | ||
| 89341-64010J4 |
GSE20 SILVERY BLUE ME.,8U9 |
4 | ||
| 89341-64010D1 |
GSE20 RED MC.CS.,3R1 |
4 | ||
| 89341-30010R0 |
GSE20 SILVERY BLUE ME.,8U9 |
4 | ||
| 89341-64010A3 |
GSE20 WHITE PEARL CS.,077 |
4 | ||
| 89341-64010C3 |
GSE20 STARLIGHT BLACK GF.,217 |
4 | ||
| 89341-30010J8 |
GSE20 BLUE ME. CC.,8U1 |
4 | ||
| 89341-64010C2 |
GSE20 BLACK,212 |
4 | ||
| 89341-30010A5 |
GSE20 WHITE PEARL CS.,077 |
4 | ||
| 89341-64010J3 |
GSE20 BLUE ME.,8U1 |
4 | ||
| 89341-64010K1 |
GSE20 CATTLEYA M.M.,9AL |
4 | ||
| 89341-30010B5 |
GSE20 DK.GRAY MC.,1G0 |
4 | ||
| 89341-64010B4 |
GSE20 SILVER M.M.,1G1 |
4 | ||
| 89341-64010B5 |
GSE20 MERCURY GRAY MC.,1H9 |
4 | ||
| 89341-64010P0 |
GSE20 PLATINUM SILVER ME.,1J4 |
4 | ||
| 89341-30010J7 |
GSE20 DK.BLUE MC. CC.,8U0 |
4 | ||
| 89341-64010J5 |
GSE20 LAPIS LAZULI MC.,8V3 |
4 | ||
| 89341-64010A4 |
GSE20 WHITE NOVA GF.,083 |
4 | ||
| 89341-30010K1 |
GSE20 CATTLEYA M.M.,9AL |
4 | ||
| 89341B - SENSOR, ULTRASONIC, NO.2 | ||||
| 89341-30021J6 |
GSE20 DK.BLUE MC. CC.,8U0 |
2 | ||
| 89341-30021B5 |
GSE20 SILVER M.M.,1G1 |
2 | ||
| 89341-30021K1 |
GSE20 CATTLEYA M.M.,9AL |
2 | ||
| 89341-30021C1 |
GSE20 BLACK,212 |
2 | ||
| 89341-30021J8 |
GSE20 SILVERY BLUE ME.,8U9 |
2 | ||
| 89341-30021B4 |
GSE20 DK.GRAY MC.,1G0 |
2 | ||
| 89341-64010J4 |
GSE20 SILVERY BLUE ME.,8U9 |
2 | ||
| 89341-30021D1 |
GSE20 RED MC.CS.,3R1 |
2 | ||
| 89341-64010C3 |
GSE20 STARLIGHT BLACK GF.,217 |
2 | ||
| 89341-30021J7 |
GSE20 BLUE ME.,8U1 |
2 | ||
| 89341-64010B6 |
GSE20 DK.GRAY MC.,1G0 |
2 | ||
| 89341-64010K1 |
GSE20 CATTLEYA M.M.,9AL |
2 | ||
| 89341-30021A4 |
GSE20 WHITE PEARL CS.,077 |
2 | ||
| 89341-64010J5 |
GSE20 LAPIS LAZULI MC.,8V3 |
2 | ||
| 89341-64010B4 |
GSE20 SILVER M.M.,1G1 |
2 | ||
| 89341-64010D1 |
GSE20 RED MC.CS.,3R1 |
2 | ||
| 89341-64010B5 |
GSE20 MERCURY GRAY MC.,1H9 |
2 | ||
| 89341-64010P0 |
GSE20 PLATINUM SILVER ME.,1J4 |
2 | ||
| 89341-64010A4 |
GSE20 WHITE NOVA GF.,083 |
2 | ||
| 89341-64010A3 |
GSE20 WHITE PEARL CS.,077 |
2 | ||
| 89341-64010J3 |
GSE20 BLUE ME.,8U1 |
2 | ||
| 89341-64010C2 |
GSE20 BLACK,212 |
2 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-30010 |
GSE20 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||

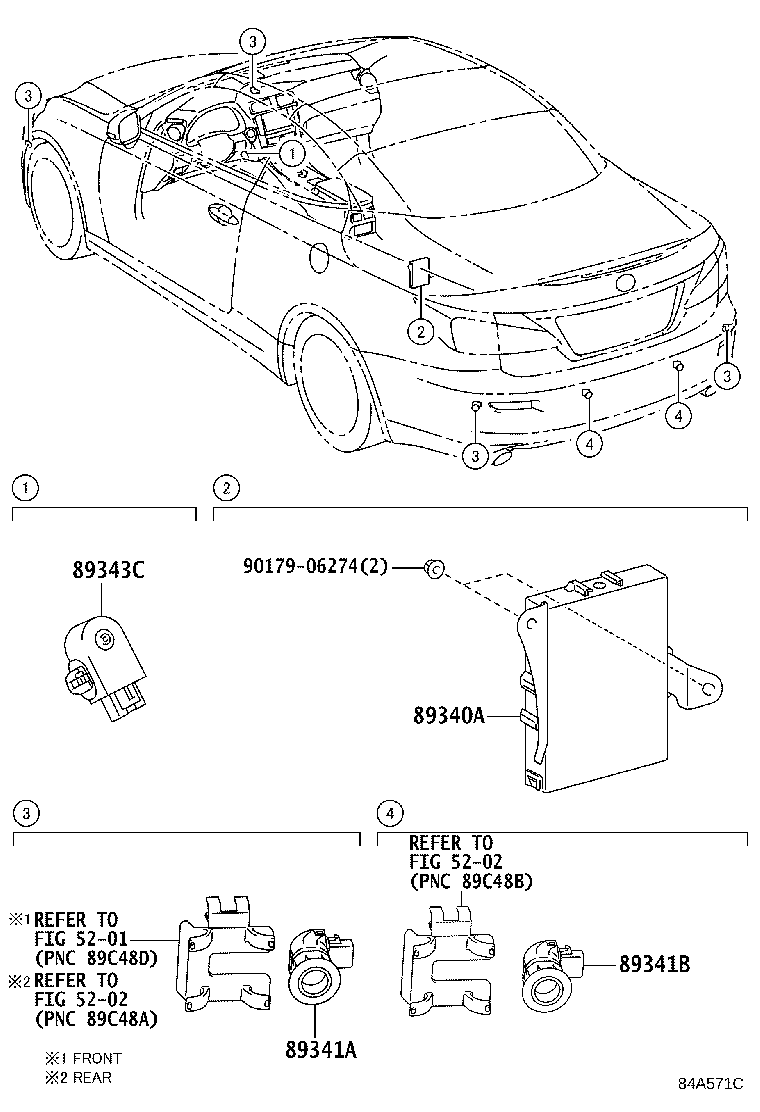

(1008- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-53010 |
GSE20 |
1 | ||
| 89340-53050 |
GSE20 |
1 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-30010C3 |
GSE20 BLACK,212 |
4 | ||
| 89341-30010D2 |
GSE20 RED MC.CS.,3R1 |
4 | ||
| 89341-64010B6 |
GSE20 DK.GRAY MC.,1G0 |
4 | ||
| 89341-30010B6 |
GSE20 SILVER M.M.,1G1 |
4 | ||
| 89341-64010J4 |
GSE20 SILVERY BLUE ME.,8U9 |
4 | ||
| 89341-64010D1 |
GSE20 RED MC.CS.,3R1 |
4 | ||
| 89341-30010R0 |
GSE20 SILVERY BLUE ME.,8U9 |
4 | ||
| 89341-64010A3 |
GSE20 WHITE PEARL CS.,077 |
4 | ||
| 89341-64010C3 |
GSE20 STARLIGHT BLACK GF.,217 |
4 | ||
| 89341-30010J8 |
GSE20 BLUE ME. CC.,8U1 |
4 | ||
| 89341-64010C2 |
GSE20 BLACK,212 |
4 | ||
| 89341-30010A5 |
GSE20 WHITE PEARL CS.,077 |
4 | ||
| 89341-64010J3 |
GSE20 BLUE ME.,8U1 |
4 | ||
| 89341-64010K1 |
GSE20 CATTLEYA M.M.,9AL |
4 | ||
| 89341-30010B5 |
GSE20 DK.GRAY MC.,1G0 |
4 | ||
| 89341-64010B4 |
GSE20 SILVER M.M.,1G1 |
4 | ||
| 89341-64010B5 |
GSE20 MERCURY GRAY MC.,1H9 |
4 | ||
| 89341-64010P0 |
GSE20 PLATINUM SILVER ME.,1J4 |
4 | ||
| 89341-30010J7 |
GSE20 DK.BLUE MC. CC.,8U0 |
4 | ||
| 89341-64010J5 |
GSE20 LAPIS LAZULI MC.,8V3 |
4 | ||
| 89341-64010A4 |
GSE20 WHITE NOVA GF.,083 |
4 | ||
| 89341-30010K1 |
GSE20 CATTLEYA M.M.,9AL |
4 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-30010C3 |
GSE20 BLACK,212 |
4 | ||
| 89341-30010D2 |
GSE20 RED MC.CS.,3R1 |
4 | ||
| 89341-64010B6 |
GSE20 DK.GRAY MC.,1G0 |
4 | ||
| 89341-30010B6 |
GSE20 SILVER M.M.,1G1 |
4 | ||
| 89341-64010J4 |
GSE20 SILVERY BLUE ME.,8U9 |
4 | ||
| 89341-64010D1 |
GSE20 RED MC.CS.,3R1 |
4 | ||
| 89341-30010R0 |
GSE20 SILVERY BLUE ME.,8U9 |
4 | ||
| 89341-64010A3 |
GSE20 WHITE PEARL CS.,077 |
4 | ||
| 89341-64010C3 |
GSE20 STARLIGHT BLACK GF.,217 |
4 | ||
| 89341-30010J8 |
GSE20 BLUE ME. CC.,8U1 |
4 | ||
| 89341-64010C2 |
GSE20 BLACK,212 |
4 | ||
| 89341-30010A5 |
GSE20 WHITE PEARL CS.,077 |
4 | ||
| 89341-64010J3 |
GSE20 BLUE ME.,8U1 |
4 | ||
| 89341-64010K1 |
GSE20 CATTLEYA M.M.,9AL |
4 | ||
| 89341-30010B5 |
GSE20 DK.GRAY MC.,1G0 |
4 | ||
| 89341-64010B4 |
GSE20 SILVER M.M.,1G1 |
4 | ||
| 89341-64010B5 |
GSE20 MERCURY GRAY MC.,1H9 |
4 | ||
| 89341-64010P0 |
GSE20 PLATINUM SILVER ME.,1J4 |
4 | ||
| 89341-30010J7 |
GSE20 DK.BLUE MC. CC.,8U0 |
4 | ||
| 89341-64010J5 |
GSE20 LAPIS LAZULI MC.,8V3 |
4 | ||
| 89341-64010A4 |
GSE20 WHITE NOVA GF.,083 |
4 | ||
| 89341-30010K1 |
GSE20 CATTLEYA M.M.,9AL |
4 | ||
| 89341B - SENSOR, ULTRASONIC, NO.2 | ||||
| 89341-30021J6 |
GSE20 DK.BLUE MC. CC.,8U0 |
2 | ||
| 89341-30021B5 |
GSE20 SILVER M.M.,1G1 |
2 | ||
| 89341-30021K1 |
GSE20 CATTLEYA M.M.,9AL |
2 | ||
| 89341-30021C1 |
GSE20 BLACK,212 |
2 | ||
| 89341-30021J8 |
GSE20 SILVERY BLUE ME.,8U9 |
2 | ||
| 89341-30021B4 |
GSE20 DK.GRAY MC.,1G0 |
2 | ||
| 89341-64010J4 |
GSE20 SILVERY BLUE ME.,8U9 |
2 | ||
| 89341-30021D1 |
GSE20 RED MC.CS.,3R1 |
2 | ||
| 89341-64010C3 |
GSE20 STARLIGHT BLACK GF.,217 |
2 | ||
| 89341-30021J7 |
GSE20 BLUE ME.,8U1 |
2 | ||
| 89341-64010B6 |
GSE20 DK.GRAY MC.,1G0 |
2 | ||
| 89341-64010K1 |
GSE20 CATTLEYA M.M.,9AL |
2 | ||
| 89341-30021A4 |
GSE20 WHITE PEARL CS.,077 |
2 | ||
| 89341-64010J5 |
GSE20 LAPIS LAZULI MC.,8V3 |
2 | ||
| 89341-64010B4 |
GSE20 SILVER M.M.,1G1 |
2 | ||
| 89341-64010D1 |
GSE20 RED MC.CS.,3R1 |
2 | ||
| 89341-64010B5 |
GSE20 MERCURY GRAY MC.,1H9 |
2 | ||
| 89341-64010P0 |
GSE20 PLATINUM SILVER ME.,1J4 |
2 | ||
| 89341-64010A4 |
GSE20 WHITE NOVA GF.,083 |
2 | ||
| 89341-64010A3 |
GSE20 WHITE PEARL CS.,077 |
2 | ||
| 89341-64010J3 |
GSE20 BLUE ME.,8U1 |
2 | ||
| 89341-64010C2 |
GSE20 BLACK,212 |
2 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-30010 |
GSE20 |
1 | ||
| 89348D - CLIP, ULTRASONIC SENSOR | ||||
| 89348-53020 |
GSE20 |
2 | ||
| 89348J - CLIP, ULTRASONIC SENSOR | ||||
| 89348-35030 |
GSE20 |
2 | ||
| Common parts | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
