GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904- )

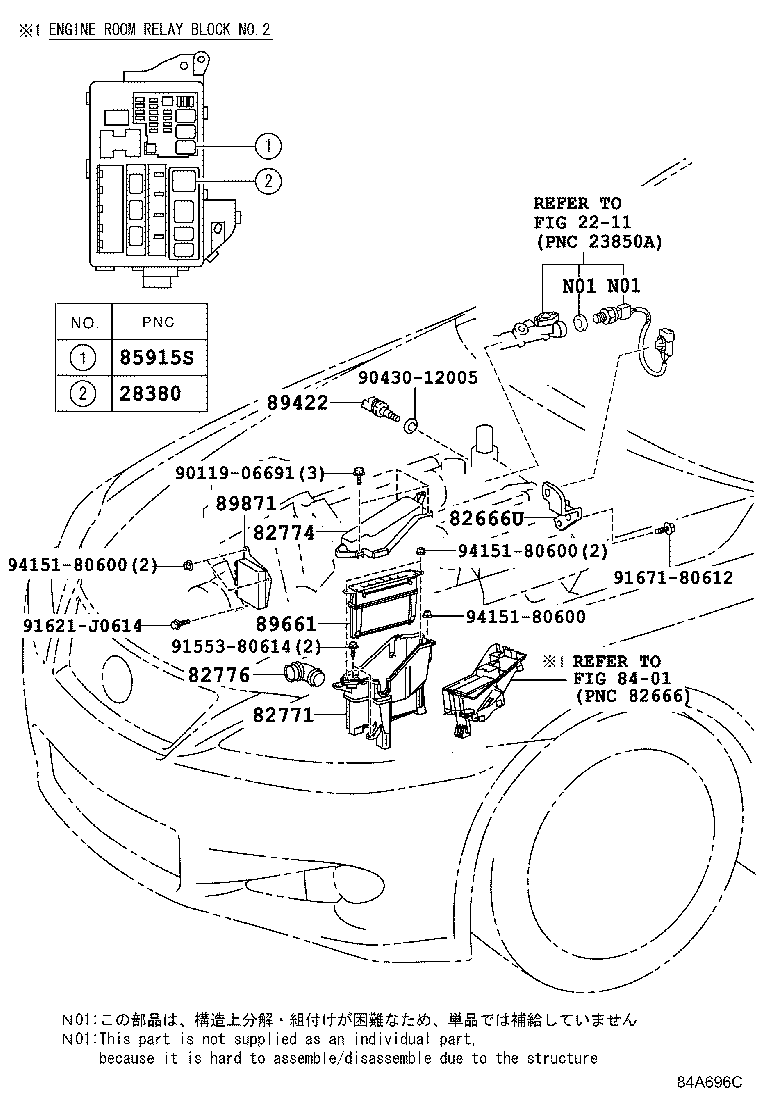

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 90987-03003 |
4GRFSE..GSE20 |
1 | ||
| 82666U - HOLDER, CONNECTOR | ||||
| 82666-30780 |
GSE20 |
1 | ||
| 82771 - BOX, ENGINE ROOM ECU | ||||
| 82771-30040 |
GSE20 |
1 | ||
| 82774 - COVER, ENGINE ROOM ECU | ||||
| 82774-30050 |
GSE20 |
1 | ||
| 82776 - DUCT, ENGINE ROOM ECU OUTLET | ||||
| 82776-53040 |
GSE20 |
1 | ||
| 85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) | ||||
| 90987-02027 |
GSE20 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
GSE20 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-53E70 |
GSE20..6FC |
1 | ||
| 89661-53E60 |
GSE20..LHD..6F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89661-53E50 |
GSE20..6F |
1 | ||
| 89661-53K20 |
GSE20..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&CHILE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89661-53E80 |
GSE20..LHD..6FC EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89661-53K20 |
GSE20..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89661-53L30 |
GSE20 |
1 | ||
| 89871 - DRIVER, INJECTOR | ||||
| 89871-30030 |
GSE20 |
1 | ||
| 89871-30031 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06691 | ||||
| 90430-12005 | ||||
| 91553-80614 | ||||
| 91621-J0614 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
