GSE20L-AKTLHW (2009)
Toyota Lexus Is250c

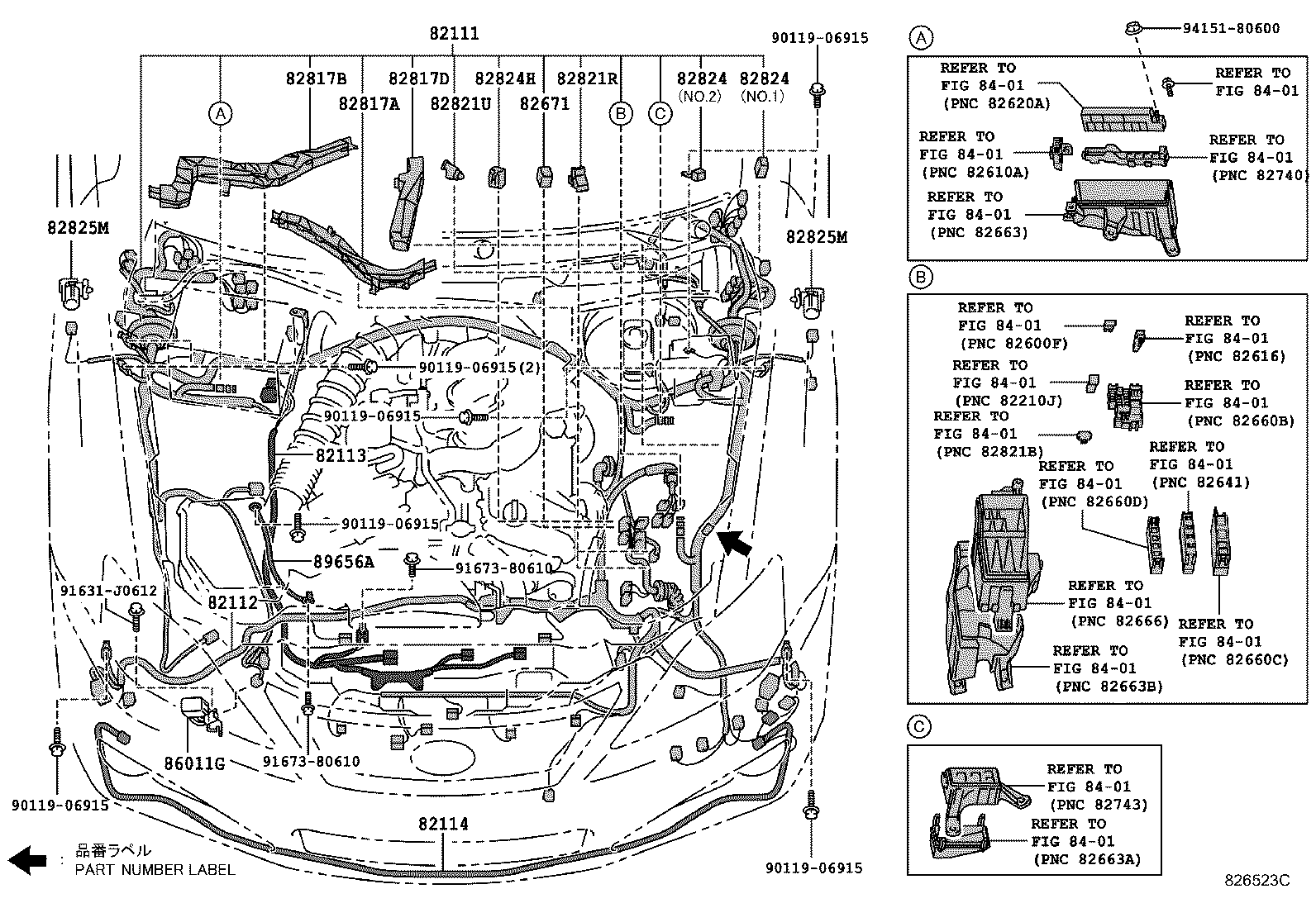

ILLUST NO. 1 OF 7(0904- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-53E10 |
GSE20..LHD..6FC |
1 | ||
| 82111-53E20 |
GSE20..LHD..6FC LUXURY PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
1 | ||
| 82111-53E21 |
GSE20..LHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82111-53E21 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATIONPRESSURE WARNING-WITH(TWO ANTENNA TYPE) |
1 | ||
| 82111-53D70 |
GSE20..LHD..6F |
1 | ||
| 82111-53E21 |
GSE20..LHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATION PRESSURE WARNING-WITHOUT |
1 | ||
| 82111-53E11 |
GSE20..LHD |
1 | ||
| 82111-53E22 |
GSE20..LHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATION PRESSURE WARNING-WITHOUT |
1 | ||
| 82111-53E12 |
GSE20..LHD |
1 | ||
| 82111-53E20 |
GSE20..LHD..6FC PART NUMBER LABEL=82111-53E20 |
1 | ||
| 82111-53E22 |
GSE20..LHD F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82111-53E10 |
GSE20..LHD..6FC PART NUMBER LABEL=82111-53E10 |
1 | ||
| 82111-53E11 |
GSE20..LHD PART NUMBER LABEL=82111-53E11 |
1 | ||
| 82111-53D70 |
GSE20..LHD..6F PART NUMBER LABEL=82111-53D70 |
1 | ||
| 82111-53E22 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82111-53E22 |
GSE20..LHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82111-53E21 |
GSE20..LHD PART NUMBER LABEL=82111-53E21 |
1 | ||
| 82111-53E22 |
GSE20..LHD PART NUMBER LABEL=82111-53E22 |
1 | ||
| 82111-53E22 |
GSE20..LHD PART NUMBER LABEL=82111-53E22 |
1 | ||
| 82111-53E12 |
GSE20..LHD PART NUMBER LABEL=82111-53E12 |
1 | ||
| 82111-53E22 |
GSE20..LHD PART NUMBER LABEL=82111-53E22 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-53220 |
GSE20 |
1 | ||
| 82112-53231 |
GSE20..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 82112-53200 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 82112-53200 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 82112-53201 |
GSE20..LHD CHILE SPEC |
1 | ||
| 82112-53221 |
GSE20 |
1 | ||
| 82112-53201 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82112-53270 |
GSE20..LHD LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82112-53230 |
GSE20..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 82112-53240 |
GSE20..LHD TAIWAN SPEC&F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82112-53260 |
GSE20 LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82112-53240 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82112-53201 |
GSE20..LHD TAIWAN SPEC |
1 | ||
| 82112-53240 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82112-53260 |
GSE20 F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-53020 |
GSE20..LHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-53022 |
GSE20 F SPORT |
1 | ||
| 82114-53050 |
GSE20 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
GSE20 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30B70 |
GSE20..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-53130 |
GSE20..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-53200 |
GSE20..LHD |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-30600 |
GSE20..LHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATION PRESSURE WARNING-WITHOUT |
2 | ||
| 82821-30600 |
GSE20..6FC LUXURY PACKAGE&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
2 | ||
| 82821-30600 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATIONPRESSURE WARNING-WITH(TWO ANTENNA TYPE) |
2 | ||
| 82821-30600 |
GSE20 LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
2 | ||
| 82821-30600 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
2 | ||
| 82821-30600 |
GSE20 F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
2 | ||
| 82821-30600 |
GSE20..6F |
2 | ||
| 82821U - COVER, CONNECTOR | ||||
| 82821-22120 |
GSE20..LHD..6FC |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
GSE20 NO.1 |
1 | ||
| 82824-48020 |
GSE20 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
GSE20 NO.1 |
1 | ||
| 82824-48020 |
GSE20 NO.2 |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-28180 |
GSE20 |
1 | ||
| 82825M - CONNECTOR, WIRING HARNESS | ||||
| 89776-53020 |
GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17) |
2 | ||
| 89776-53020 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 89776-53020 |
GSE20..LHD TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(TWO ANTENNA TYPE) |
1 | ||
| 89776-53020 |
GSE20..LHD TIRE INFLATION PRESSURE WARNING-WITHOUT |
2 | ||
| 89776-53020 |
GSE20..LHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATION PRESSURE WARNING-WITHOUT |
2 | ||
| 89776-53020 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATIONPRESSURE WARNING-WITH(TWO ANTENNA TYPE) |
1 | ||
| 89776-53020 |
GSE20..LHD CHILE SPEC |
2 | ||
| 89776-53020 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
2 | ||
| 82825M - CONNECTOR, WIRING HARNESS | ||||
| 89776-53020 |
GSE20..LHD..6FC CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17) |
2 | ||
| 89776-53020 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 89776-53020 |
GSE20..LHD TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(TWO ANTENNA TYPE) |
1 | ||
| 89776-53020 |
GSE20..LHD TIRE INFLATION PRESSURE WARNING-WITHOUT |
2 | ||
| 89776-53020 |
GSE20..LHD LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATION PRESSURE WARNING-WITHOUT |
2 | ||
| 89776-53020 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&TIRE INFLATIONPRESSURE WARNING-WITH(TWO ANTENNA TYPE) |
1 | ||
| 89776-53020 |
GSE20..LHD CHILE SPEC |
2 | ||
| 89776-53020 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
2 | ||
| 86011G - CONDENSER | ||||
| 86516-53010 |
GSE20 |
1 | ||
| 89656A - WIRE, POWER STEERING EARTH | ||||
| 89656-30010 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-J0612 | ||||
| 91673-80610 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

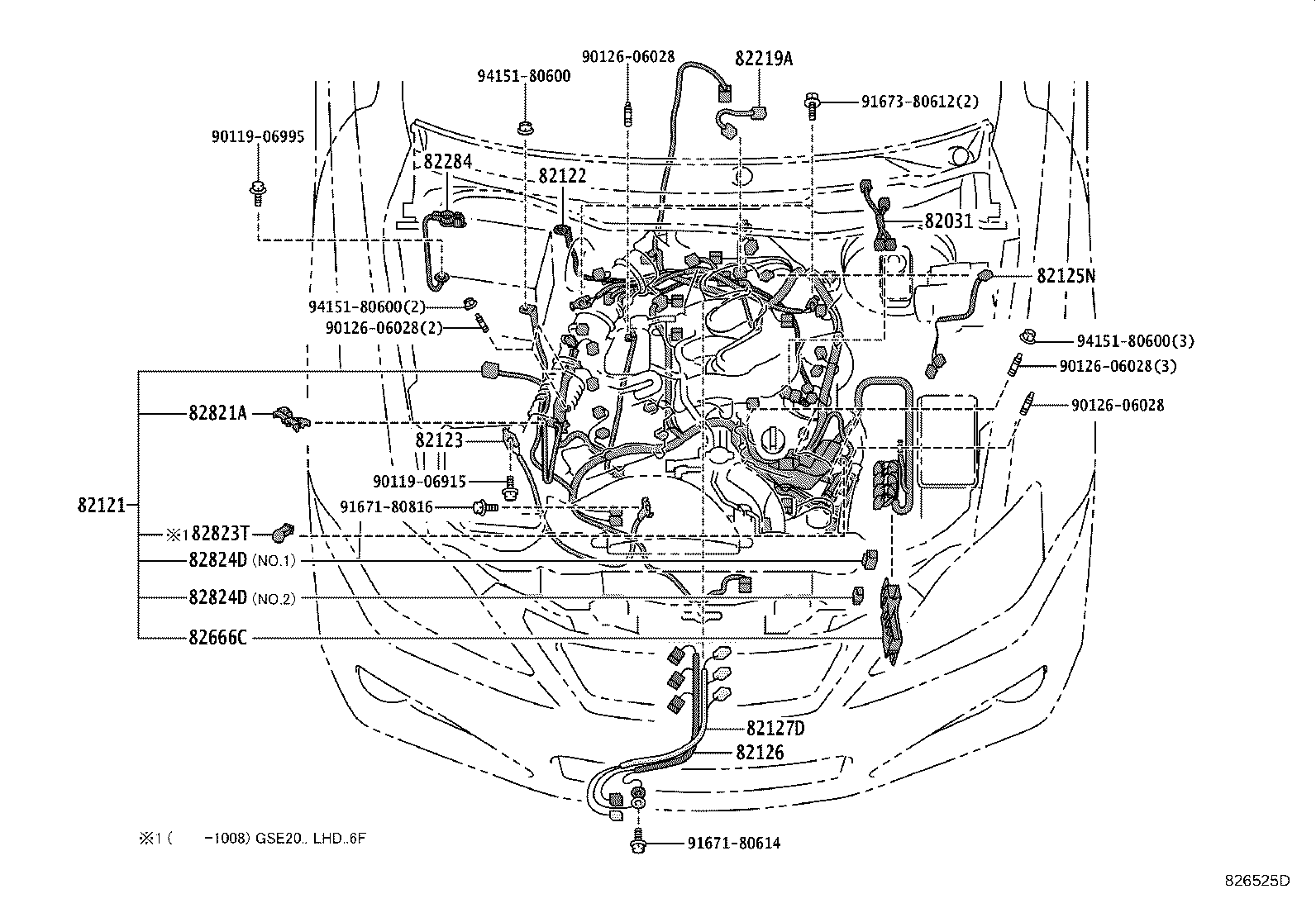

ILLUST NO. 2 OF 7(0904-1208)LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-22150 |
GSE20 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-53212 |
GSE20..LHD..6F |
1 | ||
| 82121-53222 |
GSE20..LHD..6FC |
1 | ||
| 82121-53223 |
GSE20..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30820 |
GSE20..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GSE20 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GSE20 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30010 |
GSE20 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30010 |
GSE20 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-30021 |
GSE20 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30030 |
GSE20..LHD |
1 | ||
| 82284-53090 |
GSE20..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30740 |
GSE20 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50500 |
GSE20 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GSE20 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GSE20 NO.1 |
1 | ||
| 82824-52080 |
GSE20 NO.2 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GSE20 NO.1 |
1 | ||
| 82824-52080 |
GSE20 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90126-06028 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||

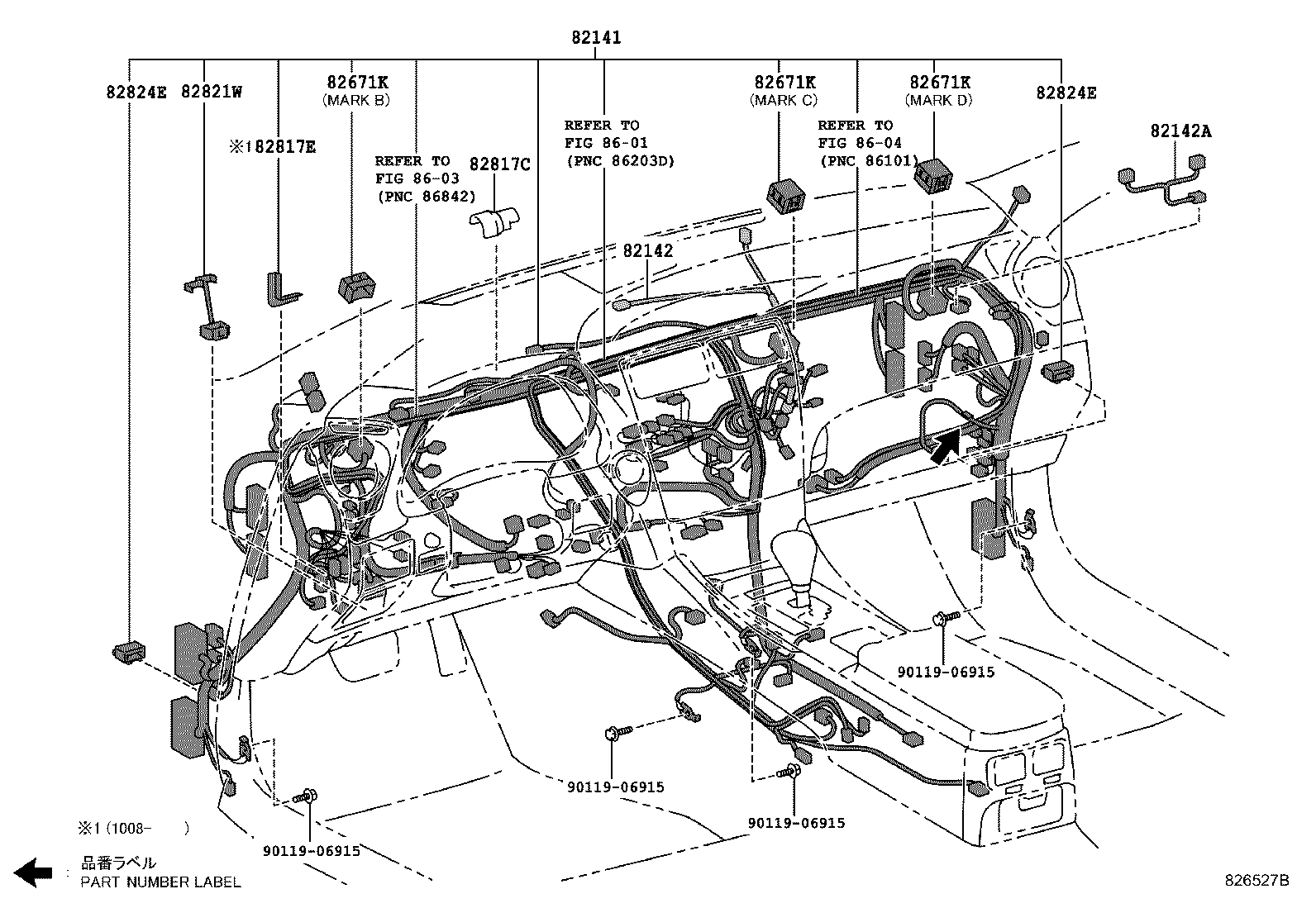

ILLUST NO. 3 OF 7(0904- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-53P10 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 82141-53P10 |
GSE20..LHD..6FC CHILE SPEC&AUDIO JACK-MINI JACK |
1 | ||
| 82141-53N70 |
GSE20..LHD..6F RUSSIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53P50 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&AUDIO JACK-MINI JACK&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53P50 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&AUDIO JACK-MINI JACK&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53N70 |
GSE20..LHD..6F RUSSIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53N40 |
GSE20..LHD..6F |
1 | ||
| 82141-53P90 |
GSE20..LHD..6FC AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53P90 |
GSE20..LHD..6FC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53Q90 |
GSE20..LHD..6FC |
1 | ||
| 82141-53P00 |
GSE20..LHD..6F AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53P00 |
GSE20..LHD..6F AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53P60 |
GSE20..LHD..6FC RUSSIA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53S10 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53P60 |
GSE20..LHD..6FC RUSSIA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53P91 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53S10 |
GSE20..LHD..6FC TAIWAN SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53P91 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53S11 |
GSE20..LHD TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(TWO ANTENNA TYPE)&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53Q91 |
GSE20..LHD |
1 | ||
| 82141-53S11 |
GSE20..LHD TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(TWO ANTENNA TYPE)&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53Q92 |
GSE20..LHD |
1 | ||
| 82141-53P92 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53P92 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82141-53S12 |
GSE20..LHD TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(TWO ANTENNA TYPE)&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53S12 |
GSE20..LHD TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(TWO ANTENNA TYPE)&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82141-53P50 |
GSE20..LHD..6FC PART NUMBER LABEL=82141-53P50 |
1 | ||
| 82141-53P93 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 82141-53P10 |
GSE20..LHD..6FC PART NUMBER LABEL=82141-53P10 |
1 | ||
| 82141-53P93 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 82141-53Q90 |
GSE20..LHD..6FC PART NUMBER LABEL=82141-53Q90 |
1 | ||
| 82141-53P90 |
GSE20..LHD..6FC PART NUMBER LABEL=82141-53P90 |
1 | ||
| 82141-53Q93 |
GSE20..LHD |
1 | ||
| 82141-53P60 |
GSE20..LHD..6FC PART NUMBER LABEL=82141-53P60 |
1 | ||
| 82141-53P00 |
GSE20..LHD..6F PART NUMBER LABEL=82141-53P00 |
1 | ||
| 82141-53N70 |
GSE20..LHD..6F PART NUMBER LABEL=82141-53N70 |
1 | ||
| 82141-53N40 |
GSE20..LHD..6F PART NUMBER LABEL=82141-53N40 |
1 | ||
| 82141-53P91 |
GSE20..LHD PART NUMBER LABEL=82141-53P91 |
1 | ||
| 82141-53S11 |
GSE20..LHD PART NUMBER LABEL=82141-53S11 |
1 | ||
| 82141-53P92 |
GSE20..LHD PART NUMBER LABEL=82141-53P92 |
1 | ||
| 82141-53S10 |
GSE20..LHD..6FC PART NUMBER LABEL=82141-53S10 |
1 | ||
| 82141-53S12 |
GSE20..LHD PART NUMBER LABEL=82141-53S12 |
1 | ||
| 82141-53P93 |
GSE20..LHD PART NUMBER LABEL=82141-53P93 |
1 | ||
| 82141-53Q92 |
GSE20..LHD PART NUMBER LABEL=82141-53Q92 |
1 | ||
| 82141-53Q91 |
GSE20..LHD PART NUMBER LABEL=82141-53Q91 |
1 | ||
| 82141-53Q93 |
GSE20..LHD PART NUMBER LABEL=82141-53Q93 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-53070 |
GSE20..LHD NORTHERN EUROPE SPEC |
1 | ||
| 82142-53050 |
GSE20..LHD |
1 | ||
| 82142-53051 |
GSE20..LHD |
1 | ||
| 82142-53051 |
GSE20..LHD NORTHERN EUROPE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING) |
1 | ||
| 82142-53071 |
GSE20..LHD NORTHERN EUROPE SPEC |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-53010 |
GSE20 |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-53010 |
GSE20 MARK B |
1 | ||
| 82671-53020 |
GSE20 MARK C |
1 | ||
| 82671-53030 |
GSE20 MARK D |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-53010 |
GSE20 MARK B |
1 | ||
| 82671-53020 |
GSE20 MARK C |
1 | ||
| 82671-53030 |
GSE20 MARK D |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-53010 |
GSE20 MARK B |
1 | ||
| 82671-53020 |
GSE20 MARK C |
1 | ||
| 82671-53030 |
GSE20 MARK D |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33820 |
GSE20 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-95J00 |
GSE20..LHD |
1 | ||
| 82821W - COVER, CONNECTOR | ||||
| 82821-20330 |
GSE20 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
GSE20 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
GSE20 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||
| 8604 | ||||
ILLUST NO. 5 OF 7(0904- )

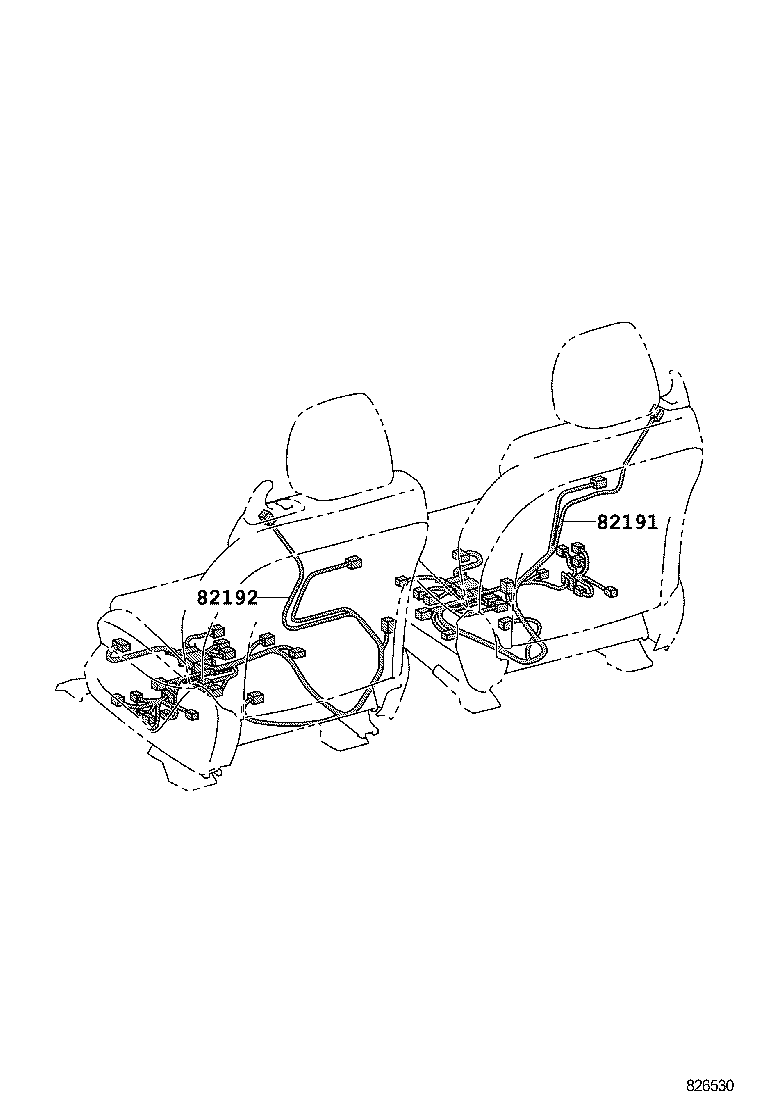

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-53320 |
GSE20..LHD..6FC TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 82191-53320 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 82191-53320 |
GSE20..LHD..6FC TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 82191-53390 |
GSE20..LHD |
1 | ||
| 82191-53320 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 82191-53320 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
1 | ||
| 82191-53320 |
GSE20..LHD F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 82191-53320 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
1 | ||
| 82191-53320 |
GSE20..LHD TAIWAN SPEC&F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-53270 |
GSE20..LHD |
1 | ||
| 82192-53230 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 82192-53230 |
GSE20..LHD..6FC TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR |
1 | ||
| 82192-53230 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 82192-53230 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
1 | ||
| 82192-53230 |
GSE20..LHD TAIWAN SPEC&F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 82192-53230 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
1 | ||
| 82192-53230 |
GSE20..LHD..6FC TAIWAN SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER |
1 | ||
| 82192-53230 |
GSE20..LHD F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
ILLUST NO. 6 OF 7(0904- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-28260 | ||||
| 82711-2B660 | ||||
| 82711-34310 | ||||
| 82711-35060 | ||||
| 82715-22140 | ||||
| 82715-22800 | ||||
| 82715-30600 | ||||
| 82715-30A00 | ||||
| 82715-30A40 | ||||
| 82715-30A50 | ||||
| 82715-30A60 | ||||
| 82715-30A70 | ||||
| 82715-30A80 | ||||
| 82715-30A90 | ||||
| 82715-30B00 | ||||
| 82715-30C10 | ||||
| 82715-30E70 | ||||
| 82715-50440 | ||||
| 82715-53360 | ||||
| 82729-30040 | ||||
| 90119-06375 | ||||
| 91551-A0612 | ||||
| 91553-80614 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80612 | ||||
ILLUST NO. 7 OF 7(0904- )

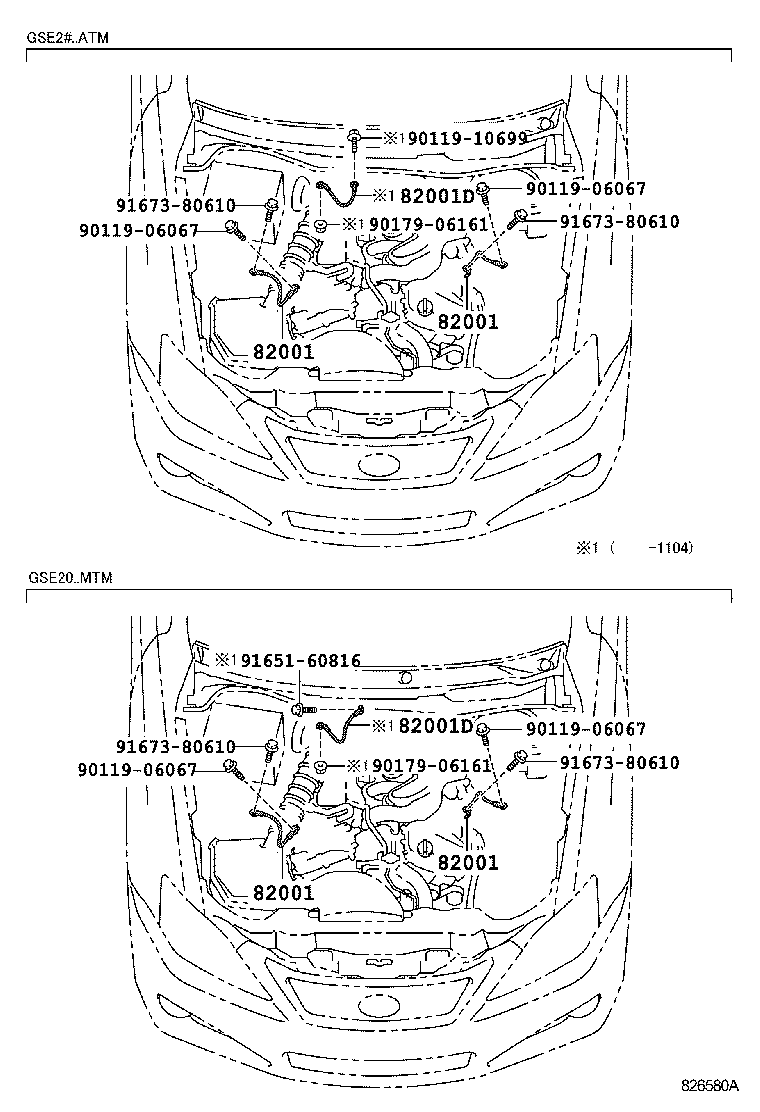

CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07416 |
GSE20 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07416 |
GSE20 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07416 |
GSE20 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07416 |
GSE20 |
2 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07418 |
GSE20 |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07418 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-10699 | ||||
| 90179-06161 | ||||
| 91651-60816 | ||||
| 91673-80610 | ||||
ILLUST NO. 4 OF 7(0904- )
DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-53272 |
GSE20..LHD LUXURY PACKAGE |
1 | ||
| 82151-53242 |
GSE20..LHD CHILE SPEC |
1 | ||
| 82151-53252 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53252 |
GSE20..LHD TAIWAN SPEC&F SPORT |
1 | ||
| 82151-53240 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 82151-53240 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 82151-53250 |
GSE20..LHD..6FC ISRAEL SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53260 |
GSE20..LHD |
1 | ||
| 82151-53240 |
GSE20..LHD..6FC ISRAEL SPEC |
1 | ||
| 82151-53250 |
GSE20..LHD..6FC TAIWAN SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53250 |
GSE20..LHD..6FC CHILE SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53251 |
GSE20..LHD ISRAEL SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53270 |
GSE20..LHD LUXURY PACKAGE |
1 | ||
| 82151-53261 |
GSE20..LHD |
1 | ||
| 82151-53271 |
GSE20..LHD LUXURY PACKAGE |
1 | ||
| 82151-53251 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53241 |
GSE20..LHD ISRAEL SPEC |
1 | ||
| 82151-53251 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53241 |
GSE20..LHD TAIWAN SPEC |
1 | ||
| 82151-53241 |
GSE20..LHD CHILE SPEC |
1 | ||
| 82151-53252 |
GSE20..LHD ISRAEL SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53242 |
GSE20..LHD TAIWAN SPEC |
1 | ||
| 82151-53242 |
GSE20..LHD ISRAEL SPEC |
1 | ||
| 82151-53262 |
GSE20..LHD |
1 | ||
| 82151-53252 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE |
1 | ||
| 82151-53272 |
GSE20..LHD F SPORT |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-53280 |
GSE20..LHD |
1 | ||
| 82152-53260 |
GSE20..LHD..6FC TAIWAN SPEC |
1 | ||
| 82152-53260 |
GSE20..LHD..6FC CHILE SPEC |
1 | ||
| 82152-53270 |
GSE20..LHD..6FC ISRAEL SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53270 |
GSE20..LHD..6FC CHILE SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53290 |
GSE20..LHD LUXURY PACKAGE |
1 | ||
| 82152-53270 |
GSE20..LHD..6FC TAIWAN SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53260 |
GSE20..LHD..6FC ISRAEL SPEC |
1 | ||
| 82152-53261 |
GSE20..LHD ISRAEL SPEC |
1 | ||
| 82152-53261 |
GSE20..LHD TAIWAN SPEC |
1 | ||
| 82152-53261 |
GSE20..LHD CHILE SPEC |
1 | ||
| 82152-53271 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53271 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53281 |
GSE20..LHD |
1 | ||
| 82152-53271 |
GSE20..LHD ISRAEL SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53291 |
GSE20..LHD LUXURY PACKAGE |
1 | ||
| 82152-53272 |
GSE20..LHD ISRAEL SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53262 |
GSE20..LHD ISRAEL SPEC |
1 | ||
| 82152-53262 |
GSE20..LHD CHILE SPEC |
1 | ||
| 82152-53262 |
GSE20..LHD TAIWAN SPEC |
1 | ||
| 82152-53272 |
GSE20..LHD TAIWAN SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53272 |
GSE20..LHD CHILE SPEC&LUXURY PACKAGE |
1 | ||
| 82152-53272 |
GSE20..LHD TAIWAN SPEC&F SPORT |
1 | ||
| 82152-53282 |
GSE20..LHD |
1 | ||
| 82152-53292 |
GSE20..LHD F SPORT |
1 | ||
| 82152-53292 |
GSE20..LHD LUXURY PACKAGE |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-53890 |
GSE20..LHD..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82161-53870 |
GSE20..LHD..6FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 82161-53890 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82161-53850 |
GSE20..LHD |
1 | ||
| 82161-53851 |
GSE20..LHD |
1 | ||
| 82161-53871 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 82161-53870 |
GSE20..LHD AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 82161-53871 |
GSE20..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI |
1 | ||
| 82161-53852 |
GSE20..LHD |
1 | ||
| 82161-53891 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82161-53870 |
GSE20..LHD PART NUMBER LABEL=82161-53870 |
1 | ||
| 82161-53850 |
GSE20..LHD PART NUMBER LABEL=82161-53850 |
1 | ||
| 82161-53870 |
GSE20..LHD..6FC PART NUMBER LABEL=82161-53870 |
1 | ||
| 82161-53890 |
GSE20..LHD..6FC PART NUMBER LABEL=82161-53890 |
1 | ||
| 82161-53872 |
GSE20..LHD AUDIO-AM/FM DVD 8SPEAKER |
1 | ||
| 82161-53891 |
GSE20..LHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82161-53851 |
GSE20..LHD PART NUMBER LABEL=82161-53851 |
1 | ||
| 82161-53892 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 82161-53852 |
GSE20..LHD PART NUMBER LABEL=82161-53852 |
1 | ||
| 82161-53871 |
GSE20..LHD PART NUMBER LABEL=82161-53871 |
1 | ||
| 82161-53890 |
GSE20..LHD PART NUMBER LABEL=82161-53890 |
1 | ||
| 82161-53872 |
GSE20..LHD PART NUMBER LABEL=82161-53872 |
1 | ||
| 82161-53892 |
GSE20..LHD PART NUMBER LABEL=82161-53892 |
1 | ||
| 82161-53891 |
GSE20..LHD PART NUMBER LABEL=82161-53891 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-53B01 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82162-53A80 |
GSE20..LHD..6FC |
1 | ||
| 82162-53A81 |
GSE20..LHD |
1 | ||
| 82162-53B40 |
GSE20..LHD..6F AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82162-53B00 |
GSE20..LHD..6FC AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82162-53A82 |
GSE20..LHD |
1 | ||
| 82162-53A83 |
GSE20..LHD |
1 | ||
| 82162-53B02 |
GSE20..LHD AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI |
1 | ||
| 82162-53B01 |
GSE20..LHD PART NUMBER LABEL=82162-53B01 |
1 | ||
| 82162-53B40 |
GSE20..LHD..6F PART NUMBER LABEL=82162-53B40 |
1 | ||
| 82162-53A81 |
GSE20..LHD PART NUMBER LABEL=82162-53A81 |
1 | ||
| 82162-53B30 |
GSE20..LHD..6F PART NUMBER LABEL=82162-53B30 |
1 | ||
| 82162-53A82 |
GSE20..LHD PART NUMBER LABEL=82162-53A82 |
1 | ||
| 82162-53B00 |
GSE20..LHD..6FC PART NUMBER LABEL=82162-53B00 |
1 | ||
| 82162-53A80 |
GSE20..LHD..6FC PART NUMBER LABEL=82162-53A80 |
1 | ||
| 82162-53B03 |
GSE20..LHD AUDIO-AM/FM DVD 12SPEAKER |
1 | ||
| 82162-53B03 |
GSE20..LHD PART NUMBER LABEL=82162-53B03 |
1 | ||
| 82162-53B30 |
GSE20..LHD..6F |
1 | ||
| 82162-53B02 |
GSE20..LHD PART NUMBER LABEL=82162-53B02 |
1 | ||
| 82162-53A83 |
GSE20..LHD PART NUMBER LABEL=82162-53A83 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-53490 |
GSE20..LHD LUXURY PACKAGE |
1 | ||
| 82171-53481 |
GSE20 PART NUMBER LABEL=82171-53481 |
1 | ||
| 82171-53480 |
GSE20 PART NUMBER LABEL=82171-53480 |
1 | ||
| 82171-53490 |
GSE20..LHD TAIWAN SPEC&F SPORT |
1 | ||
| 82171-53481 |
GSE20 |
1 | ||
| 82171-53480 |
GSE20 |
1 | ||
| 82171-53490 |
GSE20..LHD PART NUMBER LABEL=82171-53490 |
1 | ||
| 82171-53490 |
GSE20..LHD PART NUMBER LABEL=82171-53490 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-53010 |
GSE20 |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-53010 |
GSE20 |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-53010 |
GSE20 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-53020 |
GSE20..LHD..6FC TAIWAN SPEC&EMV & NAVIGATION SYSTEM-DVD NAVIGATION |
1 | ||
| 82181-53030 |
GSE20 |
1 | ||
| 82181-53020 |
GSE20 EMV & NAVIGATION SYSTEM-HDD NAVIGATION |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-53030 |
GSE20 |
1 | ||
| 82183-53031 |
GSE20 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-53010 |
GSE20 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
GSE20 |
1 | ||
| 82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82811-53010 |
GSE20 |
1 | ||
| 82492 - PLATE, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82811-53020 |
GSE20 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
GSE20 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-53160 |
GSE20 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-53180 |
GSE20 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-53540 |
GSE20 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-53570 |
GSE20 |
1 | ||
| 82821X - COVER, CONNECTOR | ||||
| 82821-53040 |
GSE20 |
1 | ||
| 82821X - COVER, CONNECTOR | ||||
| 82821-53040 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| 91621-J0614 | ||||
| 91641-C0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
| 8601 | ||||

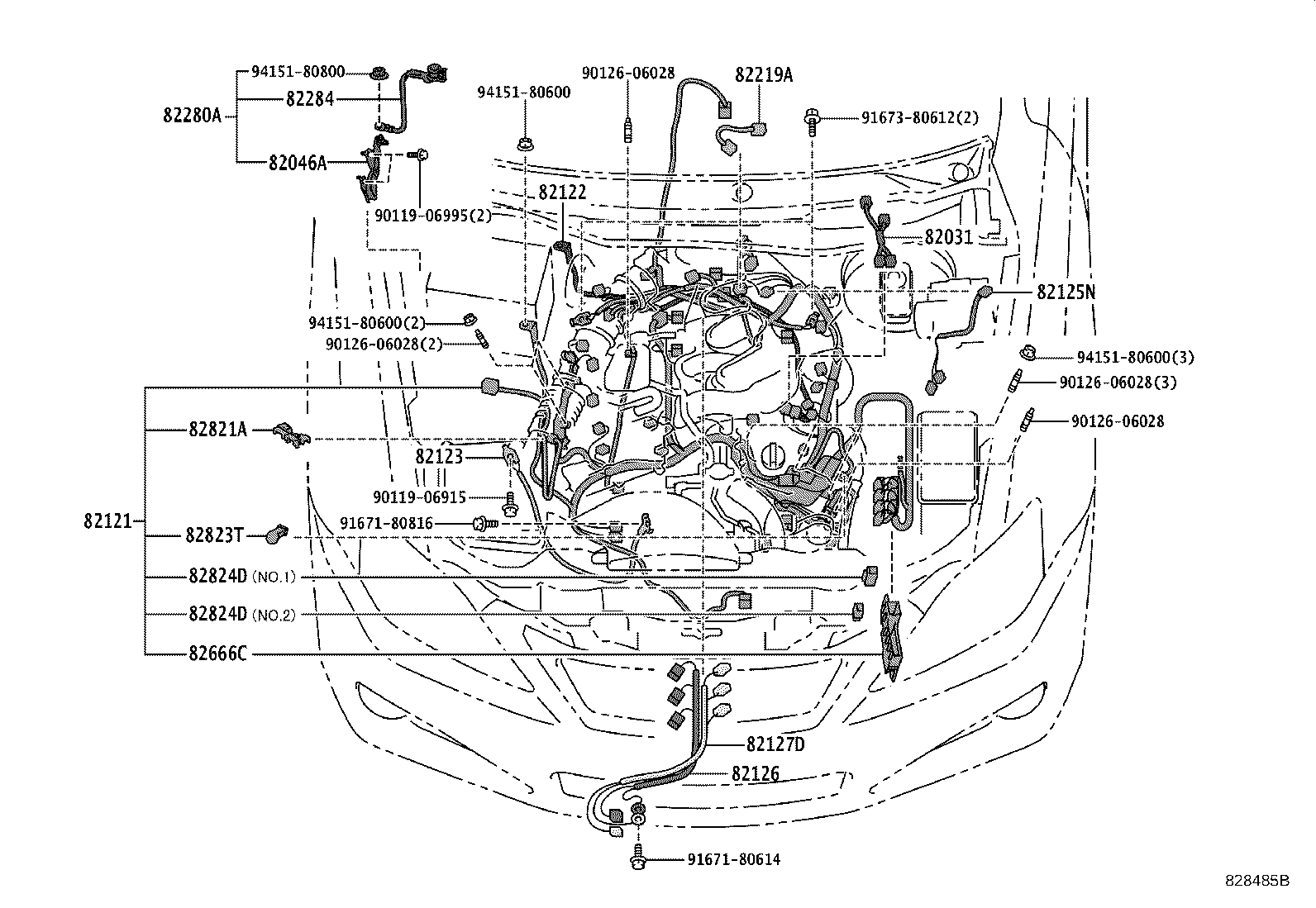

ILLUST NO. 2 OF 7(1208- )LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-22150 |
GSE20 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-53080 |
GSE20..LHD |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-53212 |
GSE20..LHD..6F |
1 | ||
| 82121-53222 |
GSE20..LHD..6FC |
1 | ||
| 82121-53223 |
GSE20..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30820 |
GSE20..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GSE20 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GSE20 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30010 |
GSE20 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30010 |
GSE20 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-30021 |
GSE20 |
1 | ||
| 82280A - WIRE ASSY, BATTERY TO COWL TOP SIDE | ||||
| 82280-53040 |
GSE20..LHD |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30030 |
GSE20..LHD |
1 | ||
| 82284-53090 |
GSE20..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30740 |
GSE20 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50500 |
GSE20 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GSE20 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GSE20 NO.1 |
1 | ||
| 82824-52080 |
GSE20 NO.2 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GSE20 NO.1 |
1 | ||
| 82824-52080 |
GSE20 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90126-06028 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
