GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904- )

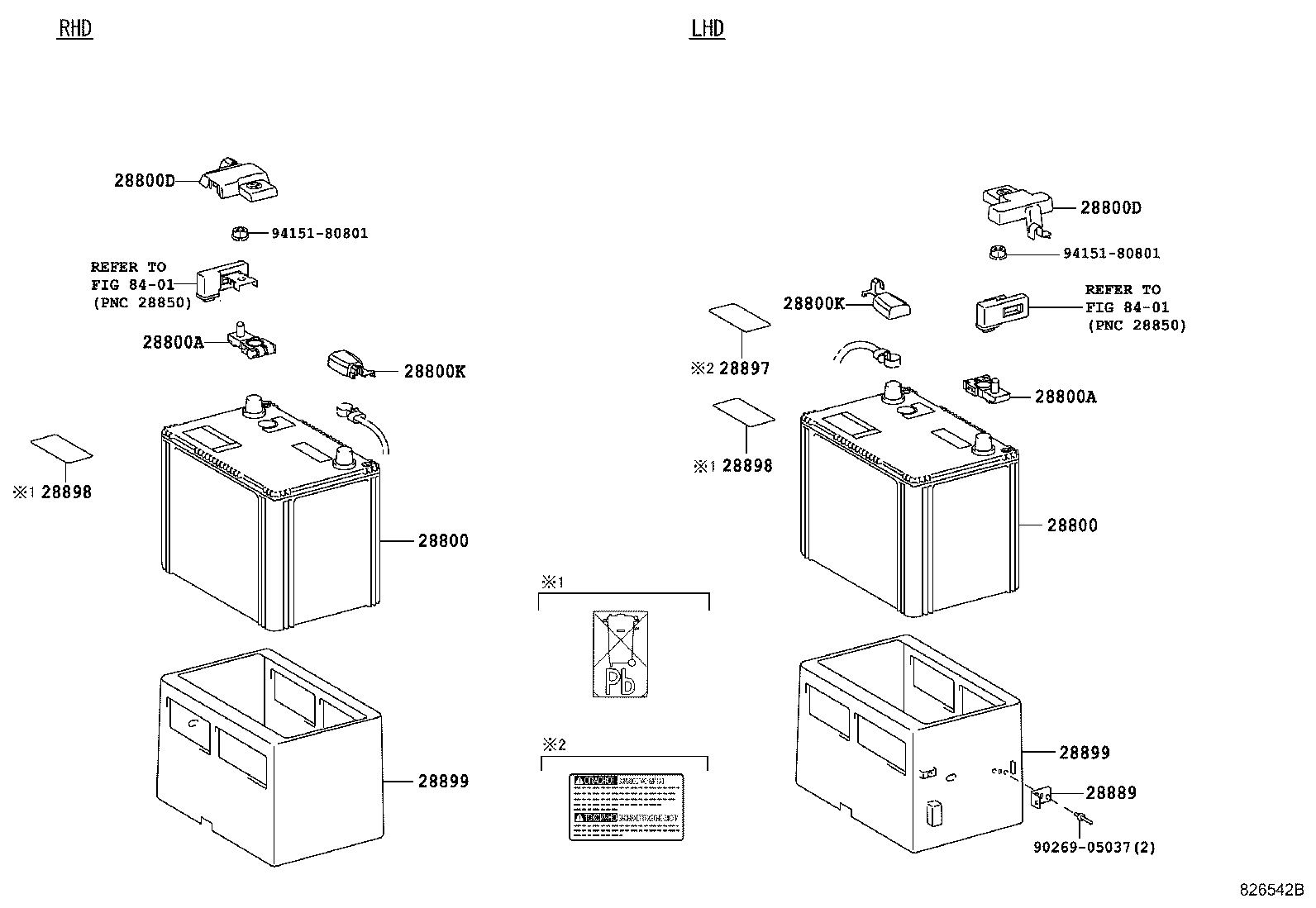

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-38100 |
4GRFSE..GSE20..LHD 80D26R |
1 | ||
| 28800-54231 |
4GRFSE..GSE20..LHD 80D26R |
1 | ||
| 28800 - BATTERY | ||||
| 28800-38100 |
4GRFSE..GSE20..LHD 80D26R |
1 | ||
| 28800-54231 |
4GRFSE..GSE20..LHD 80D26R |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05062 |
4GRFSE..GSE20..LHD |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05062 |
4GRFSE..GSE20..LHD |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-30660 |
4GRFSE..GSE20..LHD |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-30660 |
4GRFSE..GSE20..LHD |
1 | ||
| 28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE) | ||||
| 82821-30760 |
4GRFSE..GSE20 |
1 | ||
| 82821-50450 |
4GRFSE..GSE20 |
1 | ||
| 28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE) | ||||
| 82821-30760 |
4GRFSE..GSE20 |
1 | ||
| 82821-50450 |
4GRFSE..GSE20 |
1 | ||
| 28889 - BRACKET, BATTERY WIRE CLAMP | ||||
| 28889-31010 |
4GRFSE..GSE20..LHD |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-31040 |
4GRFSE..GSE20..LHD RUSSIA SPEC |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-46020 |
4GRFSE..GSE20 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-46020 |
4GRFSE..GSE20 |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-31030 |
4GRFSE..GSE20..LHD |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-31030 |
4GRFSE..GSE20..LHD |
1 | ||
| Common parts | ||||
| 90269-05037 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
