GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
(0904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-22040 |
GSE20 |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81080-22040 |
GSE20 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-22040 |
GSE20 |
1 | ||
| 81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81090-53011 |
GSE20 |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-53020 |
GSE20 |
2 | ||
| 81230-47010 |
GSE20 |
2 | ||
| 81230-30200 |
GSE20 |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
GSE20 12V 5W |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
GSE20 12V 5W |
1 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-48010 |
GSE20 |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-22040 |
GSE20 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-53430A0 |
GSE20..LHD..6F RUSSIA SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6F BULGARIA SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6F UKRAINE OR KAZAKSTAN OR BELARUS SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6F TURKEY SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6F RUSSIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6F TURKEY SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53420B0 |
GSE20..LHD..6FC TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6F BULGARIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81260-53420A0 |
GSE20..LHD..6FC TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53450B0 |
GSE20..LHD..6F LT.GRAY,TRIM2# |
1 | ||
| 81260-53420B0 |
GSE20..LHD..6FC CHILE SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53420A0 |
GSE20..LHD..6FC CHILE SPEC&ANTI-THEFT SYSTEM-HORN&MICROPHONE & MIKE-AMPLIFIER-WITHOUT,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6F UKRAINE OR KAZAKSTAN OR BELARUS SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6FC TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN&EMV & NAVIGATION SYSTEM-DVD NAVIGATION,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6FC ISRAEL SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6FC TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN&EMV & NAVIGATION SYSTEM-DVD NAVIGATION,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6FC RUSSIA SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6FC BULGARIA SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6FC BULGARIA SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6FC TURKEY SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6FC UKRAINE OR KAZAKSTAN OR BELARUS SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6FC CROATIA SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6FC TURKEY SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430B0 |
GSE20..LHD TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430C0 |
GSE20..LHD CROATIA SPEC&ANTI-THEFT SYSTEM-HORN,BLACK,TRIM23,39 |
1 | ||
| 81260-53430B0 |
GSE20..LHD CHILE SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430B0 |
GSE20..LHD..6FC ISRAEL SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6FC CROATIA SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53450B0 |
GSE20..LHD LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53450B0 |
GSE20..LHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53450A0 |
GSE20..LHD MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6FC UKRAINE OR KAZAKSTAN OR BELARUS SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430B0 |
GSE20..LHD CROATIA SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430C0 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&ANTI-THEFT SYSTEM-HORN,BLACK,TRIM23,39 |
1 | ||
| 81260-53430B0 |
GSE20..LHD CHILE SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430A0 |
GSE20..LHD..6FC RUSSIA SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430A0 |
GSE20..LHD CHILE SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430A0 |
GSE20..LHD TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN,MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53430B0 |
GSE20..LHD RUSSIA SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430C0 |
GSE20..LHD RUSSIA SPEC&ANTI-THEFT SYSTEM-HORN,BLACK,TRIM23,39 |
1 | ||
| 81260-53430C0 |
GSE20..LHD CHILE SPEC&ANTI-THEFT SYSTEM-HORN,BLACK,TRIM23,39 |
1 | ||
| 81260-53430C0 |
GSE20..LHD TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN,BLACK,TRIM23,39 |
1 | ||
| 81260-53B60A0 |
GSE20..LHD MELLOW WHITE,TRIM0# |
1 | ||
| 81260-53B60C0 |
GSE20..LHD BLACK,TRIM23,39 |
1 | ||
| 81260-53450C0 |
GSE20..LHD BLACK,TRIM23,39 |
1 | ||
| 81260-53430B0 |
GSE20..LHD TAIWAN SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53430B0 |
GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC&ANTI-THEFT SYSTEM-HORN,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81260-53B60B0 |
GSE20..LHD LT.GRAY,TRIM1#,20,21,22,36,37,38,4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
GSE20 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
GSE20 12V 5W |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
GSE20 12V 1.5W |
2 | ||
| 81340H - LAMP ASSY, VANITY, RH | ||||
| 81340-53050A0 |
GSE20..LHD NORTHERN EUROPE SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53070B0 |
GSE20..LHD TURKEY SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81340-53070B0 |
GSE20..LHD BULGARIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81340-53060B0 |
GSE20..LHD..6F RUSSIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81340-53030B0 |
GSE20..LHD..6F LT.GRAY,TRIM2# |
1 | ||
| 81340-53070A0 |
GSE20..LHD TURKEY SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53070A0 |
GSE20..LHD BULGARIA SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53080B0 |
GSE20..LHD..6F TURKEY SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81340-53050B0 |
GSE20..LHD NORTHERN EUROPE SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81340-53090B0 |
GSE20..LHD..6F NORTHERN EUROPE SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81340-53080B0 |
GSE20..LHD..6F BULGARIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 81340-53080B0 |
GSE20..LHD..6FC BULGARIA SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81340-53080A0 |
GSE20..LHD BULGARIA SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53090A0 |
GSE20..LHD NORTHERN EUROPE SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53090B0 |
GSE20..LHD..6FC NORTHERN EUROPE SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81340-53080B0 |
GSE20..LHD..6FC TURKEY SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81340-53080A0 |
GSE20..LHD TURKEY SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53060A0 |
GSE20..LHD RUSSIA SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53060B0 |
GSE20..LHD..6FC RUSSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81340-53030B0 |
GSE20..LHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81340-53010B0 |
GSE20..LHD..6FC CHILE SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81340-53130C0 |
GSE20..LHD F SPORT,BLACK,TRIM2#,3# |
1 | ||
| 81340-53030A0 |
GSE20..LHD MELLOW WHITE,TRIM0# |
1 | ||
| 81340-53010A0 |
GSE20..LHD..6FC CHILE SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81340J - LAMP ASSY, VANITY, LH | ||||
| 81350-53040B0 |
GSE20..LHD..6F LT.GRAY,TRIM2# |
1 | ||
| 81350-53020A0 |
GSE20..LHD..6FC CHILE SPEC,MELLOW WHITE,TRIM0# |
1 | ||
| 81350-53040B0 |
GSE20..LHD..6FC LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81350-53110C0 |
GSE20..LHD F SPORT,BLACK,TRIM2#,3# |
1 | ||
| 81350-53020B0 |
GSE20..LHD..6FC CHILE SPEC,LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 81350-53040A0 |
GSE20..LHD MELLOW WHITE,TRIM0# |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||

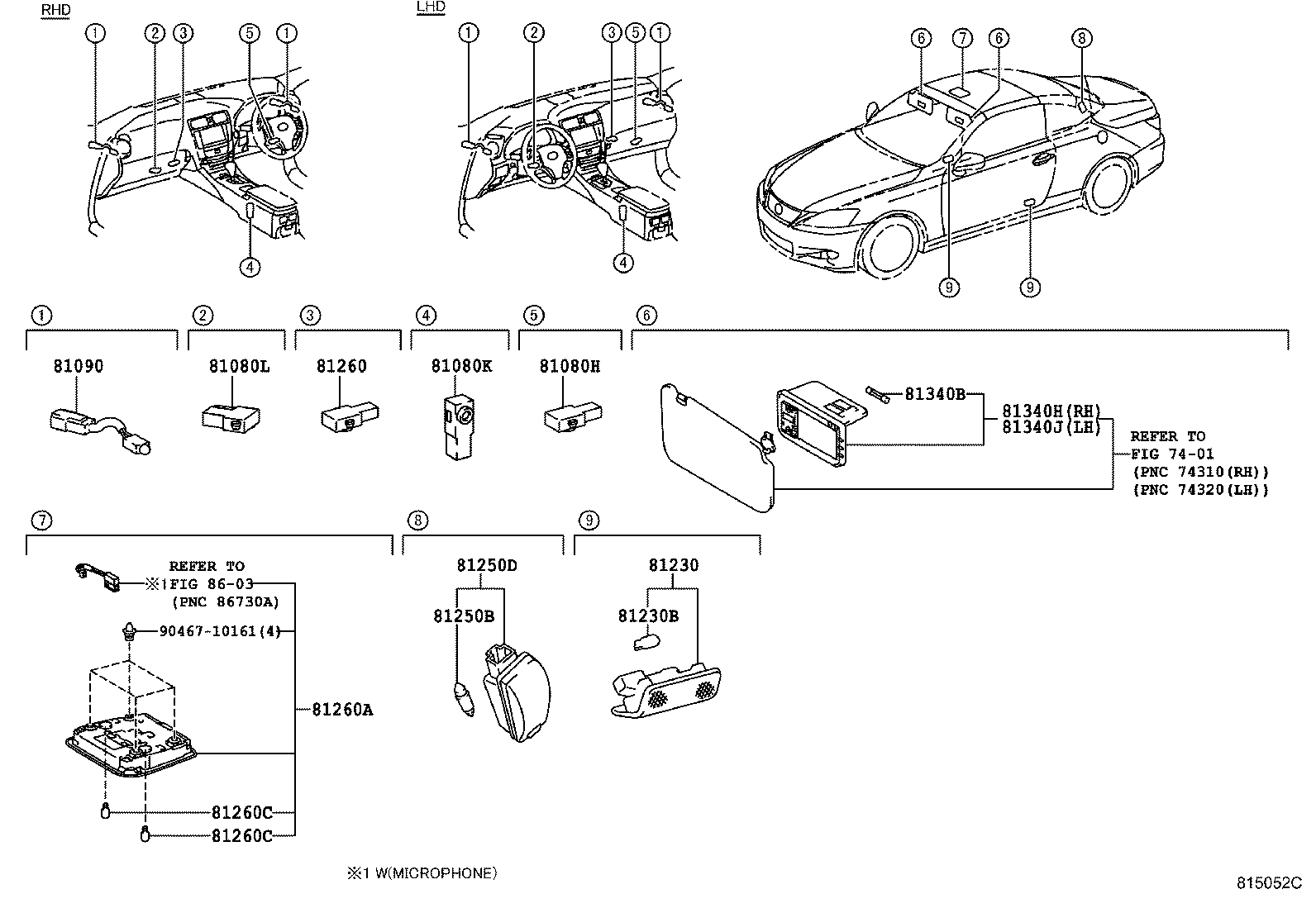

| Linked diagrams | ||||
| 7401 | ||||
| 8603 | ||||
