GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904- )

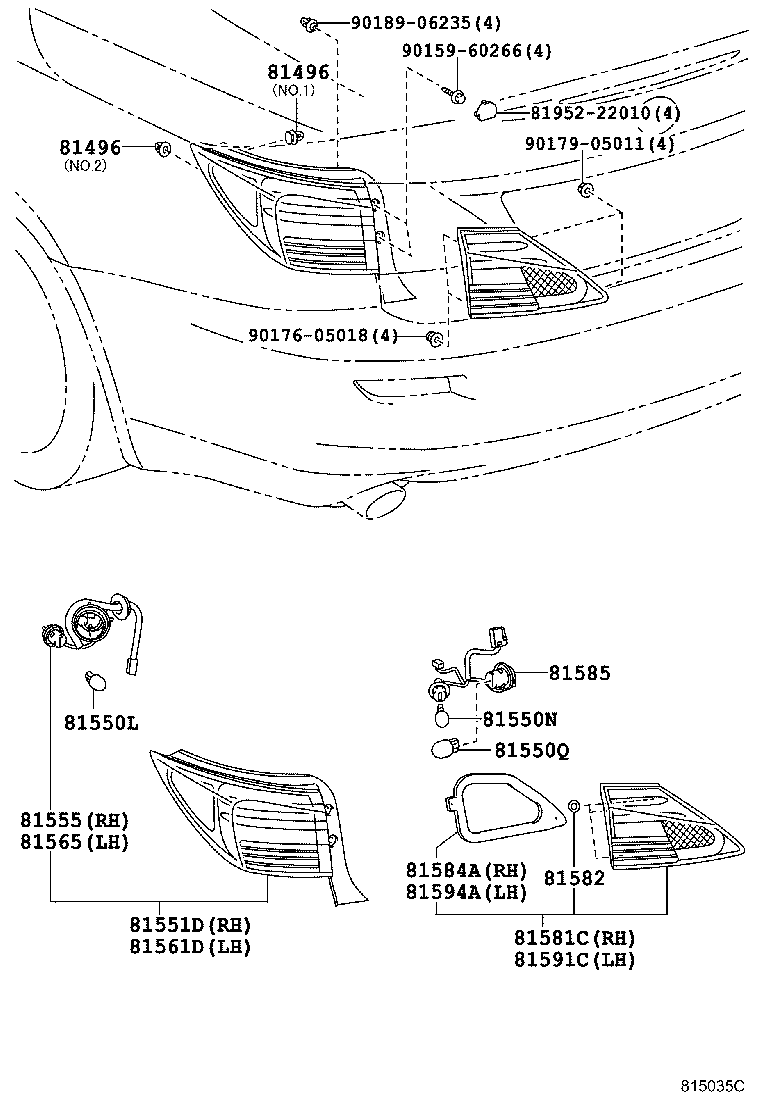

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-53010 |
GSE20 NO.2 |
2 | ||
| 81496-60010 |
GSE20 NO.1 |
2 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-53010 |
GSE20 NO.2 |
2 | ||
| 81496-60010 |
GSE20 NO.1 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
GSE20 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GSE20 |
2 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90981-13043 |
GSE20 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-53230 |
GSE20 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-53230 |
GSE20 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-53200 |
GSE20 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-53230 |
GSE20 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-53100 |
GSE20 |
1 | ||
| 81582 - GASKET, REAR LAMP | ||||
| 81584-22040 |
GSE20 |
6 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-53110 |
GSE20 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-53100 |
GSE20 |
2 | ||
| 81591C - LENS, REAR LAMP, LH | ||||
| 81591-53100 |
GSE20 |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-53110 |
GSE20 |
1 | ||
| Common parts | ||||
| 81952-22010 | ||||
| 90159-60266 | ||||
| 90176-05018 | ||||
| 90179-05011 | ||||
| 90189-06235 | ||||
