GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

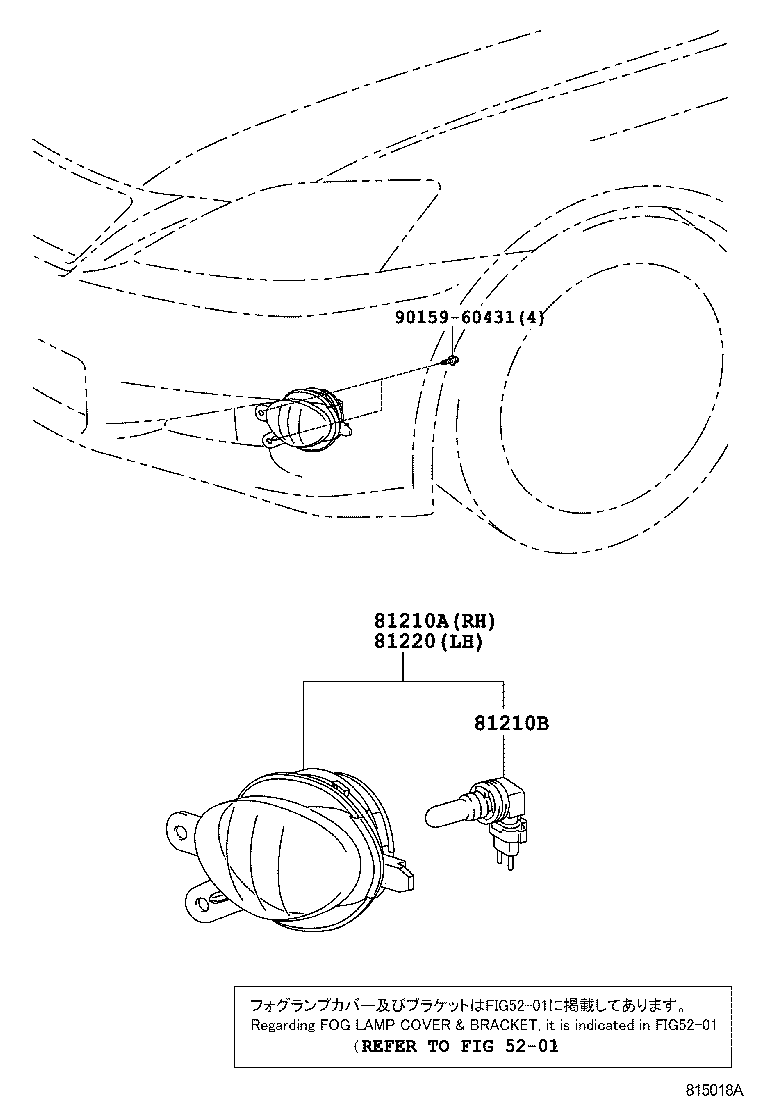

(0904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0W050 |
GSE20 F SPORT |
1 | ||
| 81210-0W031 |
GSE20 |
1 | ||
| 81210-0W030 |
GSE20 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13075 |
GSE20 12V 55W,HALOGEN,PHILIPS |
2 | ||
| 90981-13081 |
GSE20 12V 55W,HALOGEN,OSRAM |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0W040 |
GSE20 F SPORT |
1 | ||
| 81220-0W031 |
GSE20 |
1 | ||
| 81220-0W030 |
GSE20 |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| Linked diagrams | ||||
| 5201 | ||||

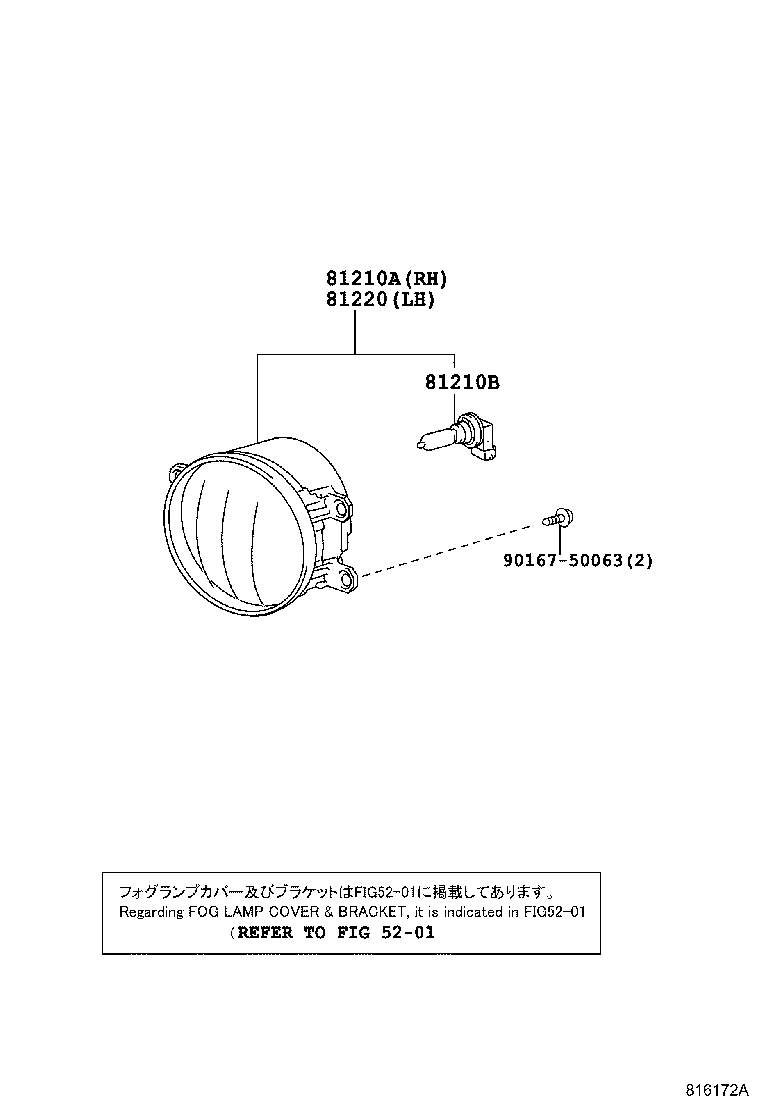

(1208- )
Click highlighted areas on diagram
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0W050 |
GSE20 F SPORT |
1 | ||
| 81210-0W031 |
GSE20 |
1 | ||
| 81210-0W030 |
GSE20 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13075 |
GSE20 12V 55W,HALOGEN,PHILIPS |
2 | ||
| 90981-13081 |
GSE20 12V 55W,HALOGEN,OSRAM |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0W040 |
GSE20 F SPORT |
1 | ||
| 81220-0W031 |
GSE20 |
1 | ||
| 81220-0W030 |
GSE20 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5201 | ||||
