GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

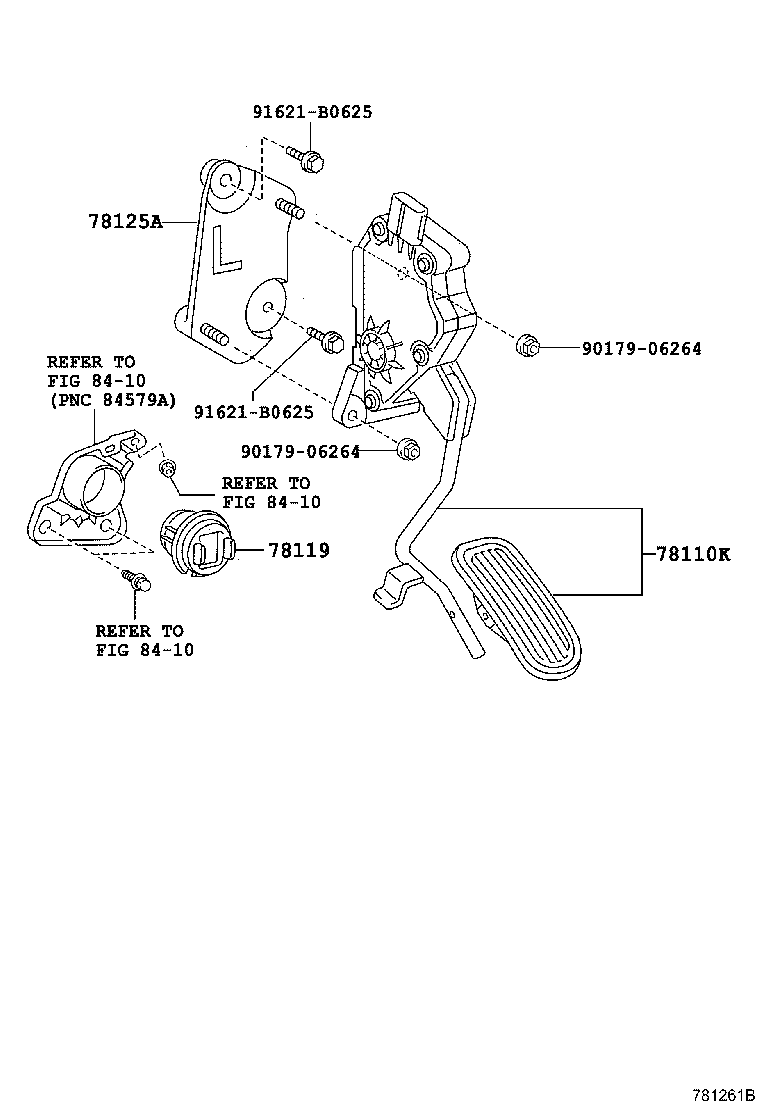

(0904-1408)LHD

Click highlighted areas on diagram

diagram 78110K 78119 78125A 8410 8410 8410 9017906264 9017906264 91621B0625 91621B0625
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-53031

GSE20..LHD..6FC

 1
78110-53110

GSE20..LHD

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53031

GSE20..LHD..6F

 1
78110-53041

GSE20..LHD..6FC

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53120

GSE20..LHD

 1
78110-53041

GSE20..LHD..6F

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53140

GSE20..LHD

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-48010

GSE20..6F

 1
78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2
78125-53010

GSE20..LHD

 1
Common parts
90179-06264
91621-B0625
Linked diagrams
8410

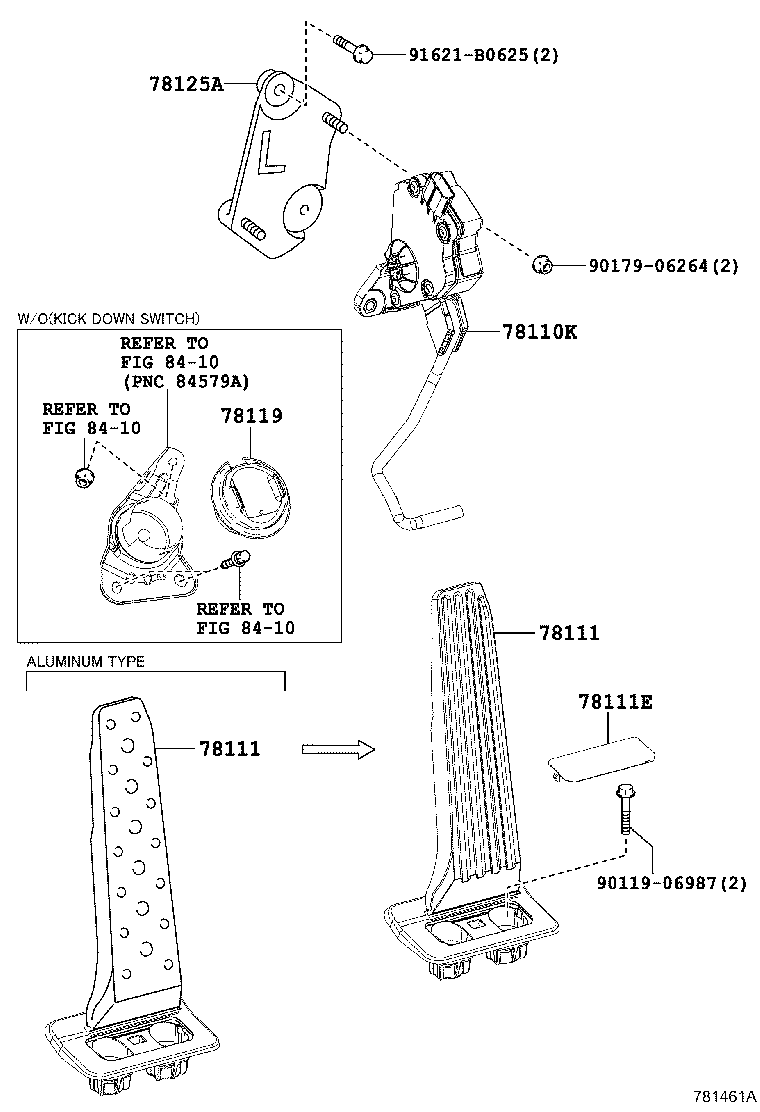

(1408- )LHD

Click highlighted areas on diagram

diagram 78110K 78111 78111 78111E 78119 78125A 8410 8410 8410 9011906987 9017906264 91621B0625
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-53031

GSE20..LHD..6FC

 1
78110-53110

GSE20..LHD

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53031

GSE20..LHD..6F

 1
78110-53041

GSE20..LHD..6FC

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53120

GSE20..LHD

 1
78110-53041

GSE20..LHD..6F

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53140

GSE20..LHD

 1
78111 - PEDAL, ACCELERATOR
78101-53030

GSE20

 1
78101-53060

GSE20

ACCELERATOR PEDAL-ALUMINUM TYPE(ORGAN TYPE)

 1
78111 - PEDAL, ACCELERATOR
78101-53030

GSE20

 1
78101-53060

GSE20

ACCELERATOR PEDAL-ALUMINUM TYPE(ORGAN TYPE)

 1
78111E - PAD, ACCELERATOR PEDAL
78117-30030

GSE20..LHD

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-48010

GSE20..6F

 1
78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2
78125-53010

GSE20..LHD

 1
Common parts
90119-06987
90179-06264
91621-B0625
Linked diagrams
8410
