GSE20L-AKTLHW (2009)
Toyota Lexus Is250c

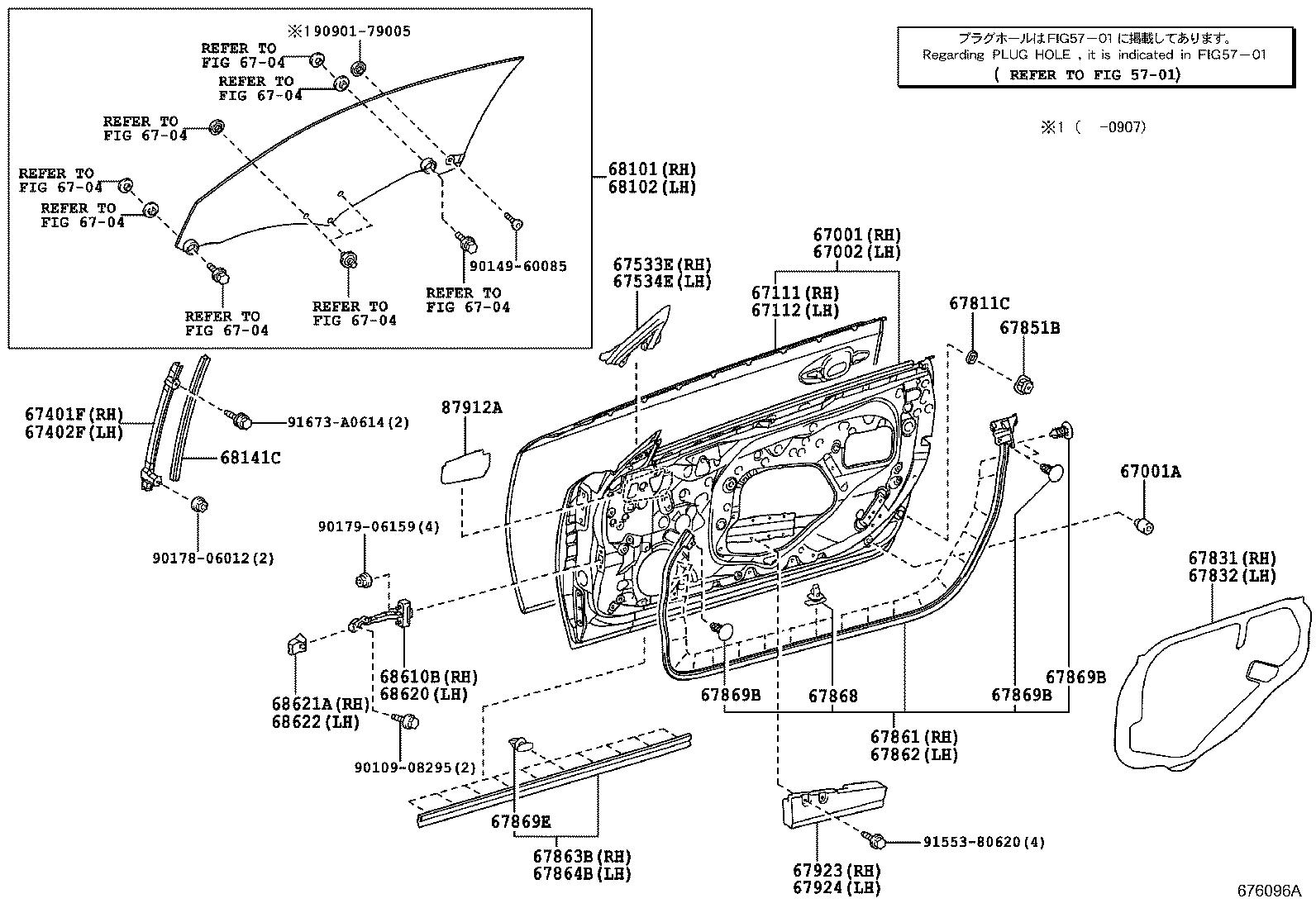

ILLUST NO. 1 OF 2(0904- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-53060 |
GSE20 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
GSE20 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-53070 |
GSE20 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-53030 |
GSE20 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-53030 |
GSE20 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-53020 |
GSE20 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-53020 |
GSE20 |
1 | ||
| 67533E - SEAL, FRONT DOOR DIVISION BAR, RH | ||||
| 67533-53010 |
GSE20 |
1 | ||
| 67534E - SEAL, FRONT DOOR DIVISION BAR, LH | ||||
| 67534-53010 |
GSE20 |
1 | ||
| 67811C - COVER, FRONT DOOR HOLE | ||||
| 67811-53020 |
GSE20 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-53050 |
GSE20 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-53050 |
GSE20 |
1 | ||
| 67851B - COVER, FRONT DOOR SERVICE HOLE, NO.5 | ||||
| 67844-53020 |
GSE20 |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-53040 |
GSE20 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-53040 |
GSE20 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-53020 |
GSE20 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-53020 |
GSE20 |
1 | ||
| 67868 - CLIP, FRONT DOOR GLASS WEATHERSTRIP | ||||
| 67867-12150 |
GSE20 |
44 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
GSE20 |
8 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
GSE20 |
8 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
GSE20 |
8 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67867-12150 |
GSE20 |
20 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-53040 |
GSE20 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-53030 |
GSE20 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-53060 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 68101-53120 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-53120 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 68102-53060 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-53030 |
GSE20 |
2 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-53040 |
GSE20 |
1 | ||
| 68610-53050 |
GSE20 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-53040 |
GSE20 |
1 | ||
| 68620-53030 |
GSE20 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-53010 |
GSE20 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-53010 |
GSE20 |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-53040 |
GSE20 LH |
1 | ||
| 87912-53030 |
GSE20 RH |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90149-60085 | ||||
| 90178-06012 | ||||
| 90179-06159 | ||||
| 90901-79005 | ||||
| 91553-80620 | ||||
| 91673-A0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6704 | ||||

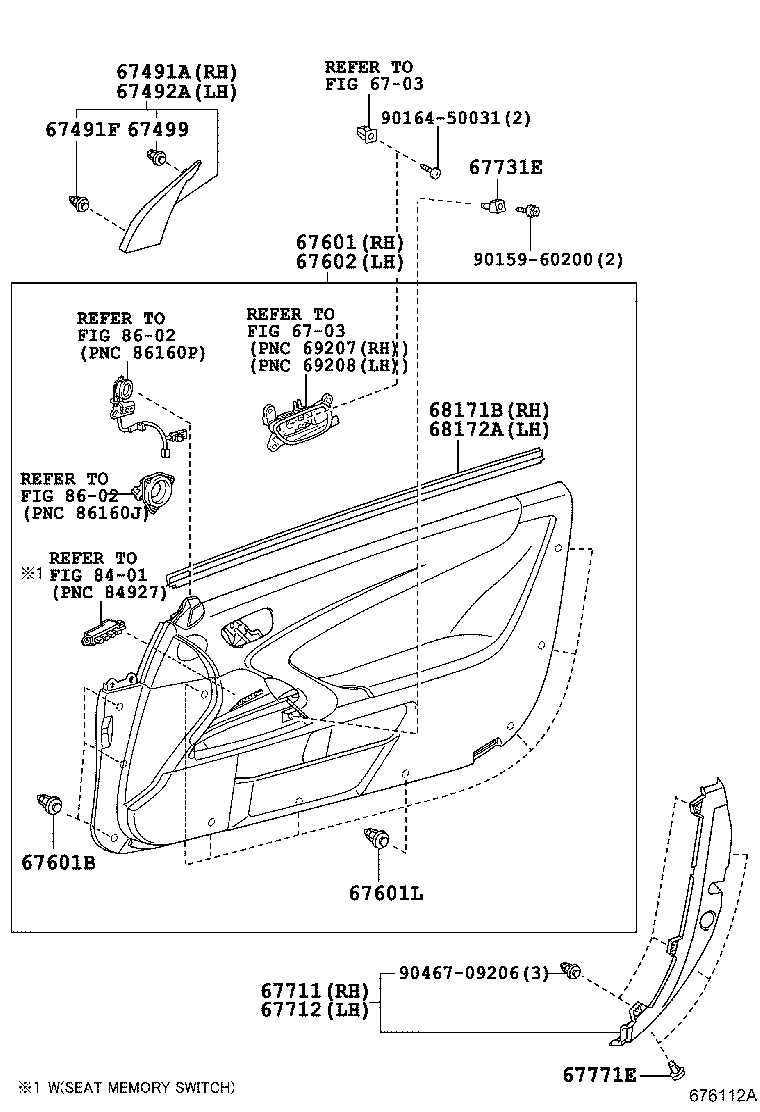

ILLUST NO. 2 OF 2(0904- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-53040 |
GSE20 |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-09206 |
GSE20 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-53040 |
GSE20 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12060 |
GSE20 |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-53780C3 |
GSE20 BLACK/BLACK,TRIM2# |
1 | ||
| 67610-53800C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67610-53790C2 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67610-53800C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-53810C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67610-53800C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67610-53800C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-53810C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67610-53810C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67610-53800C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67610-53810C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67610-5381020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67610-53810C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67610-5380020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67610-5380020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67610-53800C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/BLACK/SADDLETAN,TRIM4# |
1 | ||
| 67610-53790C3 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-53780C2 |
GSE20 BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67610-53810C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-53810C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67610-5381020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67610-53810C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67610-53800C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67610-53790C6 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 67610-53790C5 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53810C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53800C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67610-53810C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67610-53780C6 |
GSE20 BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 67610-53810C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67610-53810C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67610-53790C5 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53810C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-53810C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67610-53800C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53780C5 |
GSE20 BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53800C8 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67610-53800C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67610-53800C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67610-53800C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67610-53810C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53800C9 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67610-53790C6 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 67610-53800C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67610-5380026 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67610-53810C7 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53810C9 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67610-5381026 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67610-53810C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/MELWHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53800C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-53800C7 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67610-5381026 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67610-53810C8 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67610-5380026 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67610-53810C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67610-53810C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67610-53800C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67610-53810C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67610-53800C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67610-53810C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
GSE20 |
6 | ||
| 90467-09206 |
GSE20 |
6 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
GSE20 |
14 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-53780C3 |
GSE20 BLACK/BLACK,TRIM2# |
1 | ||
| 67620-53800C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67620-53800C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67620-53790C2 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67620-53780C2 |
GSE20 BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67620-53800C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK,TRIM2# |
1 | ||
| 67620-53790C3 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM2# |
1 | ||
| 67620-53810C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM2# |
1 | ||
| 67620-53800C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67620-53800C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67620-5380020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67620-53810C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67620-53810C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67620-53800C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53800C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/BLACK,TRIM2# |
1 | ||
| 67620-53810C4 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM1#,2#,4# |
1 | ||
| 67620-53810C4 |
GSE20..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK,TRIM2# |
1 | ||
| 67620-53810C3 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 67620-53800C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/BLACK/SADDLETAN,TRIM4# |
1 | ||
| 67620-5381020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67620-53800C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67620-53810C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-5381020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67620-53810C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67620-5380020 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED/BLACK,TRIM3# |
1 | ||
| 67620-53810C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67620-53810C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67620-53800C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67620-53810C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53780C5 |
GSE20 BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53790C5 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53810C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67620-53790C6 |
GSE20 AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 67620-53800C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67620-53790C6 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 67620-53810C7 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53810C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67620-53800C7 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53800C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67620-53800C8 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67620-53810C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM3# |
1 | ||
| 67620-53790C5 |
GSE20 AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53780C6 |
GSE20 BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 67620-53810C9 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67620-53810C8 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67620-53800C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/MEL WHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-53810C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67620-53810C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67620-53810C8 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 67620-53810C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67620-53800C9 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67620-5380026 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67620-53810C7 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/MELWHITE/MEL WHITE,TRIM0# |
1 | ||
| 67620-5380026 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67620-53800C6 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67620-53800C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67620-53800C9 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 67620-5381026 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER&AUDIO-AM/FM DVD 12SPEAKER,BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67620-5381026 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/DK.ROSE/BLACK,TRIM39 |
1 | ||
| 67620-53810C6 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)&AUDIO-AM/FM DVD 12SPEAKER,BLACK/BLACK/RED,TRIM33,34,35,36,37,38 |
1 | ||
| 67711 - COVER, FRONT DOOR TRIM, RH | ||||
| 67711-53020C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 67711-53021C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 67711-53020C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 67712 - COVER, FRONT DOOR TRIM, LH | ||||
| 67712-53020C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 67712-53020C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 67712-53021C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 67731E - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-53020 |
GSE20 |
2 | ||
| 67771E - RETAINER(FOR FRONT DOOR FRAME BRACKET) | ||||
| 67771-30110 |
GSE20 |
6 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-53030 |
GSE20 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-53030 |
GSE20 |
1 | ||
| Common parts | ||||
| 90159-60200 | ||||
| 90164-50031 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8401 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
