GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904- )

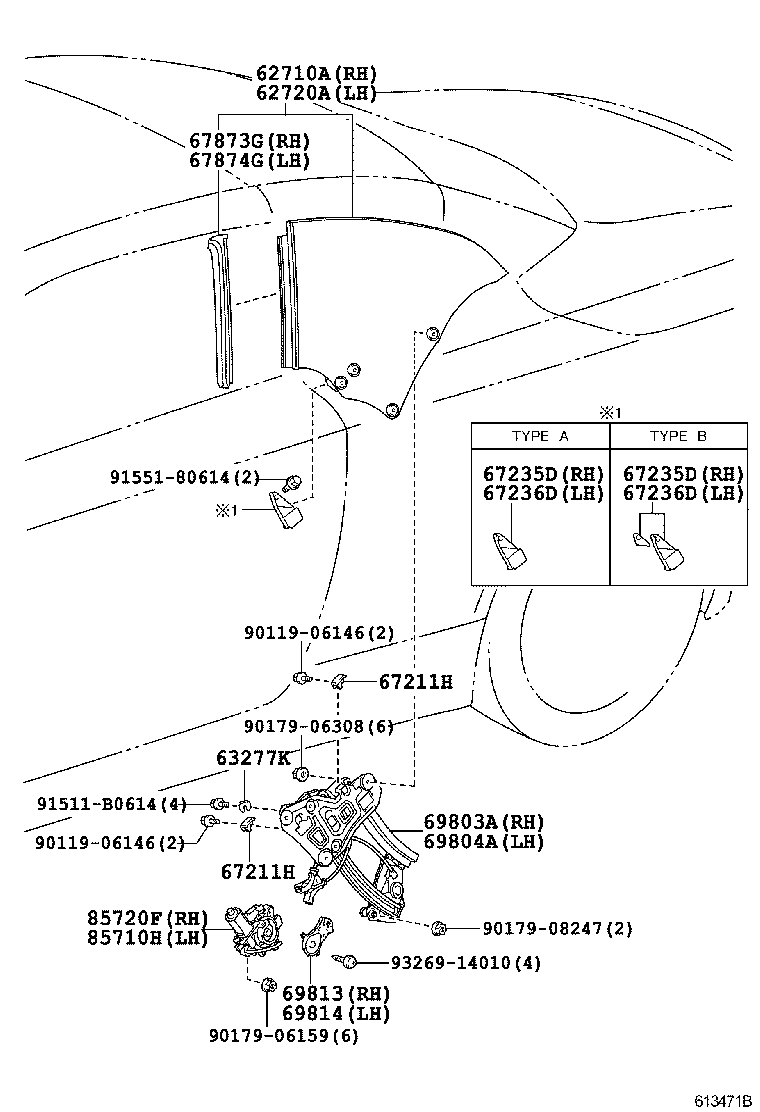

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62710A - WINDOW ASSY, QUARTER, RH | ||||
| 62710-53080 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 62710-53081 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 62720A - WINDOW ASSY, QUARTER, LH | ||||
| 62720-53071 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 62720-53070 |
GSE20 *UVCT,T=5.0,GREEN |
1 | ||
| 63277K - SHIM, QUARTER WINDOW | ||||
| 63277-30060 |
GSE20 |
1 | ||
| 67211H - STOP, QUARTER WINDOW | ||||
| 67211-24020 |
GSE20 |
4 | ||
| 67211H - STOP, QUARTER WINDOW | ||||
| 67211-24020 |
GSE20 |
4 | ||
| 67235D - STABILIZER, QUARTER WINDOW GLASS FEMALE, RH | ||||
| 67235-53020 |
GSE20 TYPE A:REFER ILLUST. |
1 | ||
| 67235-53020 |
GSE20 |
1 | ||
| 67235-53040 |
GSE20 TYPE B:REFER ILLUST. |
1 | ||
| 67235D - STABILIZER, QUARTER WINDOW GLASS FEMALE, RH | ||||
| 67235-53020 |
GSE20 TYPE A:REFER ILLUST. |
1 | ||
| 67235-53020 |
GSE20 |
1 | ||
| 67235-53040 |
GSE20 TYPE B:REFER ILLUST. |
1 | ||
| 67236D - STABILIZER, QUARTER WINDOW GLASS FEMALE, LH | ||||
| 67236-53010 |
GSE20 |
1 | ||
| 67236-53010 |
GSE20 TYPE A:REFER ILLUST. |
1 | ||
| 67236-53030 |
GSE20 TYPE B:REFER ILLUST. |
1 | ||
| 67236D - STABILIZER, QUARTER WINDOW GLASS FEMALE, LH | ||||
| 67236-53010 |
GSE20 |
1 | ||
| 67236-53010 |
GSE20 TYPE A:REFER ILLUST. |
1 | ||
| 67236-53030 |
GSE20 TYPE B:REFER ILLUST. |
1 | ||
| 67873G - WEATHERSTRIP, QUARTER WINDOW, FRONT RH | ||||
| 67873-53011 |
GSE20 |
1 | ||
| 67873-53010 |
GSE20 |
1 | ||
| 67874G - WEATHERSTRIP, QUARTER WINDOW, FRONT LH | ||||
| 67874-53011 |
GSE20 |
1 | ||
| 67874-53010 |
GSE20 |
1 | ||
| 69803A - REGULATOR SUB-ASSY, QUARTER WINDOW, RH | ||||
| 69803-53030 |
GSE20 |
1 | ||
| 69804A - REGULATOR SUB-ASSY, QUARTER WINDOW, LH | ||||
| 69804-53030 |
GSE20 |
1 | ||
| 69813 - BRACKET, REAR QUARTER POWER REGULATOR, FRONT RH | ||||
| 69813-33010 |
GSE20 |
1 | ||
| 69814 - BRACKET, REAR QUARTER POWER REGULATOR, FRONT LH | ||||
| 69813-33010 |
GSE20 |
1 | ||
| 85710H - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-53080 |
GSE20 |
1 | ||
| 85720F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-53080 |
GSE20 |
1 | ||
| Common parts | ||||
| 90119-06146 | ||||
| 90179-06159 | ||||
| 90179-06308 | ||||
| 90179-08247 | ||||
| 91511-B0614 | ||||
| 91551-80614 | ||||
| 93269-14010 | ||||
