GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

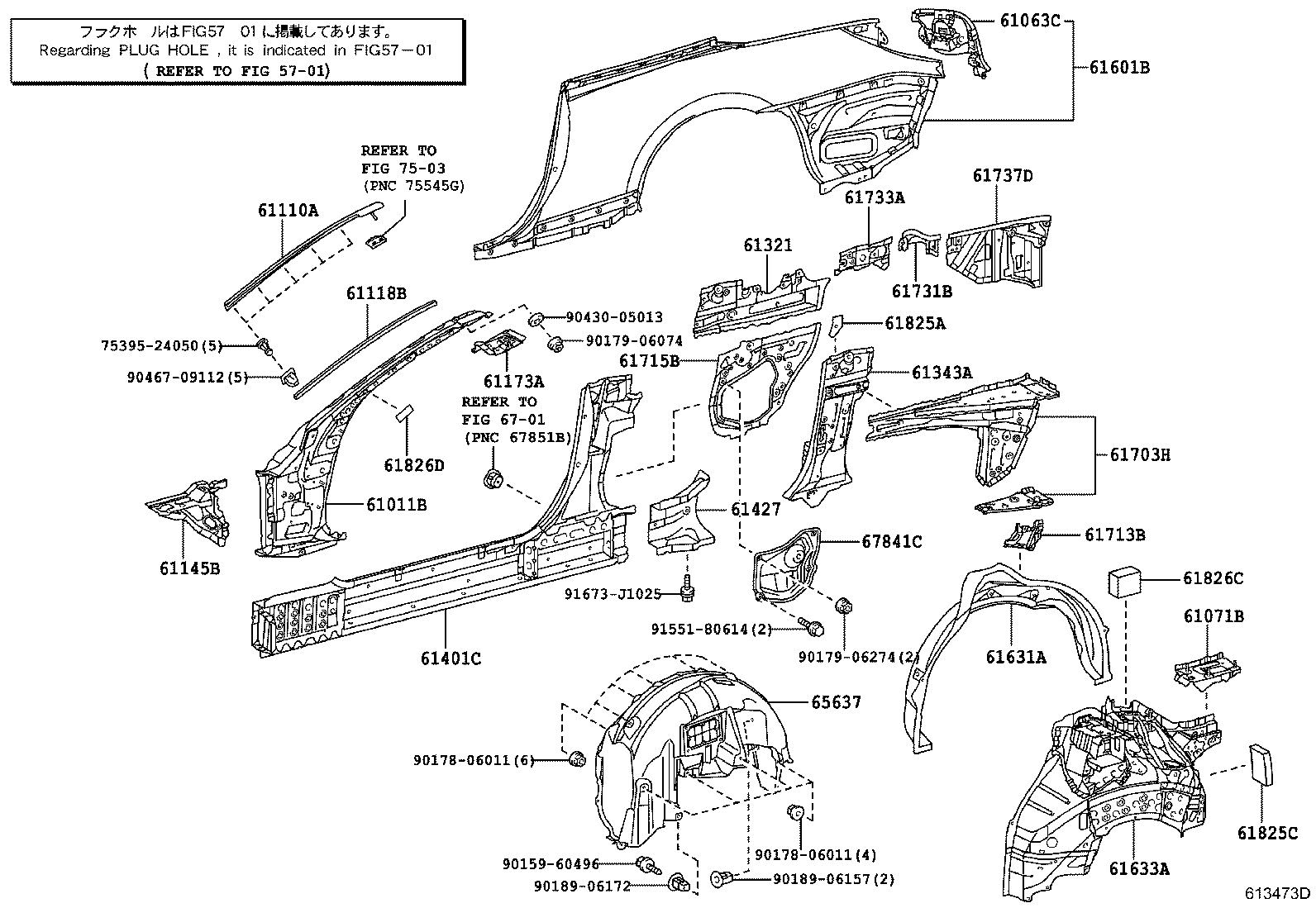

ILLUST NO. 1 OF 2(0904- )
Click highlighted areas on diagram
RH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61011B - PANEL SUB-ASSY, SIDE, OUTER RH | ||||
| 61106-53902 |
GSE20 |
1 | ||
| 61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH | ||||
| 61063-53020 |
GSE20 |
1 | ||
| 61071B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61071-53020 |
GSE20 |
1 | ||
| 61110A - PILLAR ASSY, FRONT BODY, OUTER RH | ||||
| 61110-53010 |
GSE20 |
1 | ||
| 61118B - SEAL, FRONT BODY PILLAR TO FRONT FENDER, RH | ||||
| 61118-53010 |
GSE20 |
2 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61015-53020 |
GSE20 |
1 | ||
| 61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61173-53030 |
GSE20 |
1 | ||
| 61321 - REINFORCEMENT, CENTER BODY PILLAR, UPPER RH | ||||
| 61321-53030 |
GSE20 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61303-53010 |
GSE20 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-53903 |
GSE20 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-53030 |
GSE20 |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-53080 |
GSE20 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-53040 |
GSE20 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-53900 |
GSE20 |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-53900 |
GSE20 |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-53020 |
GSE20 |
1 | ||
| 61715B - EXTENSION, ROOF SIDE, INNER FRONT RH | ||||
| 61715-53010 |
GSE20 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-53050 |
GSE20 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-53010 |
GSE20 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-53030 |
GSE20 |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-53030 |
GSE20 |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-53040 |
GSE20 |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-24020 |
GSE20 |
3 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
GSE20 |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-53020 |
GSE20 |
1 | ||
| 67841C - COVER, QUARTER SERVICE HOLE, RH | ||||
| 67841-53040 |
GSE20 |
1 | ||
| Common parts | ||||
| 75395-24050 | ||||
| 90159-60496 | ||||
| 90178-06011 | ||||
| 90179-06074 | ||||
| 90179-06274 | ||||
| 90189-06157 | ||||
| 90189-06172 | ||||
| 90430-05013 | ||||
| 90467-09112 | ||||
| 91551-80614 | ||||
| 91673-J1025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6701 | ||||
| 7503 | ||||

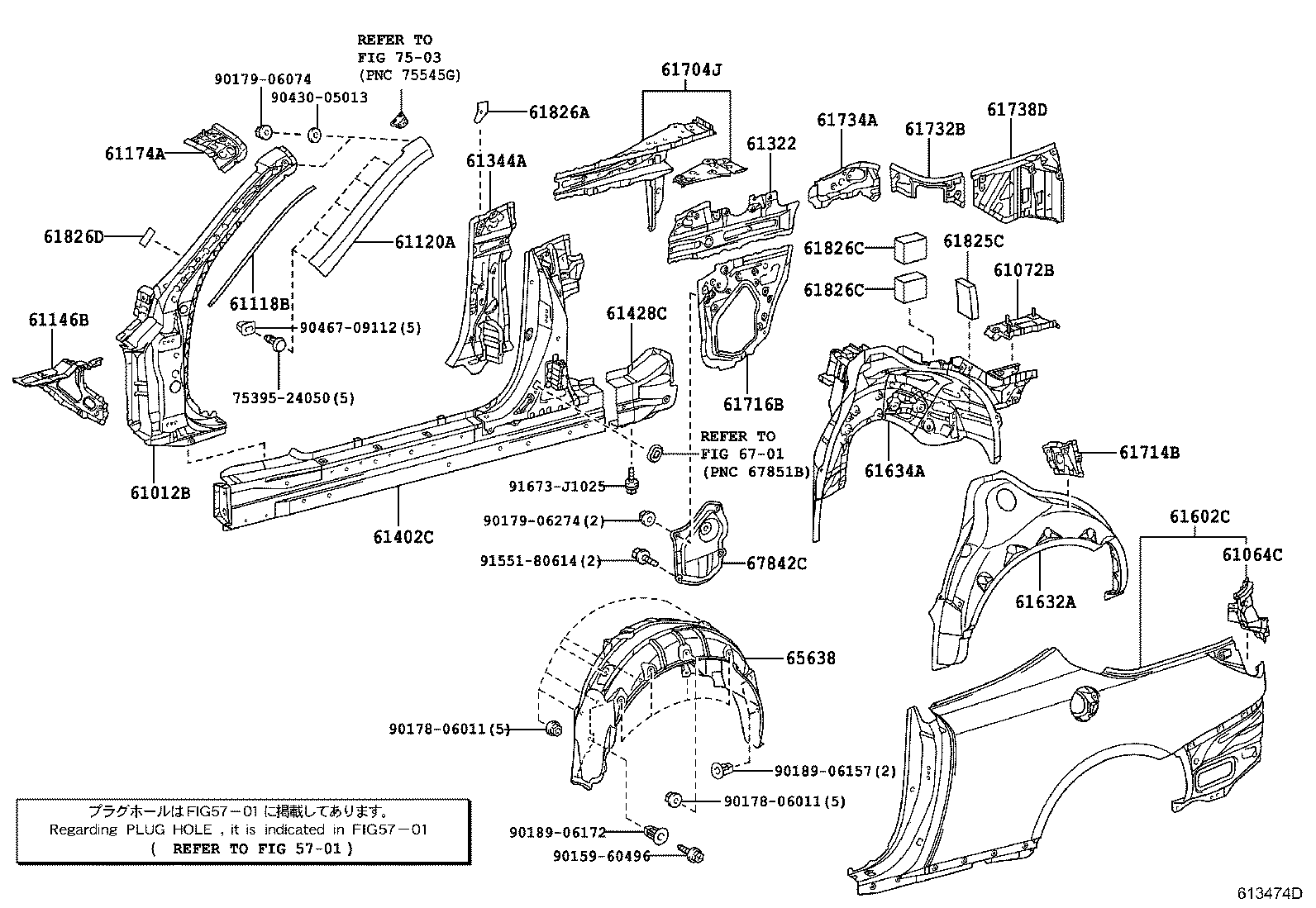

ILLUST NO. 2 OF 2(0904- )
Click highlighted areas on diagram
LH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61012B - PANEL SUB-ASSY, SIDE, OUTER LH | ||||
| 61107-53902 |
GSE20 |
1 | ||
| 61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH | ||||
| 61064-53020 |
GSE20 |
1 | ||
| 61072B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61072-53020 |
GSE20 |
1 | ||
| 61118B - SEAL, FRONT BODY PILLAR TO FRONT FENDER, RH | ||||
| 61118-53010 |
GSE20 |
2 | ||
| 61120A - PILLAR ASSY, FRONT BODY, OUTER LH | ||||
| 61120-53010 |
GSE20 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61016-53020 |
GSE20 |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-53030 |
GSE20 |
1 | ||
| 61322 - REINFORCEMENT, CENTER BODY PILLAR, UPPER LH | ||||
| 61322-53030 |
GSE20 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61304-53010 |
GSE20 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-53903 |
GSE20 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-53030 |
GSE20 |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-53060 |
GSE20 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-53040 |
GSE20 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-53900 |
GSE20 |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-53900 |
GSE20 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-53020 |
GSE20 |
1 | ||
| 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH | ||||
| 61716-53010 |
GSE20 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-53040 |
GSE20 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-53010 |
GSE20 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-53030 |
GSE20 |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-53040 |
GSE20 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-53020 |
GSE20 |
1 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-24020 |
GSE20 |
3 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-24020 |
GSE20 |
3 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
GSE20 |
2 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-53020 |
GSE20 |
1 | ||
| 67842C - COVER, QUARTER SERVICE HOLE, LH | ||||
| 67842-53040 |
GSE20 |
1 | ||
| Common parts | ||||
| 75395-24050 | ||||
| 90159-60496 | ||||
| 90178-06011 | ||||
| 90179-06074 | ||||
| 90179-06274 | ||||
| 90189-06157 | ||||
| 90189-06172 | ||||
| 90430-05013 | ||||
| 90467-09112 | ||||
| 91551-80614 | ||||
| 91673-J1025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6701 | ||||
| 7503 | ||||
